SERIN/CCB 基础私服系统训练仪（直流电机）

2.4.2.- 电伺服 6.1.2.2.- 电力电子与工业电子
SERVOSYSTEMS BASIC UNIT FOR DC MOTORS - SERIN/CCB

創新系統

The Servosystems Basic Unit for DC Motors, "SERIN/CCB", is an unit whose goal is studying low power servo systems. It is a low power DC motor speed control trainer that has a breakdown simulator.

查看一般說明

扩展

ICAI

交互式计算机辅助教学软件
ELK

EDIBON软件开发工具包，由NI LabVIEW™提供支持
ECR

EDIBON的模块化工业系统与NI CompactRIO

相關新聞

EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
阅读更多
Completion of the Small Laboratory Equipment Repair Course
Completion of the Small Laboratory Equipment Repair Course
On December 1st, the Repair Course for Small Laboratory Equipment, taught by our engineers at the EDIBON facilities, was completed, lasting 4 days. The attendees, (Laboratory technicians and maintenance of the Rey Juan Carlos University of Madrid) had the opportunity to perform multiple...
阅读更多

一般說明

The Servosystems Basic Unit for DC Motors, "SERIN/CCB", is an unit whose goal is studying low power servo systems. It is a low power DC motor speed control trainer that has a breakdown simulator.

This unit is a basic version of the Computer Controlled Advanced Industrial Servosystem Unit (for DC Motors), "SERIN/CC", being advisable for an introductory study of closed and open loop control systems.

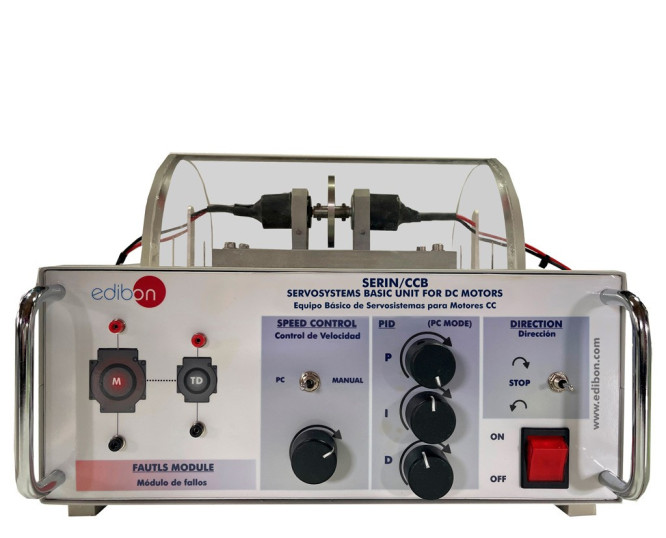

It consists of an electromechanical unit with an DC motor and a tachometer, attached through an inertial wheel, mounted on a steel box that contains the power stage and the acquisition and control board, as well as the supervision and control software.

This set allows open and closed loop control, control and generation of command variable, ramp generator, proportional error amplifier and PID, current limiter, PWM modulator, turn inversion control, start and stop control, braking control, and breakdown simulator, that allows introducing a great number of dysfunctions so that students may diagnose nature and location of the fault, without risking the integrity of the unit.

Unit control may be done manually, on the unit itself, basically or in a more advance way through the control software SCADA. This control software can do two kinds of control:

Open-loop and Closed-loop control.

The base unit has four different parts as seen on the front panel:

Connection zone for motor and tachogenerator.

Manual or Compute rised Speed control. There is a lever-like switch for selecting the kind of control.

PID zone. Here, the values of the PID constants can be manipulated (Proportional, Integral and Derivative). This functionality is only available for PC mode, the speed control lever has to point to PC.

Turning and stop control zone. Allows changing the turning sense and stopping the motor.

Simple integrated circuits to be able to analyse independently each functional stage.

Visible components with 2 mm connectors for voltage and current measurement.

Control through PWM pulses and power stage configured with MOSFET transistors.

練習和指導練習

手册中包含的指导实践练习

  1. Open loop control response.
  2. Demonstration of a bracking ramp functioning.
  3. Functioning of a PWM modulator and the response of the system.
  4. Closed loop or feedback control through a Proportional control (P).
  5. Closed loop or feedback control through a Derivative control (D).
  6. Closed loop or feedback control through a Proportional-Integralcontroller (PI).
  7. Closed loop or feedback control through a Proportional-Derivative controller (PD).
  8. Achievement of an over damped system using a closed loopsystem.
  9. Achievement of a critically damped system using a closed loopPID.
  10. Instability, a characteristic of closed loop systems.
  11. Stabilisation of an unstable system.
  12. Faults simulation: Type of faults including on the unit:
  • Fault 1: The absolute value of the feedback signal from the tachogenerator is not calculated for its subtraction from the reference, thus, for one of the turning senses, the error is wrong.
  • Fault 2: The value of the Proportional constant of the PID is divided by ten with the user unable to detect it but its effect.
  • Fault 3: The value of the Integral constant of the PID is divided by ten with the user unable to detect it but its effect.
  • Fault 4: The value of the Derivative constant of the PID is divided by ten with the user unable to detect it but its effect.
  • Fault 5: The signal from the tachogenerator is modified, making the PID control to believe that the speed is ten times lower to the real one. None of these faults are exclusive, being possible to combine them.

与该单位进行更多实际操作

  1. Several other exercises can be done and designed by the user.
