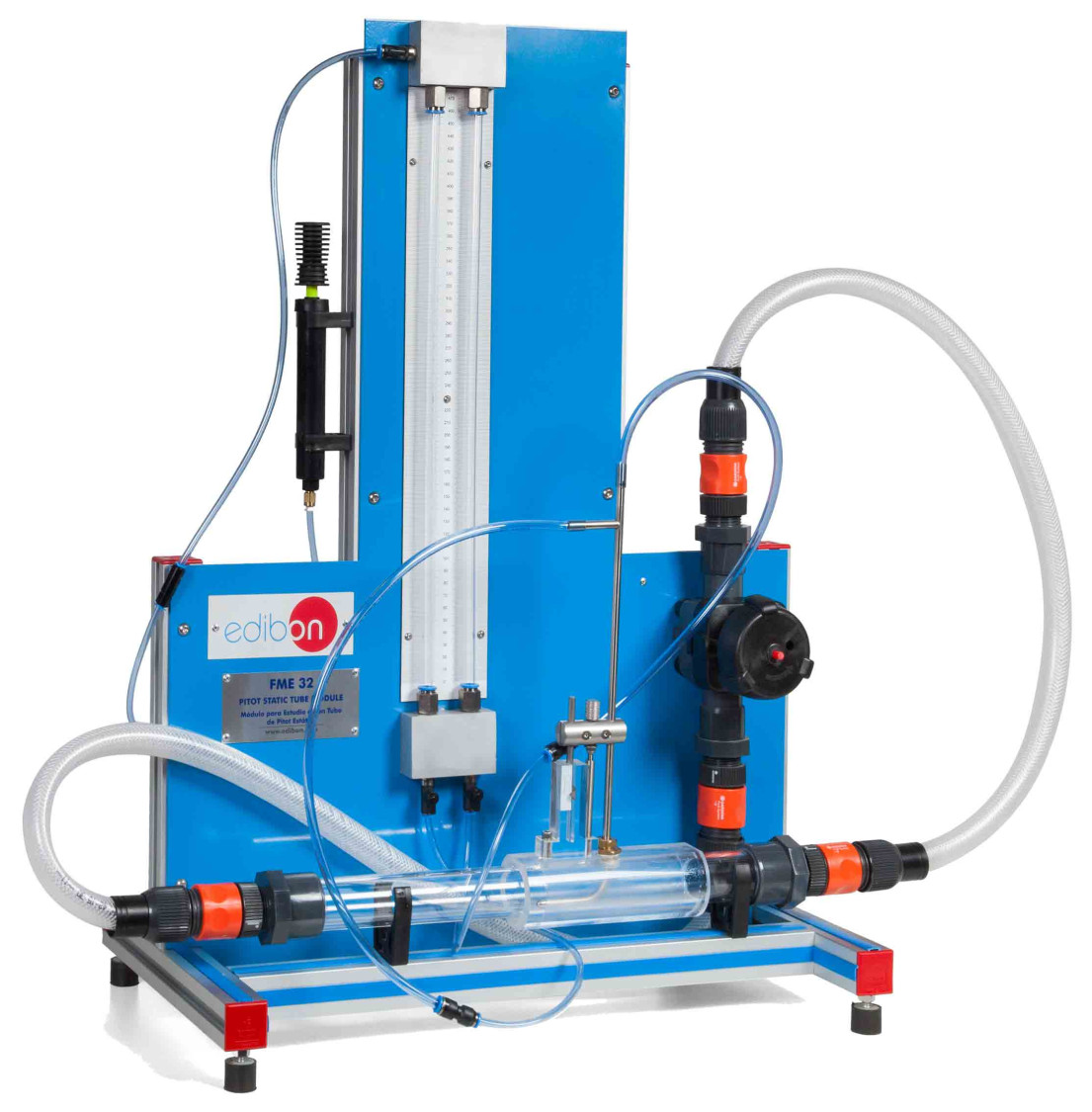

Complete FME32 Unit

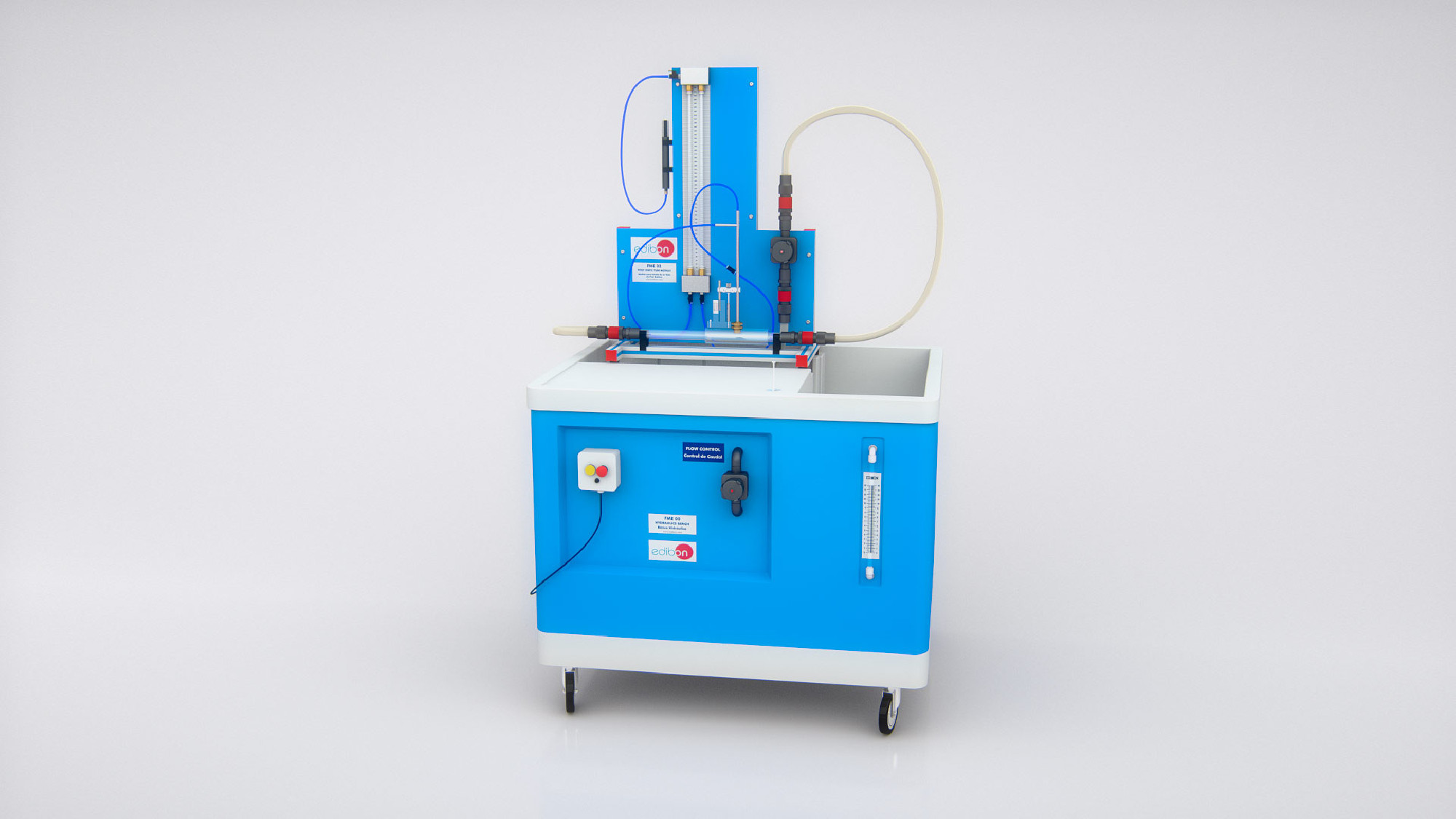

FME32 Unit with service unit FME00

創新系統

The Static Pitot Tube, "FME32", designed by EDIBON, the change in flow speed within a tube can be determined.

查看一般說明

比赛规格

扩展

ICAI

交互式计算机辅助教学软件

MSAC

模块化采集与控制系统

化验室

8TV

技术和职业教育流体力学实验室。

8HE

高等教育流体力学实验室

一般說明

The Static Pitot Tube, "FME32", designed by EDIBON, the change in flow speed within a tube can be determined.

The Pitot static tube can be moved across the whole cross-section of the tube, and thus to measure the pressure profile.

This tube is connected to manometers via hoses.

The position of the measuring head relative to the bottom edge of the tube can be measured on a scale.

The water supply can come from the Hydraulics Bench (FME00) or from the Basic Hydraulic Feed System (FME00/B).

練習和指導練習

手册中包含的指导实践练习

Study of the function of a pitot static tube.
To use a pitot static tube.
Determination of tube flow speed profiles.
Demonstration that the flow speed is proportional to the pressure difference between the total pressure and the static pressure.
Error determination in flow measurements using the Pitot tube as measurement instrument.
Factor Cd determination in the Pitot tube.

所需物品

配套设备

BASIC FLUIDS MECHANICS INTEGRATED LABORATORY - LIFLUBA

LIFLUBA
