THICK WALLED CYLINDER UNIT - MCPG

創新系統

The Thick-Walled Cylinder Unit, "MCPG", has been designed to study stresses and strains in a thick-walled cylinder under internal pressures.

查看一般說明

扩展

ICAI

交互式计算机辅助教学软件
MSAC

模块化采集与控制系统

相關新聞

EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
阅读更多
NEW Basic Mechanics course
NEW Basic Mechanics course
Are you a teacher or do you work as an engineering researcher? EDIBON offers courses for teachers and #research staff. Take a look at the course Basic Mechanics and learn about #forces and vectors. #DiscoverEdibon #Engineering.
阅读更多

一般說明

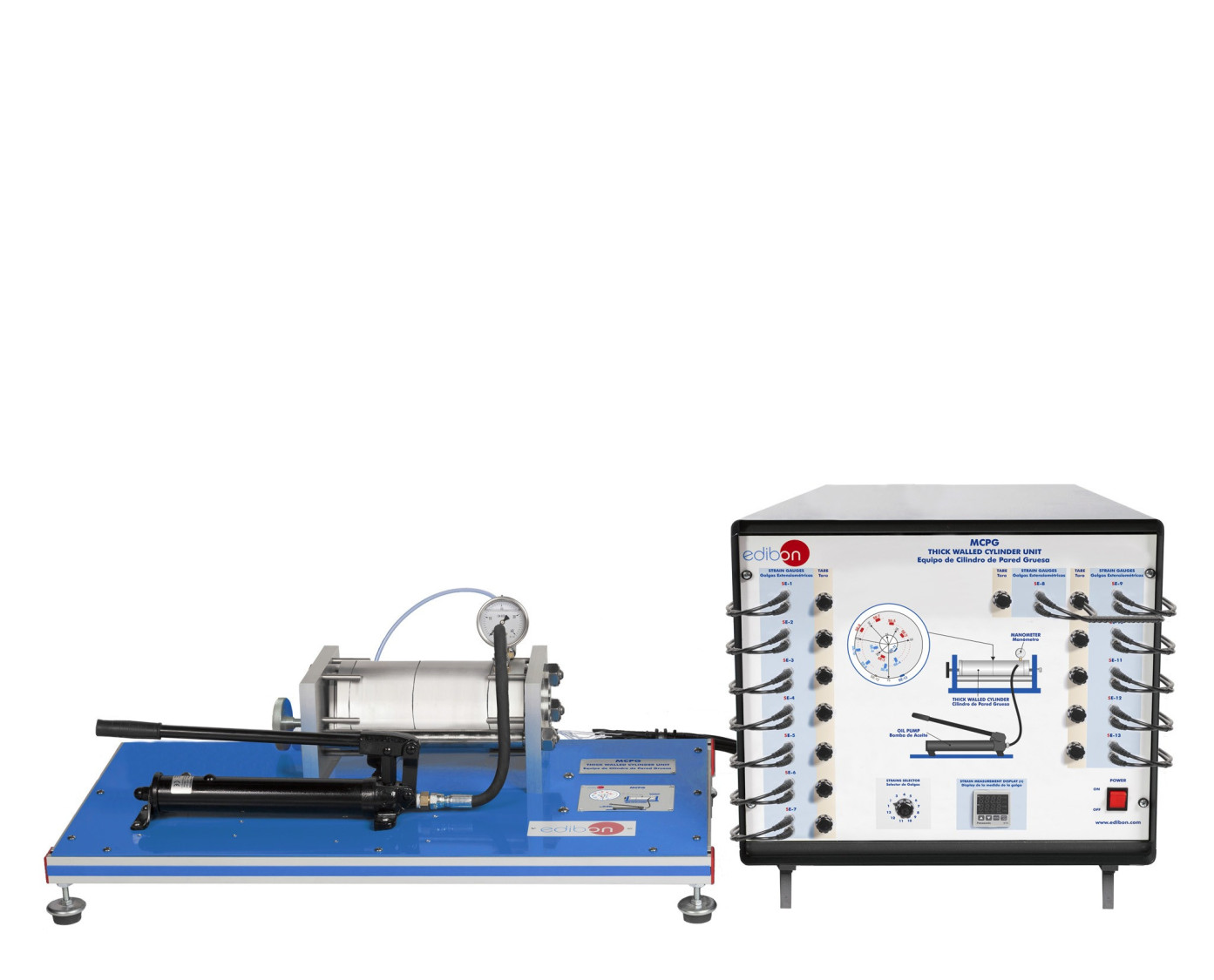

In the Thick-Walled Cylinder Unit, "MCPG", the stresses are determined through the measurement of the strains produced on the surface. These strains are measured by strain gauges.
