MEVLB Unit for Studying Free Vibration of a Bar

7.1.4.- 振动和振荡 14.1.4.- 振动和振荡
UNIT FOR STUDYING FREE VIBRATION OF A BAR - MEVLB

創新系統

The Unit for Studying Free Vibration of a Bar,"MEVLB", allows to study the features of the free vibrations of a bending bar.

查看一般說明

扩展

ICAI

交互式计算机辅助教学软件
MSAC

模块化采集与控制系统

相關新聞

EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
阅读更多
NEW Basic Mechanics course
NEW Basic Mechanics course
Are you a teacher or do you work as an engineering researcher? EDIBON offers courses for teachers and #research staff. Take a look at the course Basic Mechanics and learn about #forces and vectors. #DiscoverEdibon #Engineering.
阅读更多

一般說明

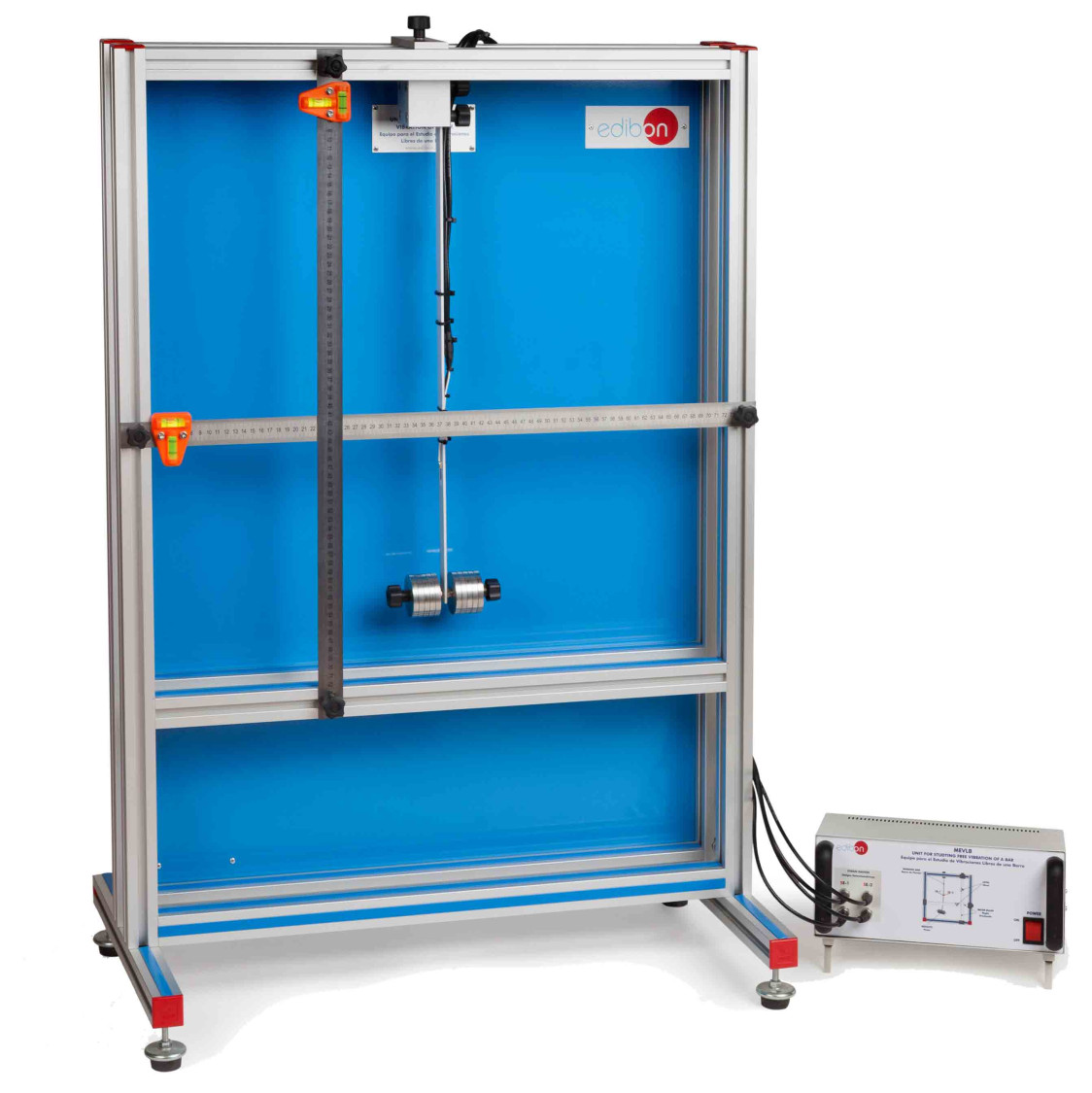

The Unit for Studying Free Vibration of a Bar,"MEVLB", allows to study the features of the free vibrations of a bending bar.

The natural frequency of the bending bar can be modified adding additional loads at the free end of a bar or varying the free clamping length.

The bar is manually deviated to start damped vibrations. The oscillation amplitudes can be measured with the strain gauges. The initial amplitude and free length of the bar are measured with two metering rules.

The bending bar can be mounted horizontally or vertically in any side of the frame.

The unit includes software for data acquisition and to study the oscillation motion, allowing the plotting of the oscillations and the obtaining of the main parameters that define them.

練習和指導練習

手册中包含的指导实践练习

  1. Study of free vibration of a horizontal bending bar.
  2. Study of free vibration of a vertical bending bar.
  3. Determination of natural frequencies of a bending bar according to Rayleigh's method and comparison with the experiment.
  4. Study of the influence of weight on natural frequencies and other parameters of oscillation.
  5. Study of the influence of clamping length on natural frequencies and other parameters of oscillation.
