The Unit to Study a Shaft with Journal Bearings Assembly, "SJBA", enables the study of practical assembly and disassembly, maintenance and repair tasks of a simple slide bearing, so that the student will know perfectly both the unit operation and all of its components.
相關新聞
一般說明

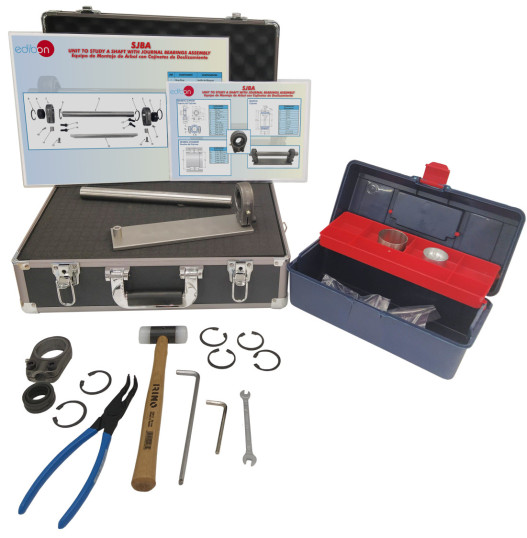

The Unit to Study a Shaft with Journal Bearings Assembly, "SJBA", unit consists of two shaft bearings at the ends and a ground steel shaft. The slide bearing consists of two parts, the bearing itself, which is the part of the assembly that is in contact with the shaft, and the support that surrounds it.
The study of bearings is intimately linked to the study of the lubricant film that is placed between the moving parts. An easy construction of the bearings is possible thanks to the lubrication. This lubrication can be provided, for example, by a grease that is supplied to the bearing through the Stauffer bushing that is screwed into a lubrication channel.
The Unit to Study a Shaft with Journal Bearings Assembly, "SJBA", unit is a mechanism with two bearings and a dismountable ground steel shaft, with which dimensional and exploded drawings are enclosed for identification of its parts. In addition, the necessary tools and a series of instructions for the correct assembly and disassembly of the unit are supplied.
A case is provided to facilitate transportation and to ensure the protection of components needed.
練習和指導練習
手册中包含的指导实践练习
- Study of the operation of a simple slide bearing.
- Analysis of the structure of a simple slide bearing.
- Study and understanding of the sealing components.
- Study and analysis of the principles and different types of lubrication.
- Study and performance of assembly and disassembly exercises, as well as repair and maintenance.
- Reading comprehension of technical drawings and instruction manuals.
与该单位进行更多实际操作
- Study and analysis of the sliding qualities of the slide bearing (requires ADSG).
配套设备
7.4.2.- 可拆卸模型
HJBA

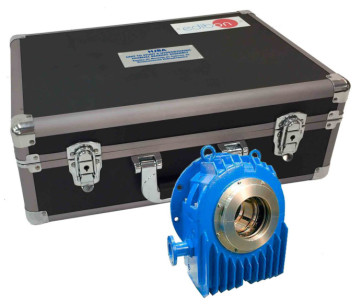

The Unit to Study a Hydrodynamic Journal Bearing Assembly, "HJBA", is a horizontally sectioned hydrodynamic bearing. For an even transfer of the generated forces to the lower part of the bearing case, the bearings in said case are supported by a...
7.4.2.- 可拆卸模型
SGA
直齿轮传动装置安装设备

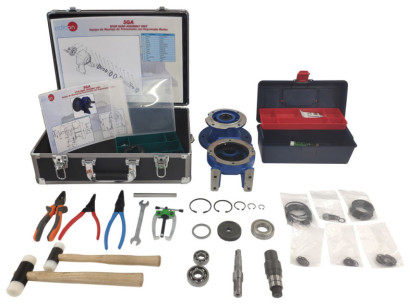

The Spur Gear Assembly Unit, "SGA", consists of a spur gear with spiral gearing. The gear consists of a single reduction stage and a fixed transmission ratio. It is a gear unit composed of: driving and driven shafts, drive wheel and pinion,...
7.4.2.- 可拆卸模型
CGA
组合齿轮装置安装设备

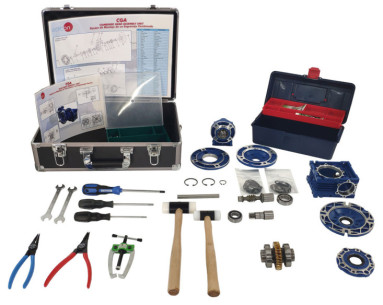

A combined gear is a two or more stage gear with different types of gears. Combined gears play an important role in all kinds of industrial machines. Some of the most noteworthy applications are, for example, in elevators, car industry, transport...
