UNIT TO STUDY STRESS ON A MEMBRANE - SSM

創新系統

The Unit to Study Stress on a Membrane, "SSM", designed by EDIBON, allows the study of stresses and deformations in a thin disc or membrane subjected to different compressive stresses.

查看一般說明

扩展

ICAI

交互式计算机辅助教学软件

相關新聞

EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
阅读更多
NEW Basic Mechanics course
NEW Basic Mechanics course
Are you a teacher or do you work as an engineering researcher? EDIBON offers courses for teachers and #research staff. Take a look at the course Basic Mechanics and learn about #forces and vectors. #DiscoverEdibon #Engineering.
阅读更多

一般說明

The Unit to Study Stress on a Membrane, "SSM", designed by EDIBON, allows the study of stresses and deformations in a thin disc or membrane subjected to different compressive stresses.

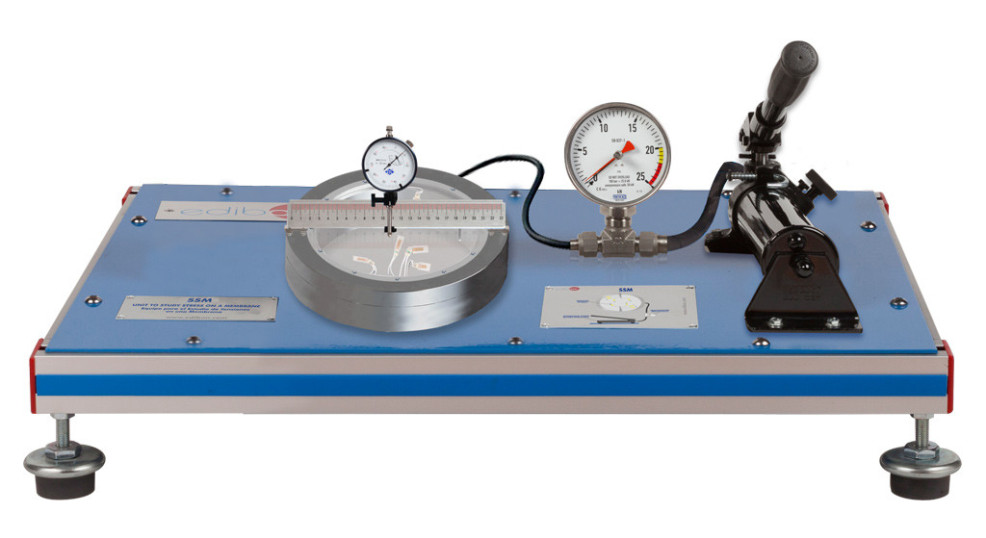

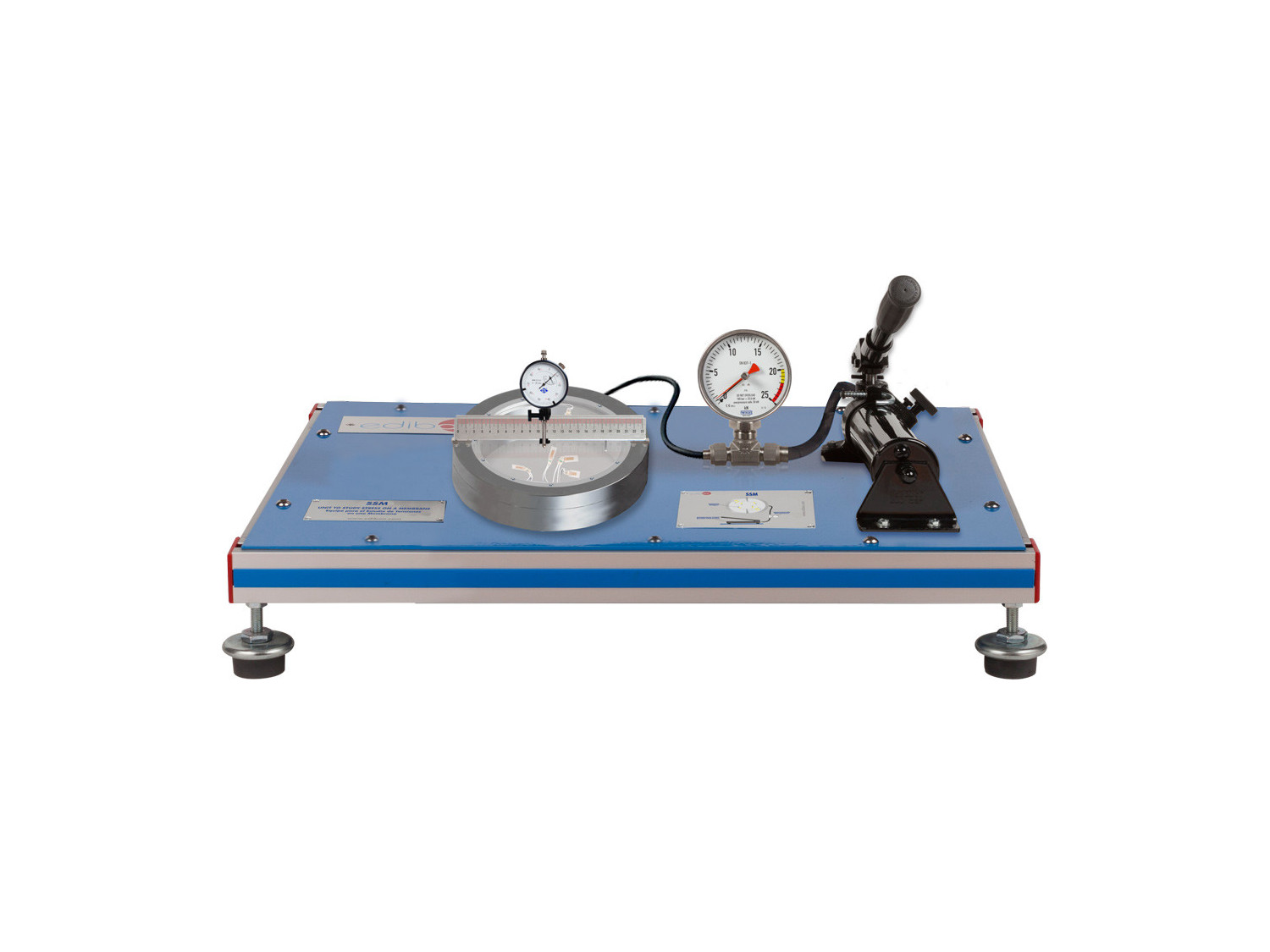

The main element of the equipment is a thin disc or membrane that is subjected to pressure and has eight strain gauges attached to its surface that allow the recording of the deformations produced.

A hydraulic system generates the pressure by means of a cylinder and a piston, which is measured by means of a manometer.

In addition, it is also possible to measure the deflection produced in the disc or membrane by means of a dial gauge which can be moved along the entire length of the thin disc. Curvature can be measured at any radius.

練習和指導練習

手册中包含的指导实践练习

  1. Measurement of radial and shear stresses with strain gauges.
  2. Measurement of deflections with dial gauges.
  3. Calculation of radial and shear stresses from the measured deflections.
  4. Study of the direction of principal stress.
  5. Study of deformation
