一般說明

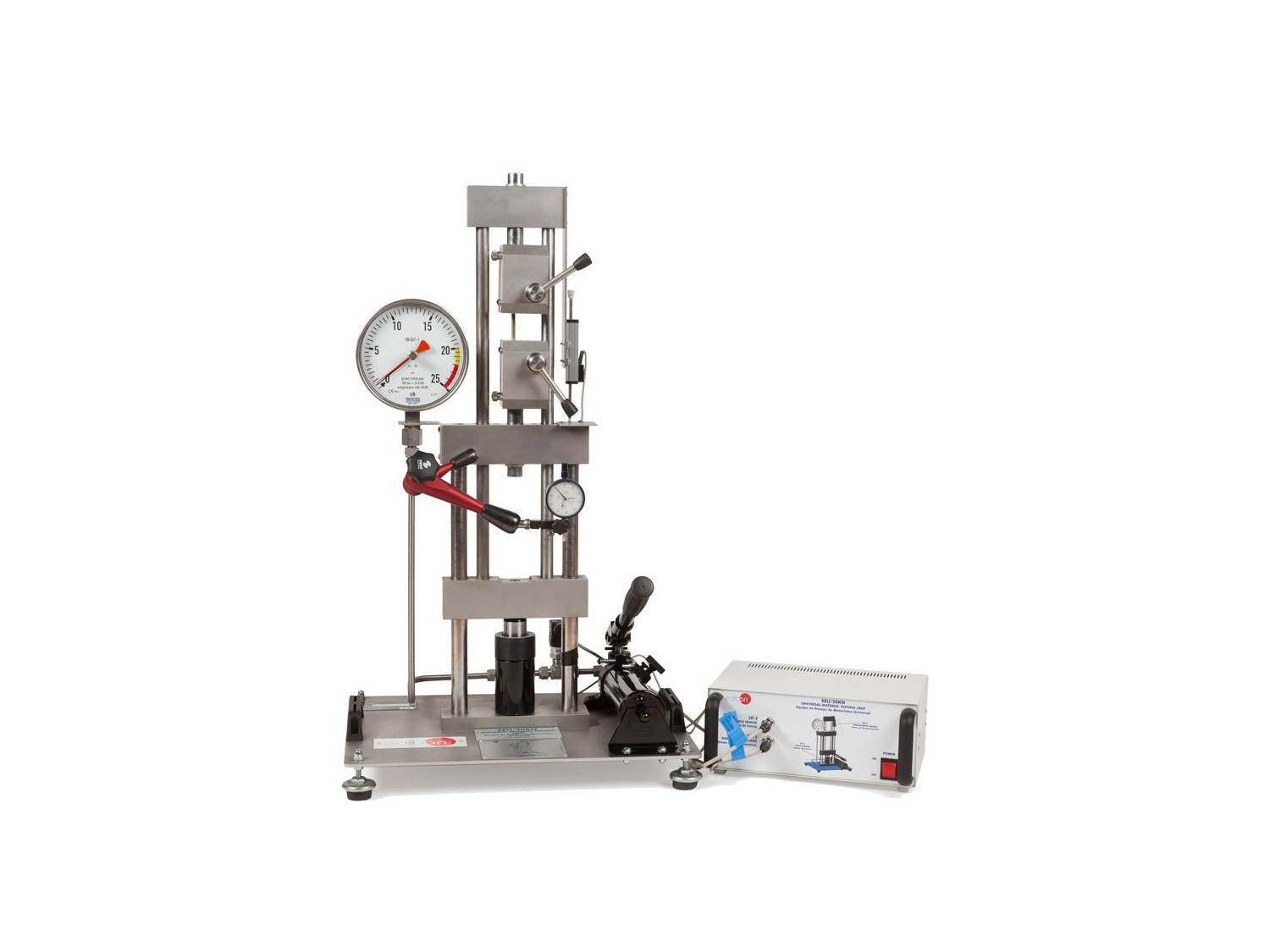

The Universal Material Testing Unit, "EEU/20KN", is a didactic bench-top universal material testing unit. It is distinguished by its rigid construction, accurate control and a precise hydraulic system to apply loads of up to 20 kN, which enables demonstrations of phenomena undetectable under smaller loads.

With this unit the student can perform these material tests:

  • Shear test.
  • Brinell hardness test.
  • Compression test.
  • Tensile test.
  • Deep draw (cupping) test.
  • Bending test.
  • Disc and helical spring tests.

It allows achieving testing forces up to 20 kN with very little physical effort.

The measurements can be obtained either manually through an elongation gauge and a dynamometer or through the computer data acquisition system giving accurate real-time data capture, monitoring and display, calculation and results representations on the computer.

練習和指導練習

手册中包含的指导实践练习

  1. Learning how to use the instrumentation required to perform the main tests on materials.
  2. Study and familiarization with universal material testing machines.
  3. Tensile strength tests.
  4. Compressive strength tests.
  5. Brinell hardness tests.
  6. Bending tests.
  7. Shear tests.
  8. Deep draw (cupping) tests.
  9. Tests with disc springs.
  10. Tests with helical springs either in series or in parallel.
  11. Recording stress-strain diagrams.
  12. Using the computer data acquisition system.
