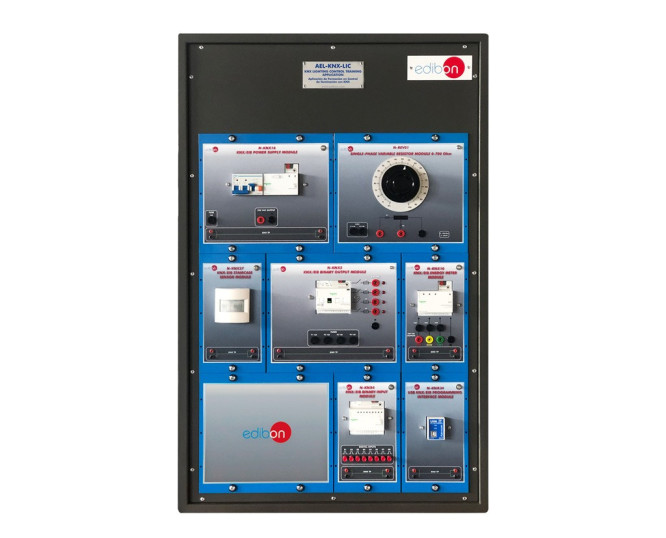

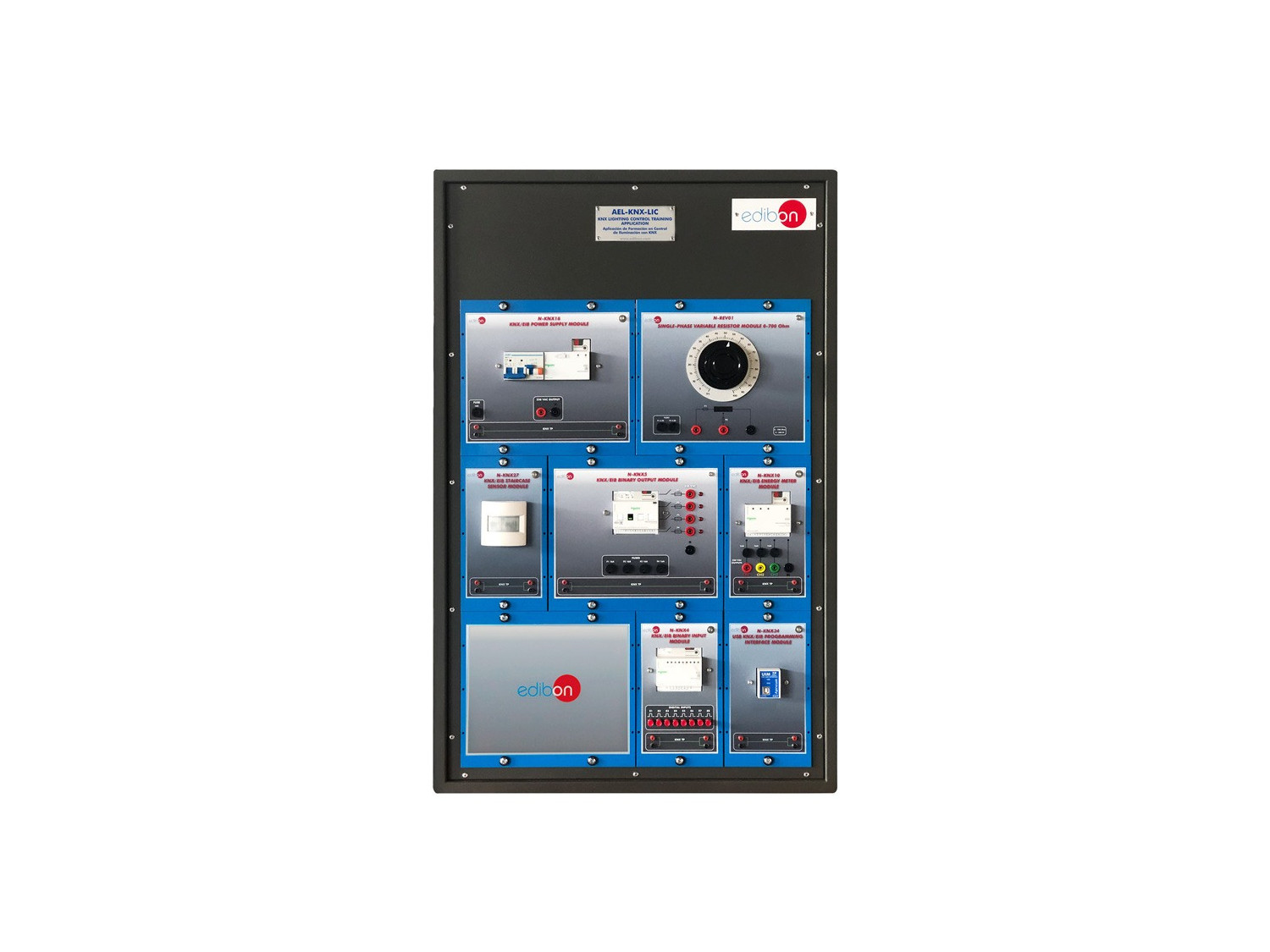

AEL-KNX-LIC KNX-Anwendung für die Beleuchtungssteuerungsschulung

4.2.4.- INTELLIGENTE KNX / EIB-STEUERUNG
KNX LIGHTING CONTROL TRAINING APPLICATION - AEL-KNX-LIC

INNOVATIVE SYSTEME

The AEL-KNX-LIC is an application designed to facilitate the study and understanding of KNX wiring practices specifically tailored for lighting control systems. This unit serves as a valuable tool for educational and professional purposes, providing hands-on experience and knowledge of the wiring, programming and commissioning techniques associated with KNX technology in the context of lighting control applications.
