RADIAL PRESSURE DISTRIBUTION IN A JOURNAL BEARING - MEMT-1

INNOVATIVE SYSTEME

This unit allows the visualization of the radial pressure distribution in a journal bearing with hydrodynamic lubrication.

Allgemeine Beschreibung anzeigen

Erweiterungen

ICAI

Interaktive Computerunterrichtssoftware

ÄHNLICHE NEUIGKEITEN

EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
Lesen Sie mehr
NEW Basic Mechanics course
NEW Basic Mechanics course
Are you a teacher or do you work as an engineering researcher? EDIBON offers courses for teachers and #research staff. Take a look at the course Basic Mechanics and learn about #forces and vectors. #DiscoverEdibon #Engineering.
Lesen Sie mehr

ALLGEMEINE BESCHREIBUNG

This unit allows the visualization of the radial pressure distribution in a journal bearing with hydrodynamic lubrication.

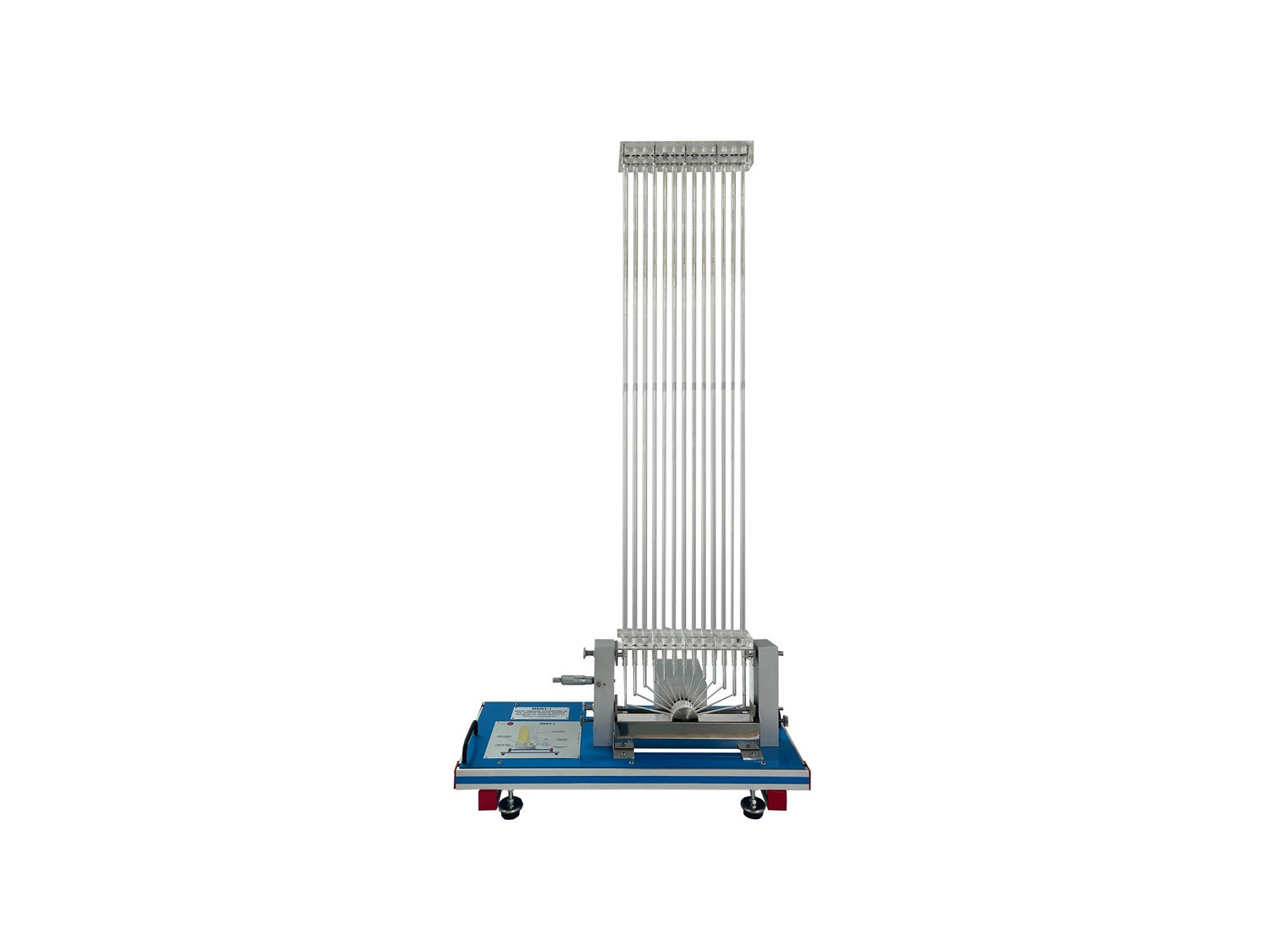

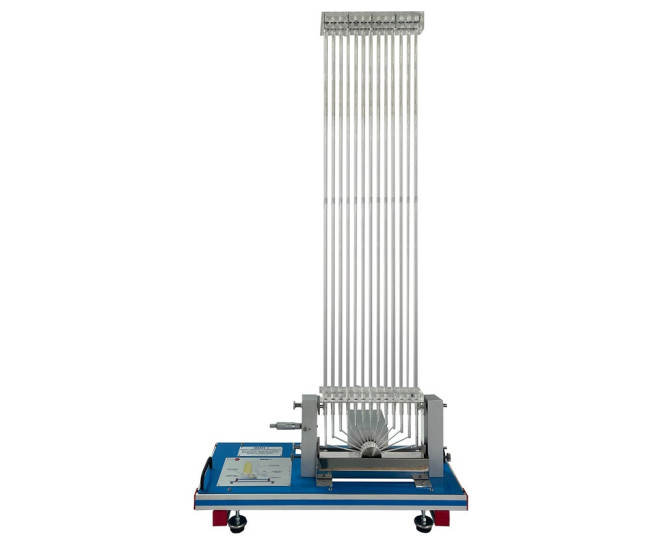

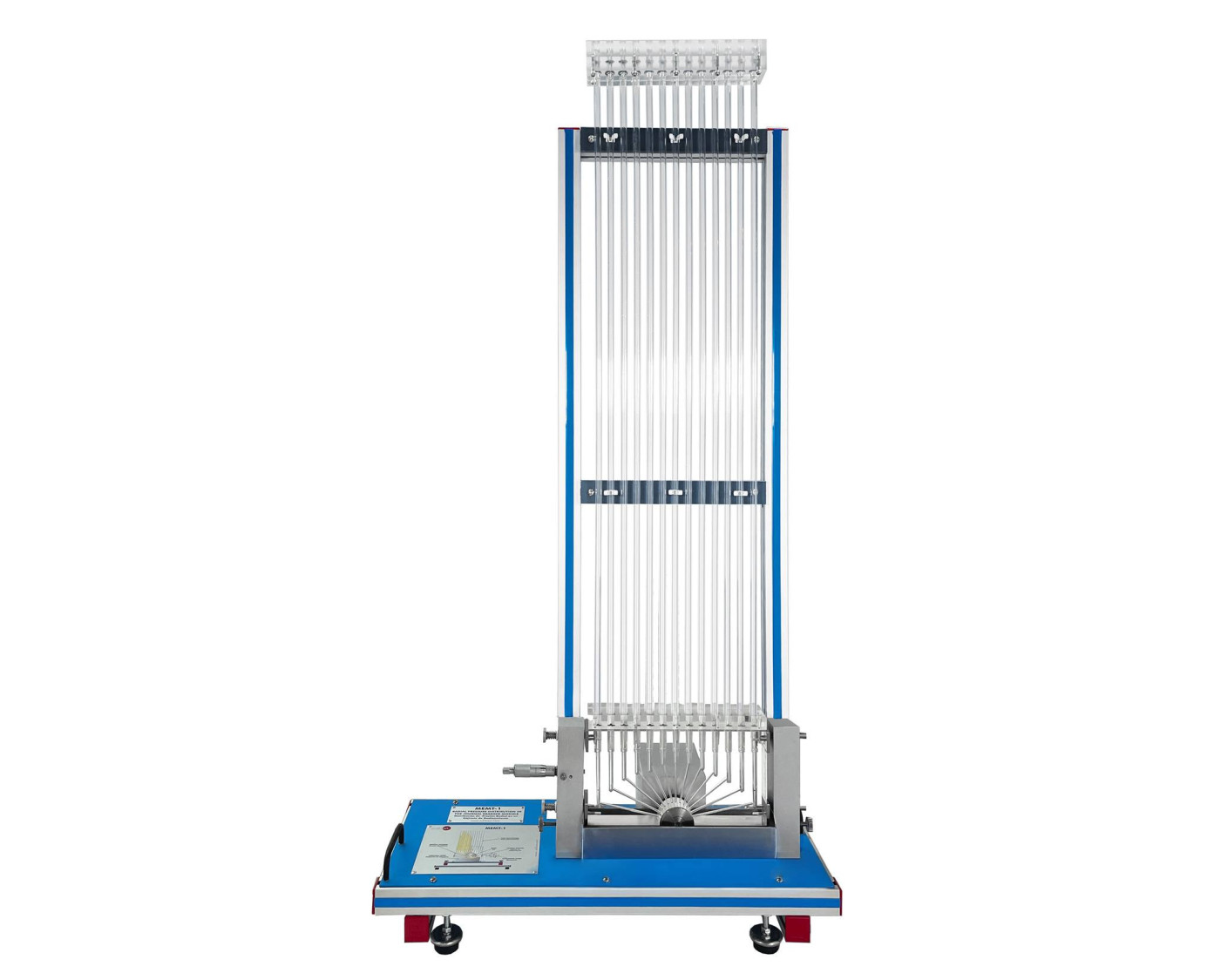

The "MEMT-1" unit consists of a journal bearing with hydrodynamic lubrication, a freely moving bearing housing with thirteen manometric tubes that allow to visualize the radial pressure distribution. The journal bearing movement and the oil film can be seen through a transparent plastic bearing housing. The pressure distribution in the journal bearing is measured by thirteen manometric tubes using the height of each column of liquid.

The gap width can be adjusted by the movable bearing housing with a micrometer screw.

The lubricant that enables the visualization of pressure distribution in the journal bearing is contained in a tank. The distribution of pressure on the journal bearing can be determined at different speeds, loads and bearing gap width.

ÜBUNGEN UND GEFÜHRTE PRAKTIKEN

GEFÜHRTE PRAKTISCHE ÜBUNGEN IM HANDBUCH ENTHALTEN

  1. Demonstration and visualization of the radial pressure distribution in a journal bearing with hydrodynamic lubrication.
  2. Investigation of the pressure distribution in the journal bearing depending on the bearing gap width.
  3. Investigation of the pressure distribution in the journal bearing depending on the speed.
  4. Study of the stability limit as a function of the gap width.

ERFORDERLICHE ELEMENTE

ÄHNLICHE VERFÜGBARE GERÄTE

DYNAMIC FRICTION OF A CYLINDER ON A ROLLER - MEMT-2
  • MEMT-2
Available
7.1.5.- TRIBOLOGIE (REIBUNG, TRAGUNG, SCHMIERUNG)
MEMT-2
Dynamische Reibung eines Zylinders auf einer Walze
This unit allows to demonstrate the friction forces between several cylinders of different materials and a roller under different lubrication conditions.The "MEMT-2" unit consists of two levers that transmit a force applied by weights to a test...
