MEMT-6 Reibungsschwingung

7.1.5.- TRIBOLOGIE (REIBUNG, TRAGUNG, SCHMIERUNG) 14.1.5.- TRIBOLOGIE (REIBUNG, TRAGUNG, SCHMIERUNG)
FRICTION VIBRATION - MEMT-6

INNOVATIVE SYSTEME

This module allows to demonstrate the static friction, the sliding friction, the related friction vibrations and the slip-stick effects.

Allgemeine Beschreibung anzeigen

Erweiterungen

ICAI

Interaktive Computerunterrichtssoftware

ÄHNLICHE NEUIGKEITEN

EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
Lesen Sie mehr
NEW Basic Mechanics course
NEW Basic Mechanics course
Are you a teacher or do you work as an engineering researcher? EDIBON offers courses for teachers and #research staff. Take a look at the course Basic Mechanics and learn about #forces and vectors. #DiscoverEdibon #Engineering.
Lesen Sie mehr

ALLGEMEINE BESCHREIBUNG

This module allows to demonstrate the static friction, the sliding friction, the related friction vibrations and the slip-stick effects.

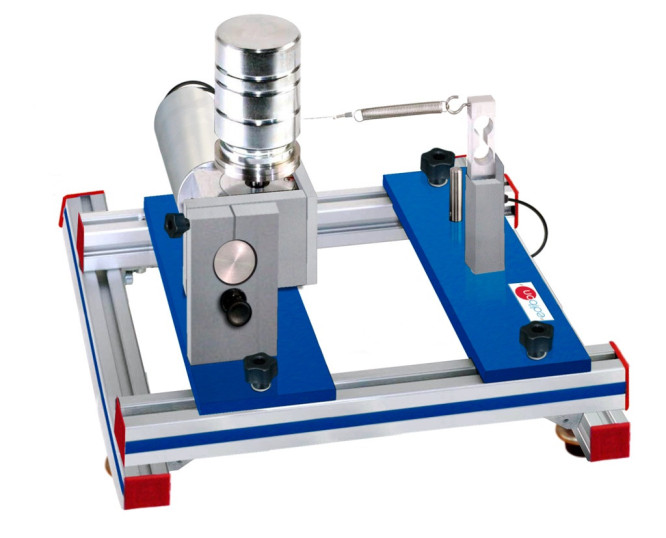

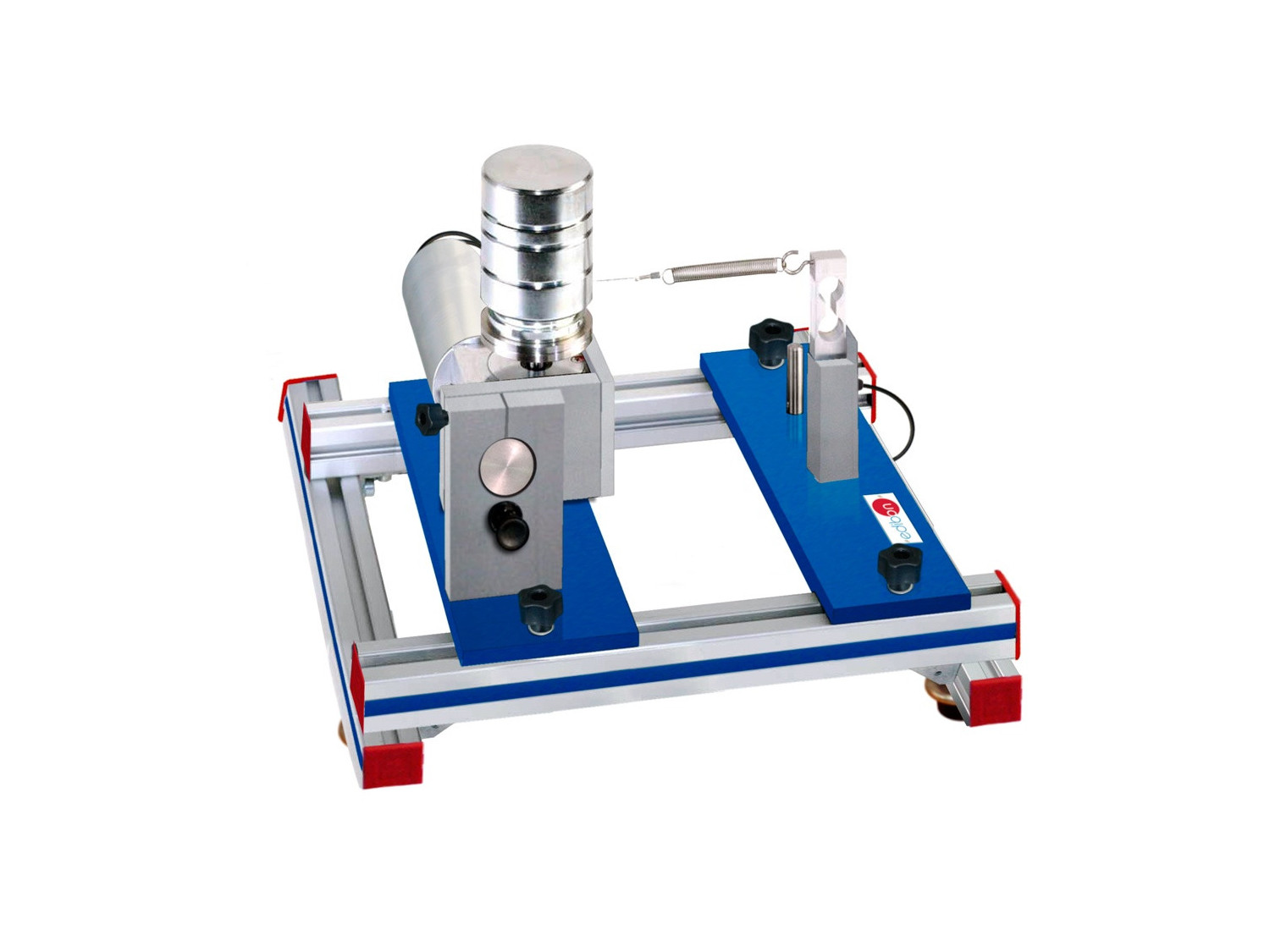

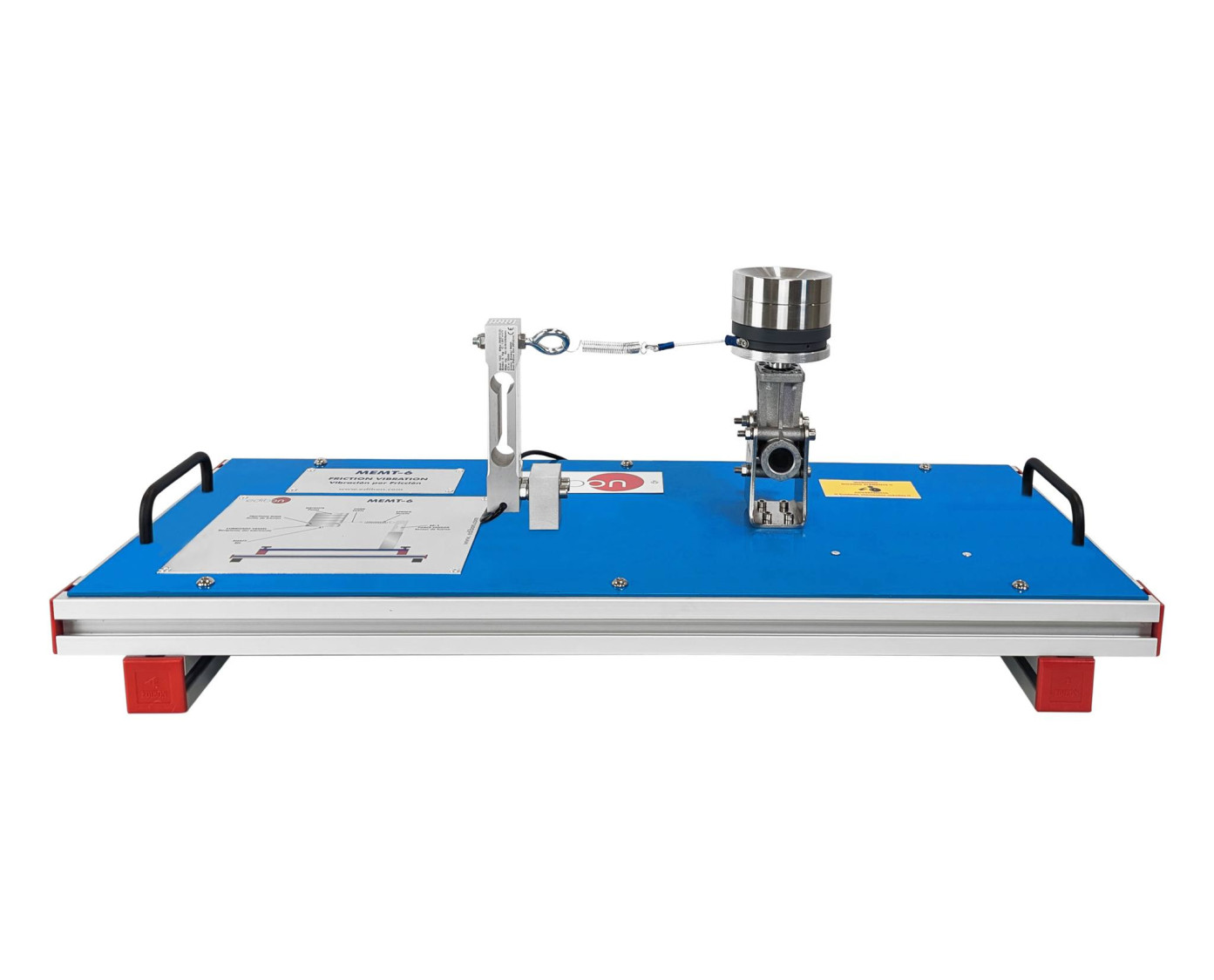

Several weights are placed on a horizontally rotating friction disc. It is prevented from turning by a cord. This cord is coupled to force measuring devices with a force sensor via a tension spring. An open vessel surrounds the friction disc to place different lubricants.

ÜBUNGEN UND GEFÜHRTE PRAKTIKEN

GEFÜHRTE PRAKTISCHE ÜBUNGEN IM HANDBUCH ENTHALTEN

  1. Demonstration of the transition from static friction to sliding friction.
  2. Study of the influence of lubrication on stick-slip effects.
  3. Study of the influence of the force between the components on the stick-slip effects.
  4. Study of the influence of the relative speed of the components on the stick-slip effects.
