WIRING INSTALLATION TRAINING FOR INDUSTRIAL ELECTRICAL PROTECTIONS - WIT-IEP

INNOVATIVE SYSTEME

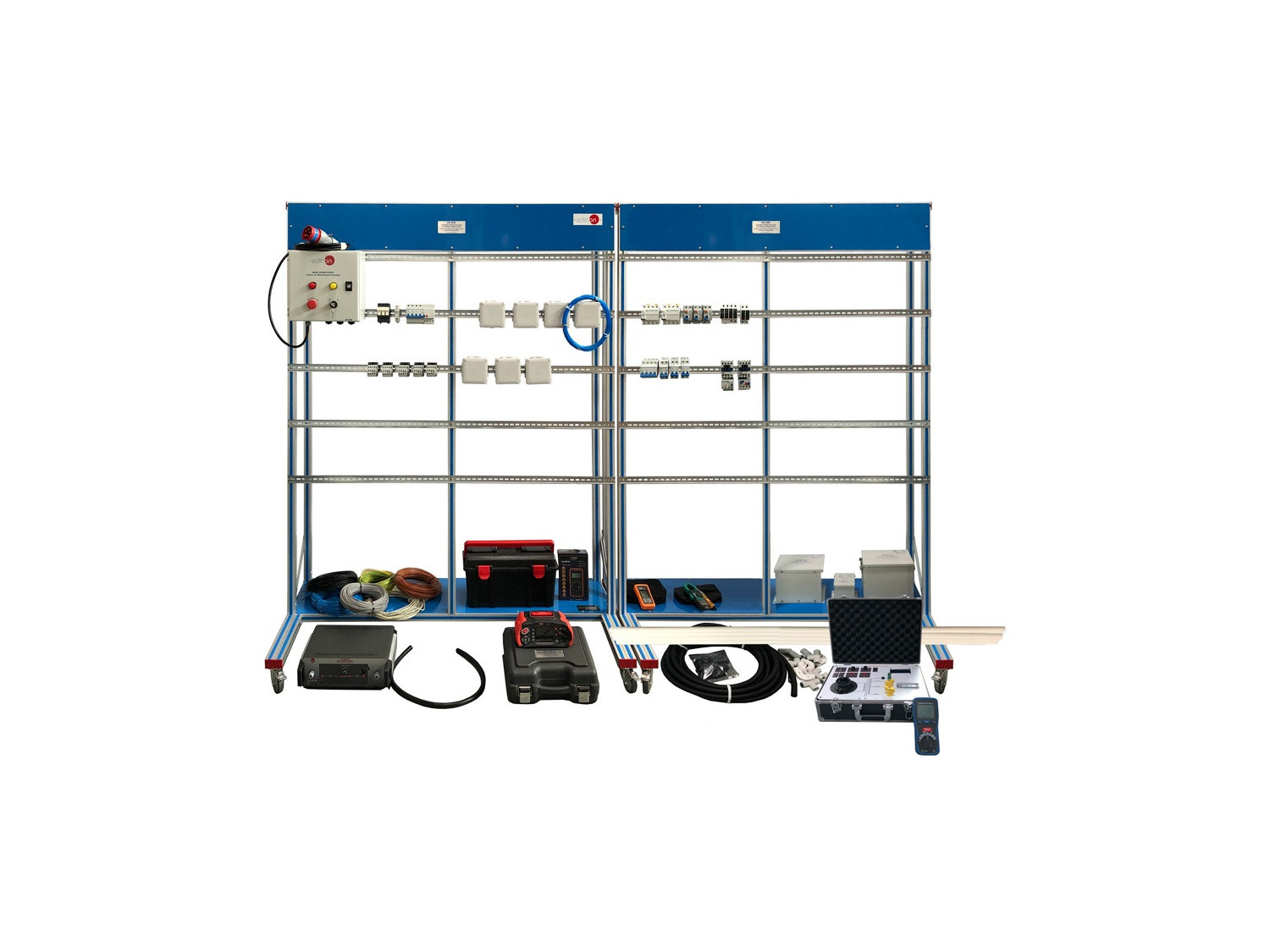

The Wiring Installation Training, Industrial Electrical Protections application, "WIT-IEP", has been designed by EDIBON for the formation at professional-practical level in the field of the installations, wiring and testing of electrical protections present in industry.

Allgemeine Beschreibung anzeigen

Erweiterungen

ICAI

Interaktive Computerunterrichtssoftware

ÄHNLICHE NEUIGKEITEN

EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
Lesen Sie mehr
The Importance of Hands-On Training in Electricity for Universities and Companies
The Importance of Hands-On Training in Electricity for Universities and Companies
Electricity is a form of energy resulting from the movement of electrons through a conductor. This physical phenomenon is essential for the operation of a wide variety of devices and systems we use daily, from household appliances to complex industrial systems.
Lesen Sie mehr
What is Industry 4.0?
What is Industry 4.0?
Today we are at the beginning of a new era, named ‘Industrie 4.0’. Let´s explain a little further the concept "Industrie 4.0"!
Lesen Sie mehr

ALLGEMEINE BESCHREIBUNG

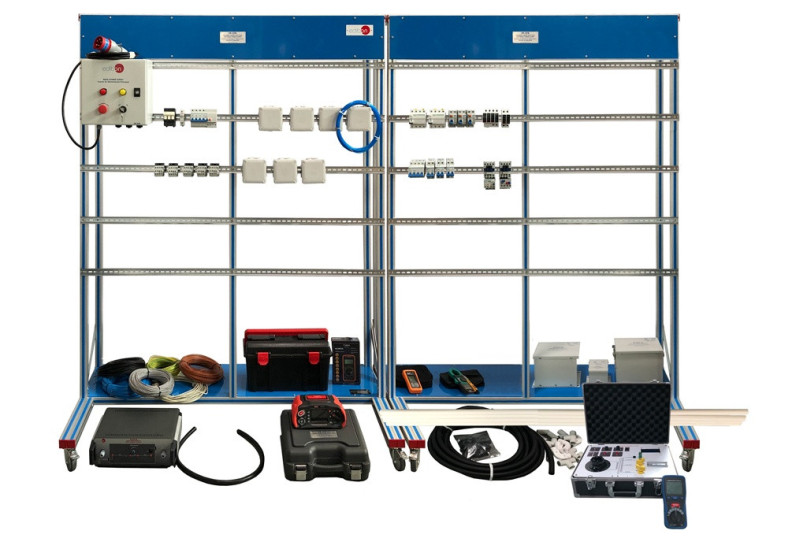

The Wiring Installation Training, Industrial Electrical Protections application, "WIT-IEP", has been designed by EDIBON for the formation at professional-practical level in the field of the installations, wiring and testing of electrical protections present in industry.
