MDU-BLU Break and Load Unit

7.4.3.- INSTALLATIONS AND MAINTENANCE TRAINING

INNOVATIVE SYSTEMS

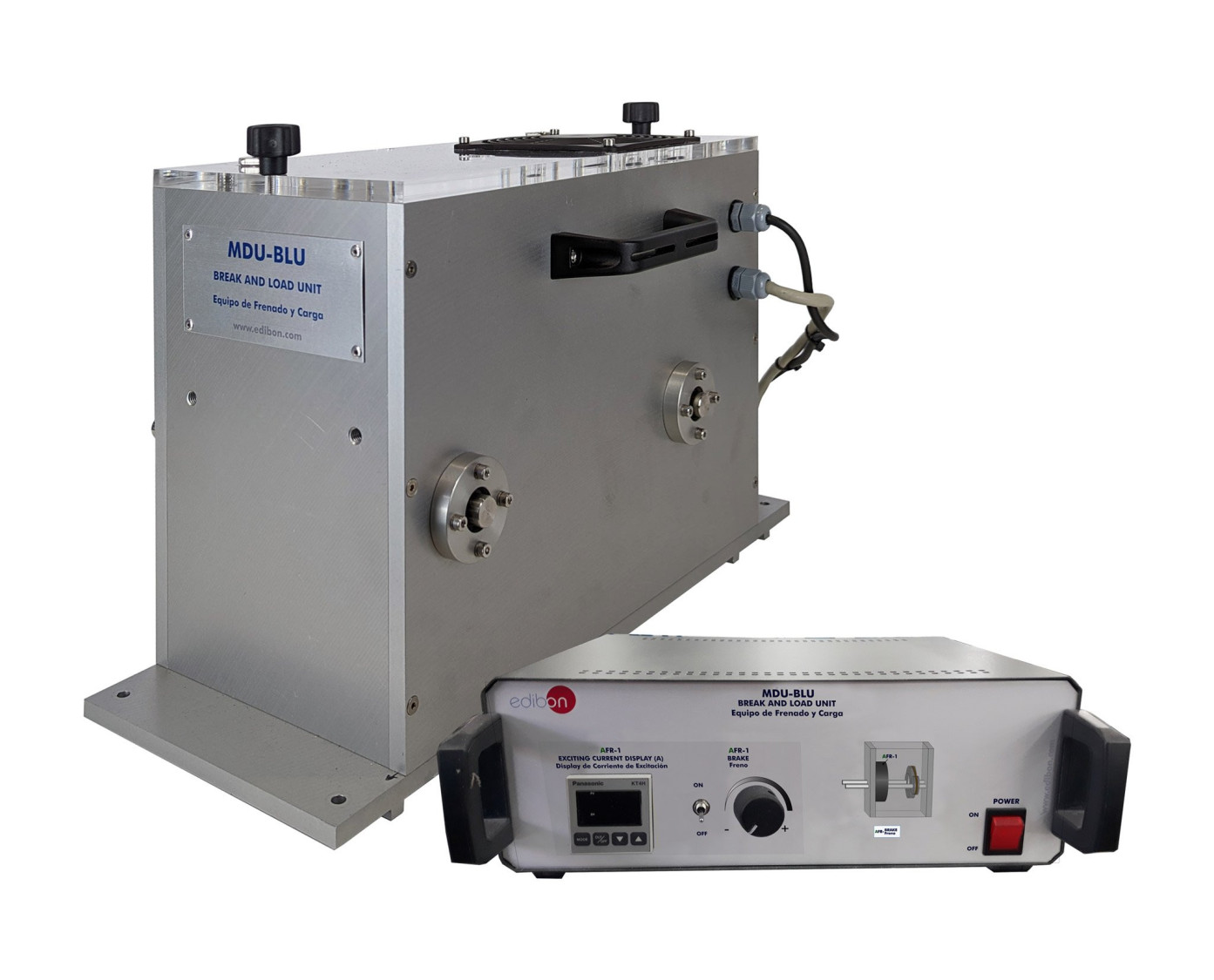

The Break and Load Unit, "MDU-BLU", of EDIBON is a magnetic particle brake, a display unit and an electrical control. It is possible to precisely adjust the braking moment. The excitation current is used as a measurement of the braking moment and it can be displayed through a console.

See general description

Catalog

Tender Specifications

General Description

The braking unit consists of an integrated drive belt and a second projecting shaft, thus it has two speed ranges and two moment ranges.

The power generated is converted into heat by the brake and evacuated to the outside through a fan.
