General Description

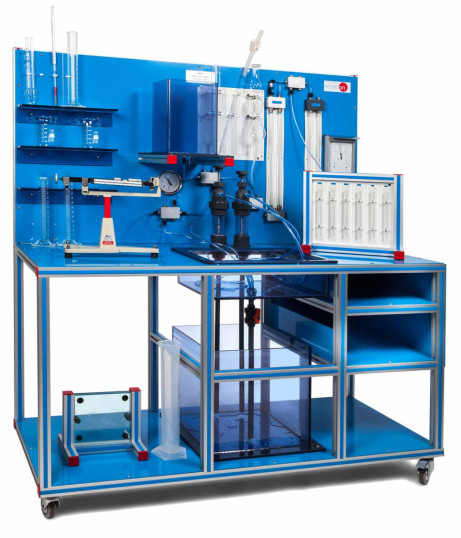

The Hydrostatics Bench and Fluid Properties, "BHI", is a compact, mobile and independent unit.

There is a water storage tank, to work in a closed system, at the bottom of the bench. The water is distributed by hand pumps from this tank to two upper tanks, which are connected to different accessories and measuring elements for its study. All excess water is returned to the storage tank through a drain.

With these connections and the elements included, the Hydrostatics Bench and Fluid Properties, "BHI", designed by EDIBON, allows the performance of experiments related to some areas of hydrostatics, such as the measurement of pressure on the ground, the study of the capillary effect, buoyancy studies, surface tension measurement, metacentric height determination, measurement of hydrostatic pressure, etc.

Exercises and guided practices

GUIDED PRACTICAL EXERCISES INCLUDED IN THE MANUAL

  1. Density and specific gravity measurements.
  2. Viscosity measurement.
  3. Capillarity effect observation.
  4. Capillarity raising measurement.
  5. Free surface of a static liquid.
  6. Effect of a liquid on a free surface.
  7. Measurement of liquid levels.
  8. Pressure center in a smooth surface.
  9. Center of pressures for partial immersion.
  10. Center of pressures for total immersion.
  11. Calibration of a Bourdon manometer.
  12. Hysteresis curve determination.
  13. Use of a water manometer.
  14. Use of an air manometer.
  15. Use of a U-shaped manometer for determining the differential pressure.
  16. Arquimedes’ Principle.
  17. Determination of the metacentric height.
  18. Study of stability of a floating body. Angular displacements.
  19. Study of stability of a floating body. Different positions of the center of gravity.
  20. Operation and comparison of results obtained with different measuring instruments.

MORE PRACTICAL EXERCISES TO BE DONE WITH THE UNIT

  1. Table of the atmospheric pressure in function of the height.
  2. Use instructions of the scale of Archimedes.

INCLUDED ELEMENTS

Quality

AFTER-SALES SERVICE

Ask for information
