AE-PLC-SIE Application PLC SIEMENS

6.2.1.- OPTIONS DE PLC

SYSTEMES INNOVANTS

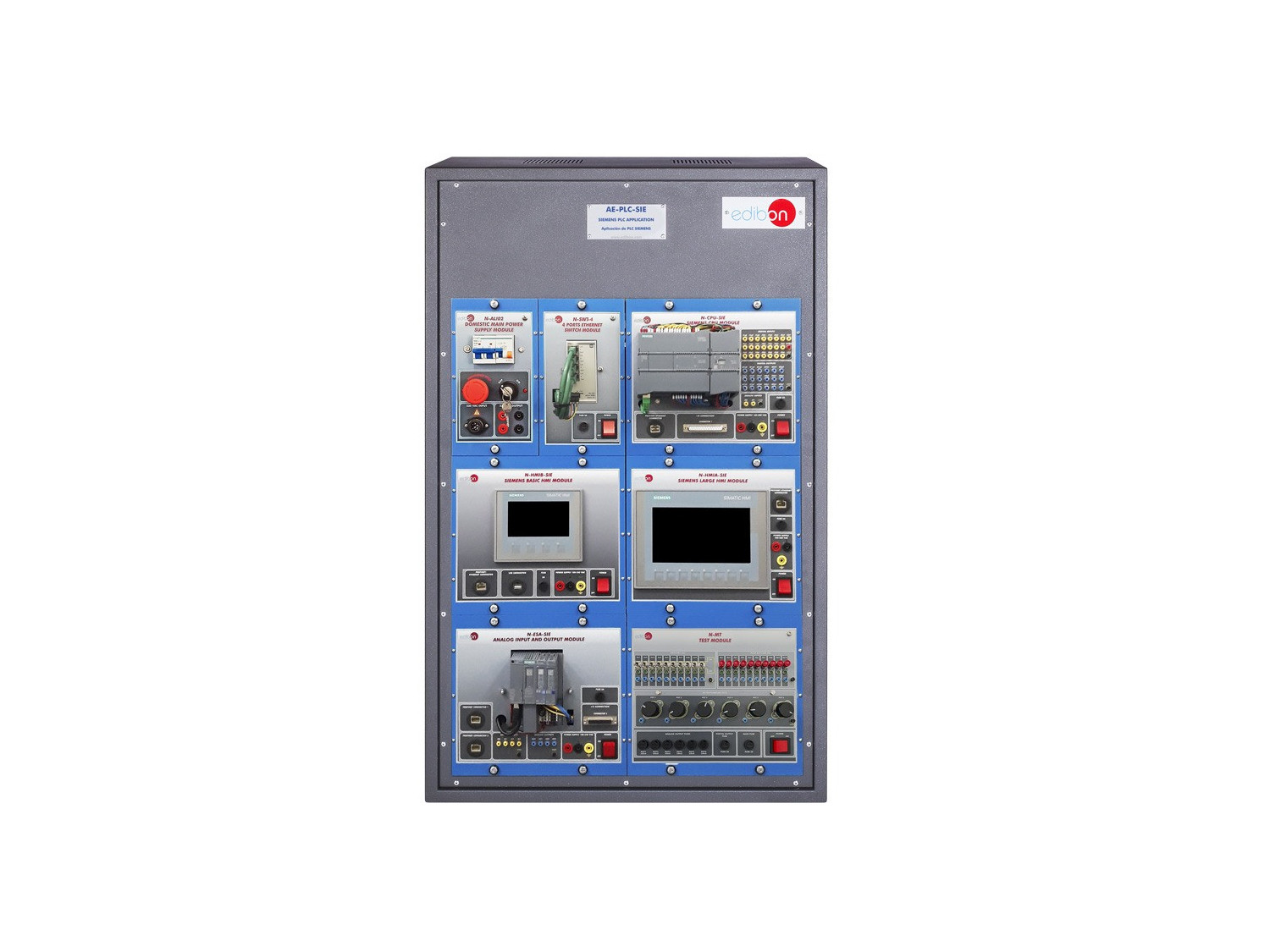

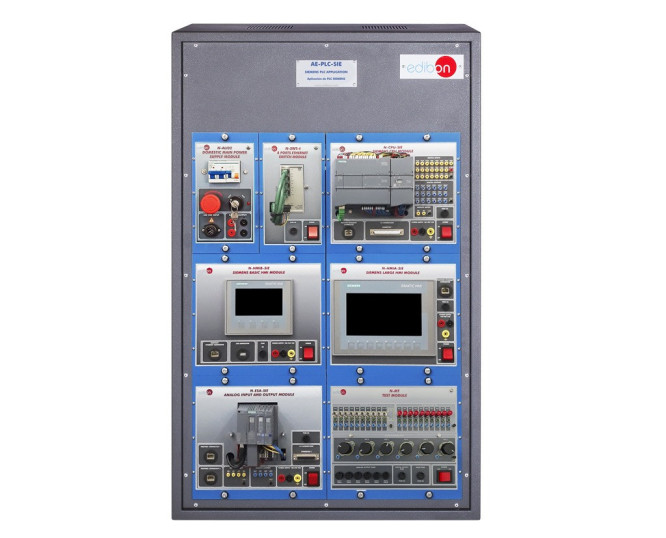

The SIEMENS PLC Application, "AE-PLC-SIE", is a PLC unit designed by EDIBON which use one of the last SIEMENS PLC units. It allows the user to learn about PLC logic programming, different PLC programming languages, PLC to PC communication, etc.

Voir description générale

Catalogue

Spécifications du Concours

Expansions

ICAI

Logiciel Interactif pour l'Enseignement assisté par Ordinateur

NOUVELLES LIÉES

Description Générale

The "AE-PLC-SIE" is provided with a set of practical exercises, through which the student will understand how to work with the PLC systems, without any background knowledge or experience. Can be used alone, to study the PLC systems, or in combination with the EDIBON compatible units, to study a real application of the PLC systems.

The "AE-PLC-SIE" is a modular system with the common components that make up a complete PLC system. The SIEMENS PLC Base Unit, "AE-PLC-SIE-UB" always includes the power supply and the PLC CPU module, but there are also available a series of optional kits to complete the PLC system with the required functions of the programmable controller (test module, analog input and output signals, HMI devices, PLC internet connection, etc.). These kits allows the user to learn about HMI programming, testing analog inputs and outputs signals, programming a web server application, etc.

Des exercices et pratiques guidées

EXERCICES GUIDÉS INCLUS DANS LE MANUEL

Using variables.
Using digital inputs I.
Using digital inputs II.
Testing digital inputs.
Using digital outputs.
Testing digital outputs.
Using analog signals I (SIE-PLC-K1 and SIE-PLC-K2).
Using analog signals II (SIE-PLC-K1 and SIE-PLC-K2).
Square wave generator.
HMI simple program (SIE-PLC-K3 or SIE-PLC-K4).
Using digital outputs with HMI device I (SIE-PLC-K3 or SIE-PLC-K4).
Using digital outputs with HMI device II (SIE-PLC-K3 or SIE-PLC-K4).
Reading data from a register with the HMI device (SIE-PLC-K3 or SIE-PLC-K4).
Writing data to a register with the HMI device (SIE-PLC-K3 or SIE-PLC-K4).
Switching screens of the HMI device (SIE-PLC-K3 or SIE-PLC-K4).
Internet connection of the PLC unit (SIE-PLC-K5).
Control digital inputs with a web server application (SIE-PLC-K5).
Control digital outputs with a web server application (SIE-PLC-K5).
Control analog inputs with a web server application (SIE-PLC-K5).
Control analog outputs with a web server application (SIE-PLC-K5).
