COMPUTER CONTROLLED AXIAL PUMP BENCH - PBAC

SYSTEMES INNOVANTS

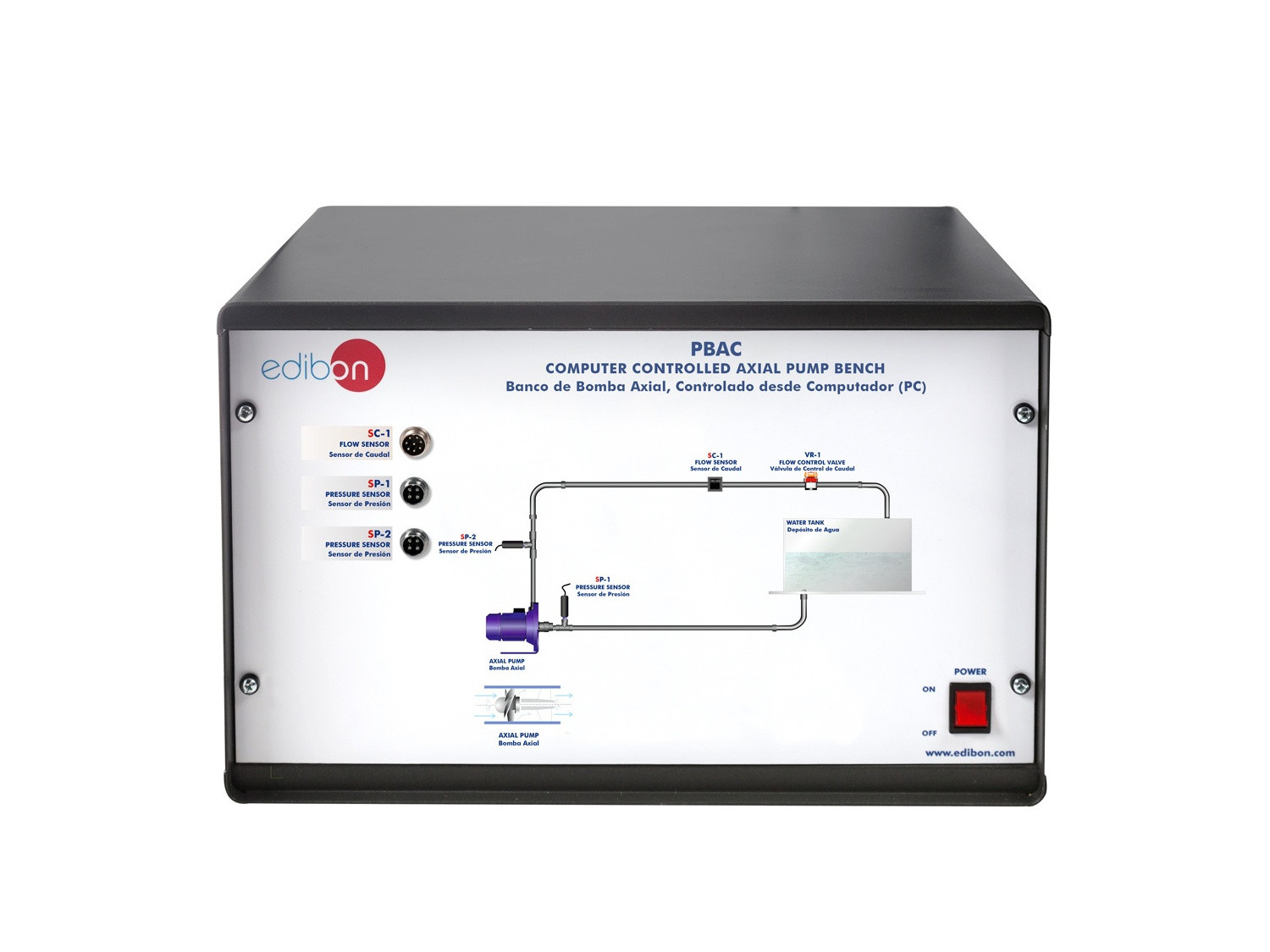

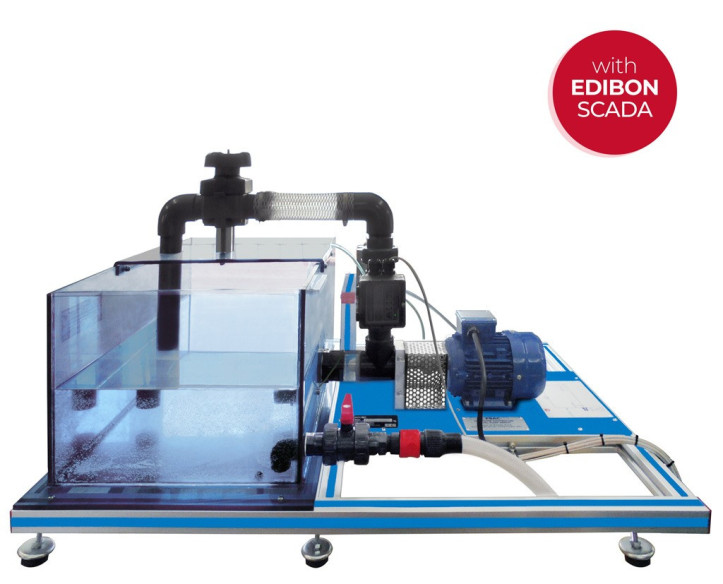

The Computer Controlled Axial Pump Bench, "PBAC", is designed to study this type of pumps. It is a bench-top unit that consists of a computer controlled axial pump, a water tank and circulation pipes with a flow regulation valve. Besides, it includes the control elements required for the pump’s testing: two pressure sensors and one flow sensor.

Voir description générale

Expansions

ICAI

Logiciel Interactif pour l'Enseignement assisté par Ordinateur
FSS

Système de Simulation de Défauts
PLC

Contrôle des Processus Industriels par PLC
PLCHMI

IIoT Contrôle et surveillance local / à distance avec IHM
ELK

Kit de Développement Logiciel EDIBON, Optimisé par NI LabVIEW™
ECR

Système Modulaire Industriel EDIBON avec NI CompactRIO
ESN

EDIBON Scada-Net
ECL

EDIBON Cloud Learning

Laboratories

11PTC
 Laboratoire pour le Centre de Formation Pétrolière
8TV
 Laboratoire de Mécanique des Fluides pour l'enseignement Technique et Professionnel
8HE
 Laboratoire de Mécanique des Fluides pour l'enseignement Supérieur

NOUVELLES LIÉES

EDIBON et son engagement envers les compétences européennes
EDIBON et son engagement envers les compétences européennes
Chez EDIBON, nous sommes engagés à renforcer les compétences comme pilier stratégique pour la compétitivité et le bien-être social de l'Union européenne. Une formation adéquate renforce non seulement l'économie, mais permet également aux individus de participer pleinement à la société et à la...
Lire plus
NEW Fluid Mechanics Course
NEW Fluid Mechanics Course
Are you a teacher or do you work as an engineering researcher? EDIBON offers courses for teachers and #research staff. Take a look at the course of Fluid Mechanics and learn about #fluids properties. #DiscoverEdibon #Engineering.
Lire plus

Description Générale

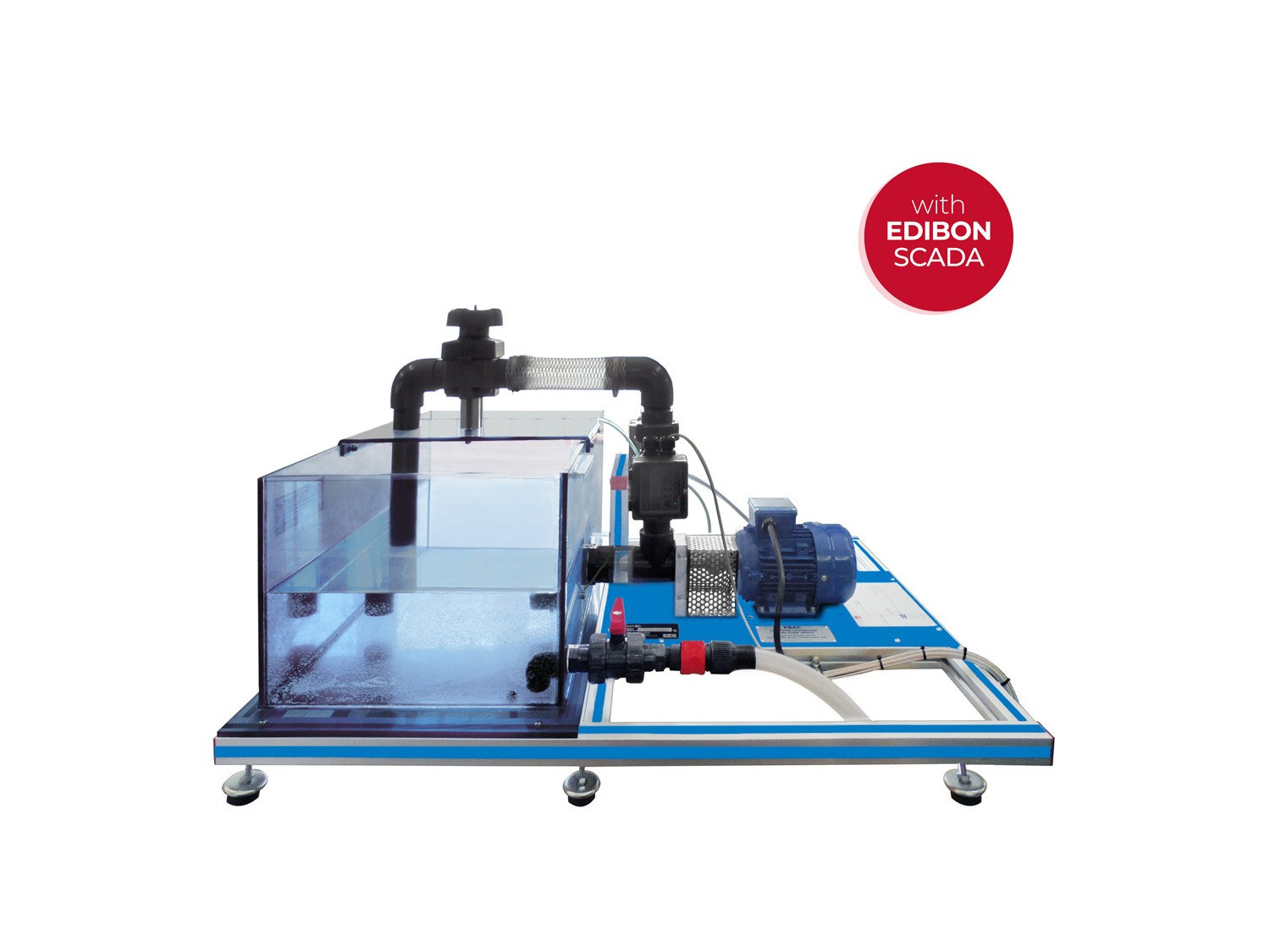

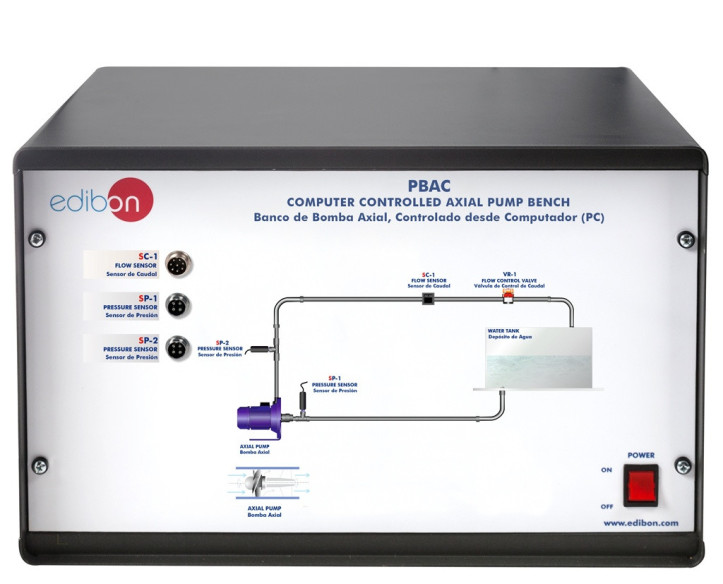

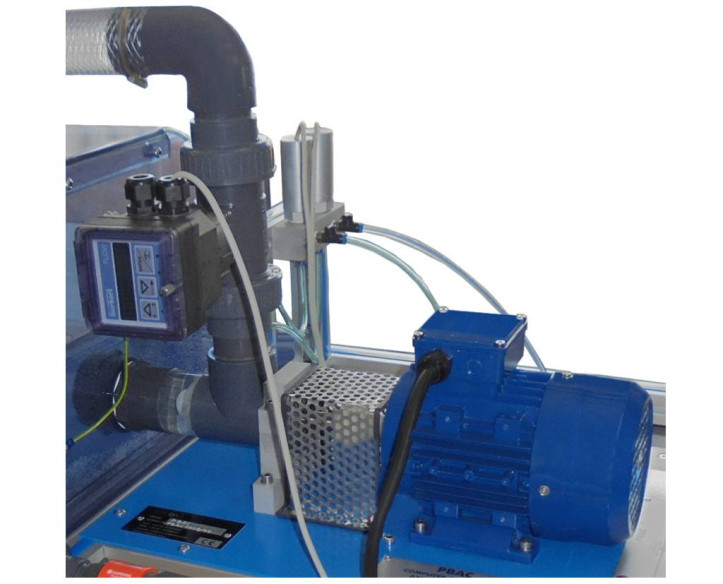

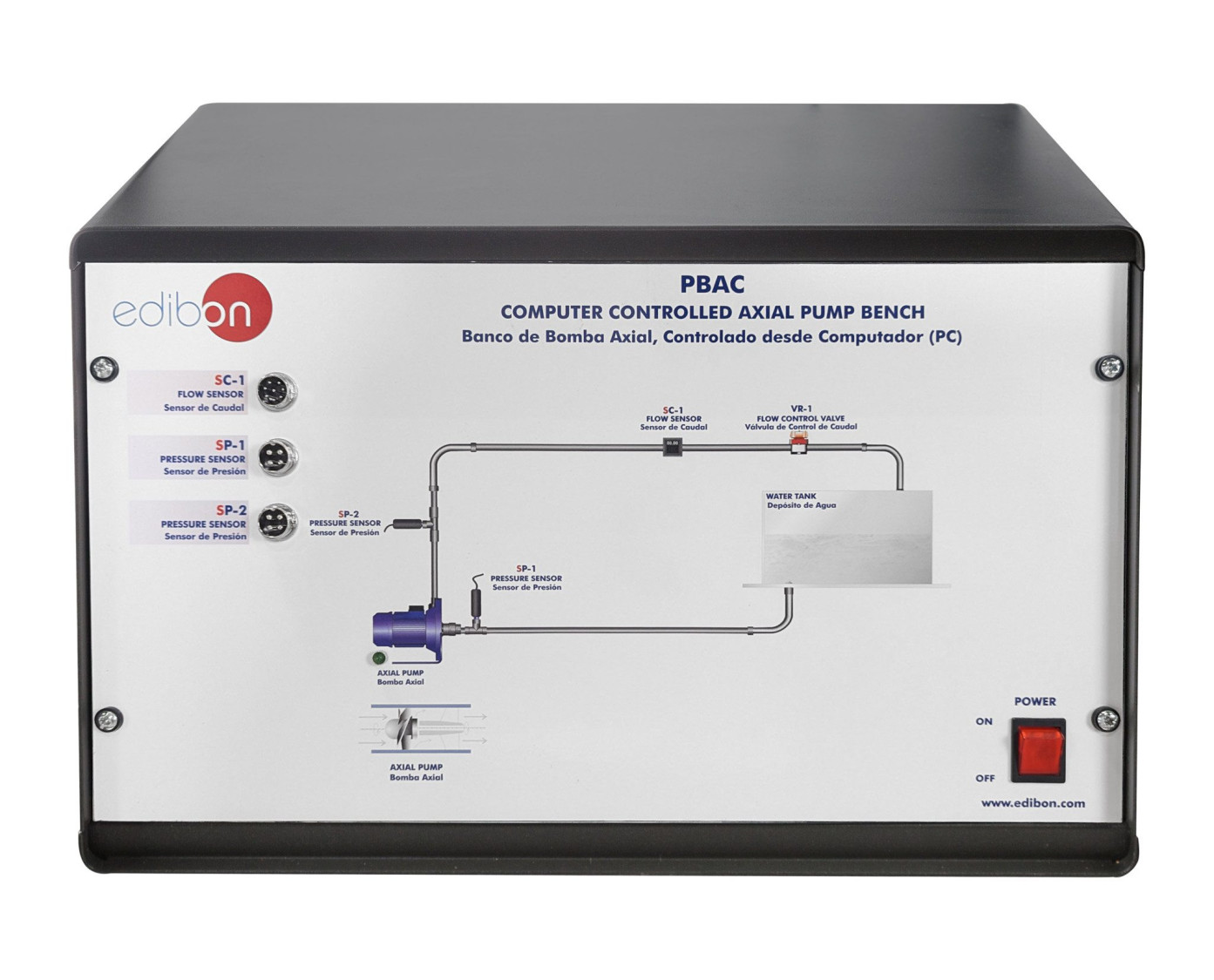

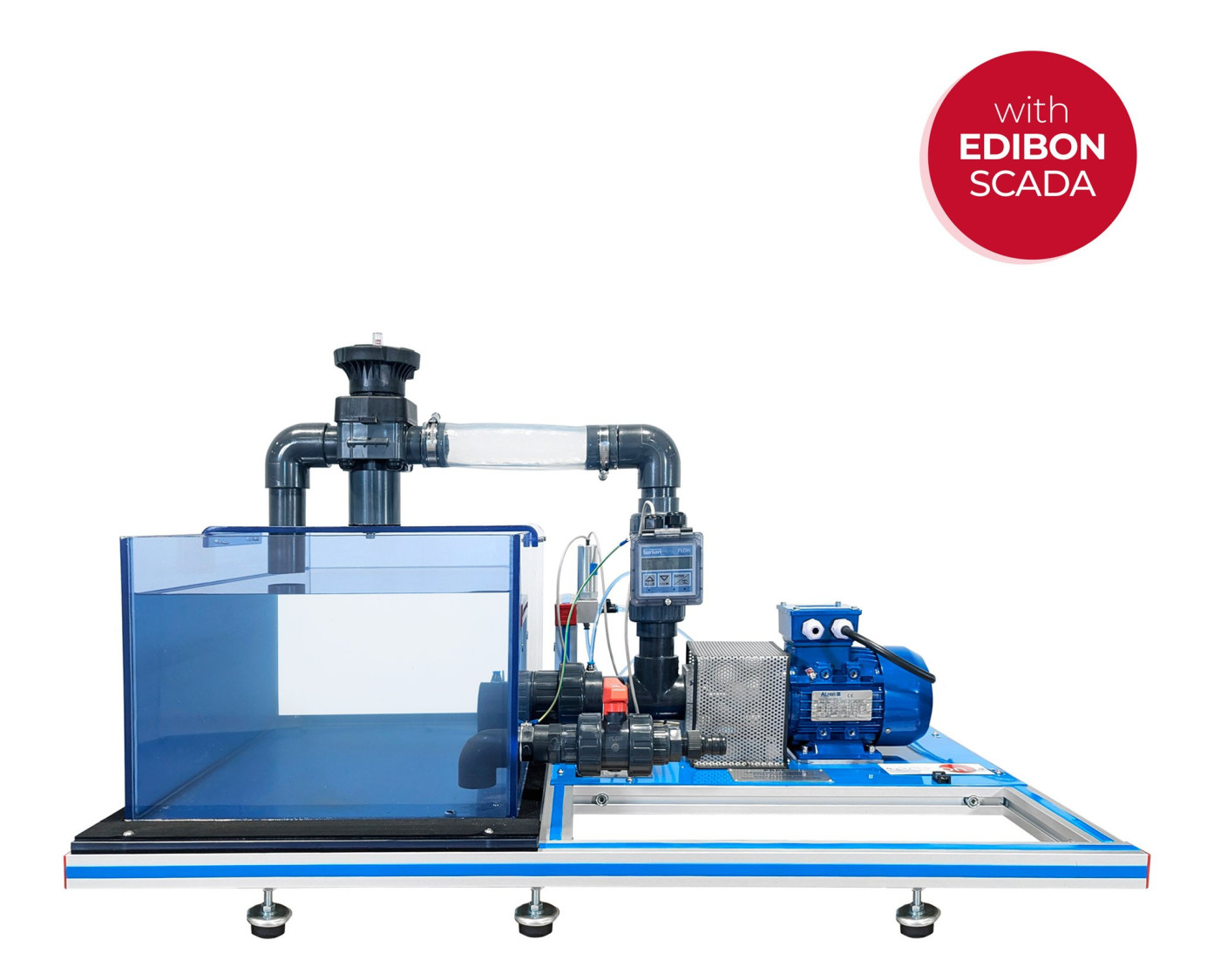

The Computer Controlled Axial Pump Bench, "PBAC", is designed to study this type of pumps. It is a bench-top unit that consists of a computer controlled axial pump, a water tank and circulation pipes with a flow regulation valve. Besides, it includes the control elements required for the pump’s testing: two pressure sensors and one flow sensor.

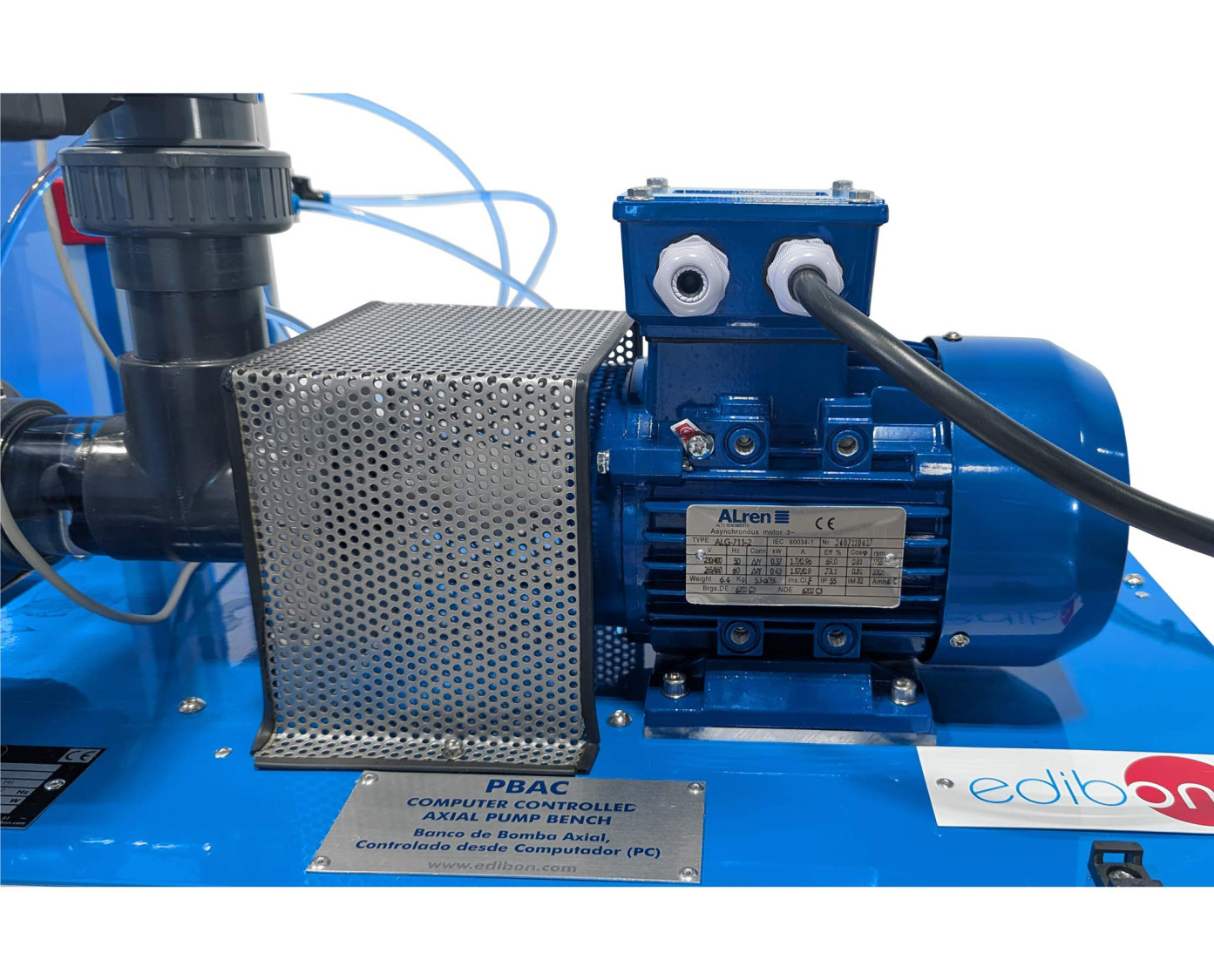

A frequency inverter for the pump, computer controlled, provides the possibility of regulation and measuring the pump motor speed, as well as the measurement of the torque transferred.

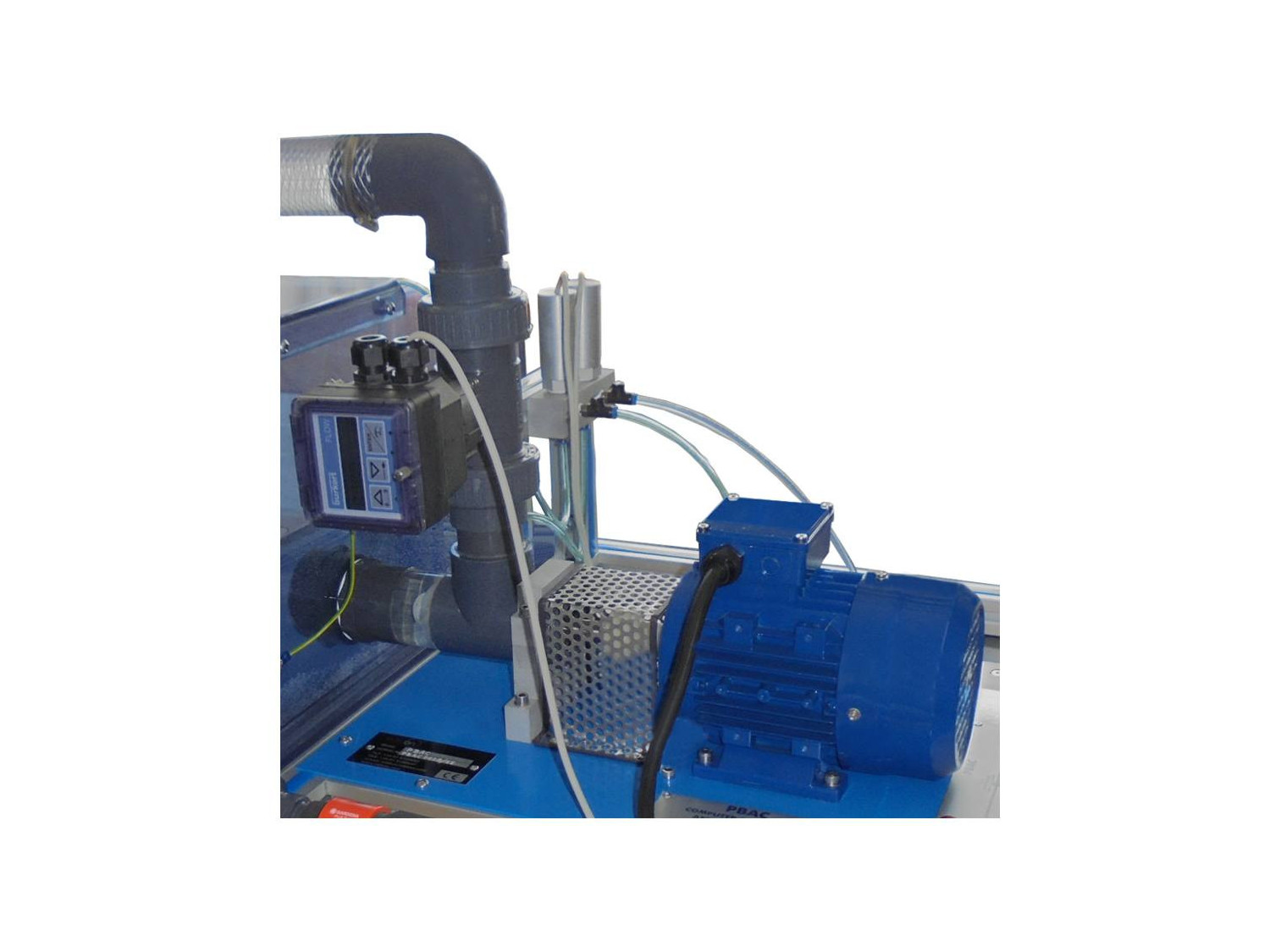

The pump is installed in a system of pipes. As the circuit is closed, it prevents a continuous waste of water when working with it.

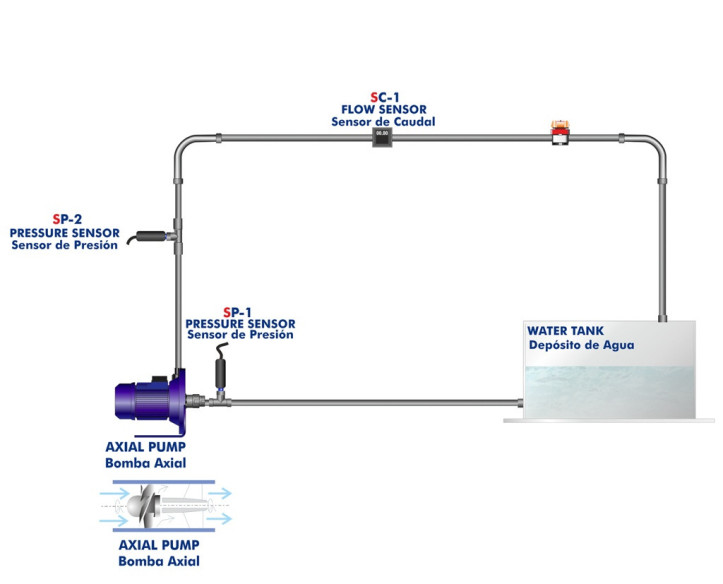

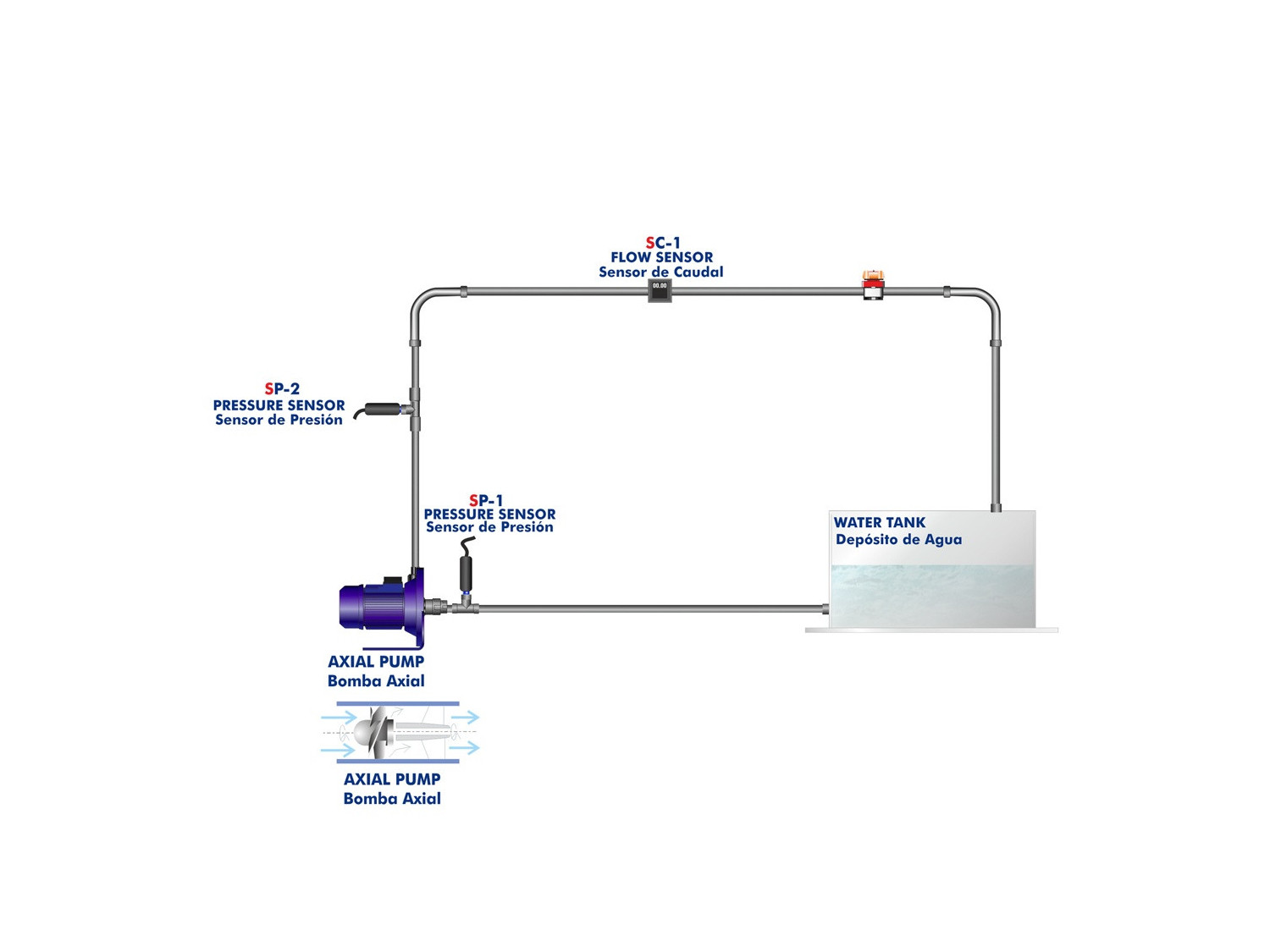

The Computer Controlled Axial Pump Bench, "PBAC", unit has instrumentation and sensors to allow the measurement, from the computer, of the most typical parameters of the pumps:

  • Motor turn speed.
  • Total impelled flow.
  • The admission and discharge pressure.
  • Torque.
  • Calculated values:
  • Total height.
  • Hydraulic and mechanic power.
  • Efficiency.

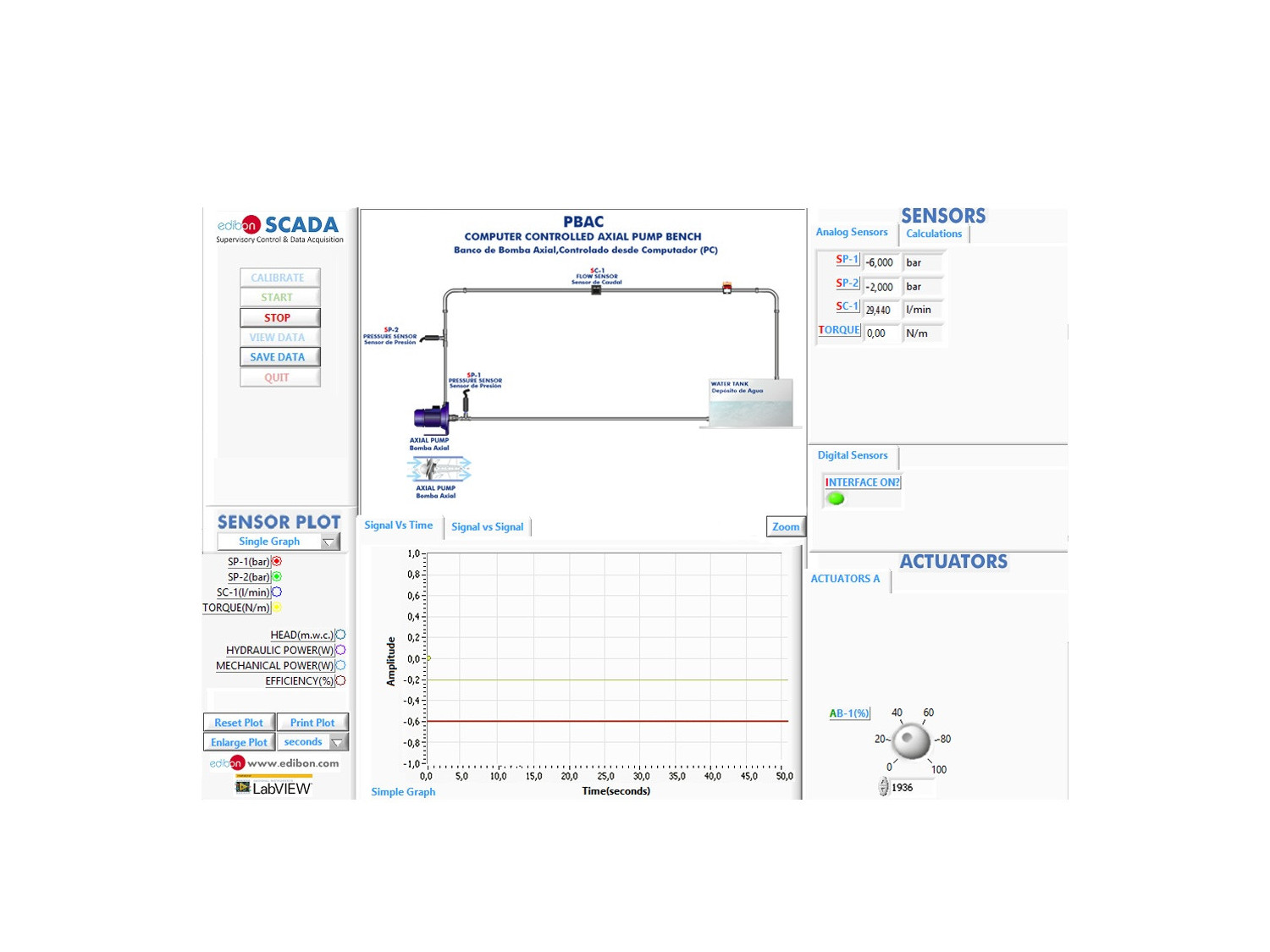

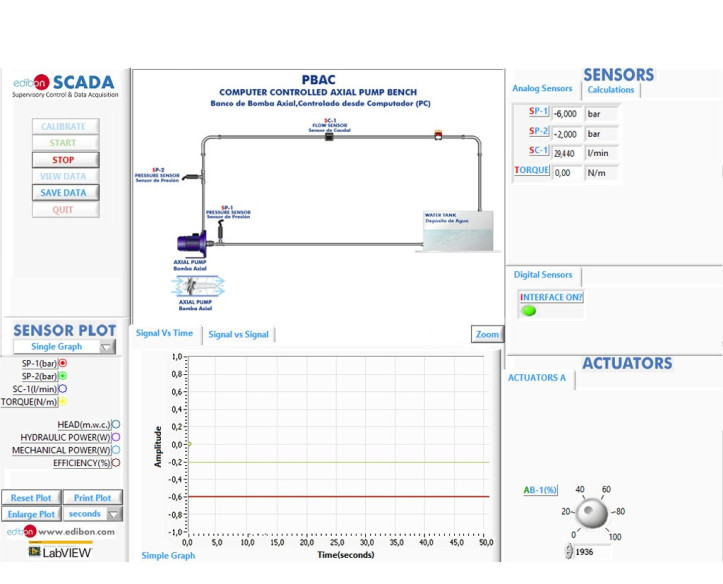

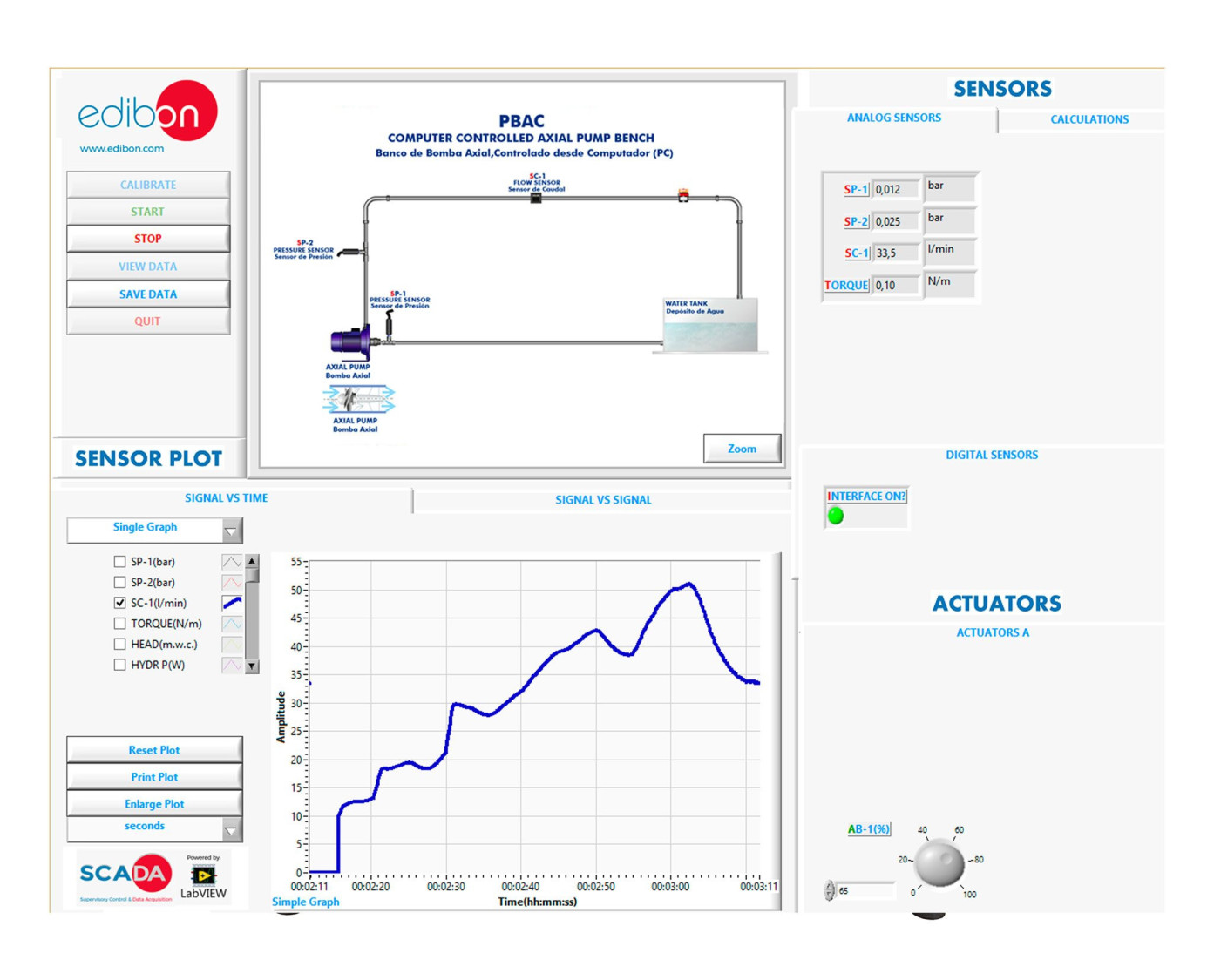

This Computer Controlled Unit is supplied with the EDIBON Computer Control System (SCADA), and includes: The unit itself + a Control Interface Box + a Data Acquisition Board + Computer Control, Data Acquisition and Data Management Software Packages, for controlling the process and all parameters involved in the process.

Des exercices et pratiques guidées

EXERCICES GUIDÉS INCLUS DANS LE MANUEL

  1. Determination of the Q vs. r.p.m. Curve for an axial pump.
  2. Determination of the H vs. Q curve for different r.p.m. Of an axial pump.
  3. Determination of the mechanical power vs flow for different r.p.m. of an axial pump.
  4. Determination of the h vs flow curve for different r.p.m. of an axial pump.
  5. Determination of an axial pump’s map.
  6. Sensors calibration.

PLUS D'EXERCICES PRATIQUES À EFFECTUER AVEC CETTE ÉQUIPEMENT

Additional practical possibilities to be done by the end customer:

  1. Obtaining the H(n) and N(n) curves.
  2. Study of the influence of pressure at the outlet.
  3. Calculation of the axial pump efficiency.

Other possibilities to be done with this Unit:

  1. Many students view results simultaneously. To view all results in real time in the classroom by means of a projector or an electronic whiteboard.
  2. Open Control, Multicontrol and Real Time Control. This unit allows intrinsically and/or extrinsically to change the span, gains, proportional, integral, derivative parameters, etc, in real time.
  3. The Computer Control System with SCADA and PID Control allow a real industrial simulation.
  4. This unit is totally safe as uses mechanical, electrical and electronic, and software safety devices.
  5. This unit can be used for doing applied research.
  6. This unit can be used for giving training courses to Industries even to other Technical Education Institutions.
  7. Control of the PBAC unit process through the control interface box without the computer.
  8. Visualization of all the sensors values used in the PBAC unit process.
  9. By using PLC-PI additional 19 more exercises can be done.
  10. Several other exercises can be done and designed by the user.
