RADIAL PRESSURE DISTRIBUTION IN A JOURNAL BEARING - MEMT-1

SYSTEMES INNOVANTS

This unit allows the visualization of the radial pressure distribution in a journal bearing with hydrodynamic lubrication.

Voir description générale

Expansions

ICAI

Logiciel Interactif pour l'Enseignement assisté par Ordinateur

NOUVELLES LIÉES

EDIBON et son engagement envers les compétences européennes
EDIBON et son engagement envers les compétences européennes
Chez EDIBON, nous sommes engagés à renforcer les compétences comme pilier stratégique pour la compétitivité et le bien-être social de l'Union européenne. Une formation adéquate renforce non seulement l'économie, mais permet également aux individus de participer pleinement à la société et à la...
Lire plus
NEW Basic Mechanics course
NEW Basic Mechanics course
Are you a teacher or do you work as an engineering researcher? EDIBON offers courses for teachers and #research staff. Take a look at the course Basic Mechanics and learn about #forces and vectors. #DiscoverEdibon #Engineering.
Lire plus

Description Générale

This unit allows the visualization of the radial pressure distribution in a journal bearing with hydrodynamic lubrication.

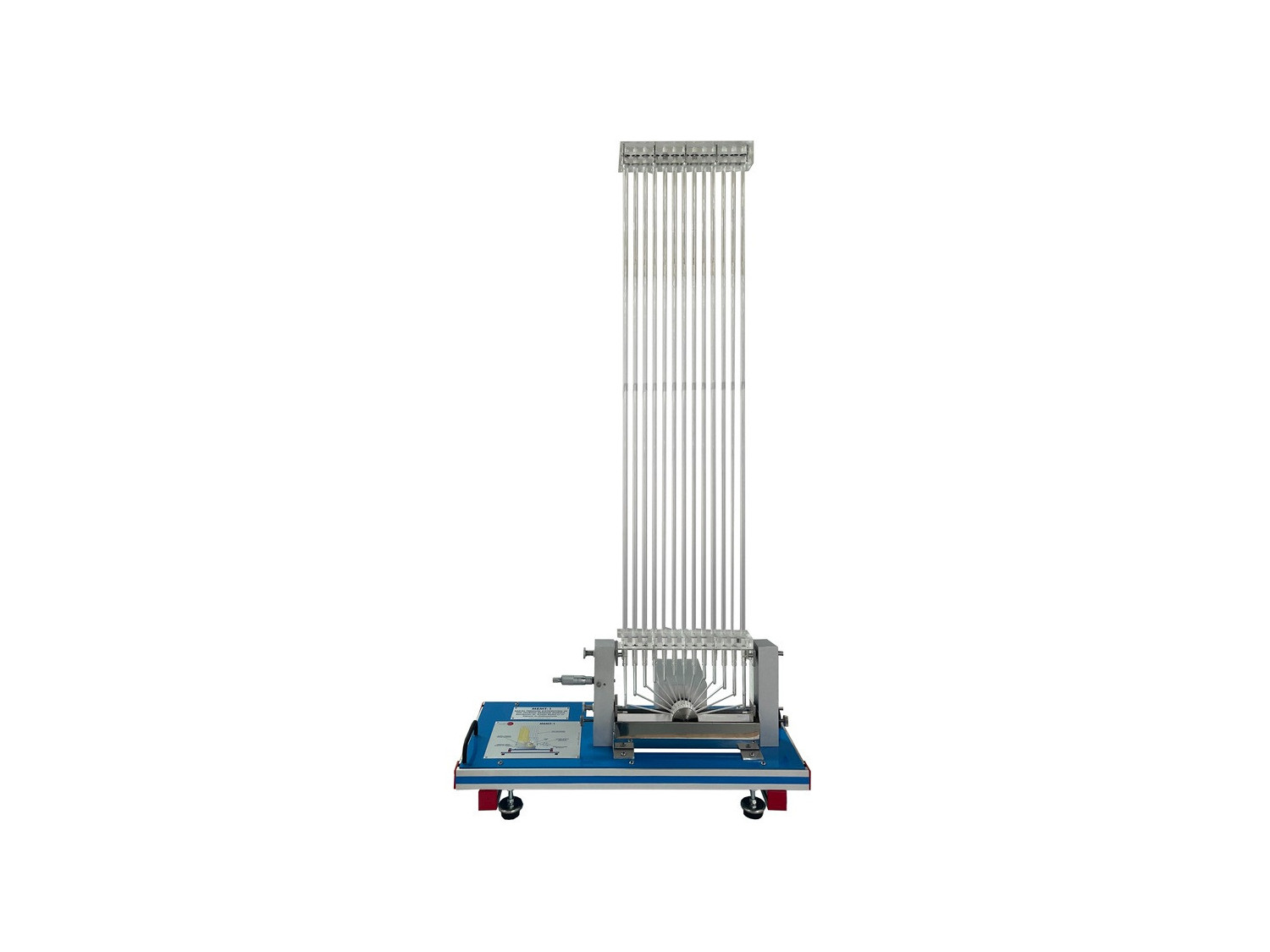

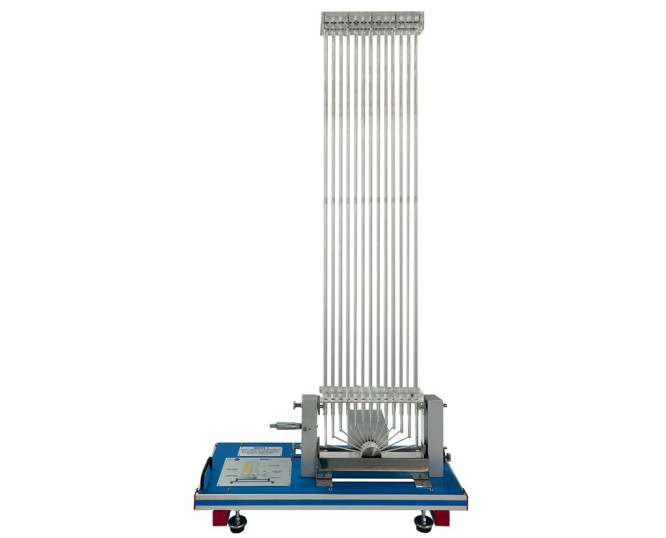

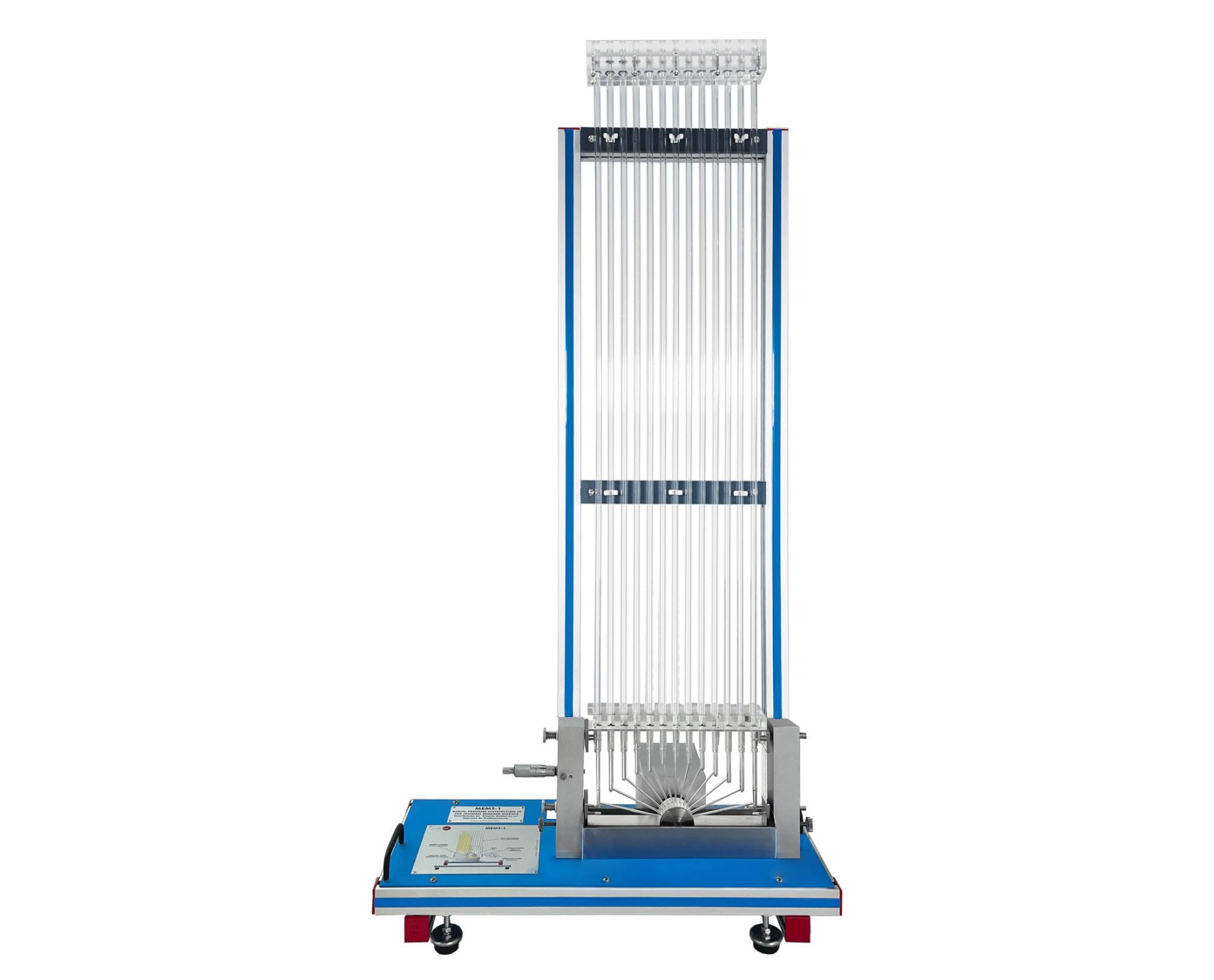

The "MEMT-1" unit consists of a journal bearing with hydrodynamic lubrication, a freely moving bearing housing with thirteen manometric tubes that allow to visualize the radial pressure distribution. The journal bearing movement and the oil film can be seen through a transparent plastic bearing housing. The pressure distribution in the journal bearing is measured by thirteen manometric tubes using the height of each column of liquid.

The gap width can be adjusted by the movable bearing housing with a micrometer screw.

The lubricant that enables the visualization of pressure distribution in the journal bearing is contained in a tank. The distribution of pressure on the journal bearing can be determined at different speeds, loads and bearing gap width.

Des exercices et pratiques guidées

EXERCICES GUIDÉS INCLUS DANS LE MANUEL

  1. Demonstration and visualization of the radial pressure distribution in a journal bearing with hydrodynamic lubrication.
  2. Investigation of the pressure distribution in the journal bearing depending on the bearing gap width.
  3. Investigation of the pressure distribution in the journal bearing depending on the speed.
  4. Study of the stability limit as a function of the gap width.
