MEE Unité de Levage à Engrenages

7.1.2.2.- VITESSES 14.1.2.2.- VITESSES
GEARED LIFTING UNIT - MEE

SYSTEMES INNOVANTS

The Geared Lifting Unit, "MEE", consists basically of a lifting mechanism made up of a gear train that allows the study of a single wheel, a single gear system and a double gear system, determining the speed ratio, mechanical advance and efficiency.

Voir description générale

Expansions

ICAI

Logiciel Interactif pour l'Enseignement assisté par Ordinateur
MSAC

Système Modulaire d'Acquisition et de Contrôle

Laboratories

7TV
 Laboratoire de Mécanique, d'automobile et de Matériaux pour l'enseignement Technique et Professionnel
7HE
 Laboratoire de Mécanique, d'automobile et de Matériaux pour l'enseignement Supérieur

NOUVELLES LIÉES

EDIBON et son engagement envers les compétences européennes
EDIBON et son engagement envers les compétences européennes
Chez EDIBON, nous sommes engagés à renforcer les compétences comme pilier stratégique pour la compétitivité et le bien-être social de l'Union européenne. Une formation adéquate renforce non seulement l'économie, mais permet également aux individus de participer pleinement à la société et à la...
Lire plus
NEW Basic Mechanics course
NEW Basic Mechanics course
Are you a teacher or do you work as an engineering researcher? EDIBON offers courses for teachers and #research staff. Take a look at the course Basic Mechanics and learn about #forces and vectors. #DiscoverEdibon #Engineering.
Lire plus

Description Générale

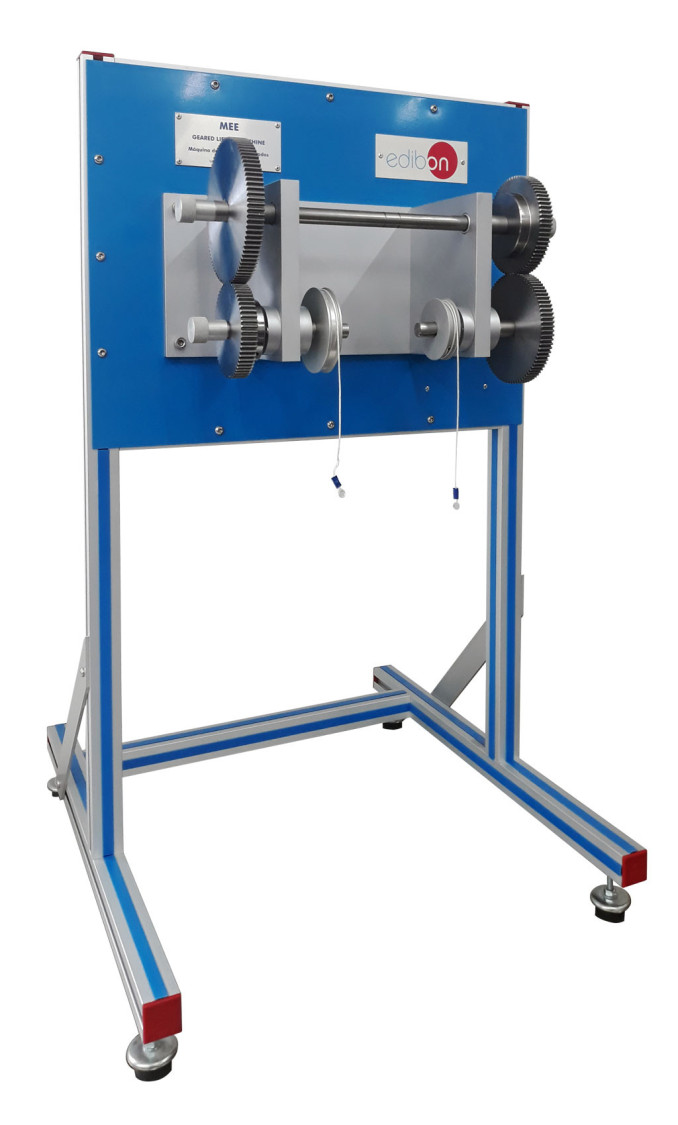

The Geared Lifting Unit, "MEE", has been designed to study a simple lifting mechanism and its use to determine the speed ratio, its mechanical advantages and efficiency.

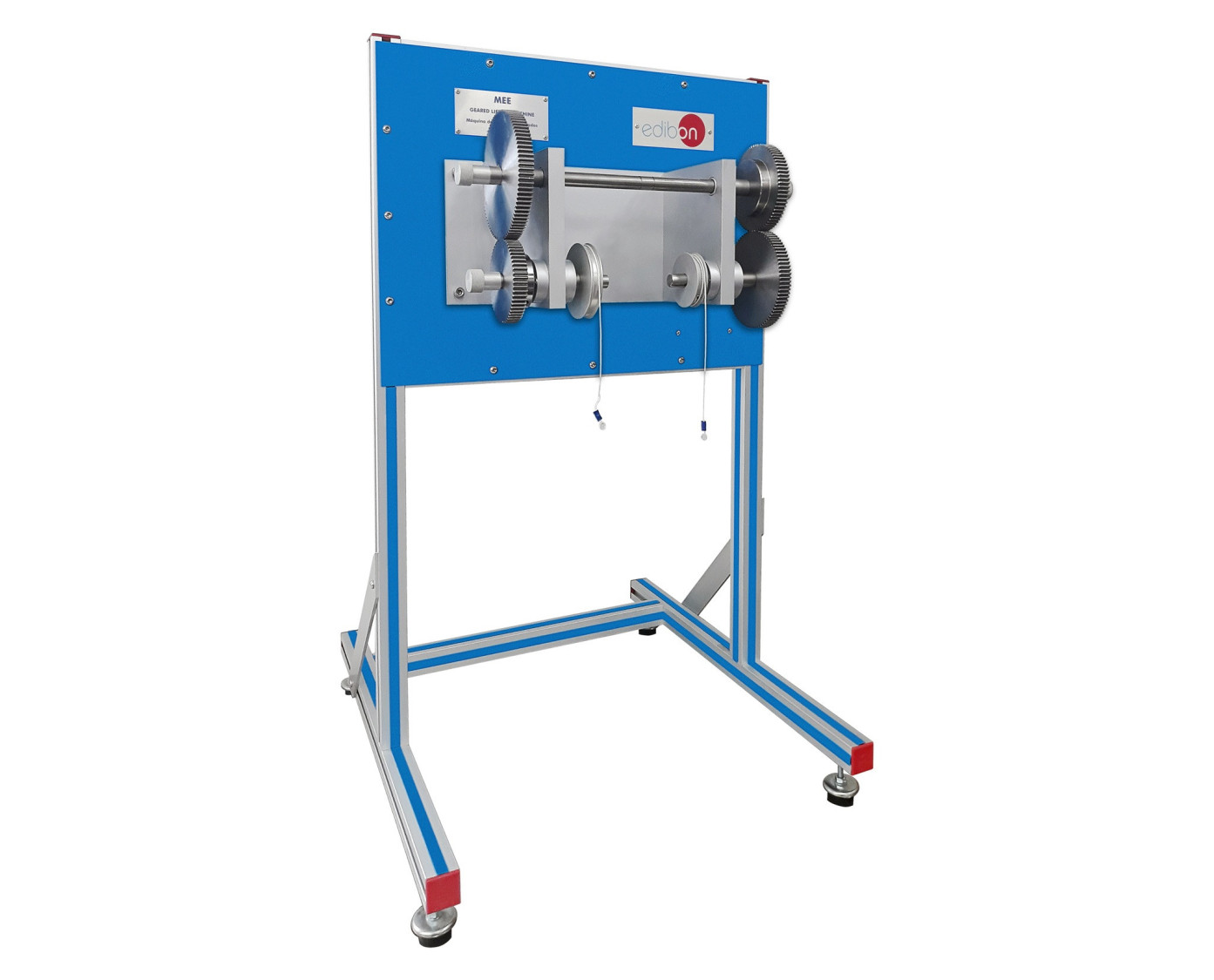

The unit is mounted on a metal structure with bearings that support the gear drive shafts. Four gears with different numbers of teeth are available, allowing the simulation of a single gear, a single gear system and a double gear system.

In addition, two interchangeable pulleys of different sizes are available to study their influence on lifting, from which different masses are suspended to observe how the efficiency of each gear system varies.

Des exercices et pratiques guidées

EXERCICES GUIDÉS INCLUS DANS LE MANUEL

  1. Study of a simple lifting mechanism and its use to determine the velocity ratio, mechanical advantages and efficiency.
  2. Use of pulleys and gears to simulate simple wheel and shaft, single gear and double gears.
  3. Measurement of the linear displacement between the masses and comparison with the calculated valves.
  4. Calculation of the minimum work to lift a load and the efficiency.

Qualité

Service après vente

Demander des informations
