MEASUREMENT AND REGULATION STATION UNIT - MRST

SYSTEMES INNOVANTS

The Measurement and Regulation Station Trainer, "MRST", designed by EDIBON is a totally accessible bench-top unit.

Voir description générale

Expansions

ICAI

Logiciel Interactif pour l'Enseignement assisté par Ordinateur

Description Générale

The Measurement and Regulation Station Trainer,"MRST", designed by EDIBON is a totally accessible bench-top unit.

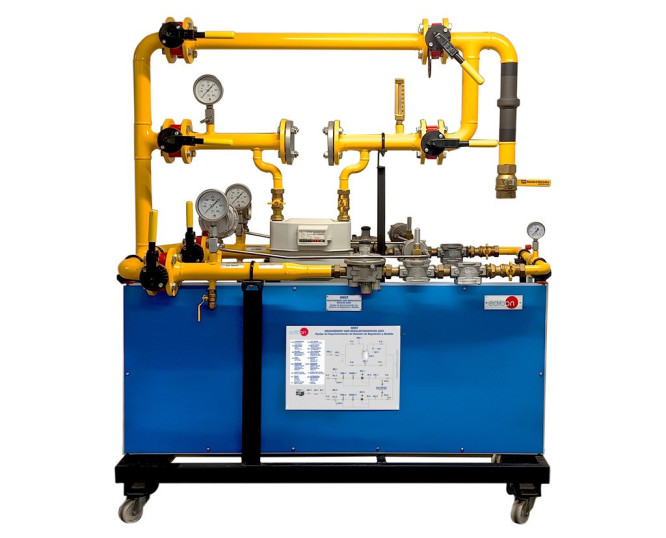

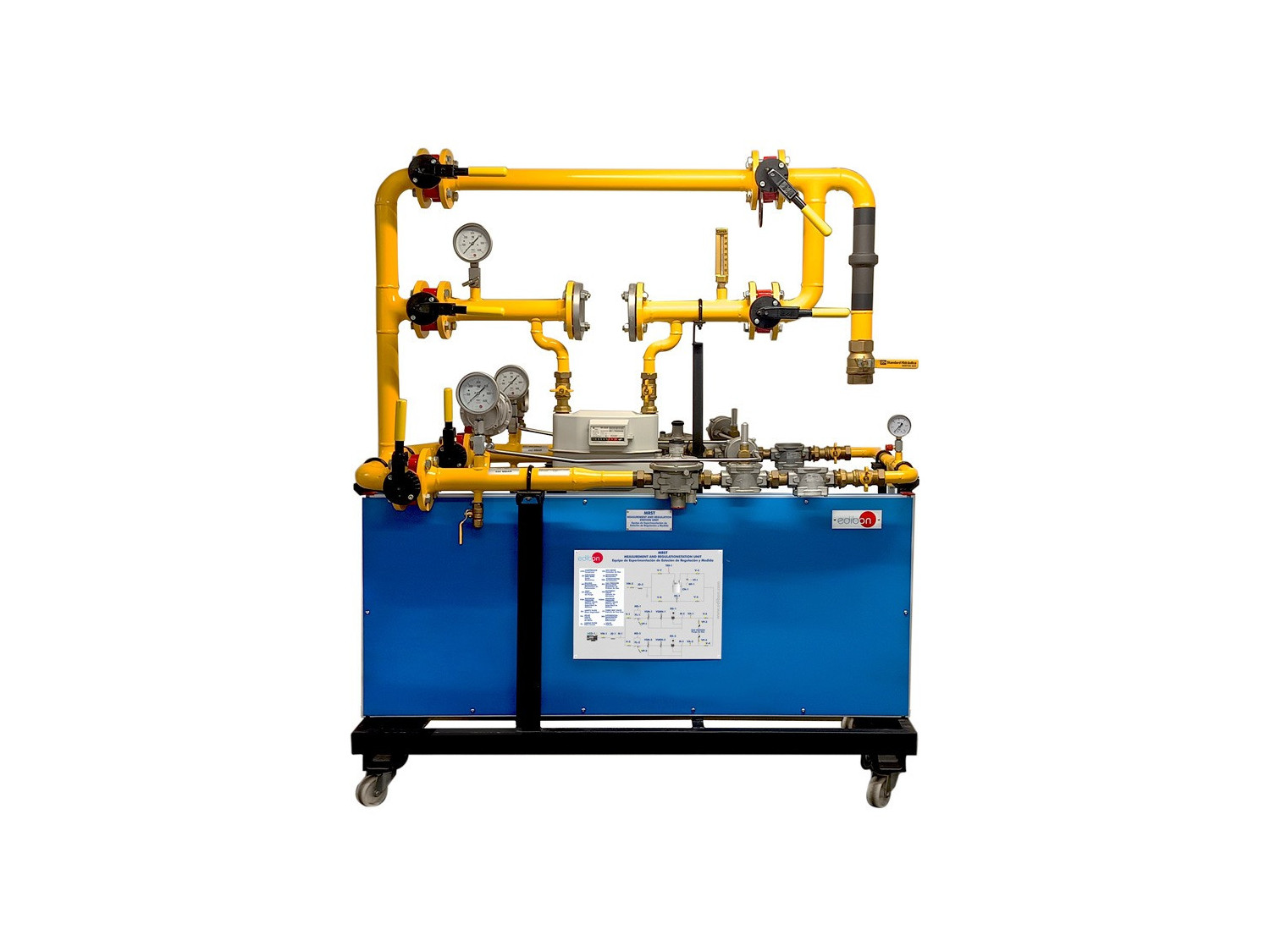

The unit works with an air compressor that simulates the gas flowing inside the pipes (air testing), allowing to check the tightness of the station. This unit includes all the components required in this type of stations: two filters to remove any solid particle from the gas, two pressure reducing valves (pressure regulators), a gas meter, two triggers (safety valves), two different gas lines (pipes), pressure taps and connection push-in fittings. The station is regulated by several valves (butterfly valves and ball valves) installed in the corresponding gas lines. It also includes the safety systems required in a real regulation station.

Furthermore, checking the pressures and the valves of the regulation station is also possible. The unit is mounted with DN25 and DN32 pipes and flanges.

Des exercices et pratiques guidées

EXERCICES GUIDÉS INCLUS DANS LE MANUEL

  1. Identification of the components of a regulation station (PDF and PID).
  2. Study of the regulation systems, pressure triggers and relief valves.
  3. Checking the tightness of the regulation station.
  4. Start-up procedure for a regulation station.
  5. Maintenance procedure for a measurement and regulation station.
  6. Gas meter replacement in a measurement and regulation station.
  7. Gas filters replacement in a measurement and regulation station.

PLUS D'EXERCICES PRATIQUES À EFFECTUER AVEC CETTE ÉQUIPEMENT

  1. Study of the protection systems for pipes and welds.
  2. Study of current regulations.
  3. Construction method for regulation stations.
