AE-V Unité de Technologie du Vide

6.1.3.2.- PNEUMATIQUE
VACUUM TECHNOLOGY UNIT - AE-V

SYSTEMES INNOVANTS

The Vacuum Technology Unit, "AE-V", has been designed to obtain the knowledge required to understand the operation of the most common elements used in vacuum technology.

Voir description générale

Expansions

ICAI

Logiciel Interactif pour l'Enseignement assisté par Ordinateur

NOUVELLES LIÉES

EDIBON et son engagement envers les compétences européennes
EDIBON et son engagement envers les compétences européennes
Chez EDIBON, nous sommes engagés à renforcer les compétences comme pilier stratégique pour la compétitivité et le bien-être social de l'Union européenne. Une formation adéquate renforce non seulement l'économie, mais permet également aux individus de participer pleinement à la société et à la...
Lire plus

Description Générale

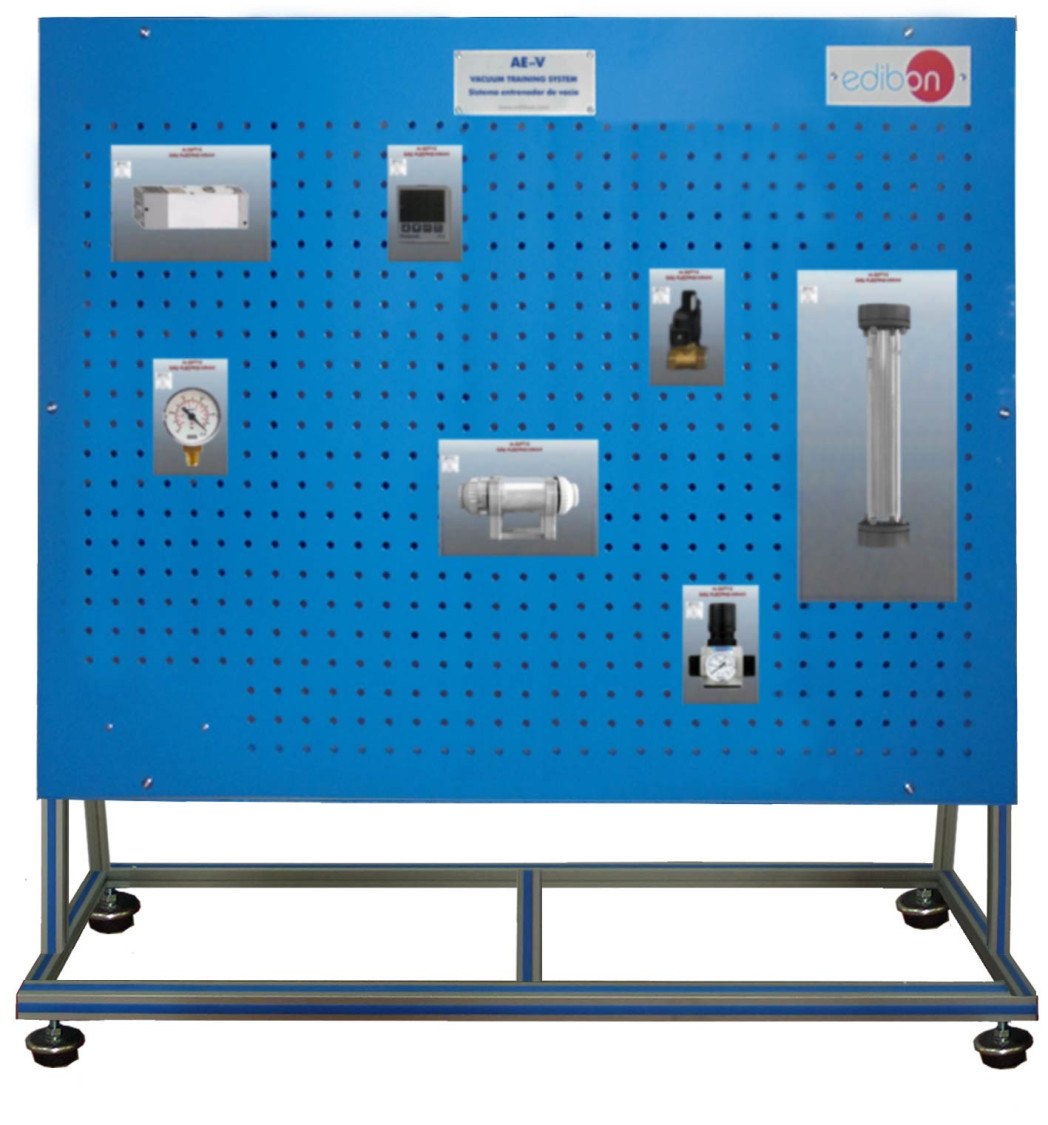

The "AE-V" is a modular unit consisting of a panel where all the components that form the vacuum pneumatic system to be studied are attached to.

The "AE-V" contains all the elements required to carry out the assembly and operation of the circuits proposed in the practical exercises, elements such as push in fittings, flexible tubing, filters, safety valves, etc.

The "AE-V", designed by EDIBON, allows the user to learn the basic concepts about vacuum technology (operation, elements of a vacuum pneumatic circuit, standardized symbols, etc.) without any previous knowledge or experience.

Des exercices et pratiques guidées

EXERCICES GUIDÉS INCLUS DANS LE MANUEL

  1. Introduction to vacuum pneumatic technology.
  2. Description of the main parts of vacuum pneumatic systems.
  3. Compressed air treatment, distribution and compression system.
  4. Checking the state of the pneumatic circuit by measuring the most common pneumatic variables.
  5. Operation of suction pads made of different materials.
  6. Operation of suction pads with different shapes.
  7. Configuration of a vacuum application.
