MEMT-6 Vibration / Friction

7.1.5.- TRIBOLOGIE (FRICTION, USURE, LUBRIFICATION) 14.1.5.- TRIBOLOGIE (FRICTION, USURE, LUBRIFICATION)
FRICTION VIBRATION - MEMT-6

SYSTEMES INNOVANTS

This module allows to demonstrate the static friction, the sliding friction, the related friction vibrations and the slip-stick effects.

Voir description générale

Expansions

ICAI

Logiciel Interactif pour l'Enseignement assisté par Ordinateur

NOUVELLES LIÉES

EDIBON et son engagement envers les compétences européennes
EDIBON et son engagement envers les compétences européennes
Chez EDIBON, nous sommes engagés à renforcer les compétences comme pilier stratégique pour la compétitivité et le bien-être social de l'Union européenne. Une formation adéquate renforce non seulement l'économie, mais permet également aux individus de participer pleinement à la société et à la...
Lire plus
NEW Basic Mechanics course
NEW Basic Mechanics course
Are you a teacher or do you work as an engineering researcher? EDIBON offers courses for teachers and #research staff. Take a look at the course Basic Mechanics and learn about #forces and vectors. #DiscoverEdibon #Engineering.
Lire plus

Description Générale

This module allows to demonstrate the static friction, the sliding friction, the related friction vibrations and the slip-stick effects.

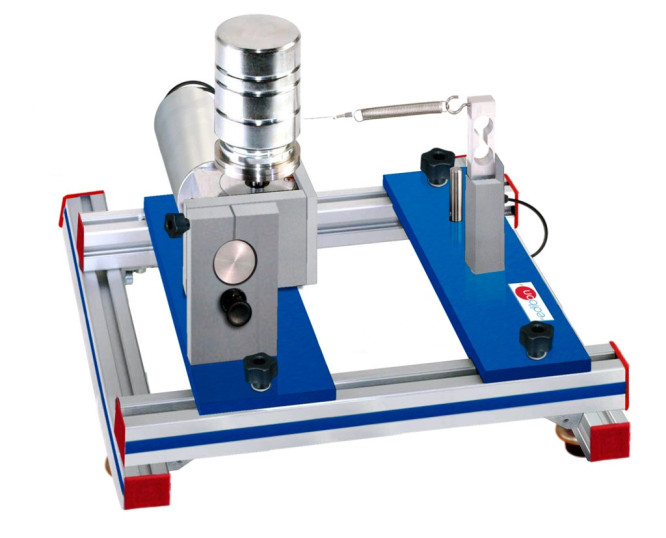

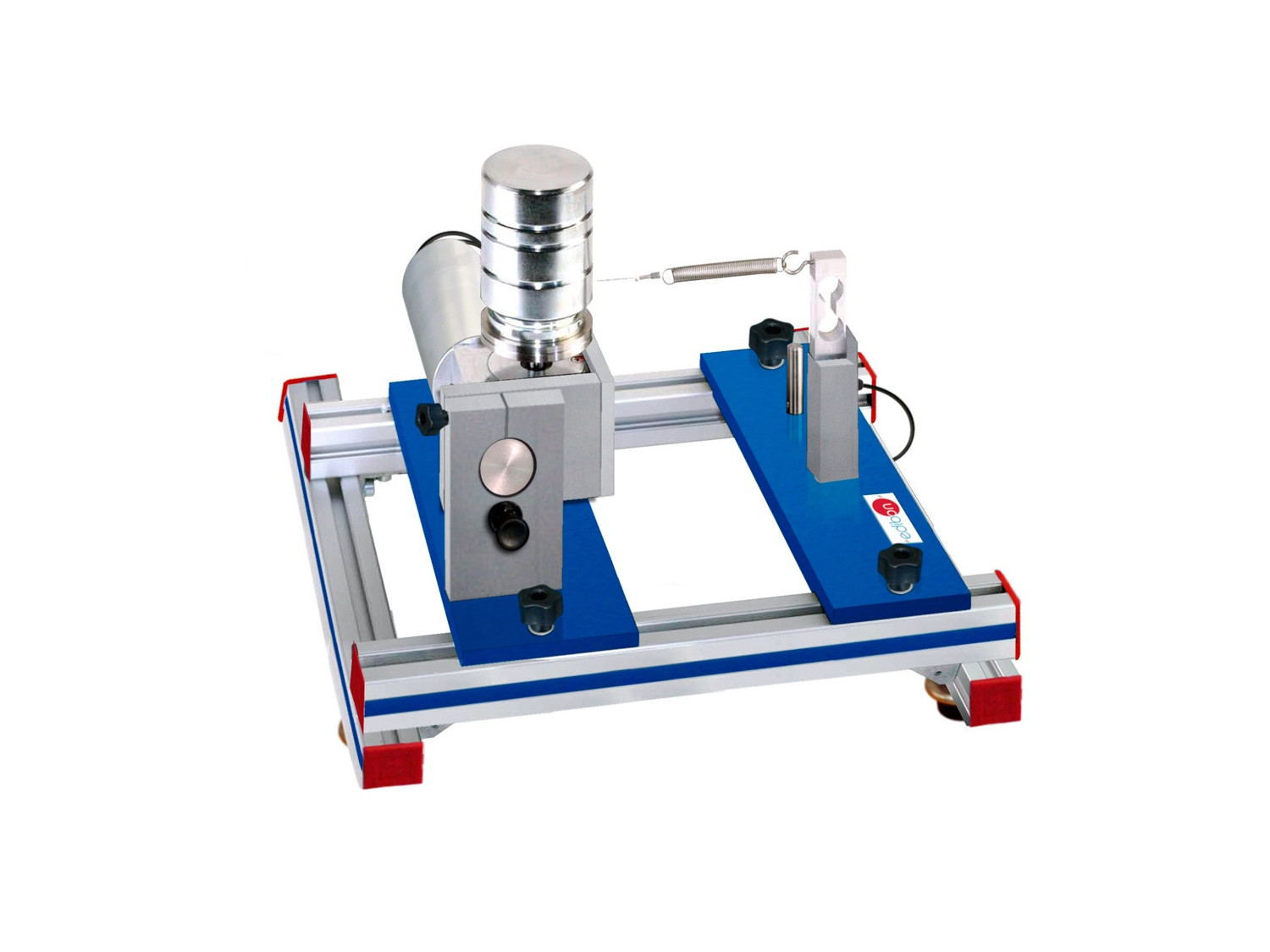

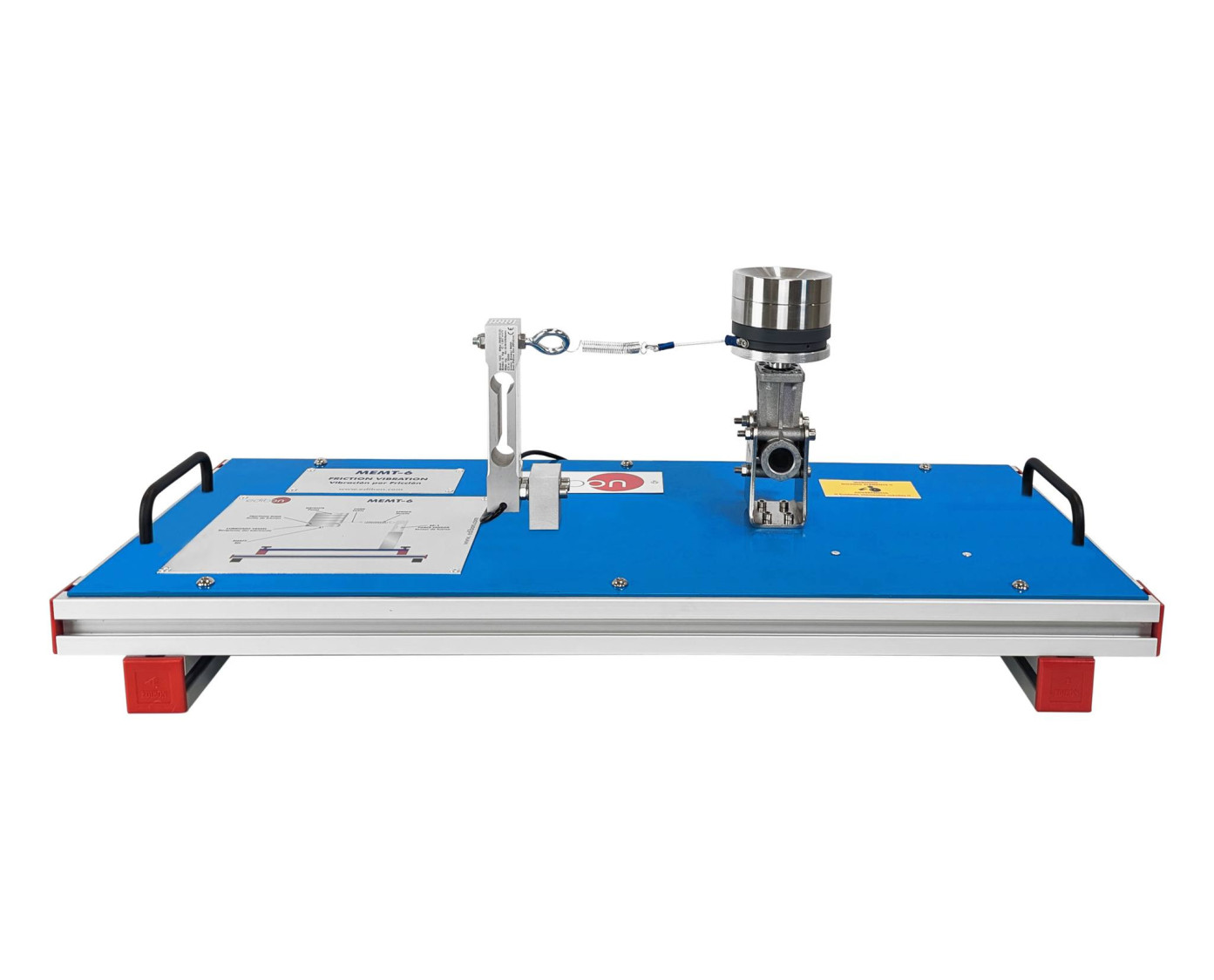

Several weights are placed on a horizontally rotating friction disc. It is prevented from turning by a cord. This cord is coupled to force measuring devices with a force sensor via a tension spring. An open vessel surrounds the friction disc to place different lubricants.

Des exercices et pratiques guidées

EXERCICES GUIDÉS INCLUS DANS LE MANUEL

  1. Demonstration of the transition from static friction to sliding friction.
  2. Study of the influence of lubrication on stick-slip effects.
  3. Study of the influence of the force between the components on the stick-slip effects.
  4. Study of the influence of the relative speed of the components on the stick-slip effects.
