ANALYSIS OF POWER FLOWS IN TRANSMISSION LINES APPLICATION - AEL-TI-06

SISTEM INOVATIF

The Analysis of Power Flows in Transmission Lines Application, "AET-TI-06", has been designed for the study of power flows in high voltage transmission lines via Phase Shifting Transformers (PST).

Lihat uraian umum

Ekspansi

ICAI

Perangkat Lunak Pengajaran Berbantu Komputer Interaktif

BERITA TERKAIT

Laboratory supported by Official College of Technical Industrial Engineers (Spain)
Laboratory supported by Official College of Technical Industrial Engineers (Spain)
At EDIBON, we reaffirm our commitment to the advancement of clean and renewable energy, with a special focus on green hydrogen as a key driver for a more sustainable future. We are proud to have been selected to equip the first Green Hydrogen Laboratory in the Region of Murcia, a pioneering space...
Baca lebih lanjut
Recycling and energy storage systems
Recycling and energy storage systems
The shift towards electric vehicles (EVs) has gained considerable momentum worldwide, promising a reduction in greenhouse gas emissions and a path to a more sustainable future. However, as the demand for EVs accelerates, so too does the need for large quantities of essential minerals, such as...
Baca lebih lanjut
EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
Baca lebih lanjut
Setting up in Papua New Guinea
Setting up in Papua New Guinea
We have traveled to Oceania to make an installation in Papua New Guinea. There we have installed our Analysis of Three-phase Power Lines Application, (AEL-TI-01), our Distribution Transfomer with Motor Regulation Application (AEL-TI-02), Arc Suppression Coil Application (AEL-TI- 03), Underground...
Baca lebih lanjut
SMART GRID. What is about?
SMART GRID. What is about?
With the new smart bidirectional meters, all protection and control devices and the wide use of Internet, the grid has become an intelligent (smart) grid.
Baca lebih lanjut
NEW Renewable Energies leaflet
NEW Renewable Energies leaflet
The growing concern over pollution and climate change has exponentially increased the interest about clean energies. Computer Controlled Renewable Energies units (with SCADA), designed by EDIBON, are not only an effective learning tool to understand all energy related processes, but also a...
Baca lebih lanjut

GAMBARAN UMUM

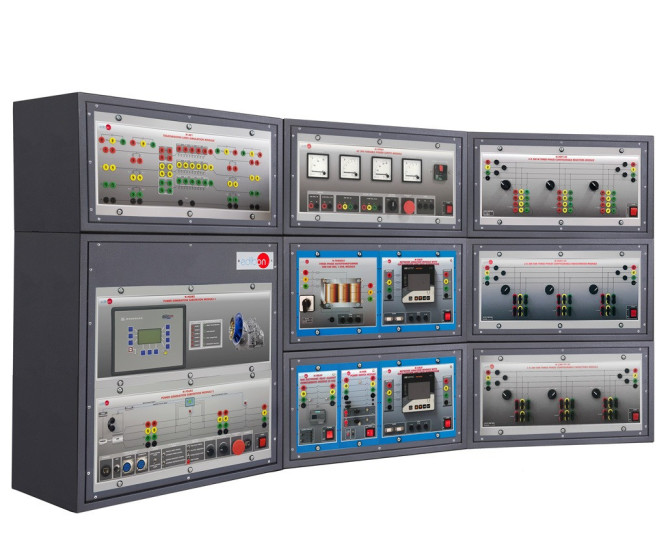

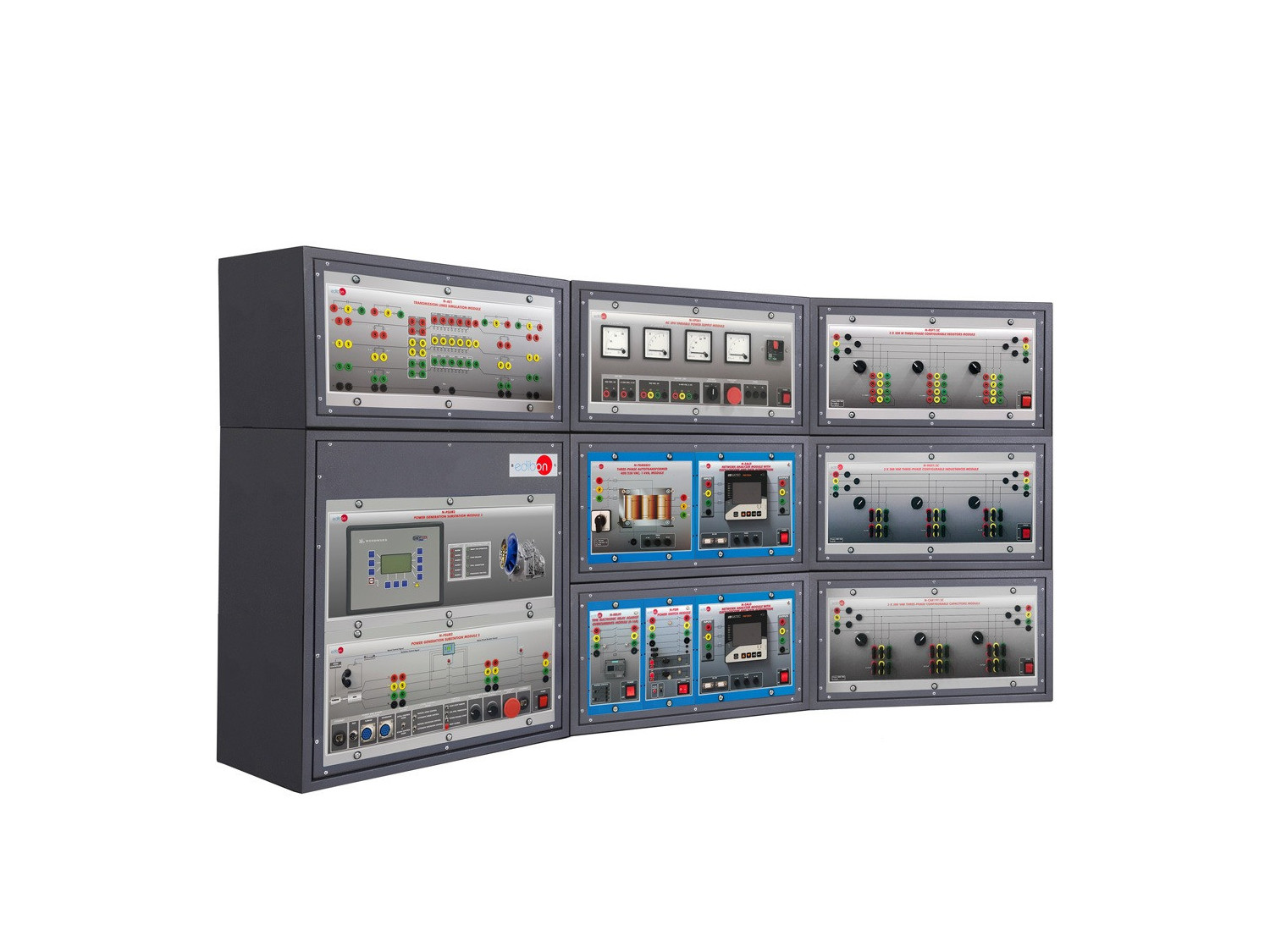

The Analysis of Power Flows in Transmission Lines Application, "AET-TI-06", has been designed for the study of power flows in high voltage transmission lines via Phase Shifting Transformers (PST). For this purpose, this application includes a phase shifting transformer module, a transmission line module and a network analyser module. The phase shifting transformer module allows the user to control the voltage angle and the influence of this in the active power flow injected in the transmission line. The aerial transmission line module has terminals to configure the electrical parameters such as resistance, inductance, the capacitive effect between line to line and line to ground. The network analyser module allows the user to monitor the most important electrical parameters such as power factor, harmonics, drop voltages, powers, etc.

In addition, this application has been designed to be combined with the rest of AEL-TI- and AEL-SST- applications in order to form a system in which the user can study concepts about generation, transmission, distribution and power consumption.

This application can work remotely through SCADA software AEL-TI-07/CCSOF included in the application of Transmission Application with Synchronous Generator, "AEL-TI-07".

LATIHAN DAN PRAKTEK PEDOMAN

LATIHAN PRAKTIS YANG DIANDAL TERMASUK DALAM PANDUAN

  1. Measurement of the most important electrical parameters of parallel lines with equal length.
  2. Measurement of the most important electrical parameters of parallel lines with different length.
  3. Measurement of the most important electrical parameters of serial lines with equal length.
  4. Measurement of the most important electrical parameters of serial lines with different length.
  5. Measurement of the most important electrical parameters of parallel lines with equal impedance.
  6. Measurement of the most important electrical parameters of parallel lines with different impedance.
  7. Voltage angle influence in the active power injected in the line.

LEBIH BANYAK LATIHAN PRAKTIS YANG AKAN DILAKUKAN DENGAN UNIT

  1. Several students can see the results at the same time. A projector or electronic whiteboard can be used to see all the results in real time in class.
  2. The Computer Control System with CCSOF allows a real simulation.
  3. This application is completely safe since it has mechanical, electrical, electronic security devices and Software.
  4. This application may be used to carry out applied research.
  5. This application may be used for teaching training to industries, even to other institutions of technical education.
  6. Several other exercises can be done and designed by the user.

BARANG YANG DIBUTUHKAN

BARANG TAMBAHAN YANG DISARANKAN

PERALATAN SIMILAR TERSEDIA
