REACTIVE POWER COMPENSATION APPLICATION - AEL-RPC

SISTEM INOVATIF

The Reactive Power Compensation Application, "AEL-RPC", has been designed to study the reactive power effects in AC circuits, due to reactive loads, and its compensation procedures.

Lihat uraian umum

Ekspansi

ICAI

Perangkat Lunak Pengajaran Berbantu Komputer Interaktif

BERITA TERKAIT

Laboratory supported by Official College of Technical Industrial Engineers (Spain)
Laboratory supported by Official College of Technical Industrial Engineers (Spain)
At EDIBON, we reaffirm our commitment to the advancement of clean and renewable energy, with a special focus on green hydrogen as a key driver for a more sustainable future. We are proud to have been selected to equip the first Green Hydrogen Laboratory in the Region of Murcia, a pioneering space...
Baca lebih lanjut
Recycling and energy storage systems
Recycling and energy storage systems
The shift towards electric vehicles (EVs) has gained considerable momentum worldwide, promising a reduction in greenhouse gas emissions and a path to a more sustainable future. However, as the demand for EVs accelerates, so too does the need for large quantities of essential minerals, such as...
Baca lebih lanjut
EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
Baca lebih lanjut
SMART GRID. What is about?
SMART GRID. What is about?
With the new smart bidirectional meters, all protection and control devices and the wide use of Internet, the grid has become an intelligent (smart) grid.
Baca lebih lanjut
NEW Renewable Energies leaflet
NEW Renewable Energies leaflet
The growing concern over pollution and climate change has exponentially increased the interest about clean energies. Computer Controlled Renewable Energies units (with SCADA), designed by EDIBON, are not only an effective learning tool to understand all energy related processes, but also a...
Baca lebih lanjut

GAMBARAN UMUM

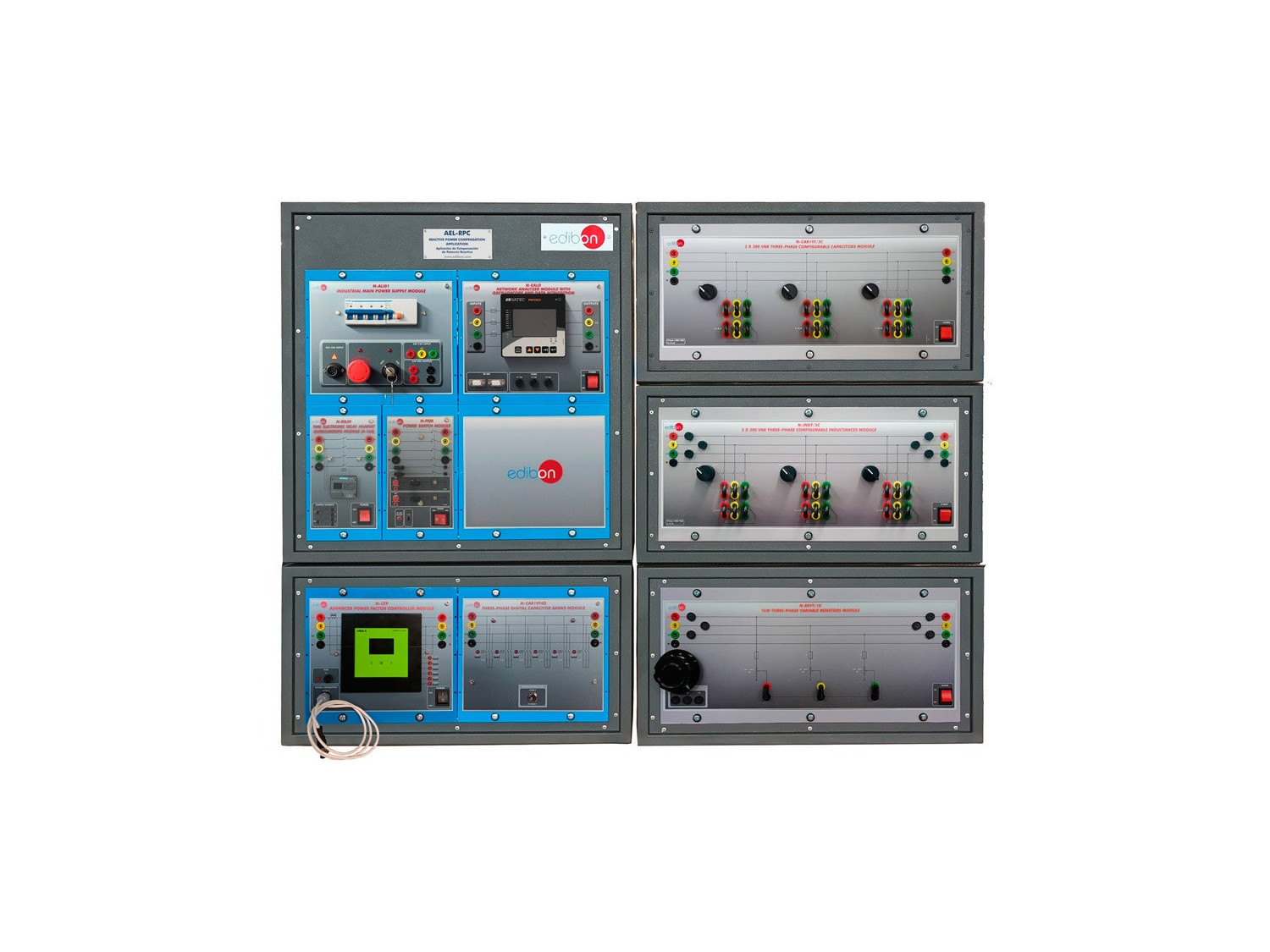

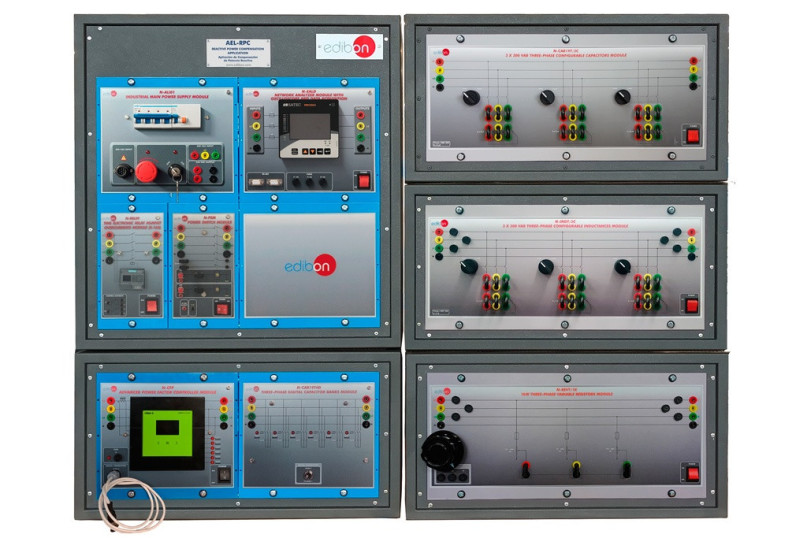

The Reactive Power Compensation Application, "AEL-RPC", has been designed to study the reactive power effects in AC circuits, due to reactive loads, and its compensation procedures.

Reactive power can be described as the quantity of "unused" power that is developed by reactive components, such as inductors or capacitors in an AC circuit or system. The power factor (PF) is defined as the ratio between the active power in watts and the apparent power in volt-amperes and indicates how effectively electrical power is being used, so the closer the power factor is to 1 the more efficient use of the electrical power.

The "AEL-RPC" application includes all types of variable loads (resistive, inductive and capacitive) to study the power factor correction.

In real power systems almost all circuits are inductive so the compensation procedure is done by placing capacitive loads through many different configurations. A network analyzer is also included to measure the electrical parameters (currents,voltages,frequency, powers or the power factor) that the user must know for the previously mentioned purpose. In addition an overcurrent relay and a power switch are included as protection devices.

LATIHAN DAN PRAKTEK PEDOMAN

LATIHAN PRAKTIS YANG DIANDAL TERMASUK DALAM PANDUAN

  1. Wiring star and delta connection with capacitive and inductive loads.
  2. Overcurrent relay and power switch configuration and testing.
  3. Measurement of the active power consumed by a receiver in a pure resistive circuit.
  4. Measurement of the reactive power consumed by a receiver in a pure inductive circuit.
  5. Measurement of the reactive power consumed by a receiver in a pure capacitive circuit.
  6. Measurement of the apparent, active and reactive powers consumed by a receiver in a RL circuit.
  7. Measurement of the power factor of a receiver in a RL circuit.
  8. Computation and wiring of the capacitive load needed to carry out the appropriate power factor correction.
  9. Comparison of the active energy consumed after the compensation.
  10. Comparison of the reactive energy consumed after the compensation.
  11. Measurement of power factor after the compensation.
  12. Determination of the first and second power maxima.
  13. Determination of the power maximum in the event of an asymmetric load.

LEBIH BANYAK LATIHAN PRAKTIS YANG AKAN DILAKUKAN DENGAN UNIT

Practical exercises with the recommended Control and Data Acquisition System Software for Electrical Machines, with SCADA, "EM-SCADA":

  1. Real time current and voltage RMS values monitoring.
  2. Real time current and voltage waveforms measurement.
  3. Real time monitoring of the results.
  4. Obtaining the saved results.

Other possibilities to be done with this Unit:

  1. Several other exercises can be done and designed by the user.

PERALATAN SIMILAR TERSEDIA

SINGLE-PHASE AUTOMATIC POWER FACTOR COMPENSATION APPLICATION - AEL-APFC
  • AEL-APFC
Available
5.1.3.3.- DISTRIBUSI DAYA DAN BEBAN
AEL-APFC
Aplikasi Kontrol Otomatis Faktor Daya pada Sirkuit Satu Fasa
The Single-phase Automatic Power Factor Compensation Application, "AEL-APFC", has been designed by EDIBON is an application designed to study the single phase automatic power factor controllers installed in the energy utilization points. In some...
