ATBB Bangku Uji Aerodinamis

8.6.- AERODINAMIKA

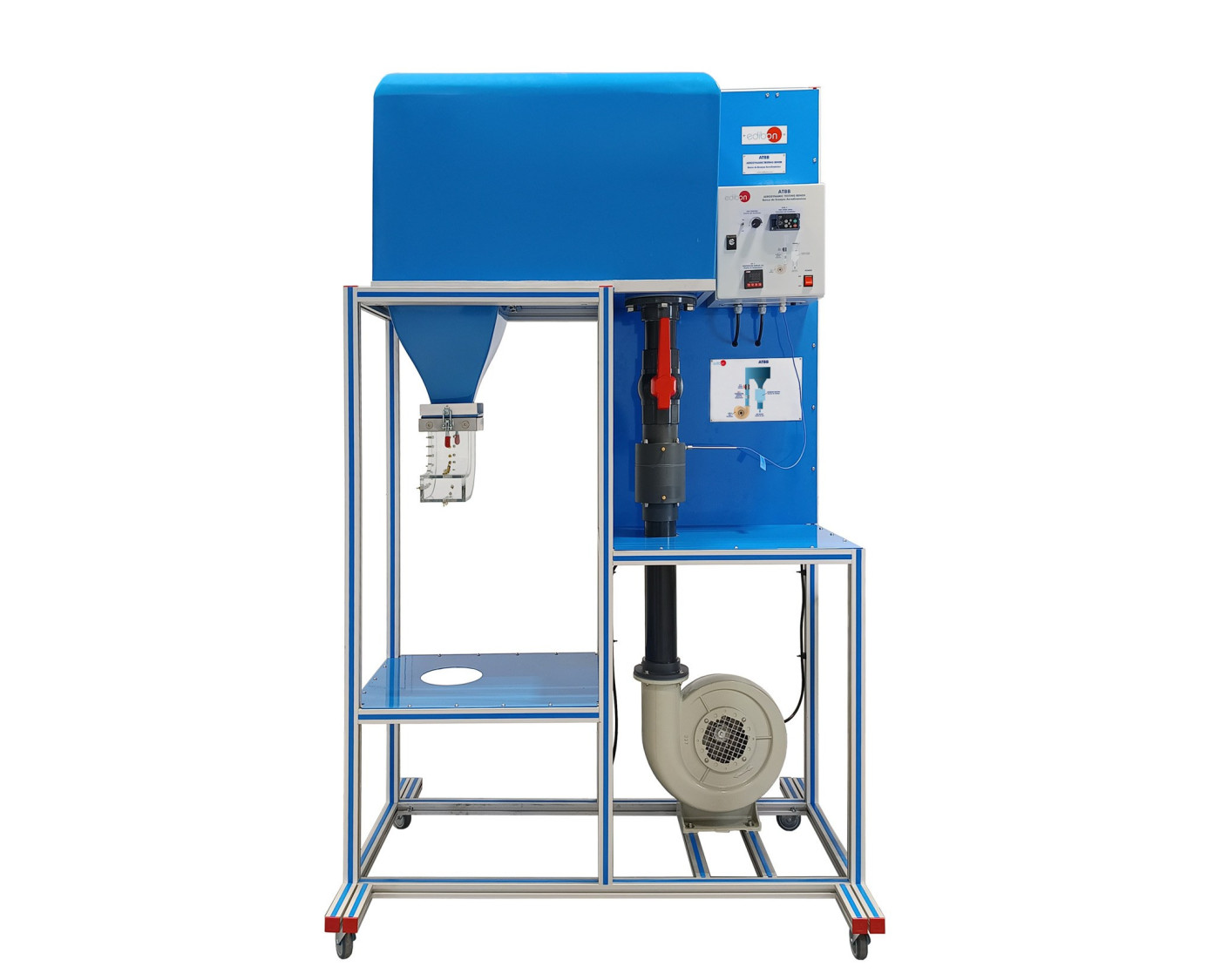

AERODYNAMIC TESTING BENCH - ATBB

SISTEM INOVATIF

The Aerodynamic Testing Bench, "ATBB", designed by EDIBON, perform aerodynamic tests both in the field of bodies exposed to flow around and in the field of steady incompressible flow.

Lihat uraian umum
Katalog Katalog
Spesifikasi Kontes
Meminta informasi

Ekspansi

ICAI

Perangkat Lunak Pengajaran Berbantu Komputer Interaktif

BERITA TERKAIT

Setting up at Saint Louis University at the Madrid Campus
Setting up at Saint Louis University at the Madrid Campus
We would like to highlight the installation of our Aerodynamic Testing Bench (ATBB) along with several accessories. This unit performs aerodynamic tests in both the field of bodies exposed to surrounding flow and the field of steady incompressible flow.
Baca lebih lanjut
EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
Baca lebih lanjut
NEW Fluid Mechanics Course
NEW Fluid Mechanics Course
Are you a teacher or do you work as an engineering researcher? EDIBON offers courses for teachers and #research staff. Take a look at the course of Fluid Mechanics and learn about #fluids properties. #DiscoverEdibon #Engineering.
Baca lebih lanjut

GAMBARAN UMUM

The Aerodynamic Testing Bench, "ATBB", designed by EDIBON , has two main components: a radial fan with speed control and a working section where the different accessories for the tests are fixed.

The radial blower impels the air through an air intake pipe to a rectifier that stabilizes the air, eliminates the turbulences and makes the air flow that reaches the working section be homogeneous. The air leaves the rectifier by a nozzle, where its speed is accelerated, and it is injected into the working chamber.

Accessories that allow different experiments can be attached to the working section in a comfortable and simple way.

After the working section, the air is driven to an air outlet pipe.

There are up to 45 measuring points in which the pressure can be measured, both along the circuit and in the accessories. For pressure measurements, the required element is the Manometer Panel. 16 Manometer tubes, "ATB/MB". The manometer panel is connected to the pressure taps by flexible hoses fitted with quick-release couplings.

LATIHAN DAN PRAKTEK PEDOMAN

LATIHAN PRAKTIS YANG DIANDAL TERMASUK DALAM PANDUAN

Practices with the Model to Study the Boundary Layer (ATB/BL):

  1. Properties of the boundary layer of the fluid when falling upon a flat plate.
  2. Influence of surface roughness on the formation of a boundary layer.
  3. Measurement of the flow speed with a Pitot tube.

Practices with the Model to Study the Drag Forces (ATB/DF):

  1. Measurement of drag forces on bodies immersed in an air flow.
  2. Calculation of drag coefficients on bodies immersed in an air flow.
  3. Pressure distribution on a cylinder immersed in an air flow.
  4. Study of the conservation of momentum.

Practices with the Model to Study the Coanda Effect (ATB/CE):

  1. Study of an air flow that follows the curvature of a surface and demonstration of the Coanda effect.
  2. Study of the operation of a flip-flop.

Practices with the Model to Visualize Streamlines (ATB/VS):

  1. Visualization of streamlines by smoke injection.
  2. Visualization of air streamlines through a cylinder.
  3. Visualization of air streamlines through an orifice plate (different cross section).
  4. Visualization of air streamlines through an airfoil with adjustable angle of attack.
  5. Air flow separation.

Practices with the Model to Study Bernoulli’s Principle (ATB/BP):

  1. Application of the continuity equation and Bernoulli’s principle.
  2. Calculation of the dynamic pressure and the flow velocity from the measured data using Bernoulli’s principle.

Practices with the model Pressure Distribution in a Pipe Bend (ATB/PDB):

  1. Study of the air flow development at a 90º pipe bend.
  2. Representation of the pressure distribution at a 90º pipe bend.
  3. Determination of the static pressure.

Practices with the Model to Study a Free Jet (ATB/FJ):

  1. Study of the behavior of a free jet.
  2. Recording the pressure curve at the outlet of a parallel flow in stationary surroundings.
  3. Representation of velocity profiles at several distances along the jet and the development of the jet diffusion.

Practices with the model Pressure Distribution in a Streamlined Shape (ATB/SS):

  1. Study of the pressure distribution around a streamlined shape.
Lihat Lebih Banyak
