BS6 Modul Pengujian Level Cairan

2.4.1.- INSTRUMENTASI & KONTROL 6.1.2.1.- SENSOR DAN INSTRUMENTASI ELEKTRONIK 14.2.2.- INSTRUMENTASI & KONTROL
LIQUID LEVEL TEST MODULE - BS6

SISTEM INOVATIF

The Liquid level Test Module, "BS6", has been designed to teach the use and applications of level sensors and their measurement systems. This module teaches techniques to measure and control the liquid level in a tank.

Lihat uraian umum

Ekspansi

ICAI

Perangkat Lunak Pengajaran Berbantu Komputer Interaktif
EMSK

Kit Pengembangan Simulasi Sirkuit EDIBON, Didukung oleh NI LabVIEW™

Laboratorium

2TV
 Laboratorium Elektronika Pendidikan Teknik dan Kejuruan
2HE
 Laboratorium Elektronika untuk Perguruan Tinggi
11PTC
 Laboratorium Pusat Pelatihan Perminyakan

BERITA TERKAIT

EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
Baca lebih lanjut
Completion of the Small Laboratory Equipment Repair Course
Completion of the Small Laboratory Equipment Repair Course
On December 1st, the Repair Course for Small Laboratory Equipment, taught by our engineers at the EDIBON facilities, was completed, lasting 4 days. The attendees, (Laboratory technicians and maintenance of the Rey Juan Carlos University of Madrid) had the opportunity to perform multiple...
Baca lebih lanjut

GAMBARAN UMUM

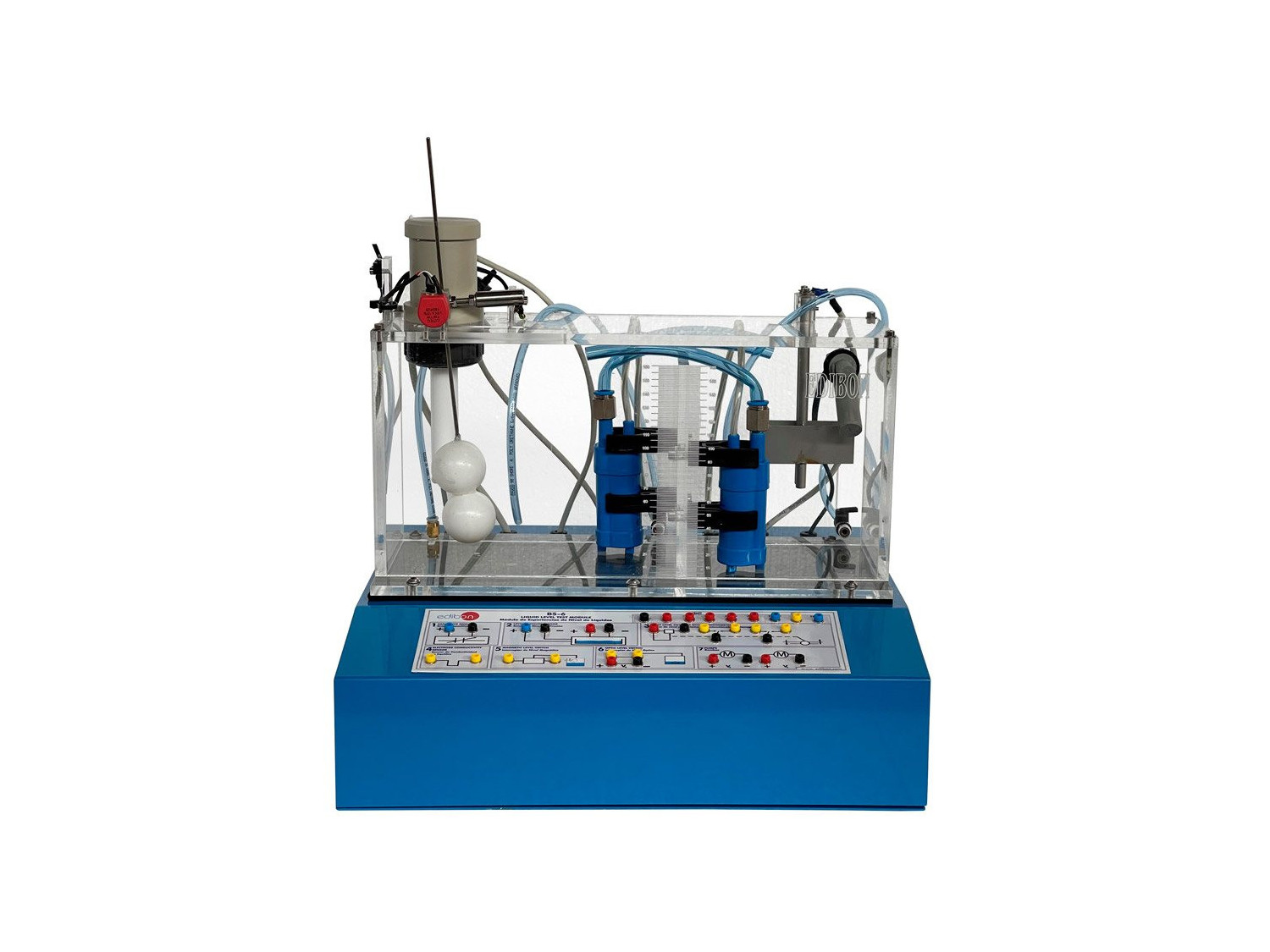

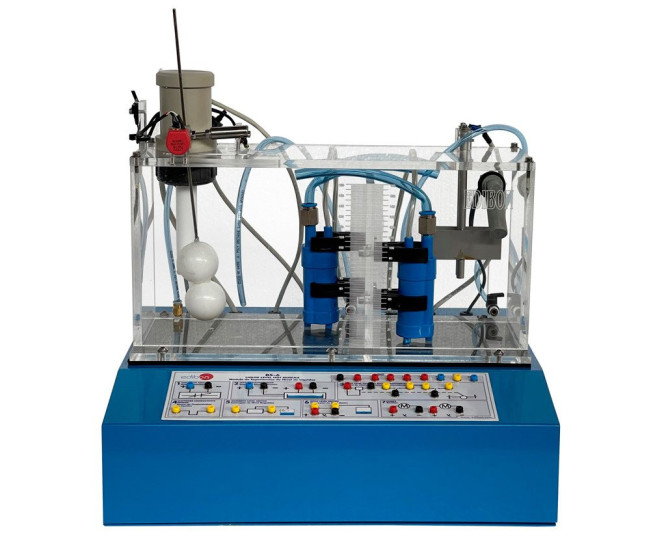

The Liquid level Test Module, "BS6", has been designed to teach the use and applications of level sensors and their measurement systems. This module teaches techniques to measure and control the liquid level in a tank.

On this there is a two tanks system whose aim is to pump the liquid (usually water) between both tanks. Both tanks have sensors of different technology so they can be used as liquid storage tanks or to study the level measurement sensors. Each tank has an individual pump.

Included elements:

  • Capacitive level sensor.
  • Level sensor by pressure.
  • Float level switches with potentiometer.
  • Conductivity level sensor (Electrodes).
  • Magnetic float level sensor.
  • Optical level sensor.

Two pumps fed through direct current that can be used to pump the liquid from one tank to the other.

All the connections of the different sensors and pump systems are done using the 2 mm. terminals available on the test module front panel, with diagrams describing their functions.

LATIHAN DAN PRAKTEK PEDOMAN

LATIHAN PRAKTIS YANG DIANDAL TERMASUK DALAM PANDUAN

  1. To use a capacitive sensor to measure the liquid level in the tank.
  2. To use the differential pressure sensor as an element to determine the water level in a tank.
  3. To use a changeable resistance fixed to a float system as a liquid level measurement element.
  4. Conduction Sensor. Use of a sensor made up of to steel electrodes to measure the water level of a tank.
  5. Magnetic float level sensor. It detects a precise liquid level in the tank with a magnetic contact.
  6. Control of the module left tank liquid level using an optical level sensor.
