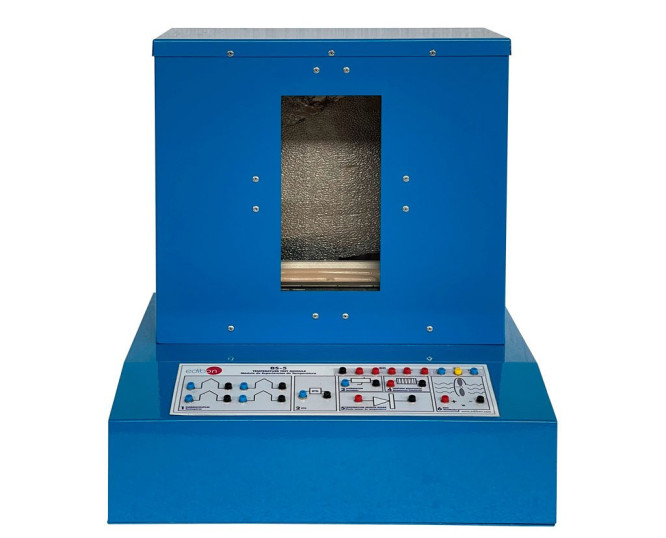

OVENS TEST MODULE - BS5

SISTEM INOVATIF

With the Ovens Test Module, "BS5", is possible to study temperature measurement techniques using several kinds of sensors placed inside the sealed place that is used as oven.

Lihat uraian umum

Ekspansi

ICAI

Perangkat Lunak Pengajaran Berbantu Komputer Interaktif
EMSK

Kit Pengembangan Simulasi Sirkuit EDIBON, Didukung oleh NI LabVIEW™

Laboratorium

2TV
 Laboratorium Elektronika Pendidikan Teknik dan Kejuruan
2HE
 Laboratorium Elektronika untuk Perguruan Tinggi
11PTC
 Laboratorium Pusat Pelatihan Perminyakan

BERITA TERKAIT

EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
Baca lebih lanjut
Completion of the Small Laboratory Equipment Repair Course
Completion of the Small Laboratory Equipment Repair Course
On December 1st, the Repair Course for Small Laboratory Equipment, taught by our engineers at the EDIBON facilities, was completed, lasting 4 days. The attendees, (Laboratory technicians and maintenance of the Rey Juan Carlos University of Madrid) had the opportunity to perform multiple...
Baca lebih lanjut

GAMBARAN UMUM

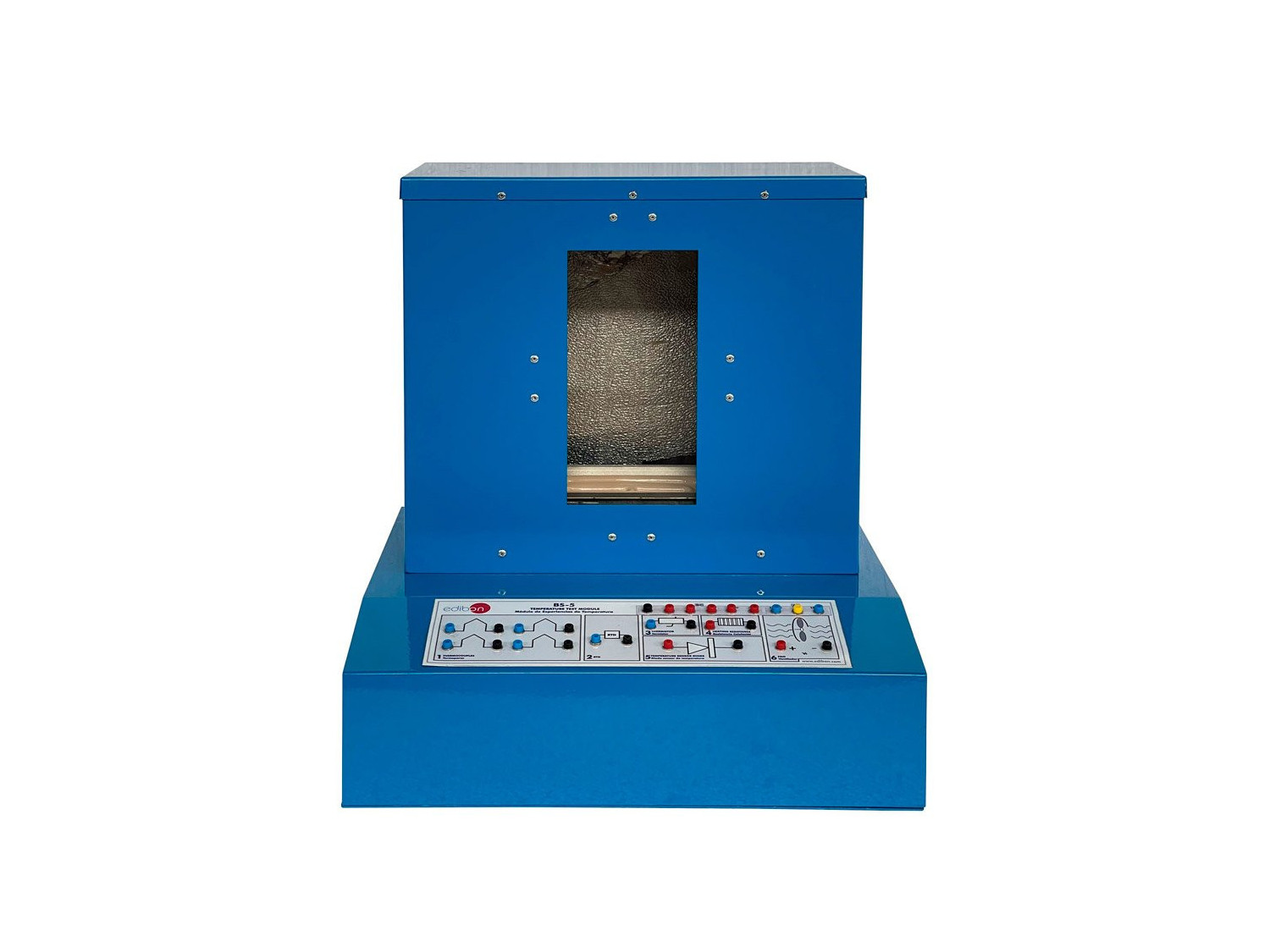

With the Ovens Test Module, "BS5", is possible to study temperature measurement techniques using several kinds of sensors placed inside the sealed place that is used as oven.

This module is basically made up of an oven that contains a changeable speed circular fan that enables to modify the oven time constant.

The heating element that the oven has can be manually controlled or work through a triac which can be regulated with a PID.

The measurement mechanisms the oven has are 4 identical thermocouples placed at different heights. The oven also has a platinum resistance thermometer, a thermistor and a semiconducting mechanism sensitive to temperature. Using any temperature gauge or thermometer it is possible to calibrate the different sensors by introducing the thermometer through the opening the oven has at its upper part.

Included elements:

  • Oven chamber.
  • Heating element.
  • Fan.
  • Thermocouples.
  • Platinum resistance thermometer.
  • Thermistor.
  • Semiconducting temperature sensor.

LATIHAN DAN PRAKTEK PEDOMAN

LATIHAN PRAKTIS YANG DIANDAL TERMASUK DALAM PANDUAN

  1. Heating element. Raise the oven internal temperature, over the environmental temperature, using a heating element to do tests and practices related with temperature measurement.
  2. To use a fan as refrigerating element of the oven.
  3. To use thermocouples as temperature sensors elements inside the oven. Temperature measurement using a thermocouple.
  4. To measure temperature inside the oven using a platinum resistance thermometer.
  5. To measure temperature inside the oven using a thermistor temperature sensor.
  6. Temperature measurement using a thermistor, based on its negative temperature coefficient.
  7. To obtain the temperature value inside the oven using a semiconductor sensor (diode).
  8. PID control.
