The objective of the Light Test Module, "BS10", is to show some of the techniques used to measure light or illumination intensity.

Lihat uraian umum

Katalog

Spesifikasi Kontes

Ekspansi

ICAI

Perangkat Lunak Pengajaran Berbantu Komputer Interaktif

EMSK

Kit Pengembangan Simulasi Sirkuit EDIBON, Didukung oleh NI LabVIEW™

Laboratorium

2TV

Laboratorium Elektronika Pendidikan Teknik dan Kejuruan

2HE

Laboratorium Elektronika untuk Perguruan Tinggi

11PTC

Laboratorium Pusat Pelatihan Perminyakan

BERITA TERKAIT

GAMBARAN UMUM

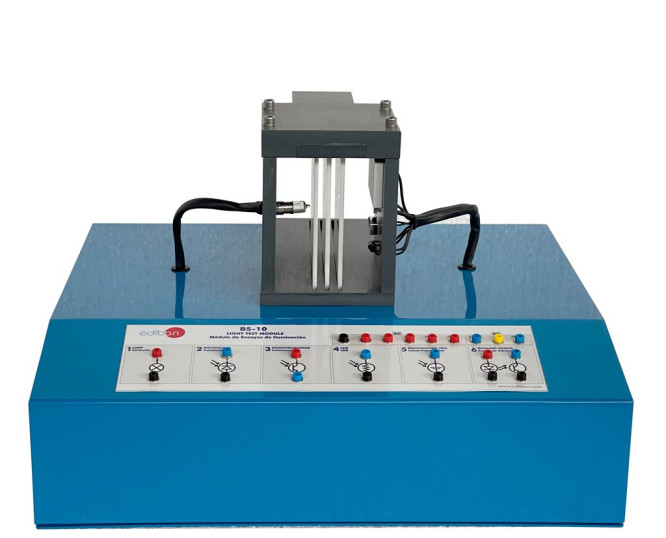

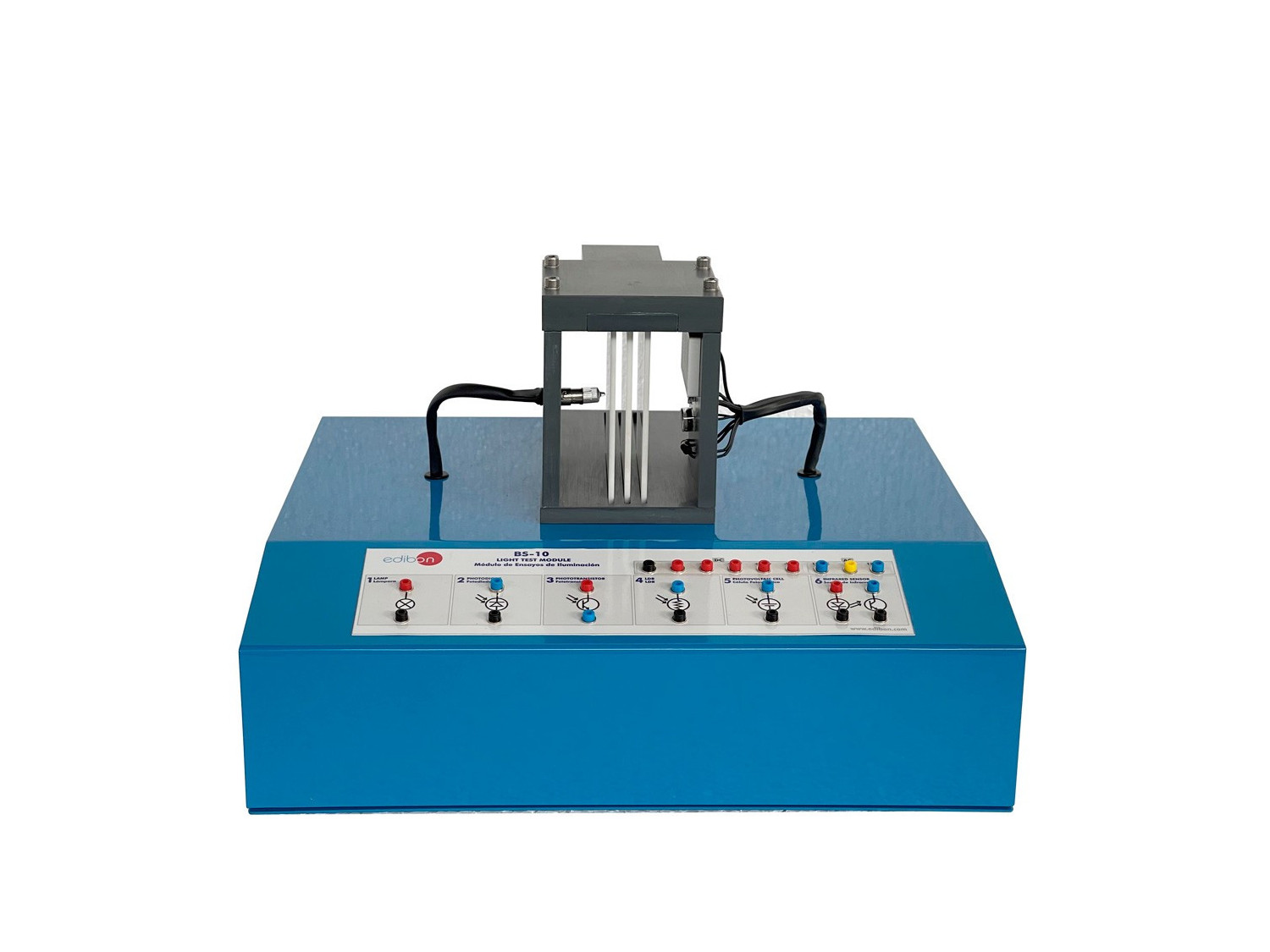

The objective of the Light Test Module, "BS10", is to show some of the techniques used to measure light or illumination intensity.

The module is equipped with a lamp whose light intensity can be controlled by the variation of the voltage supplied.

Included elements:

Lamp.
Photodiode.
Phototransistor.
Light Dependent Resistance (LDR).
Photovoltaic Cell.
Infrared emitter-receiver.

All the connections from the different transducers and the lamp are made using a group of 2 mm. terminals placed on the front panel of the test module with drawings describing their functions.

LATIHAN DAN PRAKTEK PEDOMAN

LATIHAN PRAKTIS YANG DIANDAL TERMASUK DALAM PANDUAN

Study of the equivalent electrical circuit of a photodiode. Studythe V-I characteristic of a photodiode.
Study of the normal operation mode of a photodiode. Study the"ON/OFF" operation (light switch) of a phototransistor.
Measurement of light intensity using a solar cell.
Study of the properties of light dependent resistors (LDR).
Study of the operation of IR sensors.
Study of a real application for controlling the light intensity usingPID control elements.

BARANG YANG DIBUTUHKAN

PERALATAN KOMPLEMENTER
