TACHOMETER TEST MODULE - BS7

SISTEM INOVATIF

The Tachometer Test Module, "BS7", has been designed to teach linear and angular speed measurement techniques.

Lihat uraian umum

Ekspansi

ICAI

Perangkat Lunak Pengajaran Berbantu Komputer Interaktif
EMSK

Kit Pengembangan Simulasi Sirkuit EDIBON, Didukung oleh NI LabVIEW™

Laboratorium

2TV
 Laboratorium Elektronika Pendidikan Teknik dan Kejuruan
2HE
 Laboratorium Elektronika untuk Perguruan Tinggi
11PTC
 Laboratorium Pusat Pelatihan Perminyakan

BERITA TERKAIT

EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
Baca lebih lanjut
Completion of the Small Laboratory Equipment Repair Course
Completion of the Small Laboratory Equipment Repair Course
On December 1st, the Repair Course for Small Laboratory Equipment, taught by our engineers at the EDIBON facilities, was completed, lasting 4 days. The attendees, (Laboratory technicians and maintenance of the Rey Juan Carlos University of Madrid) had the opportunity to perform multiple...
Baca lebih lanjut

GAMBARAN UMUM

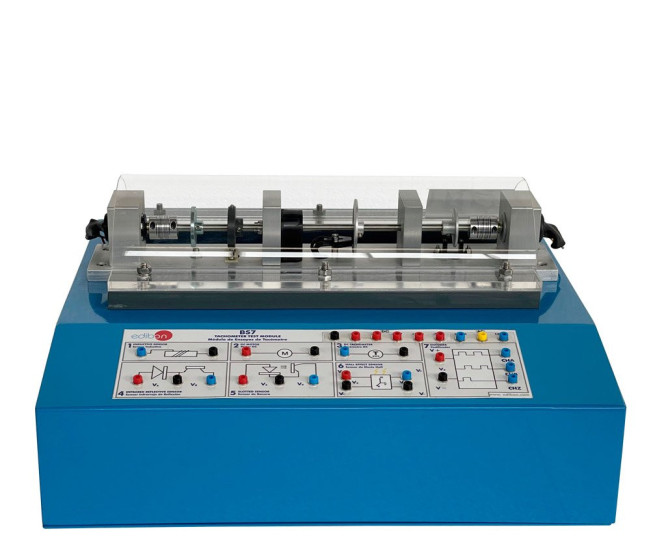

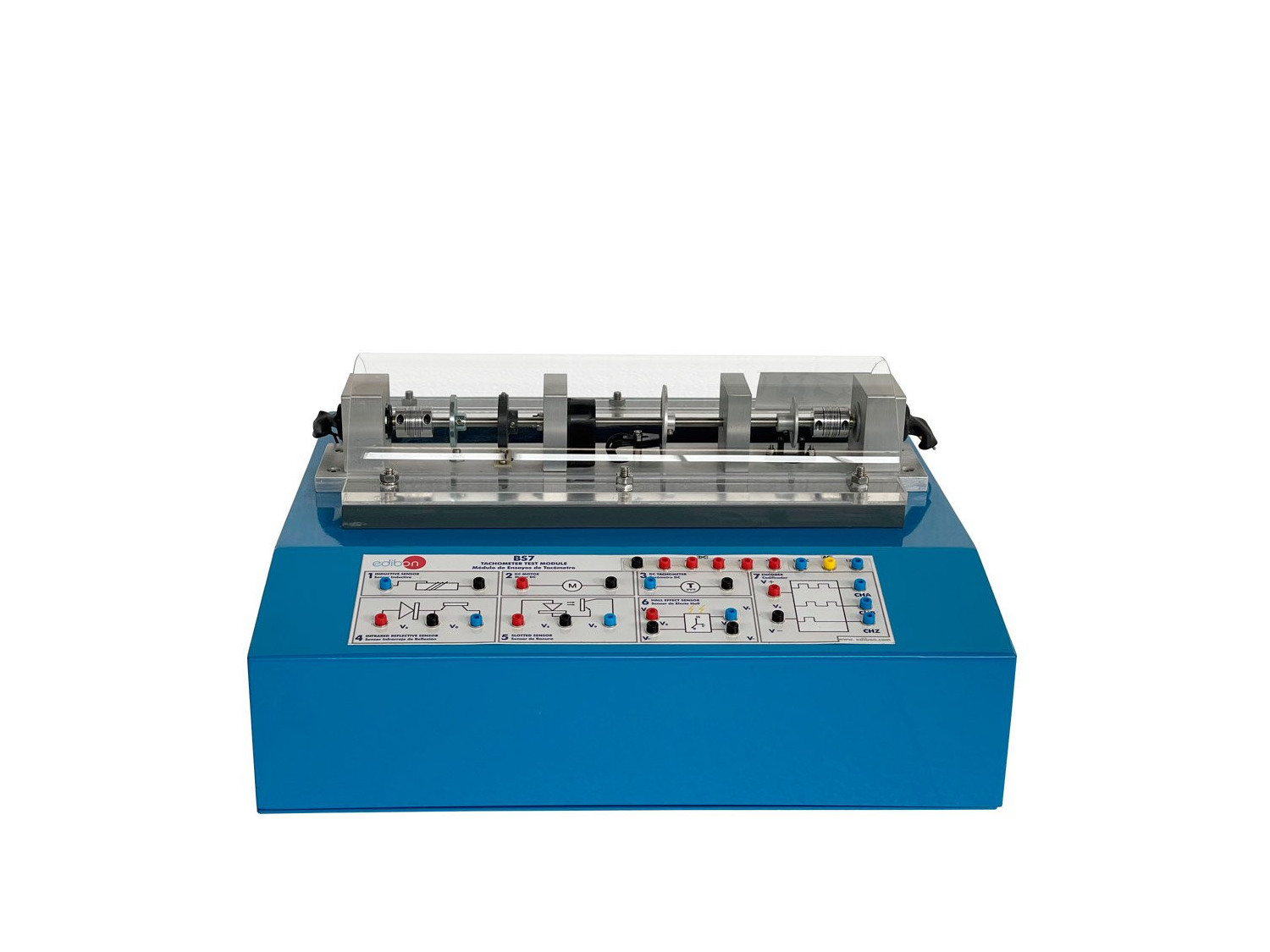

The Tachometer Test Module, "BS7", has been designed to teach linear and angular speed measurement techniques. In this module placed on the upper part we have a miniature motor used to move the axle. The motor speed can be changed adjusting the voltage delivered to the actuator motor. The rotation speed can be measured using the different measure transducers placed on the axle.
