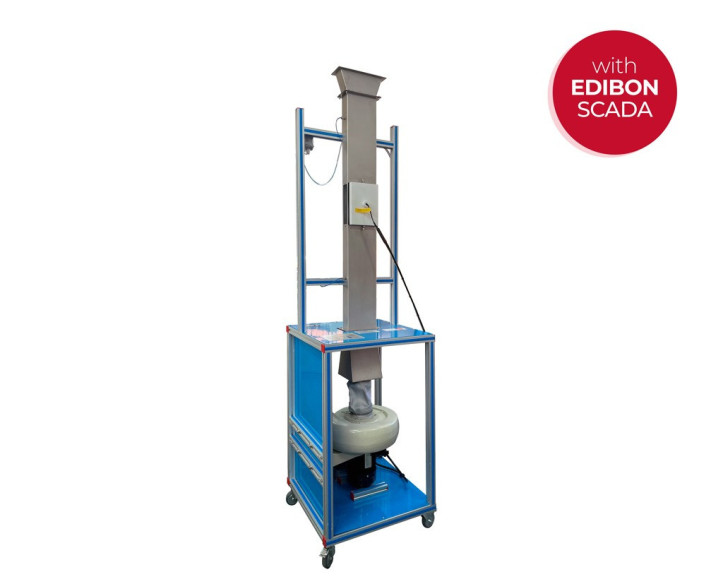

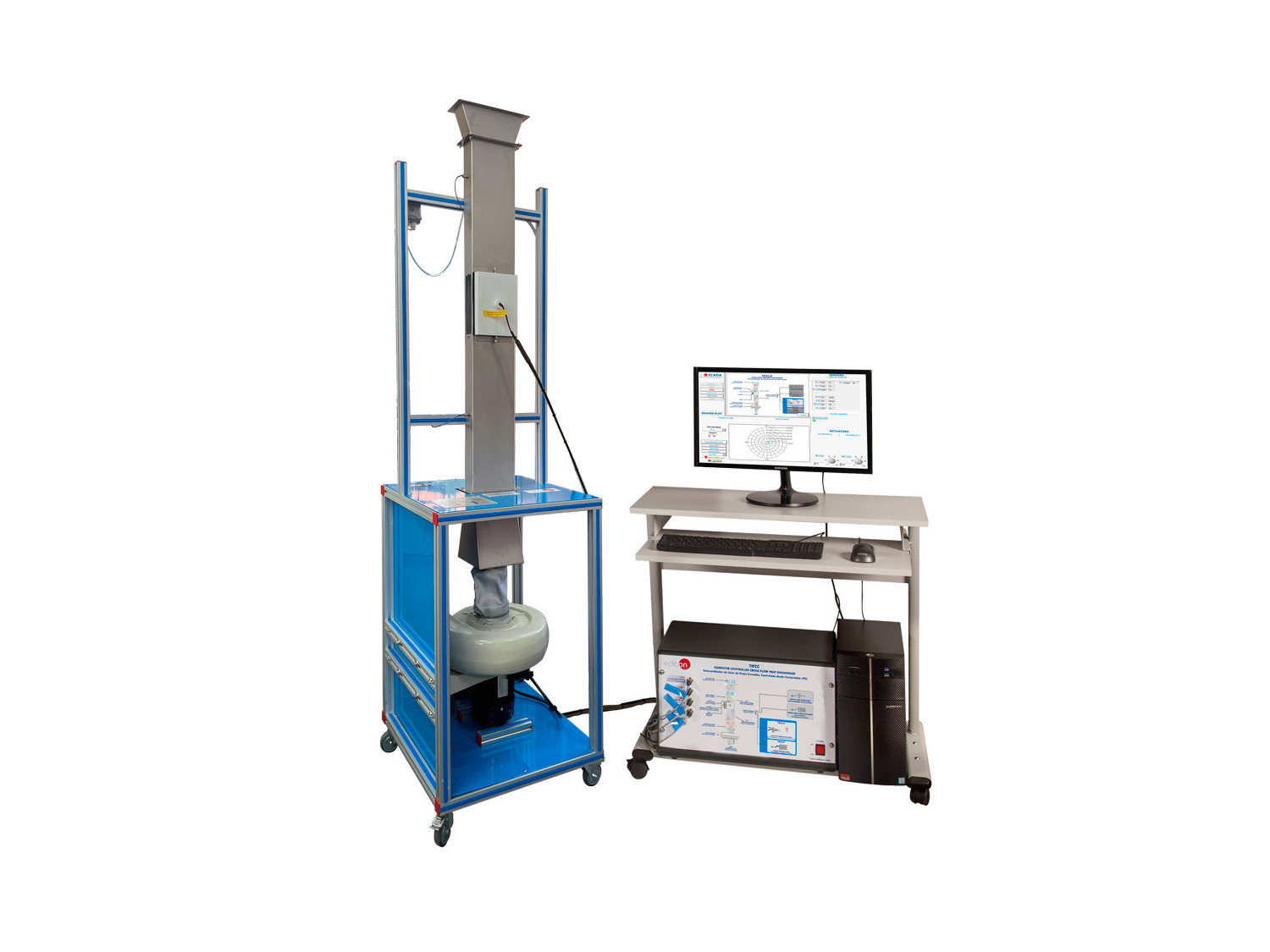

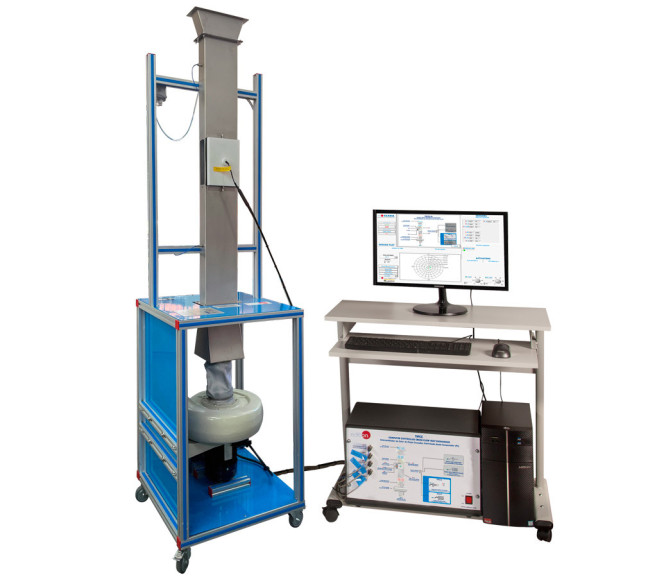

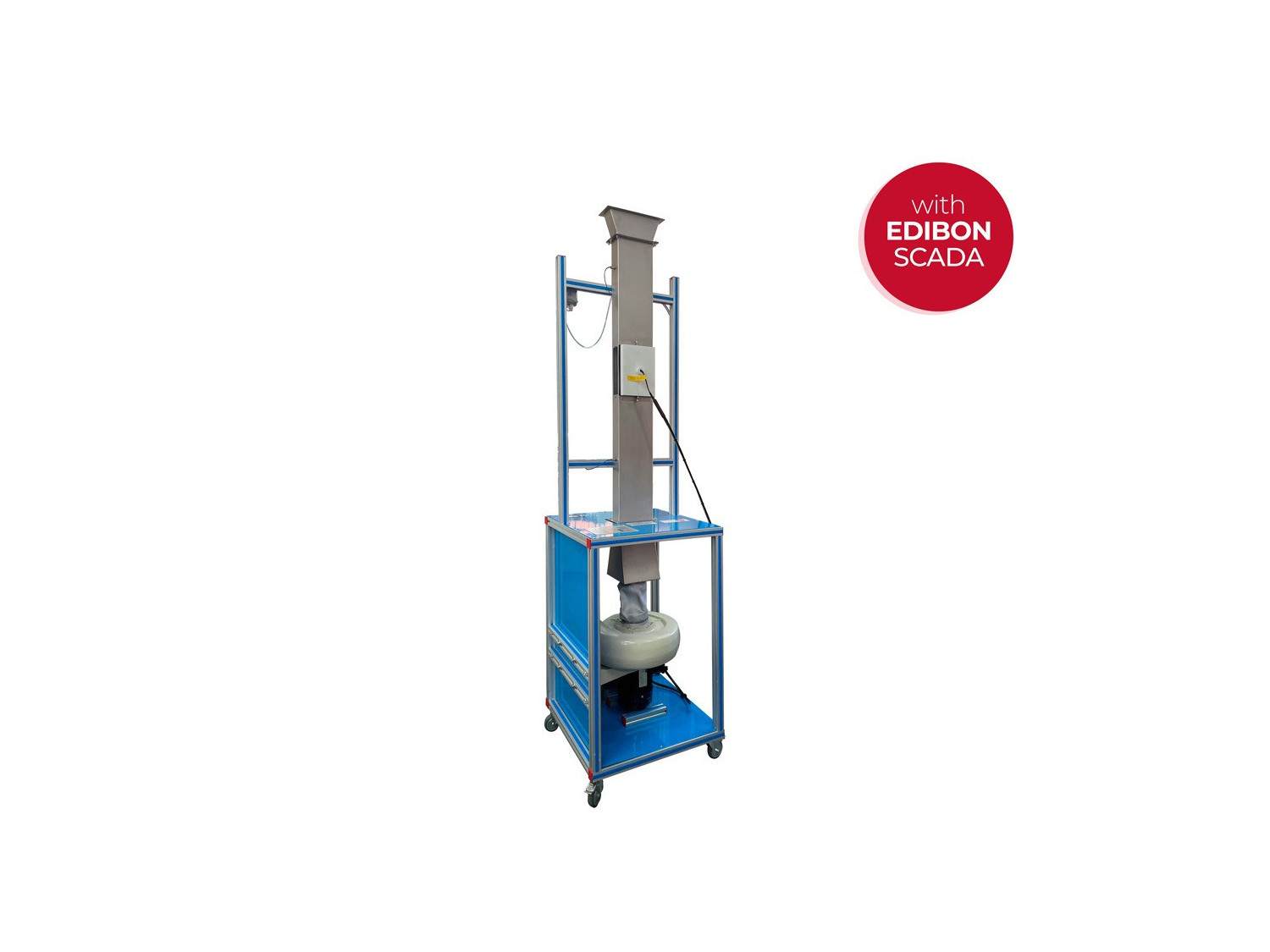

Complete TIFCC unit

COMPUTER CONTROLLED CROSS FLOW HEAT EXCHANGER - TIFCC

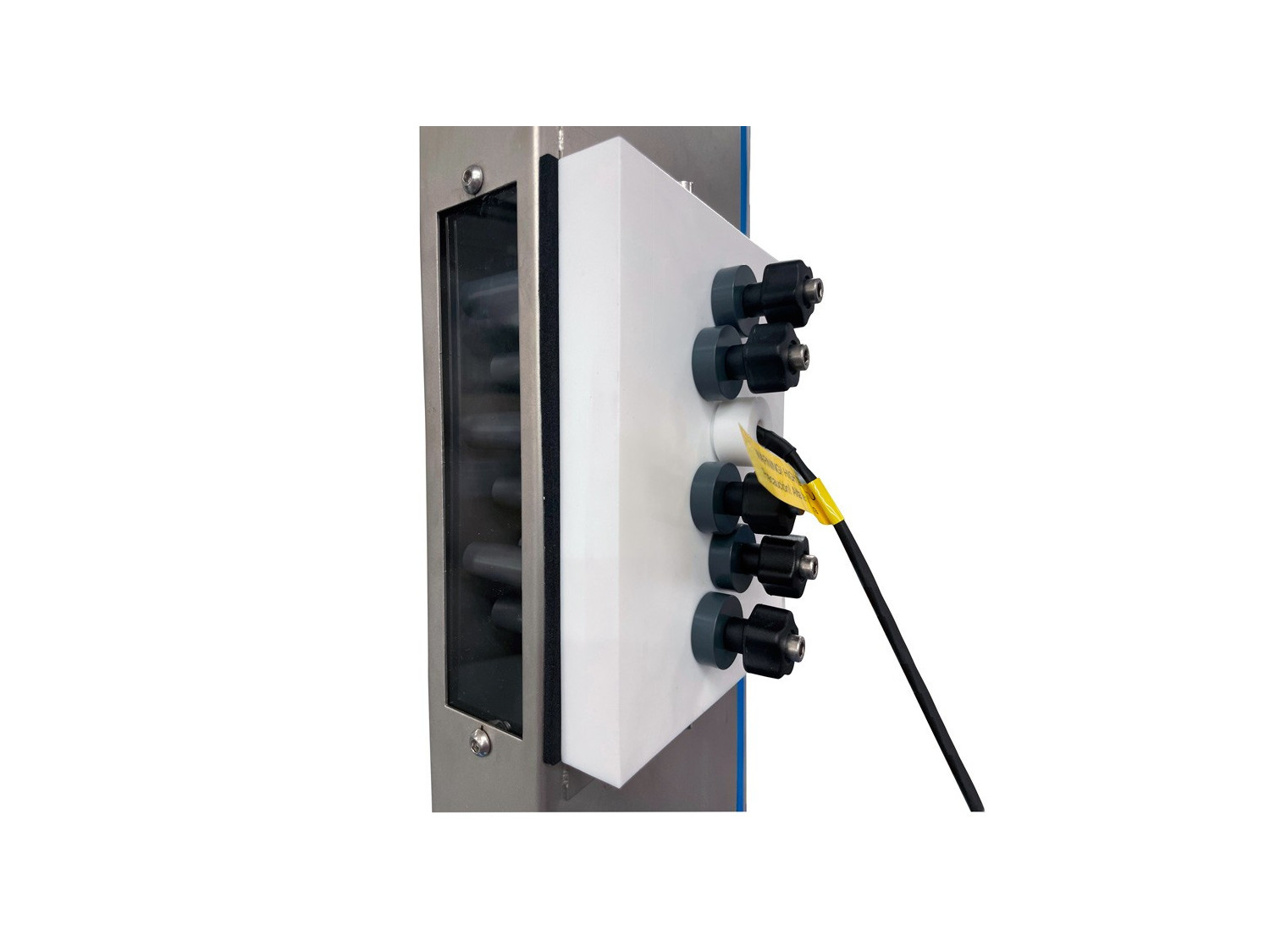

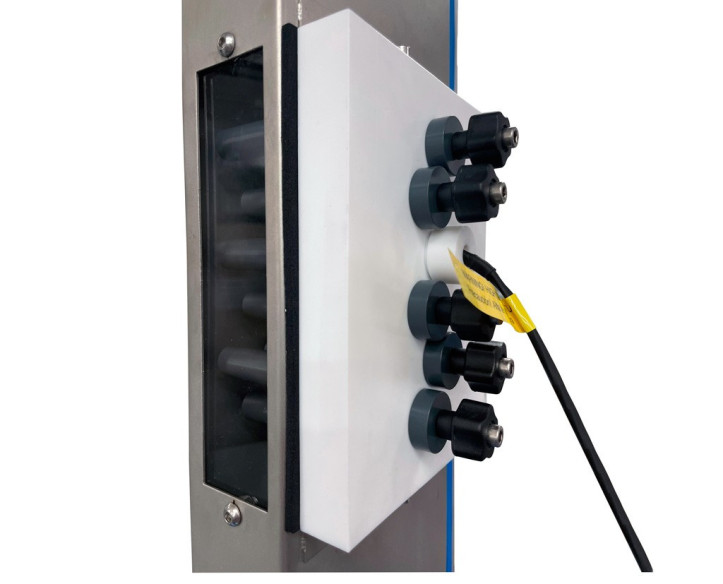

Pinned (multi-tube) exchanger (included)

COMPUTER CONTROLLED CROSS FLOW HEAT EXCHANGER - TIFCC

Pinned (multi-tube) exchanger and a single tube exchanger (Included)

COMPUTER CONTROLLED CROSS FLOW HEAT EXCHANGER - TIFCC

Additional recommended elements (Not included): TIFCC/A. Local Heat Transfer Exchanger, TIFCC/F. Finned Tube Exchanger.

COMPUTER CONTROLLED CROSS FLOW HEAT EXCHANGER - TIFCC

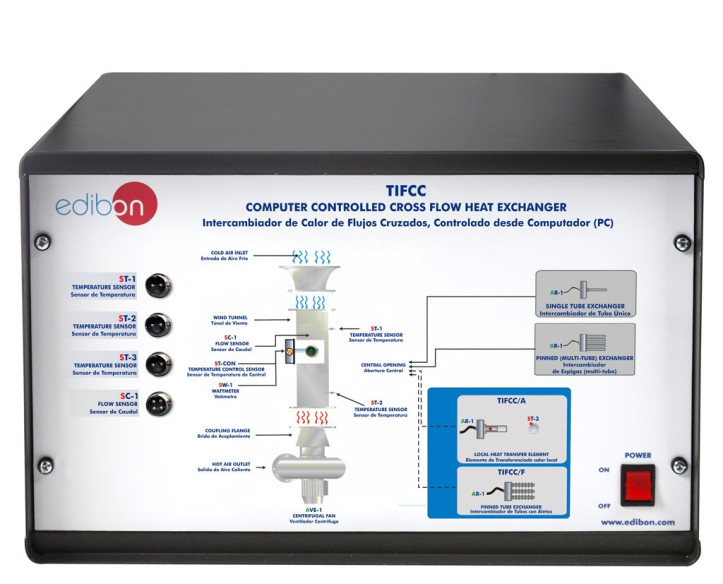

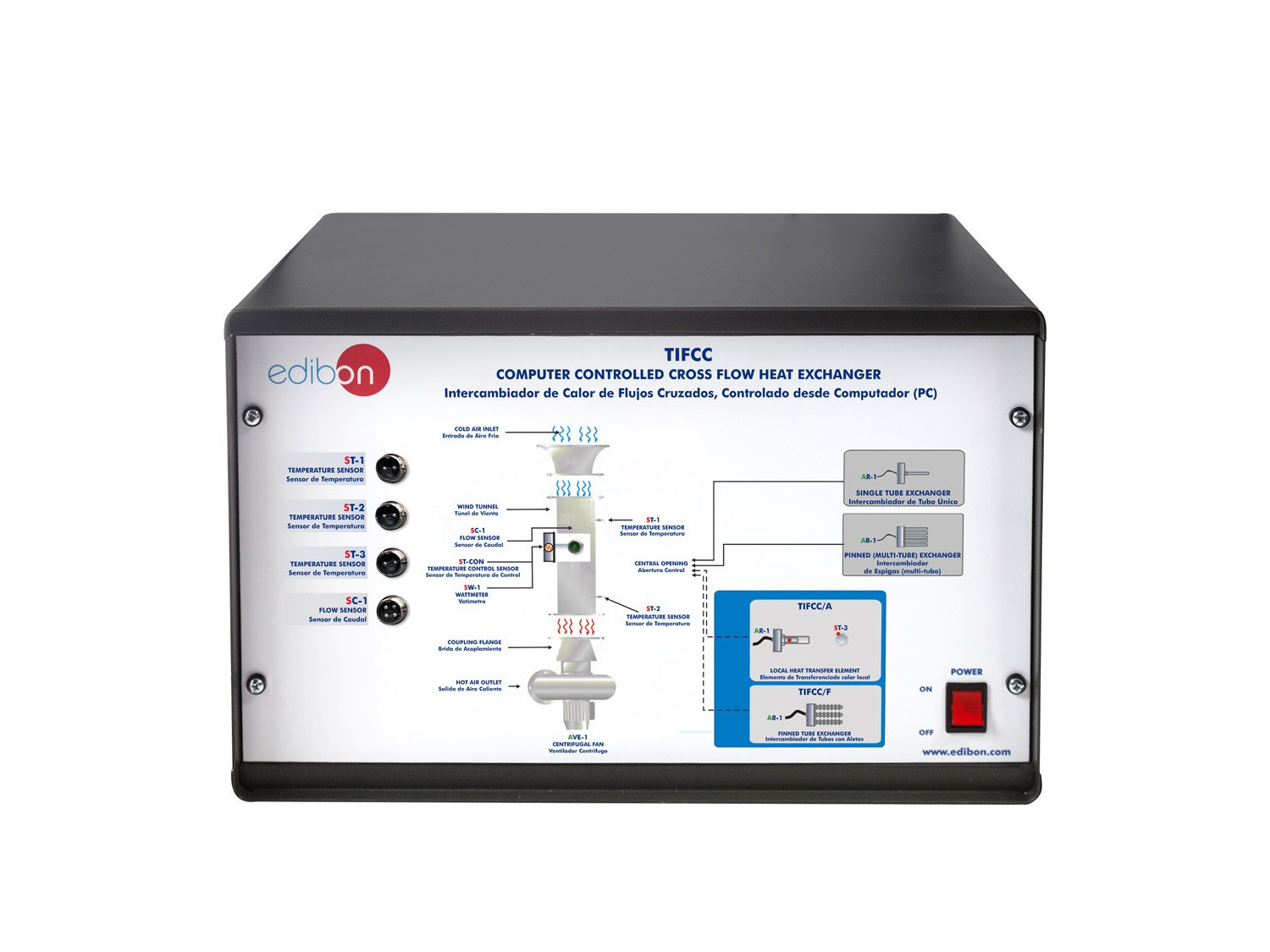

TIFCC/CIB. Control Interface Box: The Control Interface Box is part of the SCADA system

COMPUTER CONTROLLED CROSS FLOW HEAT EXCHANGER - TIFCC

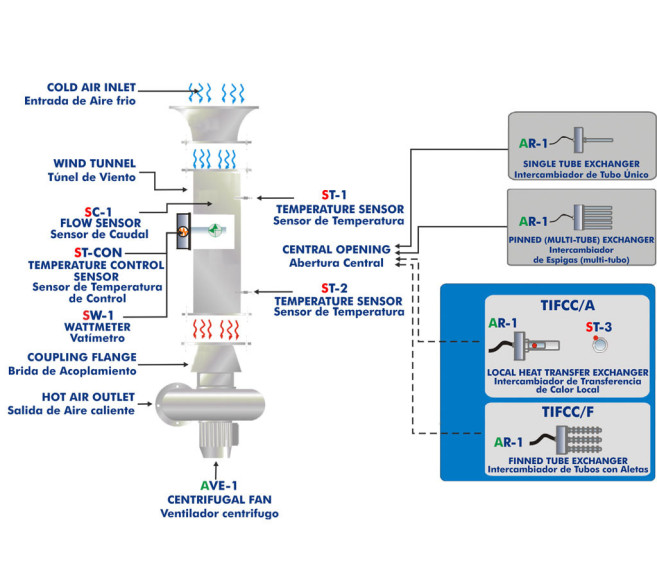

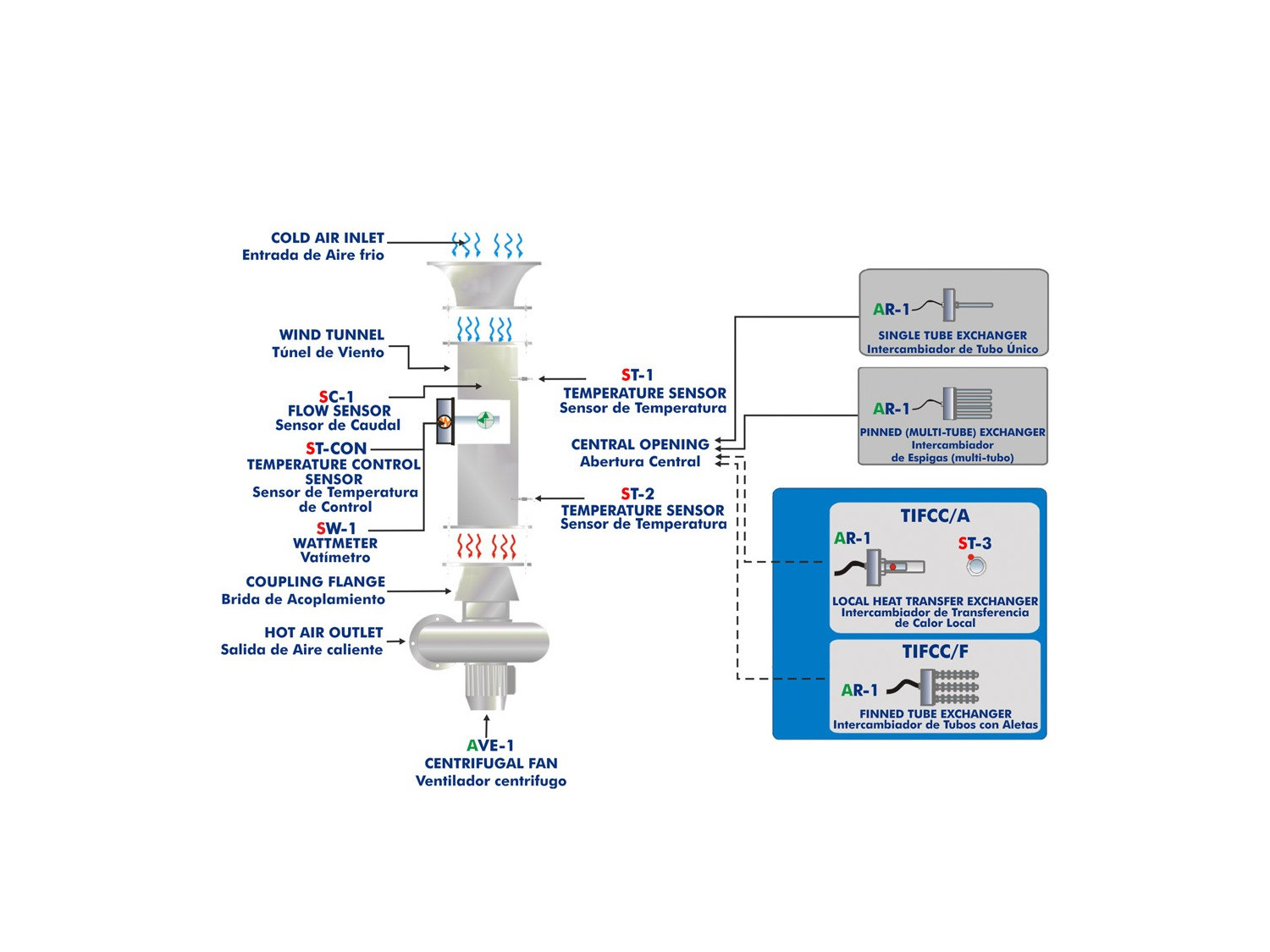

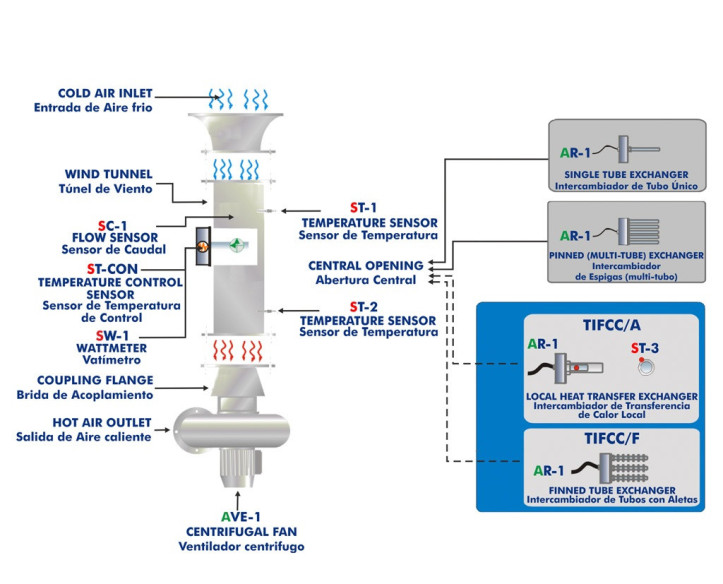

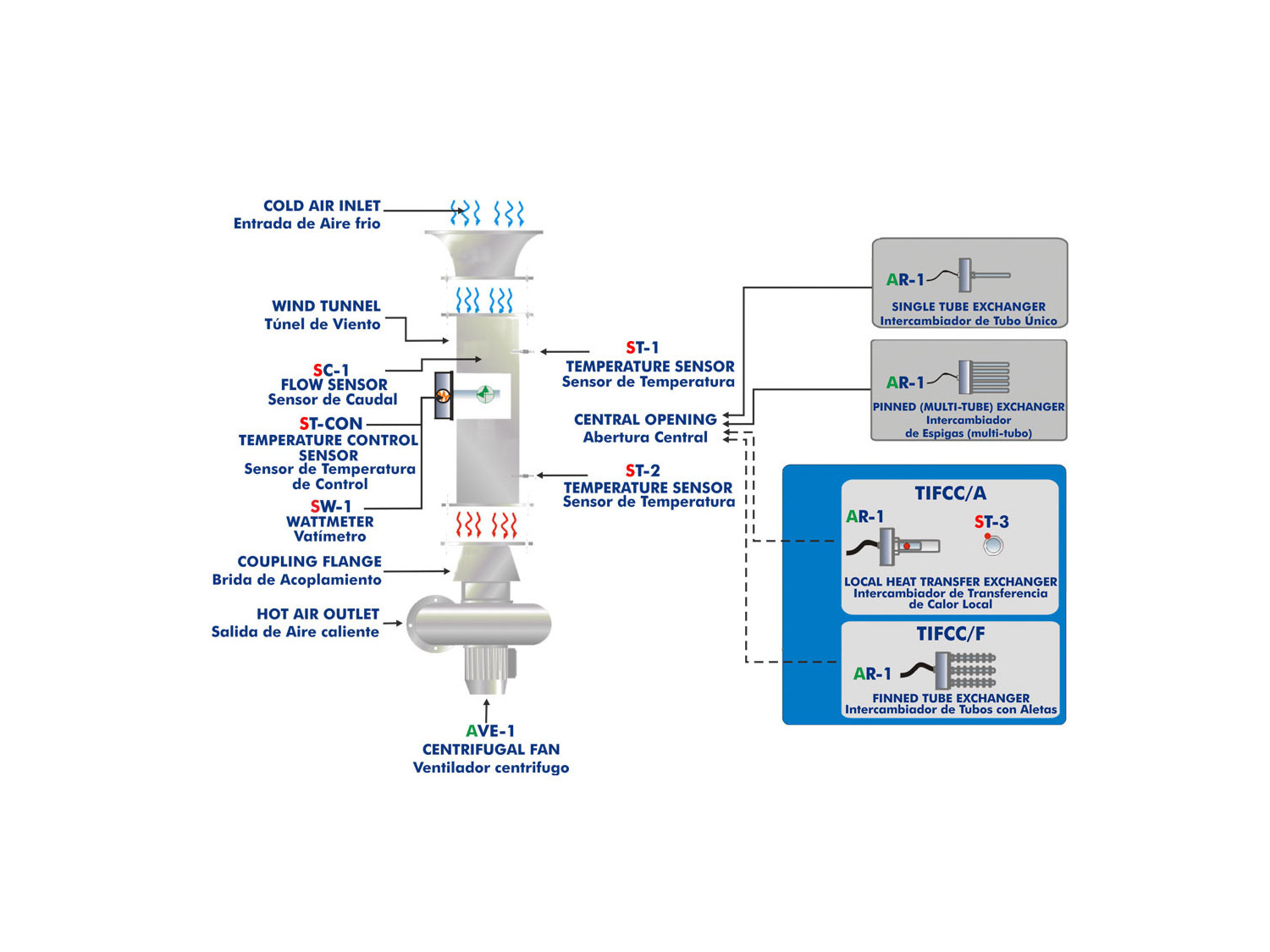

Process diagram and unit elements allocation

COMPUTER CONTROLLED CROSS FLOW HEAT EXCHANGER - TIFCC

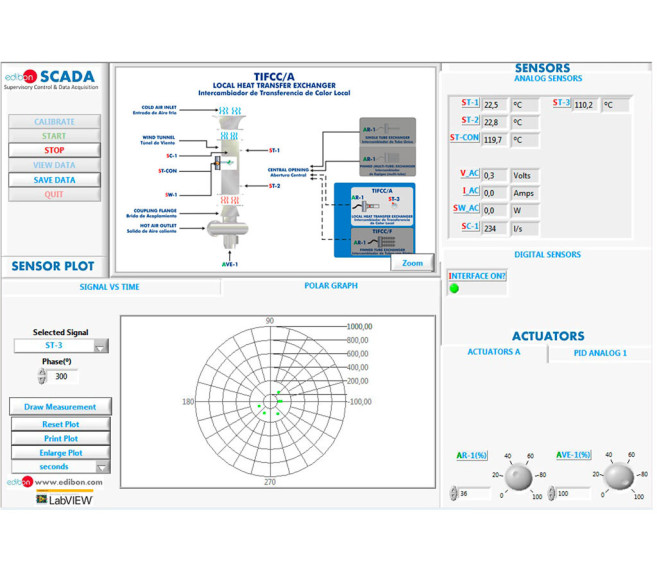

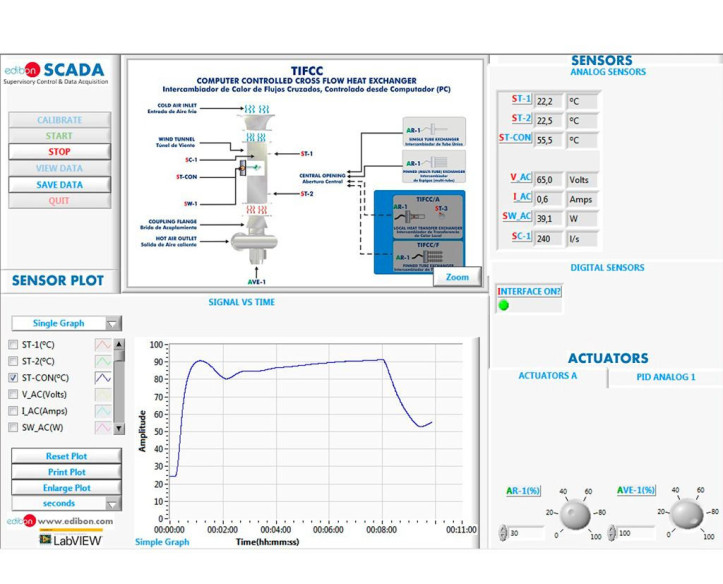

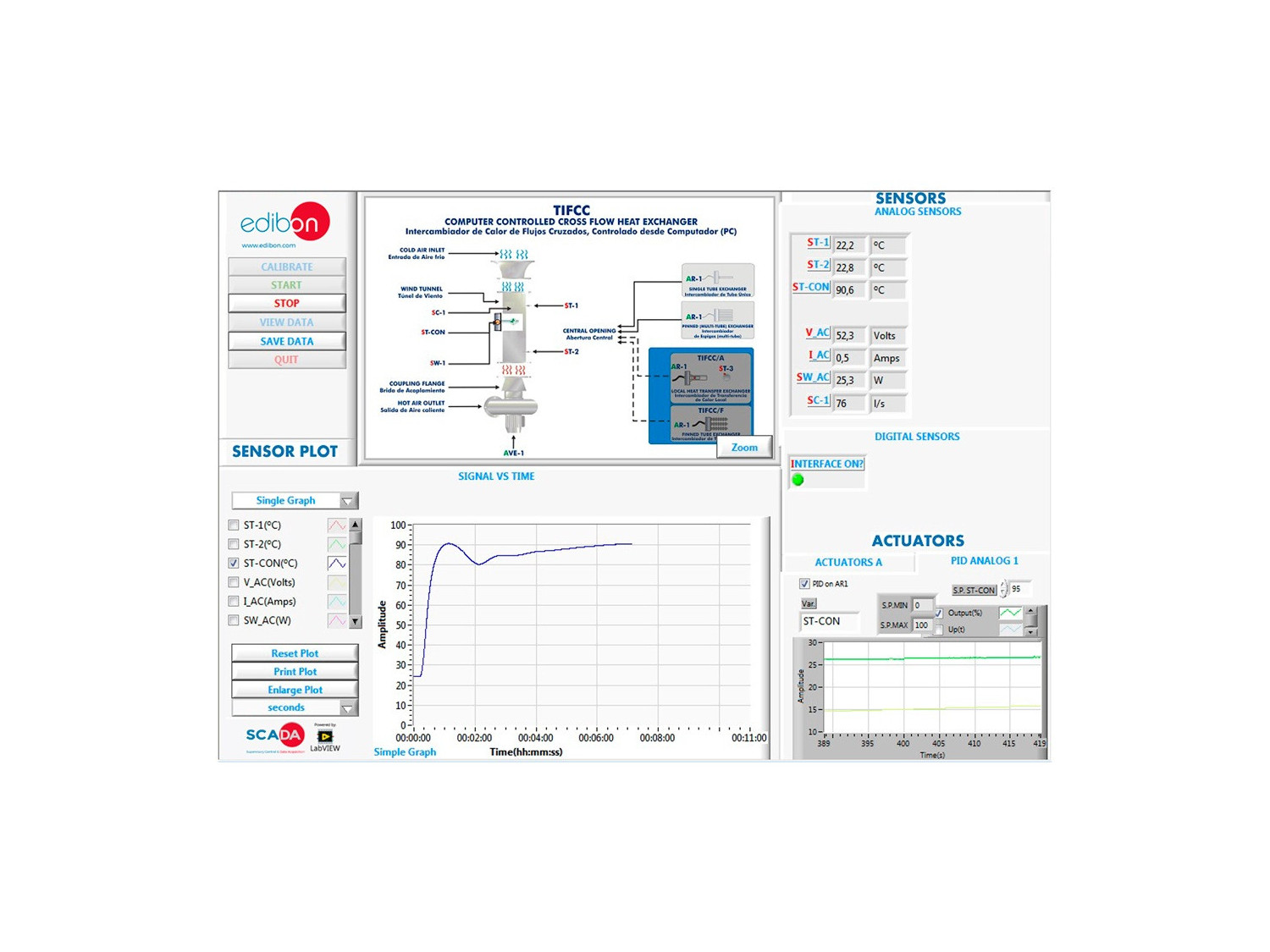

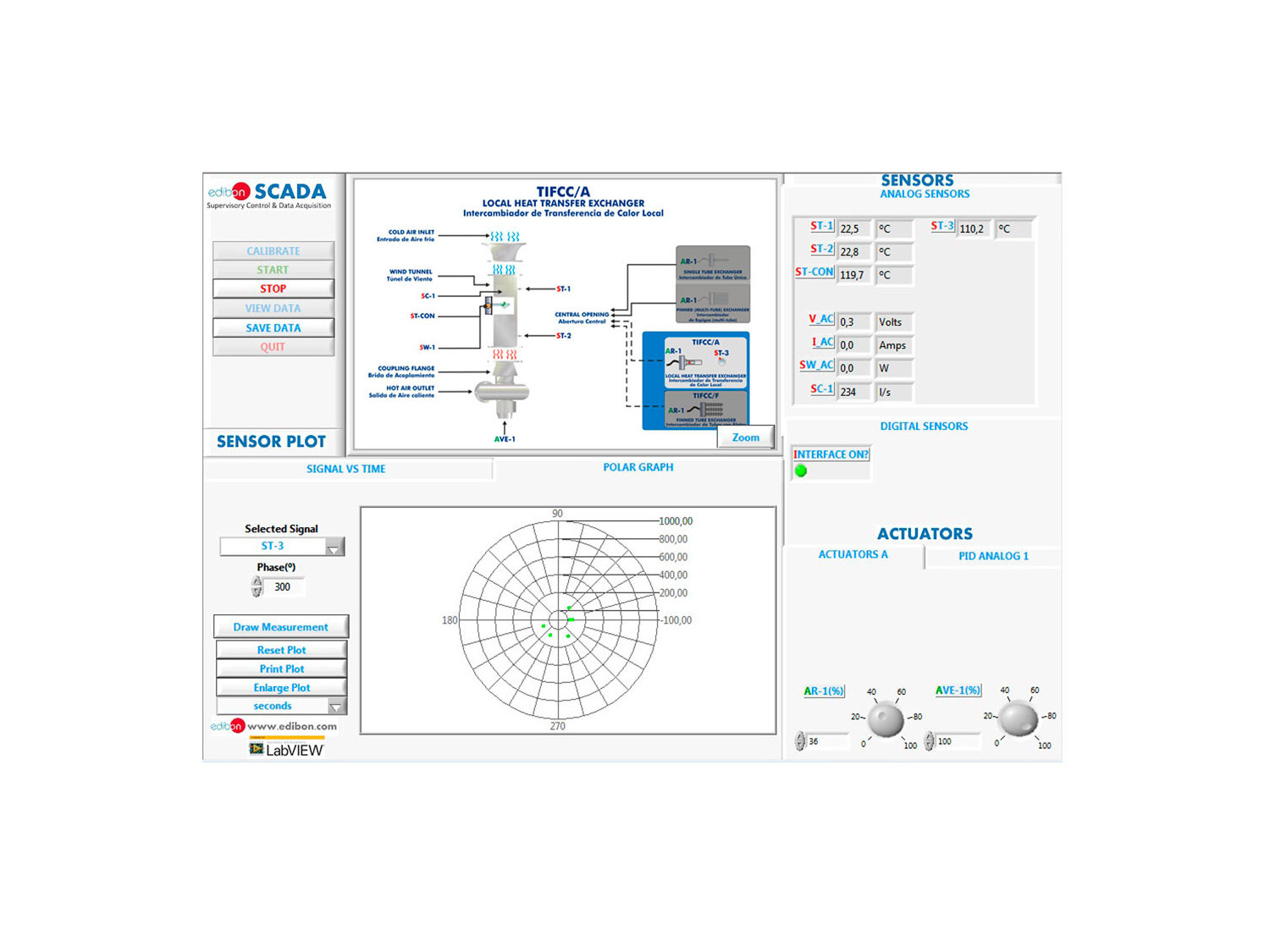

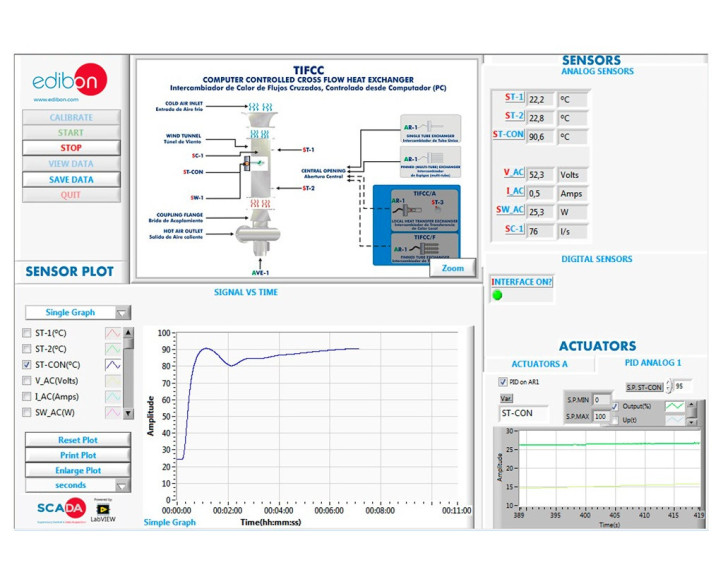

TIFCC/SOF. TIFCC Software. Main Screen

COMPUTER CONTROLLED CROSS FLOW HEAT EXCHANGER - TIFCC
COMPUTER CONTROLLED CROSS FLOW HEAT EXCHANGER - TIFCC
COMPUTER CONTROLLED CROSS FLOW HEAT EXCHANGER - TIFCC
COMPUTER CONTROLLED CROSS FLOW HEAT EXCHANGER - TIFCC
COMPUTER CONTROLLED CROSS FLOW HEAT EXCHANGER - TIFCC
COMPUTER CONTROLLED CROSS FLOW HEAT EXCHANGER - TIFCC
COMPUTER CONTROLLED CROSS FLOW HEAT EXCHANGER - TIFCC
COMPUTER CONTROLLED CROSS FLOW HEAT EXCHANGER - TIFCC

SISTEM INOVATIF

The Computer Controlled Cross Flow Heat Exchanger, "TIFCC", consists of a rectangular wind tunnel made of stainless steel, resistant to corrosion. It has a bell-shaped inlet and a central opening arranged longitudinally with two supporting elements made of stainless steel to retain the plates with the different exchangers.
