WHIRLING OF SHAFTS UNIT - MEER

SISTEM INOVATIF

The Whirling of Shafts Unit, "MEER", has been designed by EDIBON to demonstrate and determine different modes of oscillation and resonance of shafts with continuous distribution of mass under different conditions.

Lihat uraian umum

Ekspansi

ICAI

Perangkat Lunak Pengajaran Berbantu Komputer Interaktif
MSAC

Sistem Pencacahan dan Pengendalian Modular

Laboratorium

7TV
 Laboratorium Mekanika, Otomotif dan Material untuk Pendidikan Teknik dan Vokasi
7HE
 Laboratorium Mekanika, Otomotif dan Material Pendidikan Tinggi

BERITA TERKAIT

EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
Baca lebih lanjut
NEW Basic Mechanics course
NEW Basic Mechanics course
Are you a teacher or do you work as an engineering researcher? EDIBON offers courses for teachers and #research staff. Take a look at the course Basic Mechanics and learn about #forces and vectors. #DiscoverEdibon #Engineering.
Baca lebih lanjut

GAMBARAN UMUM

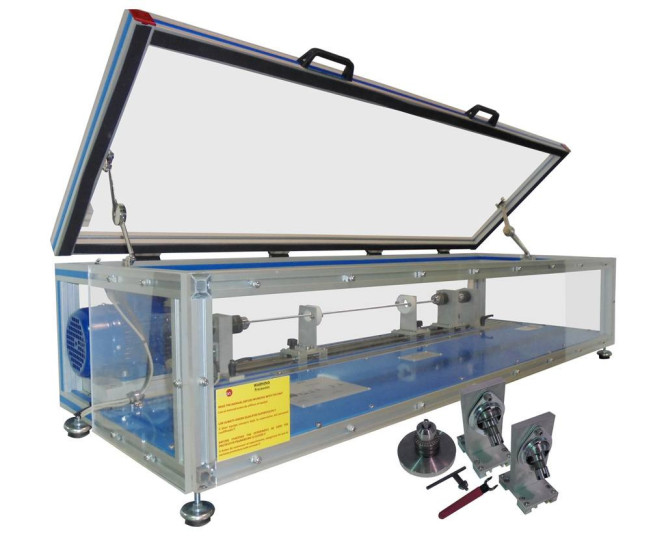

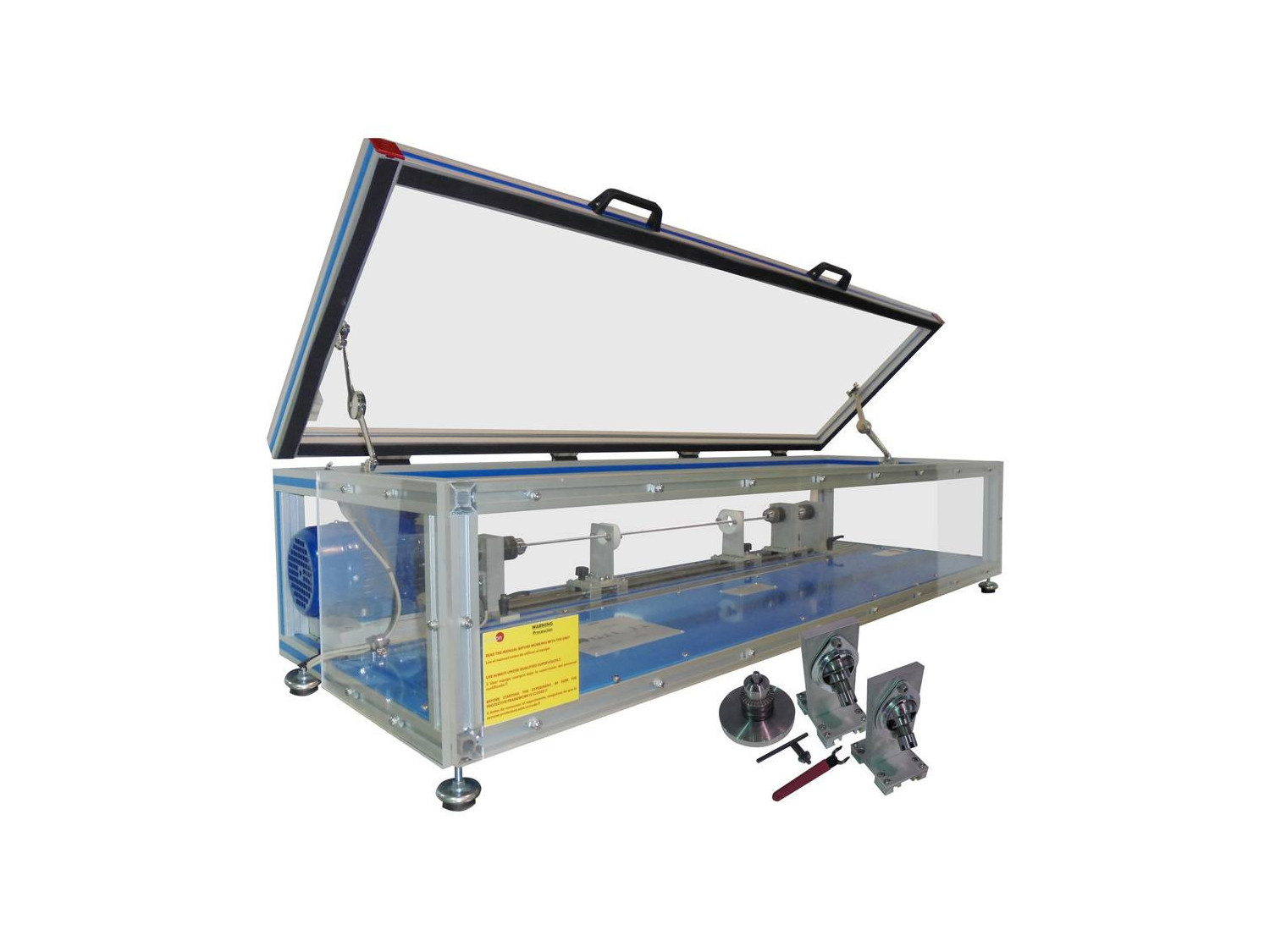

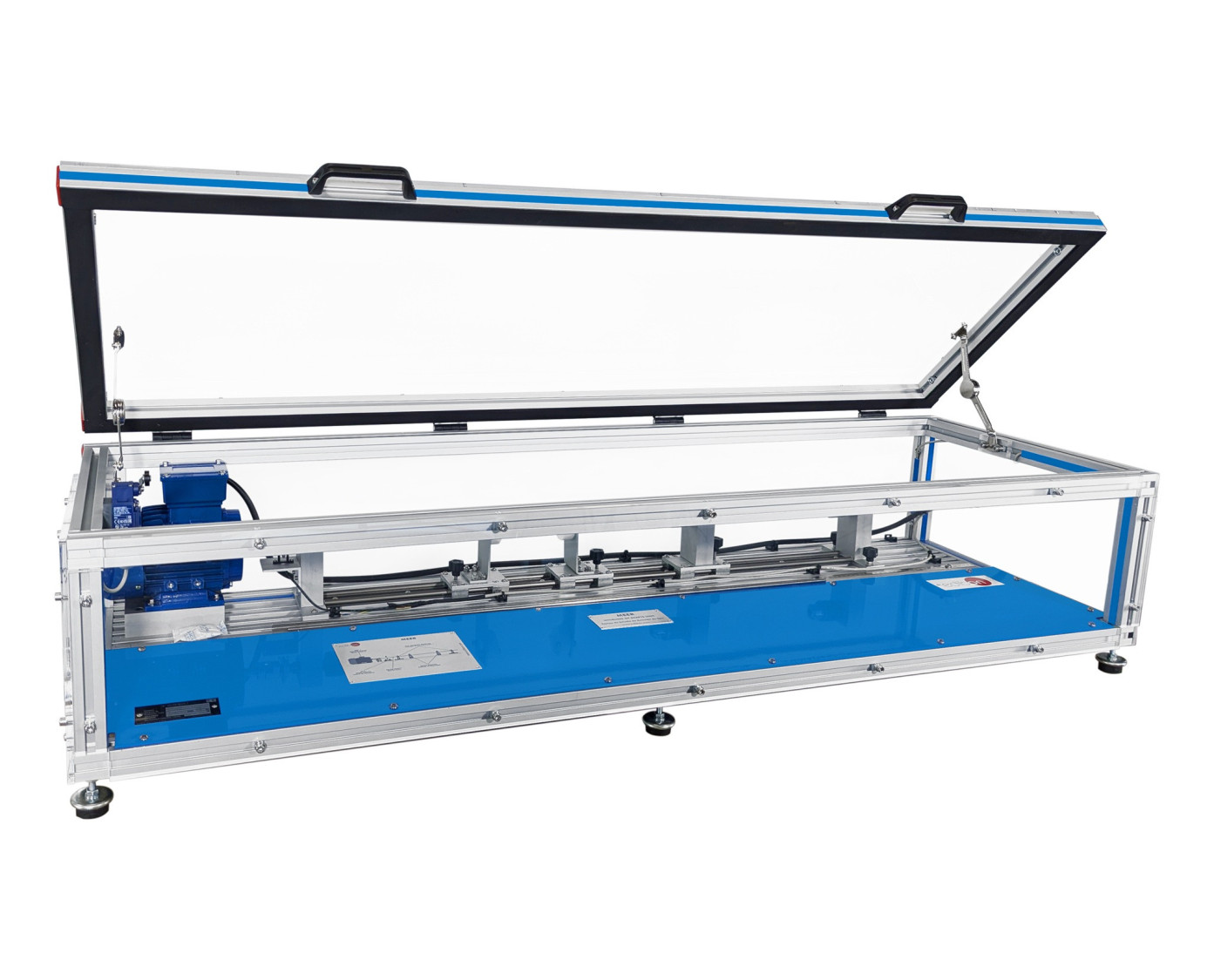

The Whirling of Shafts Unit, "MEER", has been designed by EDIBON to demonstrate and determine different modes of oscillation and resonance of shafts with continuous distribution of mass under different conditions.

The operation of the Whirling of Shafts Unit, "MEER", starts when the potentiometer of the console is activated.

This potentiometer delivers electric power to the motor, which starts to rotate at a specific frequency. As the power delivered increases, the motor will rotate quicker.

This speed is obtained from the reading of the velocity sensor.

The rotation of the motor is transferred by an elastic coupling to a fixed support with a mandrel. The rotation is transferred from that support to the fixed shaft.

Several supports are located along the shafts under study to establish different configurations with fixed or articulated supports. These restrictions imposed on the shafts will determine the way in which they oscillate.

LATIHAN DAN PRAKTEK PEDOMAN

LATIHAN PRAKTIS YANG DIANDAL TERMASUK DALAM PANDUAN

  1. Visualization of different modes of oscillation in a shaft.
  2. Influence of the rotating speed of the shaft. Critical speed and operation speed.
  3. Speed of the modes of vibration of a rotor shaft in function of different distances between supports.
  4. Speed of the modes of vibration of a rotor shaft in function of different diameters of the shaft.
  5. Speed of the modes of vibration of a rotor shaft in function of different conditions in the ends.
  6. Study of a Laval rotor: critical speed and auto-centering.
  7. Critical speed of the shaft with concentrated load in function of the position of the mass.

LEBIH BANYAK LATIHAN PRAKTIS YANG AKAN DILAKUKAN DENGAN UNIT

  1. Demonstration of basic whirling.

KUALITAS

LAYANAN PURNA JUAL
