WIT-KNX-LIC Praktik Pengkabelan Pencahayaan dengan KNX

4.4.3.- PRAKTIK INSTALASI DAN PEMELIHARAAN

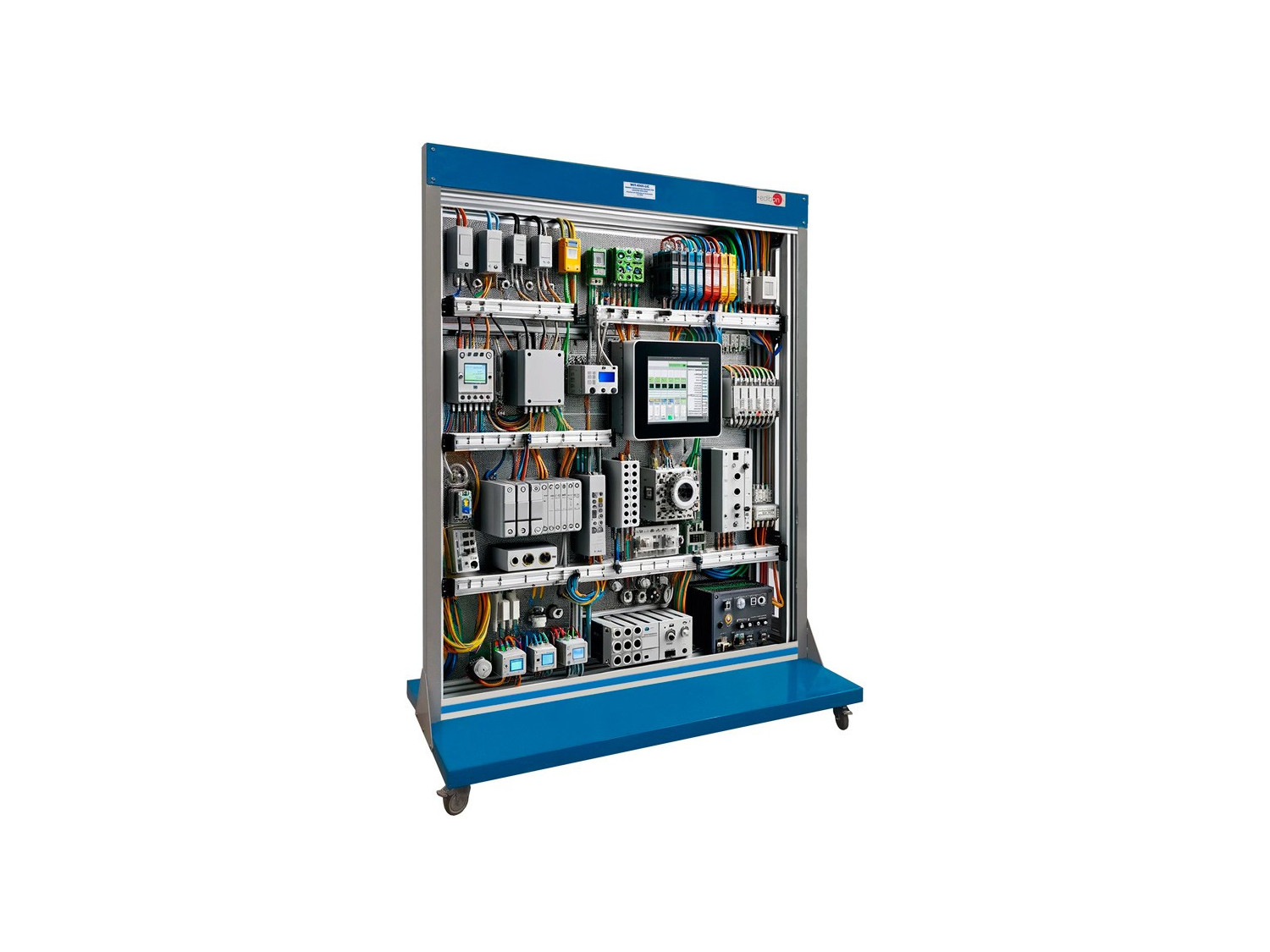

WIRING INSTALLATION TRAINING FOR LIGHTING WITH KNX - WIT-KNX-LIC

SISTEM INOVATIF

The WIT-KNX-LIC is a unit designed to facilitate the study and understanding of KNX wiring practices specifically tailored for lighting control systems. This unit serves as a valuable tool for educational and professional purposes, providing hands-on experience and insights into the wiring techniques, programming and commissioning associated with KNX technology in the context of lighting control applications.

Lihat uraian umum

BERITA TERKAIT

EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
Baca lebih lanjut
The Importance of Hands-On Training in Electricity for Universities and Companies
The Importance of Hands-On Training in Electricity for Universities and Companies
Electricity is a form of energy resulting from the movement of electrons through a conductor. This physical phenomenon is essential for the operation of a wide variety of devices and systems we use daily, from household appliances to complex industrial systems.
Baca lebih lanjut
What is Industry 4.0?
What is Industry 4.0?
Today we are at the beginning of a new era, named ‘Industrie 4.0’. Let´s explain a little further the concept "Industrie 4.0"!
Baca lebih lanjut

GAMBARAN UMUM

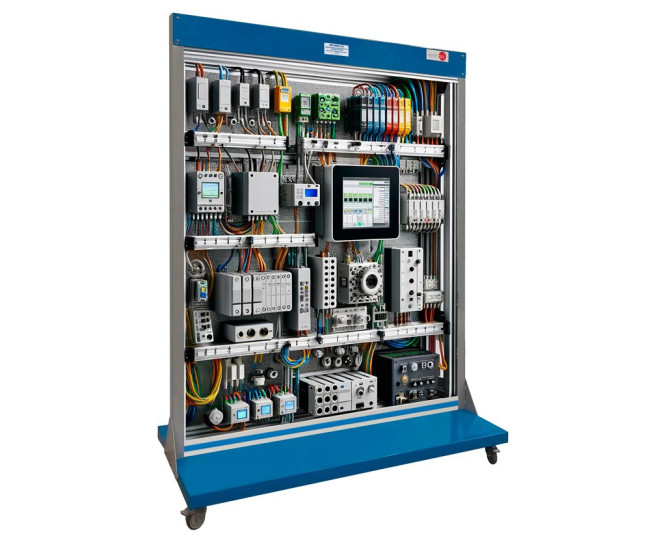

The WIT-KNX-LIC is a unit designed to facilitate the study and understanding of KNX wiring practices specifically tailored for lighting control systems. This unit serves as a valuable tool for educational and professional purposes, providing hands-on experience and insights into the wiring techniques, programming and commissioning associated with KNX technology in the context of lighting control applications.

Key features of the WIT-KNX-LIC may include:

  • Practical Learning: The unit allows users to engage in practical exercises related to KNX wiring practices, focusing on the nuances of wiring for lighting control scenarios.
  • Simulation of Lighting Control Scenarios: Users can simulate and experiment with various lighting control scenarios, understanding how KNX technology facilitates the integration and control of lighting systems in smart buildings.
  • Hands-On Training: It provides a hands-on learning experience, enabling users to connect and configure KNX devices in a controlled environment. This contributes to a better understanding of the wiring principles and the overall functionality of KNX systems.
  • Comprehensive Documentation: The accompanying documentation provides detailed information on KNX wiring practices, ensuring that users have access to comprehensive guidance and instructions for effective learning.
  • Compatibility: The unit is likely compatible with standard KNX devices and protocols, ensuring seamless integration into KNX based educational and professional environments.

LATIHAN DAN PRAKTEK PEDOMAN

LATIHAN PRAKTIS YANG DIANDAL TERMASUK DALAM PANDUAN

  1. Installation of the Electrical Distribution Box:
  • Installation procedure of protections and KNX devices.
  • Application of appropriate wiring techniques.
  1. Realization of Luminaire Control:
  • Integration of LED luminaires in the installation.
  • Programming of the control using the KNX binary output module.
  • Application of wiring techniques for safe connection.
  1. Connection of the Brightness Sensor:
  • Connection of the KNX brightness sensor.
  • Configuration for automatic lighting adjustment according to ambient light conditions.
  • Implementation of efficient wiring techniques.
  1. Manual Interaction with KNX Push Button:
  • Connection and integration of a KNX push button.
  • Programming for manual switching on and off of lights in the room.
  1. Installation of the KNX Room Controller with Touch Screen:
  • Configuration of the KNX room controller with touch screen.
  • Exploration of functions and programming capabilities.
  • Application of structured wiring techniques.
  1. KNX/DALI Connection and Integration:
  • Connection of a DALI light controller.
  • Integration into the KNX system for unified control of DALI luminaires.
  • Application of advanced wiring techniques.

Project Creation in ETS and Topology Definition:

  1. Creation of a New Project in ETS:
  • Development of a new project from scratch with ETS software.
  • Definition of general characteristics and establishment of the basic topology of the KNX system.
  1. Definition of the Bus Topology:
  • Configuration of the KNX bus topology.
  • Identification of devices and establishment of physical addresses.
  • Application of good design practices.
  1. Physical Address Assignment:
  • Assignment of physical addresses to KNX devices in the project.
  • Follow-up of addressing standards and recommendations.
  1. Topology Verification:
  • Verification of configuration consistency.
  • Compliance with KNX system requirements.

KNX Device Diagnostics:

  1. Use of Diagnostic Tools:
  • Use of diagnostic tools in the ETS software to verify communication and status of KNX devices.
  1. Communication Testing:
  • Performing communication tests between KNX devices and the bus.
  • Identification and resolution of possible connection problems.
  1. Telegram Analysis:
  • Analysis of telegrams sent and received by KNX devices.
  • Identification of possible errors or interferences in the network.
  1. Error Diagnostics:
  • Diagnosis and troubleshooting of configuration or connection errors in KNX devices.
  • Use of diagnostic tools available in the ETS software.
  1. Event Logging:
  • Use of event logging functions to monitor and analyze the behavior of KNX devices under different operating conditions.
