WIRING INSTALLATION TRAINING FOR BLINDS WITH KNX - WIT-KNX-BC

SISTEM INOVATIF

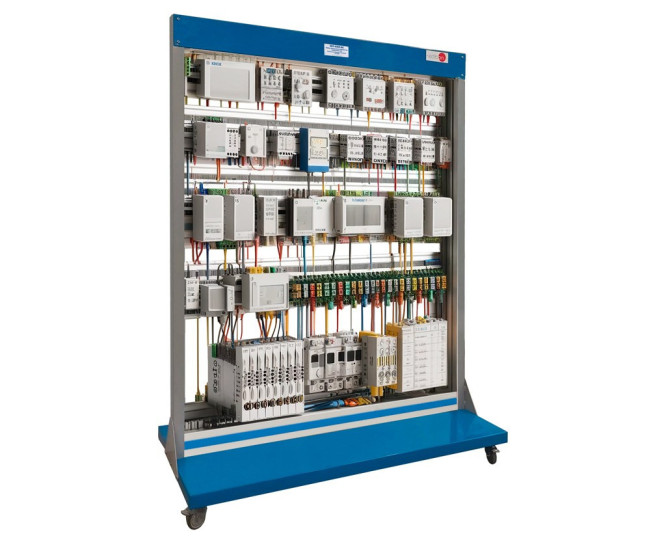

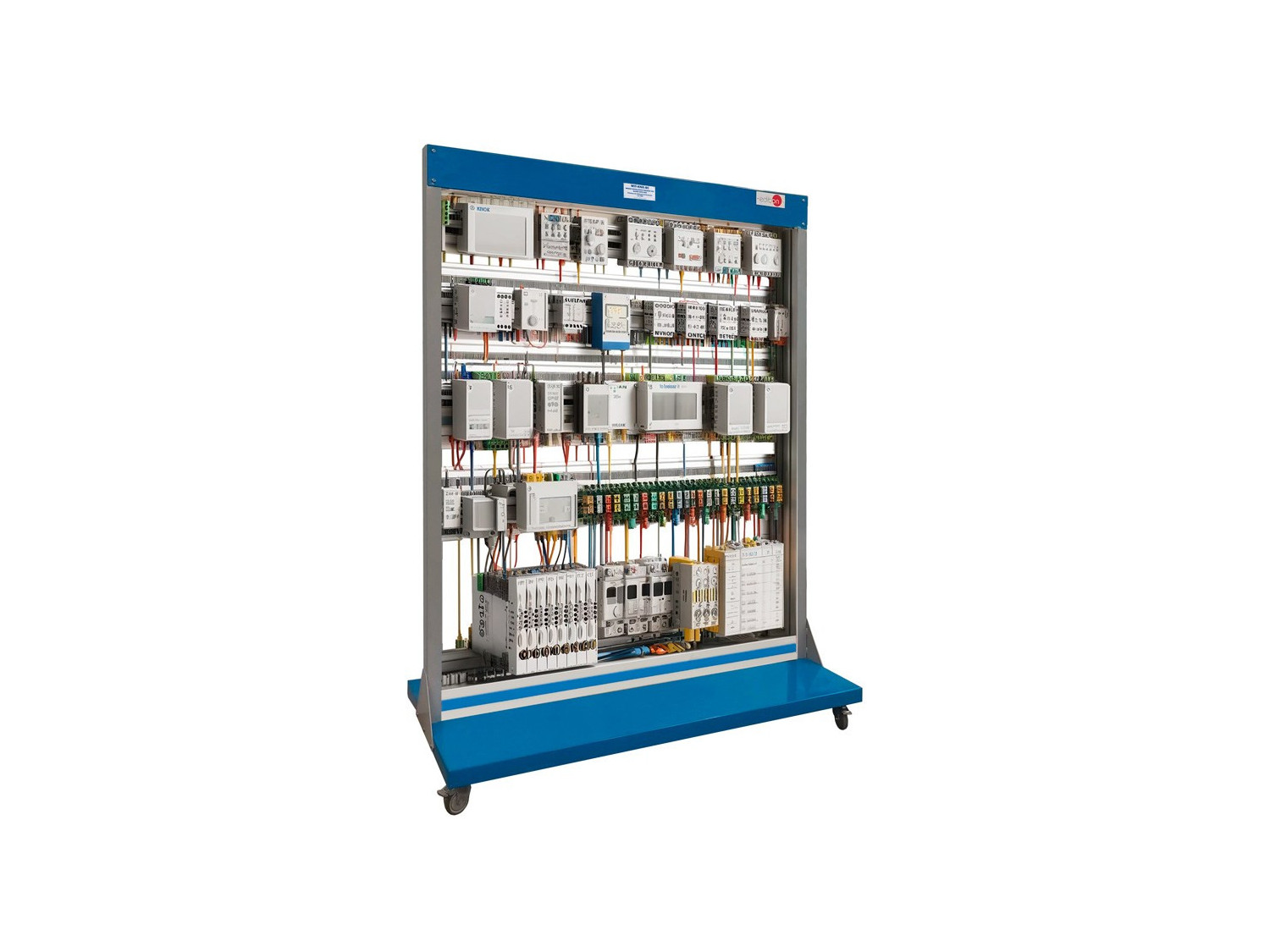

The WIT-KNX-BC is a unit designed to facilitate the study and comprehension of KNX wiring practices specifically tailored for the control of shutters or blinds. This unit serves as a valuable resource for educational and professional purposes, providing practical experience and insights into the wiring techniques, programming and commissioning associated with KNX technology in the context of shutter or blind control systems.
