DIGITAL SYSTEMS AND CONVERTERS KIT - M10/KIT

革新的なシステム

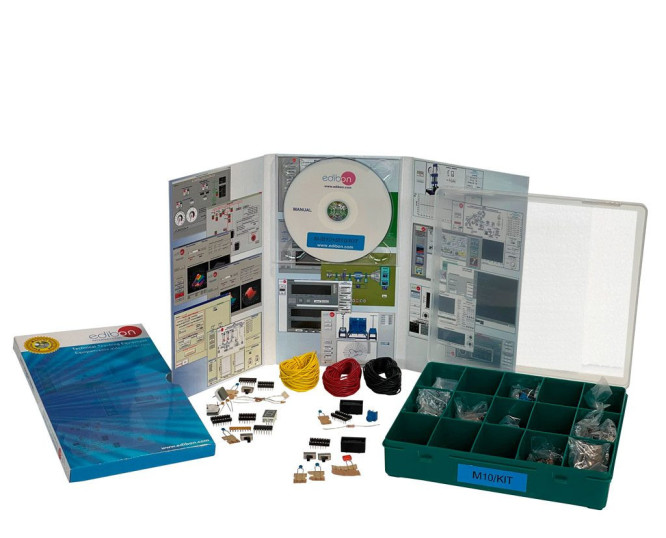

With Digital Systems and Converters Kit, "M10/KIT", designed by EDIBON, the behaviour of BCD/Binary counters, comparators and analogue integrators can be studied, as well as analogue/digital conversion and viceversa.

一般的な説明を表示

拡張

ICAI

インタラクティブなコンピュータ支援教育ソフトウェア

研究室

2TV
 技術教育・職業教育のための電子実験室

関連ニュース

EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
続きを読む
Completion of the Small Laboratory Equipment Repair Course
Completion of the Small Laboratory Equipment Repair Course
On December 1st, the Repair Course for Small Laboratory Equipment, taught by our engineers at the EDIBON facilities, was completed, lasting 4 days. The attendees, (Laboratory technicians and maintenance of the Rey Juan Carlos University of Madrid) had the opportunity to perform multiple...
続きを読む

概要

With Digital Systems and Converters Kit, "M10/KIT", designed by EDIBON, the behaviour of BCD/Binary counters, comparators and analogue integrators can be studied, as well as analogue/digital conversion and viceversa.

演習と指導の慣行

マニュアルに含まれるガイド付き実習

Analog switching. Bistable, astable and monostable family:

  1. Characteristics of an analog switch chip.
  2. Faults study of F1 in the analog multiplexer.
  3. Faults study of F3 in the analog multiplexer.
  4. Characteristics of a Latch integrated circuit type S-R.
  5. Faults study of F2 in the bistable.
  6. Characteristics of an astable integrated circuit.
  7. Faults study of F8 in the astable.
  8. Characteristics of a monostable integrated circuit.
  9. Theoretical/practical exercises.

Binary/BCD Counters and 7-segments Displays:

  1. Characteristics of a 74ALS193 Binary Up/Down Counter and a 7-segment Display.
  2. Faults study of F6 in the binary counter.
  3. Characteristics of the BCD UP/DOWN counter and 7-Segment Display.
  4. Faults study in the BCD counter.
  5. Theoretical/practical exercises.

Comparators and analog integrators:

  1. Characteristics of an analog comparator.
  2. Analog integrator.
  3. Faults study of F7 in the analog integrator.
  4. Triangular wave generation.
  5. Theoretical/practical exercises.

A/D and D/A conversion:

  1. D/A Converter.
  2. A/D Converter.
  3. Theoretical/practical exercises.

Applications:

  1. Random number generator.
  2. Measuring the time between two events.
  3. Theoretical/practical exercises.
もっと見る

より実用的な練習をして、ユニットを完成させる

  1. Synchronous/Asynchronous Counter.
  2. Several other exercises can be done and designed by the user.

必要なアイテム

利用可能な類似の機器

DIGITAL SYSTEMS & CONVERTERS MODULE - N-M10
  • N-M10
Available
14.2.1.3.- デジタルエレクトロニクス
N-M10
Digital Systems & Converters Module
Generally, an analog to digital converter is an electronic device that converts an analog voltage input to a digital number.digital number. The digital output can use different coding schemes, such as binary, although some non-electrical or...
ユニットを見る

品質

アフターサービス

リクエスト情報
