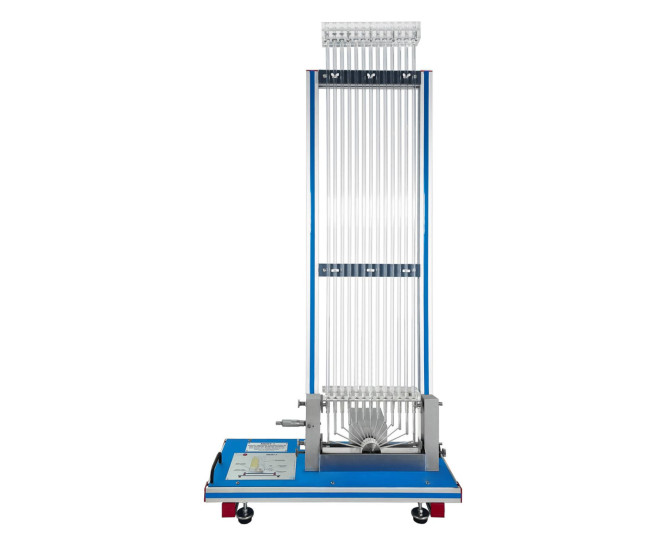

RADIAL PRESSURE DISTRIBUTION IN A JOURNAL BEARING - MEMT-1

革新的なシステム

This unit allows the visualization of the radial pressure distribution in a journal bearing with hydrodynamic lubrication.

一般的な説明を表示

拡張

ICAI

インタラクティブなコンピュータ支援教育ソフトウェア

関連ニュース

EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
続きを読む
NEW Basic Mechanics course
NEW Basic Mechanics course
Are you a teacher or do you work as an engineering researcher? EDIBON offers courses for teachers and #research staff. Take a look at the course Basic Mechanics and learn about #forces and vectors. #DiscoverEdibon #Engineering.
続きを読む

概要

This unit allows the visualization of the radial pressure distribution in a journal bearing with hydrodynamic lubrication.

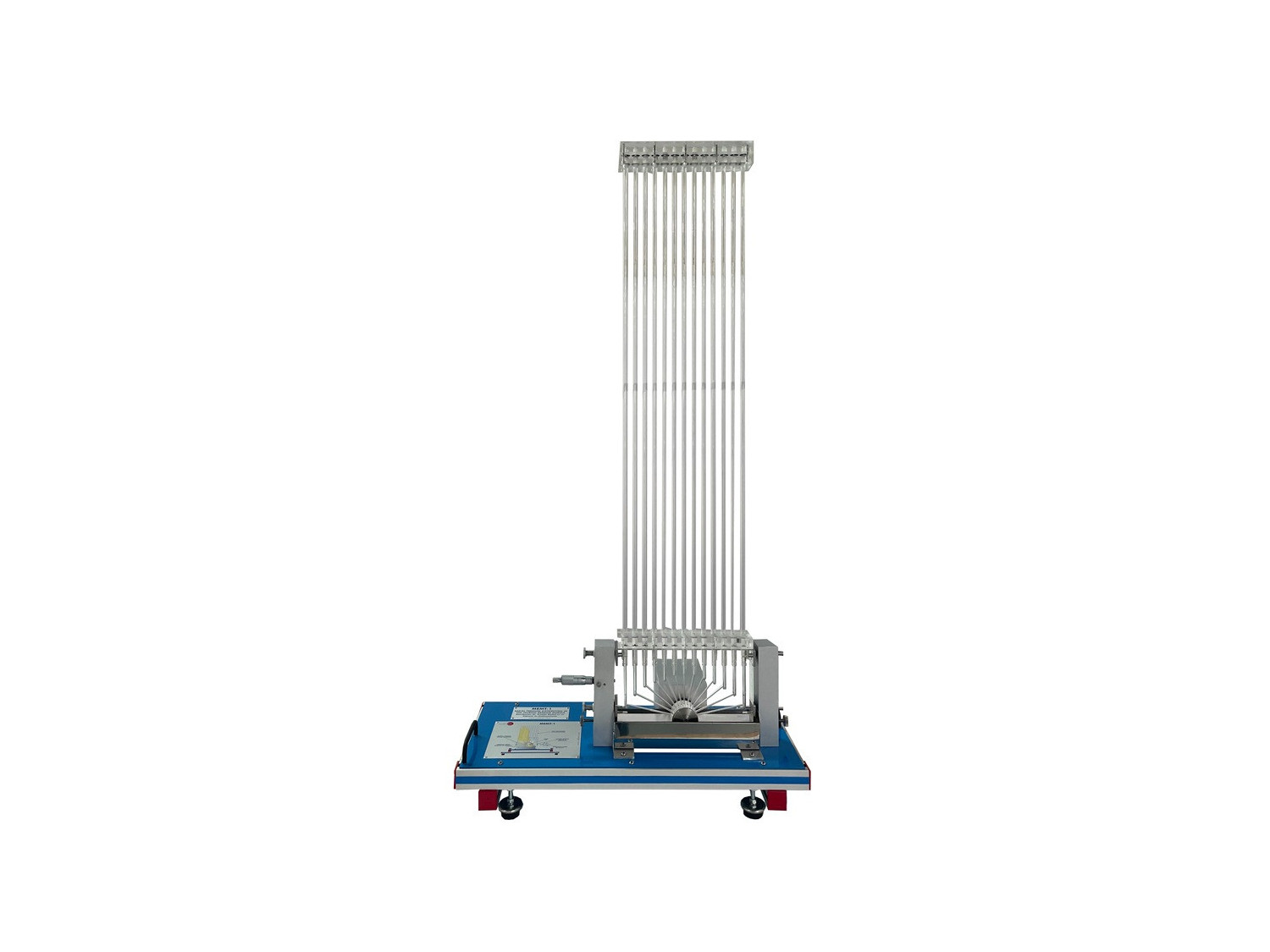

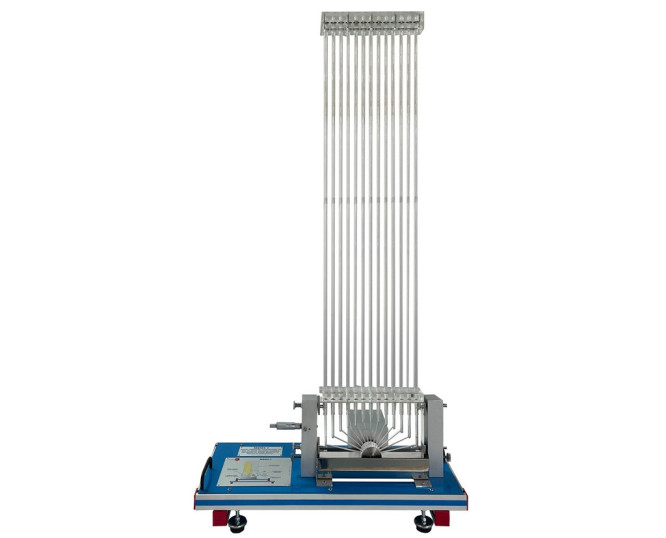

The "MEMT-1" unit consists of a journal bearing with hydrodynamic lubrication, a freely moving bearing housing with thirteen manometric tubes that allow to visualize the radial pressure distribution. The journal bearing movement and the oil film can be seen through a transparent plastic bearing housing. The pressure distribution in the journal bearing is measured by thirteen manometric tubes using the height of each column of liquid.

The gap width can be adjusted by the movable bearing housing with a micrometer screw.

The lubricant that enables the visualization of pressure distribution in the journal bearing is contained in a tank. The distribution of pressure on the journal bearing can be determined at different speeds, loads and bearing gap width.

演習と指導の慣行

マニュアルに含まれるガイド付き実習

  1. Demonstration and visualization of the radial pressure distribution in a journal bearing with hydrodynamic lubrication.
  2. Investigation of the pressure distribution in the journal bearing depending on the bearing gap width.
  3. Investigation of the pressure distribution in the journal bearing depending on the speed.
  4. Study of the stability limit as a function of the gap width.

必要なアイテム

利用可能な類似の機器

DYNAMIC FRICTION OF A CYLINDER ON A ROLLER - MEMT-2
  • MEMT-2
Available
7.1.5.- 摩擦 (摩擦、 摩耗、 潤滑)
MEMT-2
リング摩擦ブロックモジュール
This unit allows to demonstrate the friction forces between several cylinders of different materials and a roller under different lubrication conditions.The "MEMT-2" unit consists of two levers that transmit a force applied by weights to a test...
ユニットを見る
DYNAMIC FRICTION OF A PIN ON A DISC - MEMT-3
  • MEMT-3
Available
7.1.5.- 摩擦 (摩擦、 摩耗、 潤滑)
MEMT-3
ディスクピンモジュール
This unit allows to study the friction forces between several vertical friction pins of different materials and a rotating friction disc.The end of each vertical pin is made of a different material and rubs against the rotating steel disc. The...
ユニットを見る
ELASTOHYDRODYNAMIC LUBRICATION - MEMT-5
  • MEMT-5
Available
7.1.5.- 摩擦 (摩擦、 摩耗、 潤滑)
MEMT-5
光学流体弾性力学モジュール
This unit allows to investigate the thickness and characteristics of a lubricant film on a rolling sphere.The unit consists in a steel sphere and a driven glass disc.The sphere is pressed against the underside of the glass disc. The light from a...
ユニットを見る
FRICTION VIBRATION - MEMT-6
  • MEMT-6
Available
7.1.5.- 摩擦 (摩擦、 摩耗、 潤滑)
MEMT-6
Friction Vibration
This module allows to demonstrate the static friction, the sliding friction, the related friction vibrations and the slip-stick effects.Several weights are placed on a horizontally rotating friction disc. It is prevented from turning by a cord....
ユニットを見る
