AE-V Vacuum Technology Unit

6.1.3.2.- 空気 圧
VACUUM TECHNOLOGY UNIT - AE-V

革新的なシステム

The Vacuum Technology Unit, "AE-V", has been designed to obtain the knowledge required to understand the operation of the most common elements used in vacuum technology.

一般的な説明を表示

拡張

ICAI

インタラクティブなコンピュータ支援教育ソフトウェア

関連ニュース

EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
続きを読む

概要

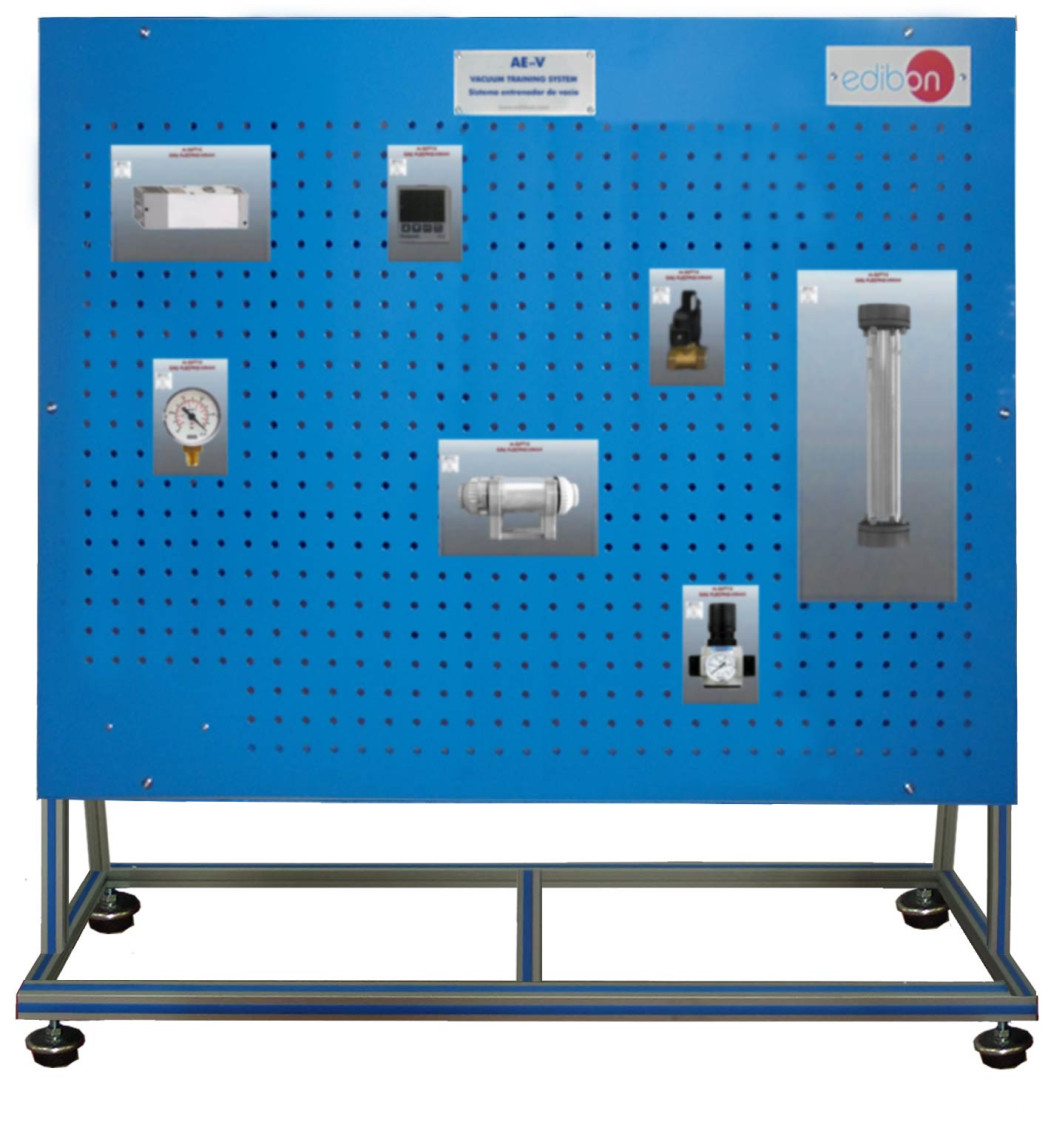

The "AE-V" is a modular unit consisting of a panel where all the components that form the vacuum pneumatic system to be studied are attached to.

The "AE-V" contains all the elements required to carry out the assembly and operation of the circuits proposed in the practical exercises, elements such as push in fittings, flexible tubing, filters, safety valves, etc.

The "AE-V", designed by EDIBON, allows the user to learn the basic concepts about vacuum technology (operation, elements of a vacuum pneumatic circuit, standardized symbols, etc.) without any previous knowledge or experience.

演習と指導の慣行

マニュアルに含まれるガイド付き実習

  1. Introduction to vacuum pneumatic technology.
  2. Description of the main parts of vacuum pneumatic systems.
  3. Compressed air treatment, distribution and compression system.
  4. Checking the state of the pneumatic circuit by measuring the most common pneumatic variables.
  5. Operation of suction pads made of different materials.
  6. Operation of suction pads with different shapes.
  7. Configuration of a vacuum application.
