WIT-KNX-BMS BMSを介した建物制御配線の実践

4.4.3.- 設置および保守の慣行
WIRING INSTALLATION TRAINING FOR BUILDING CONTROL VIA BMS - WIT-KNX-BMS

革新的なシステム

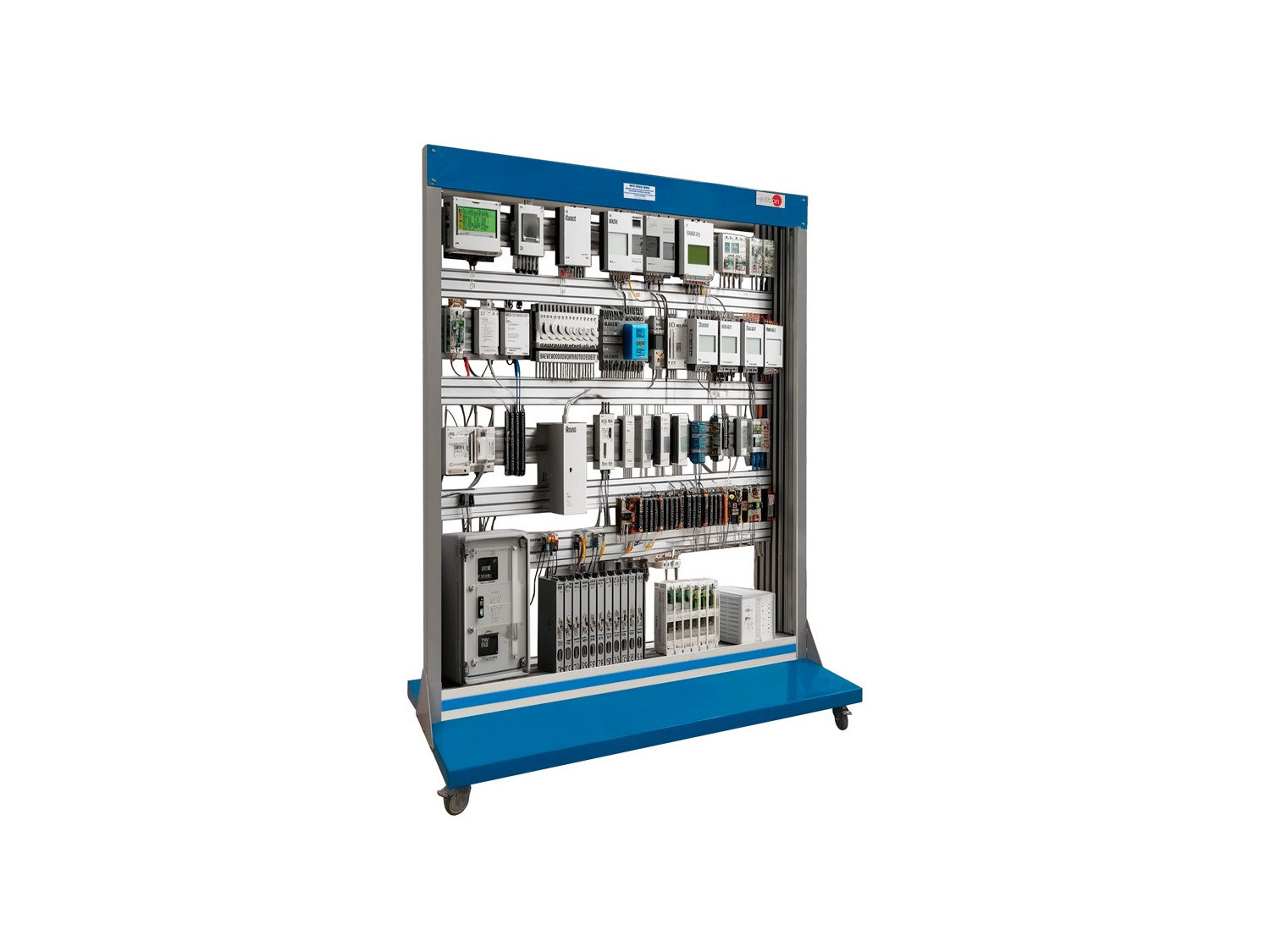

The WIT-KNX-BMS is a unit designed to provide practical insights and hands-on experience in KNX wiring practices specifically tailored for building management systems (BMS). This unit serves as a valuable resource for educational and professional institu­tions and training centers focusing on building automation, allowing students to learn and understand the intricacies of wiring KNX devices, programming and commissioning in the context of BMS applications.
