WIRING INSTALLATION TRAINING FOR SECURITY WITH KNX: FIRE, INTRUSION PREVENTION, FLOODS, ETC. - WIT-KNX-SFC

革新的なシステム

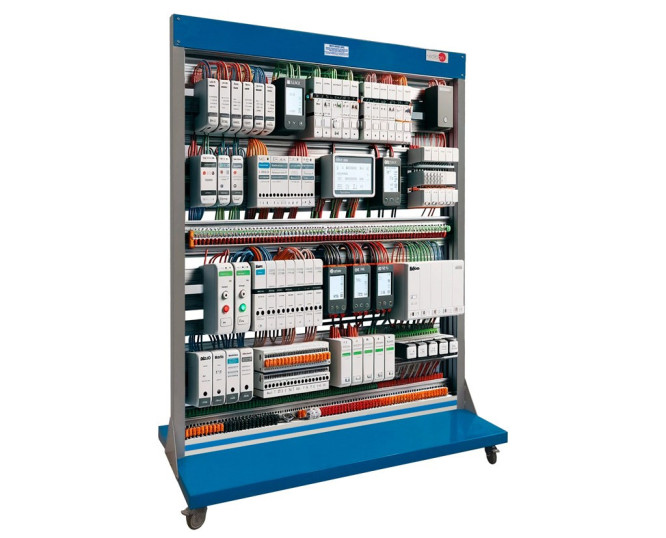

The WIT-KNX-SFC is a unit designed to provide hands-on experience and insights into KNX wiring practices specific to security sys­tems. This unit is tailored for educational and professional purposes, allowing users to study and understand the wiring techniques, programming and commissioning associated with integrating KNX technology into security-related applications.

一般的な説明を表示

関連ニュース

The Importance of Hands-On Training in Electricity for Universities and Companies
The Importance of Hands-On Training in Electricity for Universities and Companies
Electricity is a form of energy resulting from the movement of electrons through a conductor. This physical phenomenon is essential for the operation of a wide variety of devices and systems we use daily, from household appliances to complex industrial systems.
続きを読む
What is Industry 4.0?
What is Industry 4.0?
Today we are at the beginning of a new era, named ‘Industrie 4.0’. Let´s explain a little further the concept "Industrie 4.0"!
続きを読む

概要

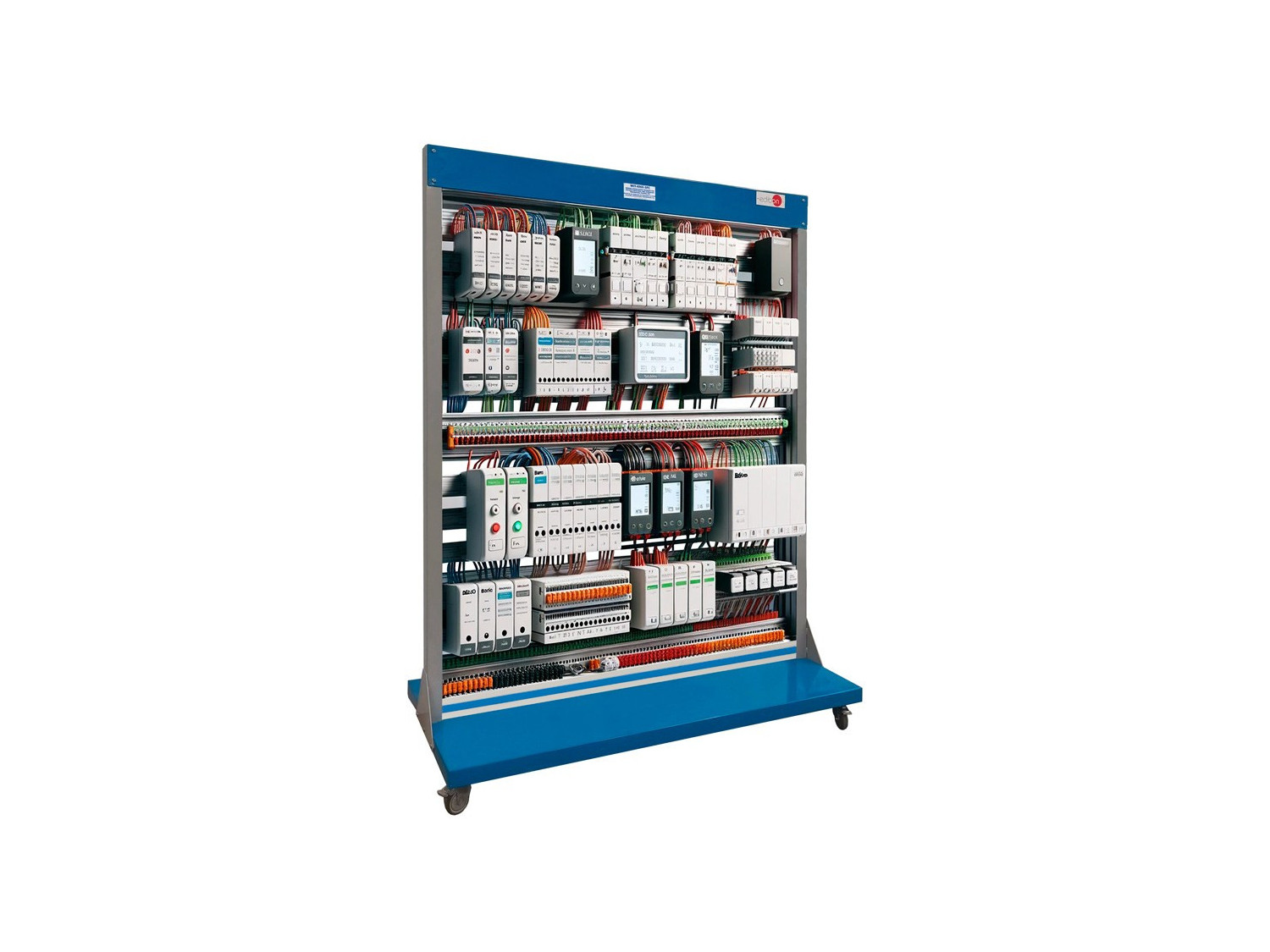

The WIT-KNX-SFC is a unit designed to provide hands-on experience and insights into KNX wiring practices specific to security sys­tems. This unit is tailored for educational and professional purposes, allowing users to study and understand the wiring techniques, programming and commissioning associated with integrating KNX technology into security-related applications.

Key features of the WIT-KNX-SFC may include:

  • Practical Learning Scenarios: The unit facilitates practical learning scenarios where users can engage in hands-on exercises related to KNX wiring practices in the context of security systems.
  • Simulation of Security Control Systems: Users can simulate and experiment with various security control scenarios, gaining valuable experience in integrating KNX technology for enhanced security features in smart buildings.
  • Application of KNX Wiring Techniques: The unit provides a platform for the practical application of KNX wiring techniques specific to security applications. This includes connecting and configuring KNX devices to create a controlled environment for learning.
  • Comprehensive Documentation: Accompanying documentation offers detailed information on KNX wiring practices for security, providing users with comprehensive guidance and instructions for effective learning.
  • Compatibility: The unit is likely compatible with standard KNX devices and protocols commonly used in security systems, ensuring seamless integration into KNX-based educational and professional environments.

演習と指導の慣行

マニュアルに含まれるガイド付き実習

  1. Basic Integration of the KNX Security System :
  • Connection of the electrical distribution box for KNX devices in the security system.
  • Application of wiring techniques to ensure a safe installation.

Exercises and Practical Possibilities

14 www.edibon.com

  1. Connection of the KNX Room Controller :
  • Integration of the KNX room controller for centralized control of security functions.
  • Configuration of functions and programming of security scenarios.
  1. Connection of the KNX Binary Input Module :
  • Connection and integration of the KNX binary input module for detecting security events.
  • Programming of actions based on detected states.
  1. Connection of KNX Binary Output Module for Control of Safety Devices :
  • Connection and configuration of KNX binary output module for effective control of safety devices.
  • Adjustment of response times and activation settings.
  1. Use of KNX brightness sensors in safety :
  • Connection and integration of KNX brightness sensors to automatically adjust lighting in safety situations.
  • Programming of thresholds and specific conditions.
  1. Simulation of scenarios with Buzzer Box :
  • Use of the buzzer box to simulate alarm situations and evaluate the response of the security system.
  • Adjustment of responses according to different events.
  1. Connection and Integration of Intrusion Detectors and Security Zones :
  • Connection and programming of KNX intrusion detectors and security zones.
  • Configuration of actions in case of intrusion detection.
  1. Connection of Sirens and Alarms :
  • Integration and configuration of sirens and alarms for emergency situations.
  • Adjustment of sound levels and activation.
  1. Connection of KNX Smoke and Fire Detectors :
  • Integration and programming of smoke and fire detectors in the KNX system.
  • Configuration of automatic responses and notifications.
  1. Connection of KNX Temperature and Presence Detectors :
  • Integration and configuration of temperature and presence detectors for the security of the environment.
  • Programming of actions in case of specific events.
  1. Connection of KNX Flood Detectors :
  • Integration and programming of flood detectors for security against water damage.
  • Configuration of automatic responses.

Creation of projects in ETS and definition of topology :

  1. Creation of a new project in ETS :
  • Development of a new project from scratch with ETS software.
  • Definition of general characteristics and establishment of the basic topology of the KNX system.
  1. Definition of the Bus Topology :
  • Configuration of the KNX bus topology.
  • Identification of devices and establishment of physical addresses.
  • Application of good design practices.
  1. Physical Address Assignment :
  • Assignment of physical addresses to KNX devices in the project.
  • Follow-up of addressing standards and recommendations.
  1. Topology Verification :
  • Verification of configuration consistency.
  • Compliance with KNX system requirements.

KNX Device Diagnostics :

  1. Use of Diagnostic Tools :
  • Use of diagnostic tools in the ETS software to verify communication and status of KNX devices.
  1. Communication Testing :
  • Performing communication tests between KNX devices and the bus.
  • Identification and resolution of possible connection problems.
  1. Telegram Analysis :
  • Analysis of telegrams sent and received by KNX devices.
  • Identification of possible errors or interferences in the network.
  1. Error Diagnostics :
  • Diagnosis and troubleshooting of configuration or connection errors in KNX devices.
  • Use of diagnostic tools available in the ETS software.
  1. Event Logging :
  • Use of event logging functions to monitor and analyze the behavior of KNX devices under different operating conditions.
