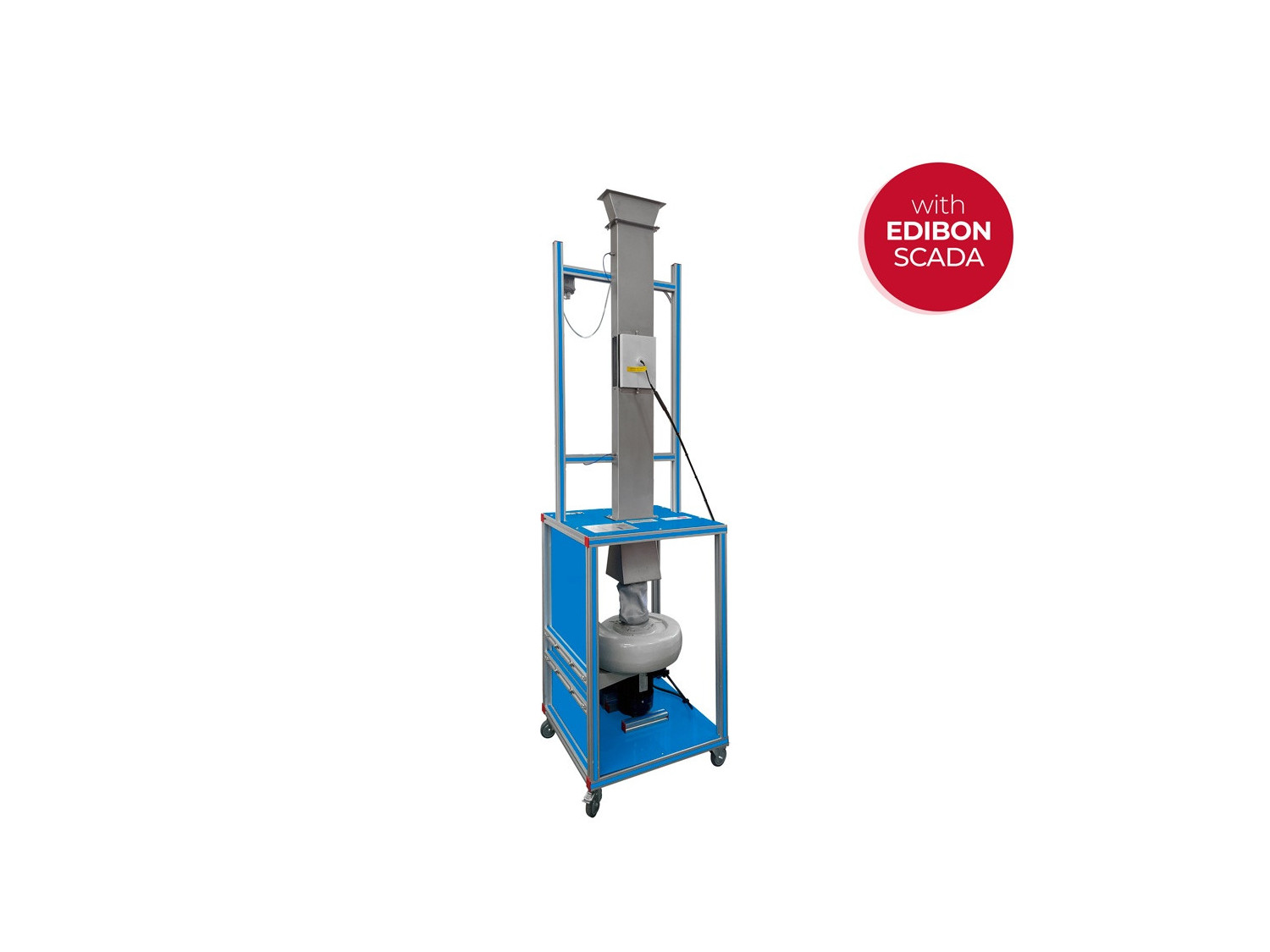

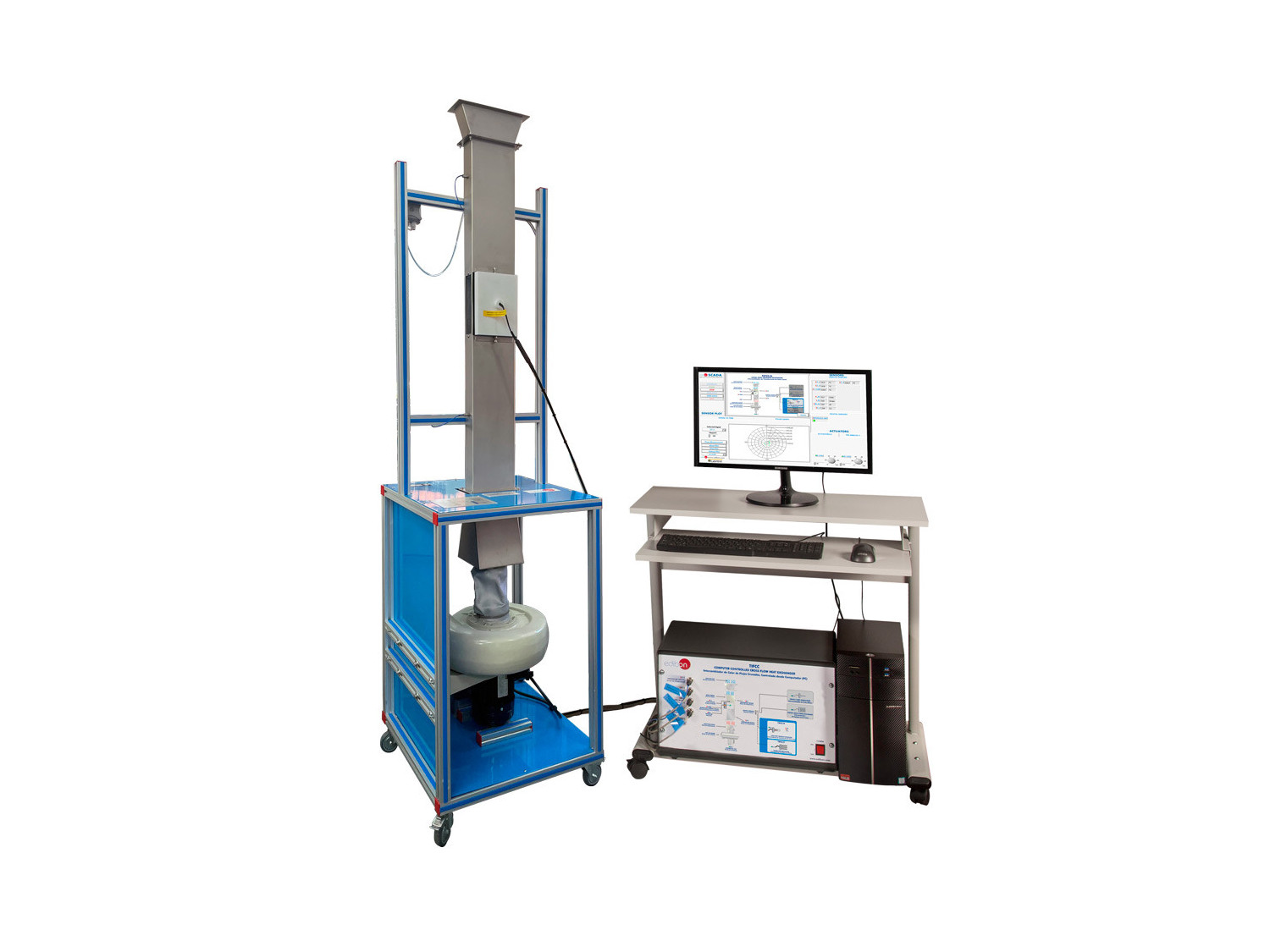

Complete TIFCC unit

COMPUTER CONTROLLED CROSS FLOW HEAT EXCHANGER - TIFCC

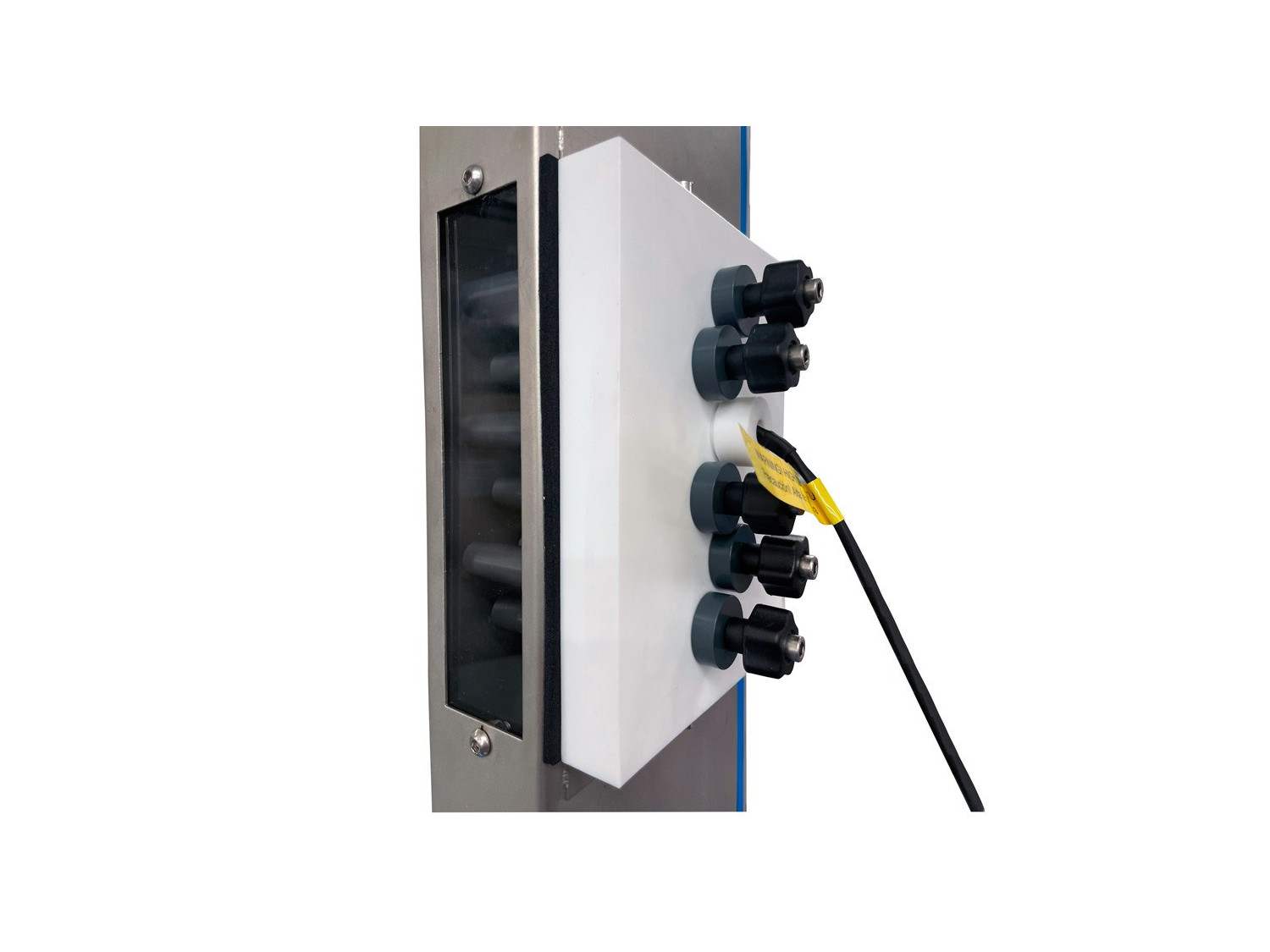

Pinned (multi-tube) exchanger (included)

COMPUTER CONTROLLED CROSS FLOW HEAT EXCHANGER - TIFCC

Pinned (multi-tube) exchanger and a single tube exchanger (Included)

COMPUTER CONTROLLED CROSS FLOW HEAT EXCHANGER - TIFCC

Additional recommended elements (Not included): TIFCC/A. Local Heat Transfer Exchanger, TIFCC/F. Finned Tube Exchanger.

COMPUTER CONTROLLED CROSS FLOW HEAT EXCHANGER - TIFCC

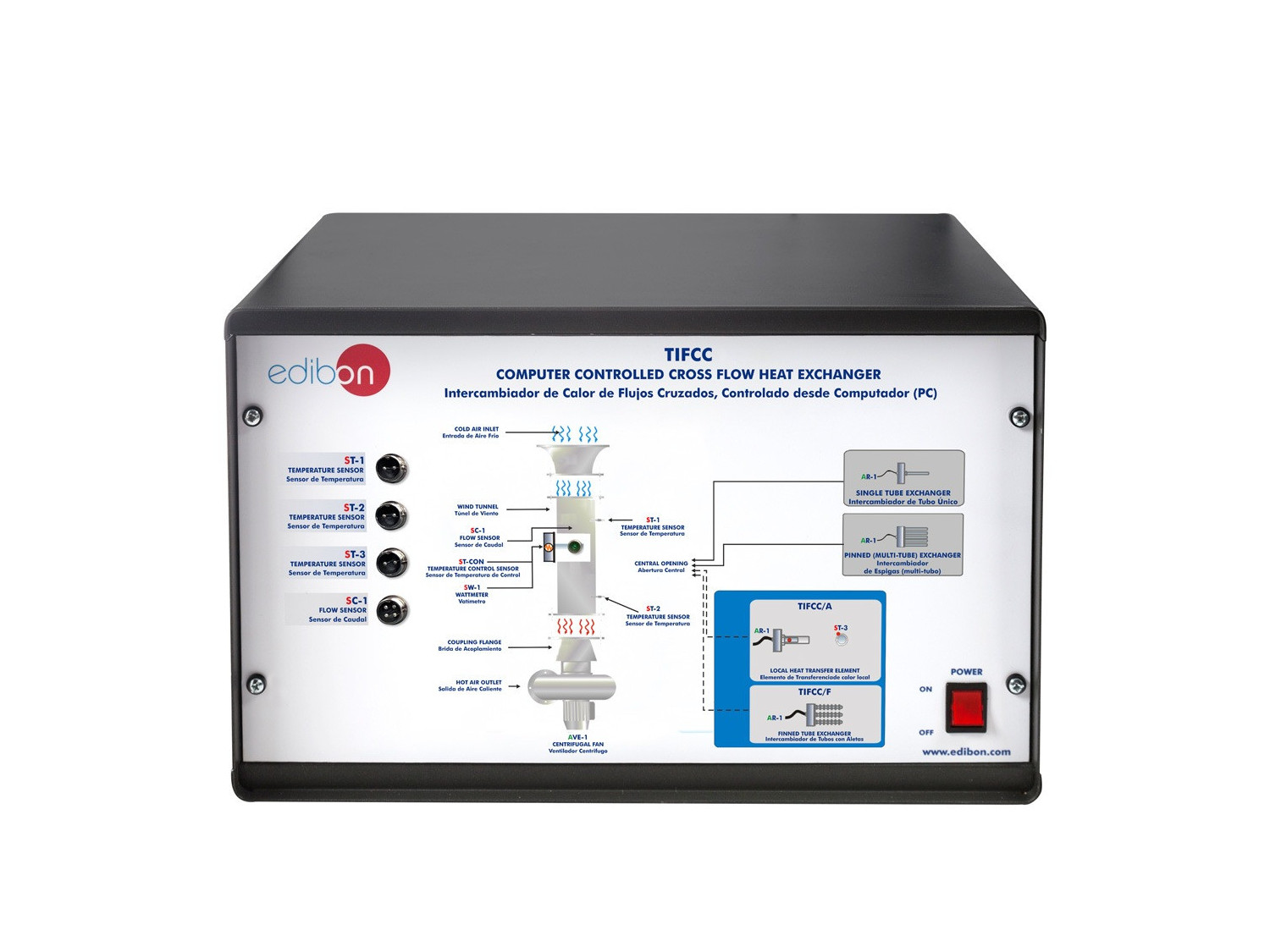

TIFCC/CIB. Control Interface Box: The Control Interface Box is part of the SCADA system

COMPUTER CONTROLLED CROSS FLOW HEAT EXCHANGER - TIFCC

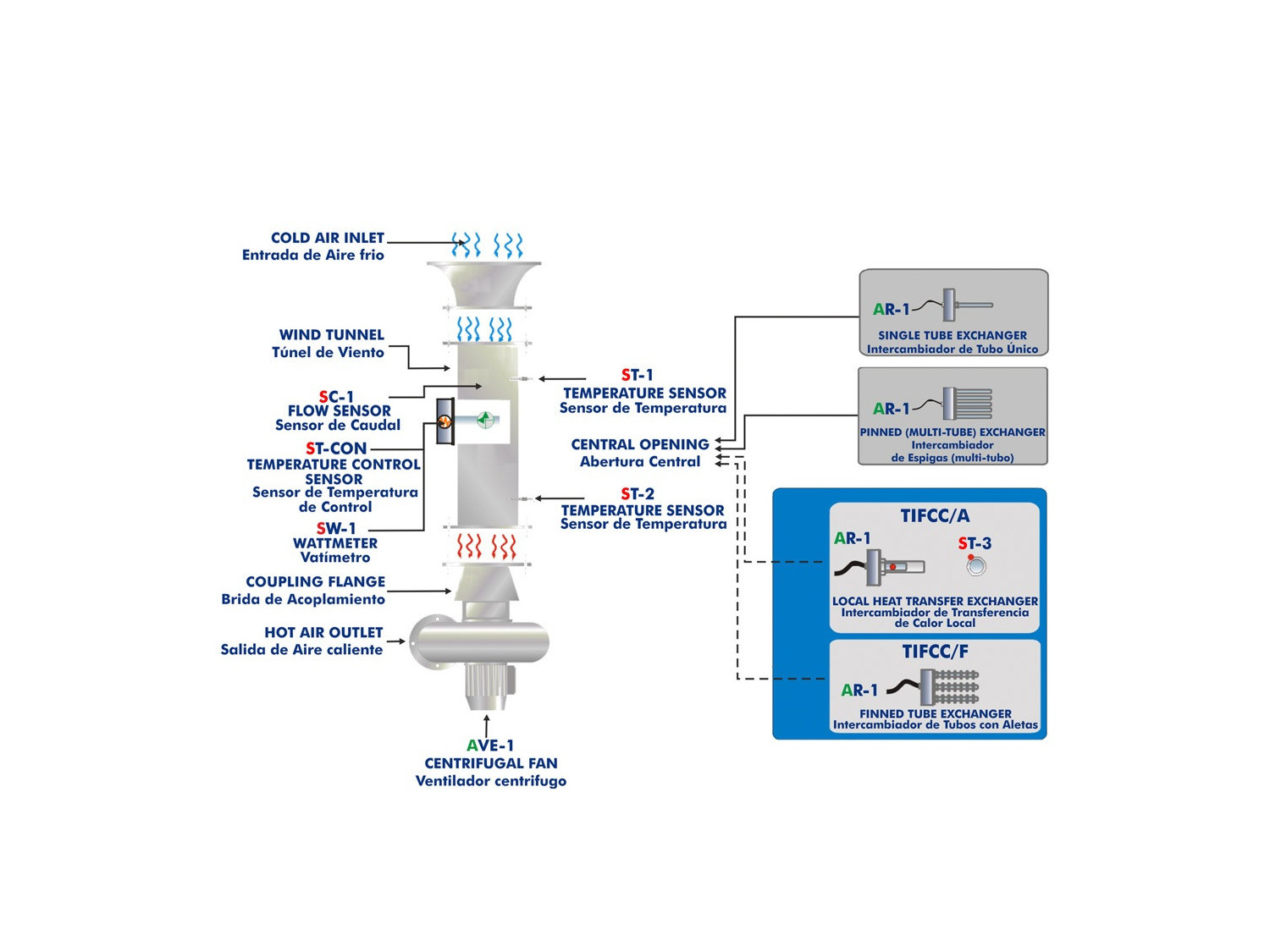

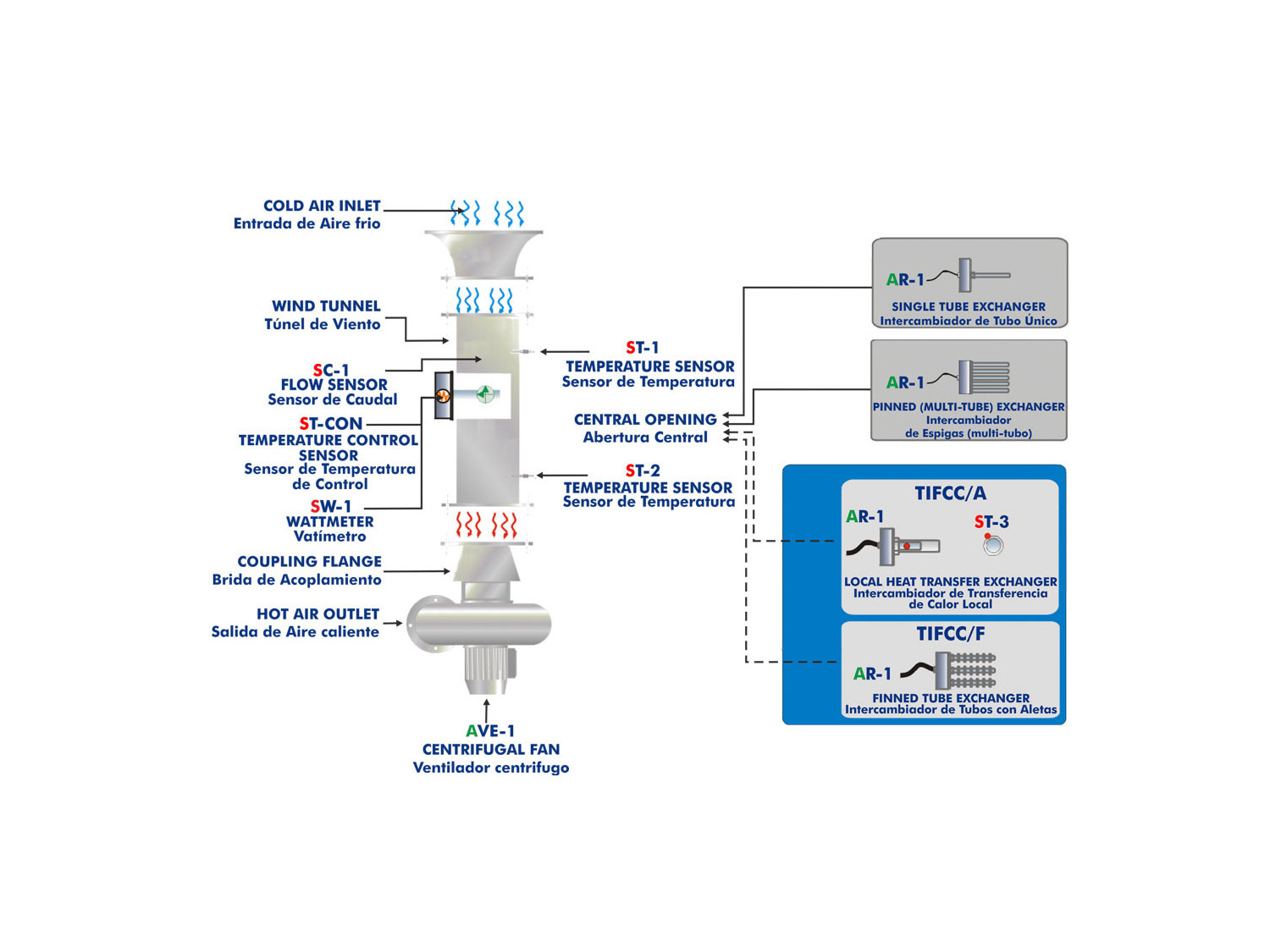

Process diagram and unit elements allocation

COMPUTER CONTROLLED CROSS FLOW HEAT EXCHANGER - TIFCC

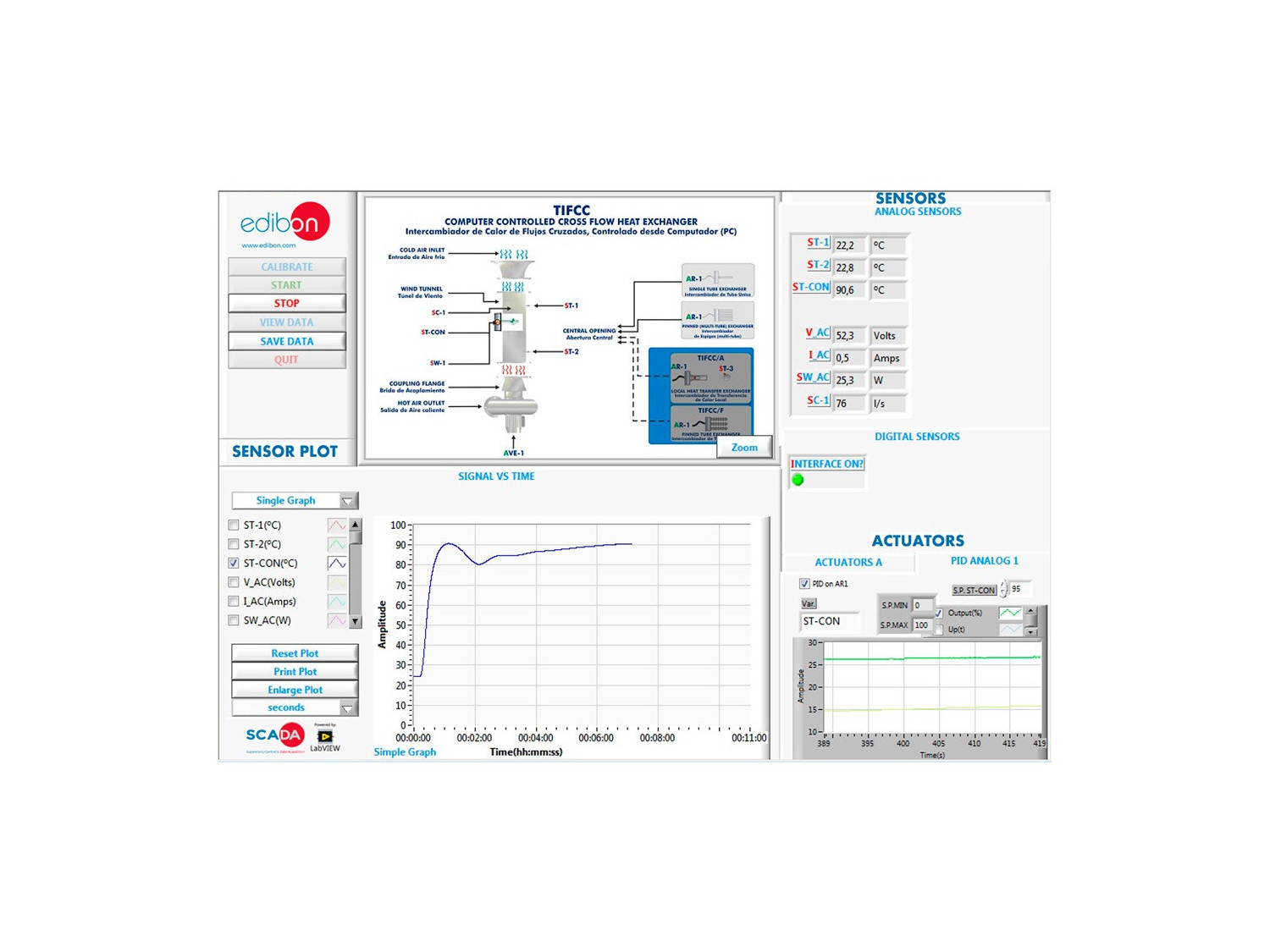

TIFCC/SOF. TIFCC Software. Main Screen

COMPUTER CONTROLLED CROSS FLOW HEAT EXCHANGER - TIFCC
COMPUTER CONTROLLED CROSS FLOW HEAT EXCHANGER - TIFCC
COMPUTER CONTROLLED CROSS FLOW HEAT EXCHANGER - TIFCC
COMPUTER CONTROLLED CROSS FLOW HEAT EXCHANGER - TIFCC
COMPUTER CONTROLLED CROSS FLOW HEAT EXCHANGER - TIFCC
COMPUTER CONTROLLED CROSS FLOW HEAT EXCHANGER - TIFCC
COMPUTER CONTROLLED CROSS FLOW HEAT EXCHANGER - TIFCC
COMPUTER CONTROLLED CROSS FLOW HEAT EXCHANGER - TIFCC

혁신적인 시스템

The Computer Controlled Cross Flow Heat Exchanger, "TIFCC", consists of a rectangular wind tunnel made of stainless steel, resistant to corrosion. It has a bell-shaped inlet and a central opening arranged longitudinally with two supporting elements made of stainless steel to retain the plates with the different exchangers.

일반적인 설명보기

확장

ICAI

상호작용형 컴퓨터 지원 교육 소프트웨어
FSS

고장 시뮬레이션 시스템
PLC

PLC에 의한 산업 프로세스 제어
PLCHMI

HMI와 함께하는 로컬/원격 IIoT 제어 및 모니터링
ELK

EDIBON 소프트웨어 개발 키트, NI LabVIEW™에서 제공하는 기능
ECR

NI CompactRIO를 사용한 EDIBON의 산업용 모듈식 시스템
ESN

EDIBON Scada-Net 시스템
ECL

EDIBON 원격 교육

실험실

11PTC
 석유 연수원 연구실
9TV
 기술 및 직업 교육을위한 열역학 및 열공학 실험실
9HE
 고등 교육을위한 열역학 및 열공학 실험실

관련 뉴스

Thermodynamics and Thermotechnology: Key concepts and EDIBON's contribution
Thermodynamics and Thermotechnology: Key concepts and EDIBON's contribution
Thermodynamics and thermotechnology are fundamental fields of engineering that play a critical role across various industries, from energy generation to climate control. Understanding these foundational concepts is essential not only for engineers but also for fostering technological innovations...
더 읽어보기
EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
더 읽어보기
We are excited to celebrate the publication of the article by Prof. Dr. Nina Penkova titled "Performance of Diffusion Absorption Refrigerators with Variable Input Power" The study explores how absorption refrigerators, which utilize waste or solar energy for heating and cooling, can operate...
더 읽어보기

일반적인 설명

The Computer Controlled Cross Flow Heat Exchanger (TIFCC) basically consists of a rectangular wind tunnel made of stainless steel, resistant to corrosion. It has a bell-shaped inlet and a central opening arranged longitudinally with two supporting elements made of stainless steel to retain the plates with the different exchangers.

The tunnel is installed over the inlet of a powerful centrifugal fan and connected to it by an elastic coupling flange. This fan aspirates air from the tunnel and expels it outside, making air flow along the tunnel. There is a variable speed drive to control the air flow through the tunnel with the fan control through the computer.

The TIFCC unit includes two types of exchangers: a pinned (multi-tube) exchanger and a single tube exchanger, where the heating element is lodged, which is controlled through the computer.

To perform all the practical exercises the unit has two temperature sensors to measure the air temperature in the tunnel, before and after passing through the heat exchanger, a control temperature sensor lodged in the heating element and a flow sensor that allows the user to determine the air flow along the tunnel.

Available two optional exchangers: Local Heat Transfer Exchanger (TIFCC/A) and Finned Tube Exchanger (TIFCC/F).

This Computer Controlled Unit is supplied with the EDIBON Computer Control System (SCADA), and includes: The unit itself + a Control Interface Box + a Data Acquisition Board + Computer Control, Data Acquisition and Data Management Software Packages, for controlling the process and all parameters involved in the process.

연습 및 가이드

매뉴얼에 포함 된 가이드 실기 연습

  1. Investigation of convective processes.
  2. Determination of heat transfer in a single tube exchanger.
  3. Determination of heat transfer in a pinned (multi-tube) exchanger.
  4. Determination of the average heat transfer in a pinned (multitube) exchanger.
  5. Deduction of the relationship between Nusselt, Reynolds and Prandtl numbers.
  6. Sensors calibration.

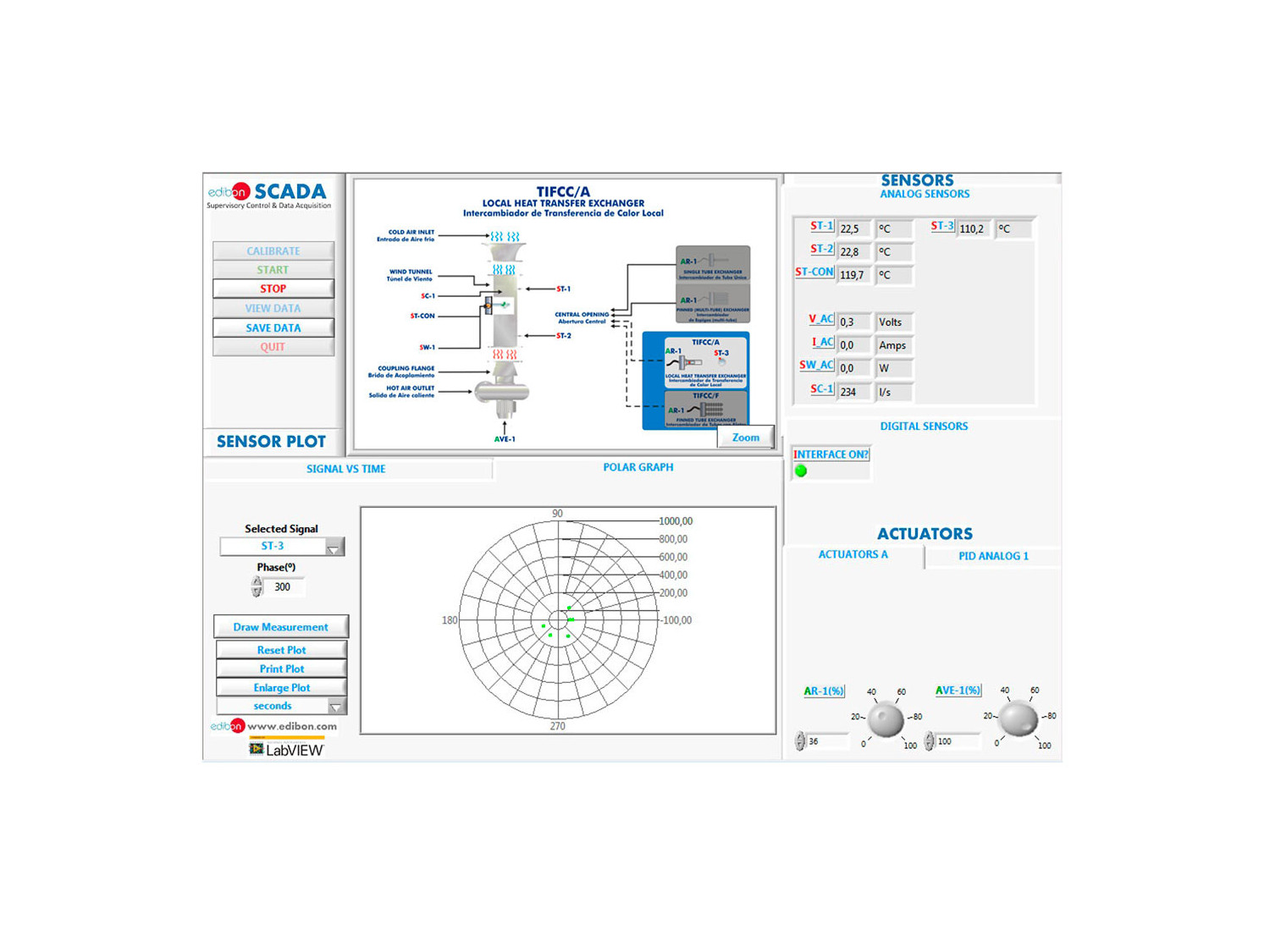

Practical possibilities with the optional TIFCC/A exchanger:

  1. Determination of the existing relationship between Nusselt and Reynolds number using the direct heat transfer element.
  2. Determination of the local variation in the convective heat transfer coefficient, using the direct heat transfer element.

Practical possibilities with the optional TIFCC/F exchanger:

  1. Effect produced by the external fins in the heat transfer process.
  2. Determination of the heat transfer in a finned tube exchanger.

장비로 수행 할 수있는 더 많은 실용적 연습

  1. Many students view results simultaneously. To view all results in real time in the classroom by means of a projector or an electronic whiteboard.
  2. Open Control, Multicontrol and Real Time Control. This unit allows intrinsically and/or extrinsically to change the span, gains, proportional, integral, derivative parameters, etc, in real time.
  3. The Computer Control System with SCADA and PID Control allow a real industrial simulation.
  4. This unit is totally safe as uses mechanical, electrical and electronic, and software safety devices.
  5. This unit can be used for doing applied research.
  6. This unit can be used for giving training courses to Industries even to other Technical Education Institutions.
  7. Control of the TIFCC unit process through the control interface box without the computer.
  8. Visualization of all the sensors values used in the TIFCC unit process.
  9. By using PLC-PI additional 19 more exercises can be done.
  10. Several other exercises can be done and designed by the user.
