MDUC 컴퓨터 (PC)에서 제어되는 기계 진단 장치
혁신적인 시스템

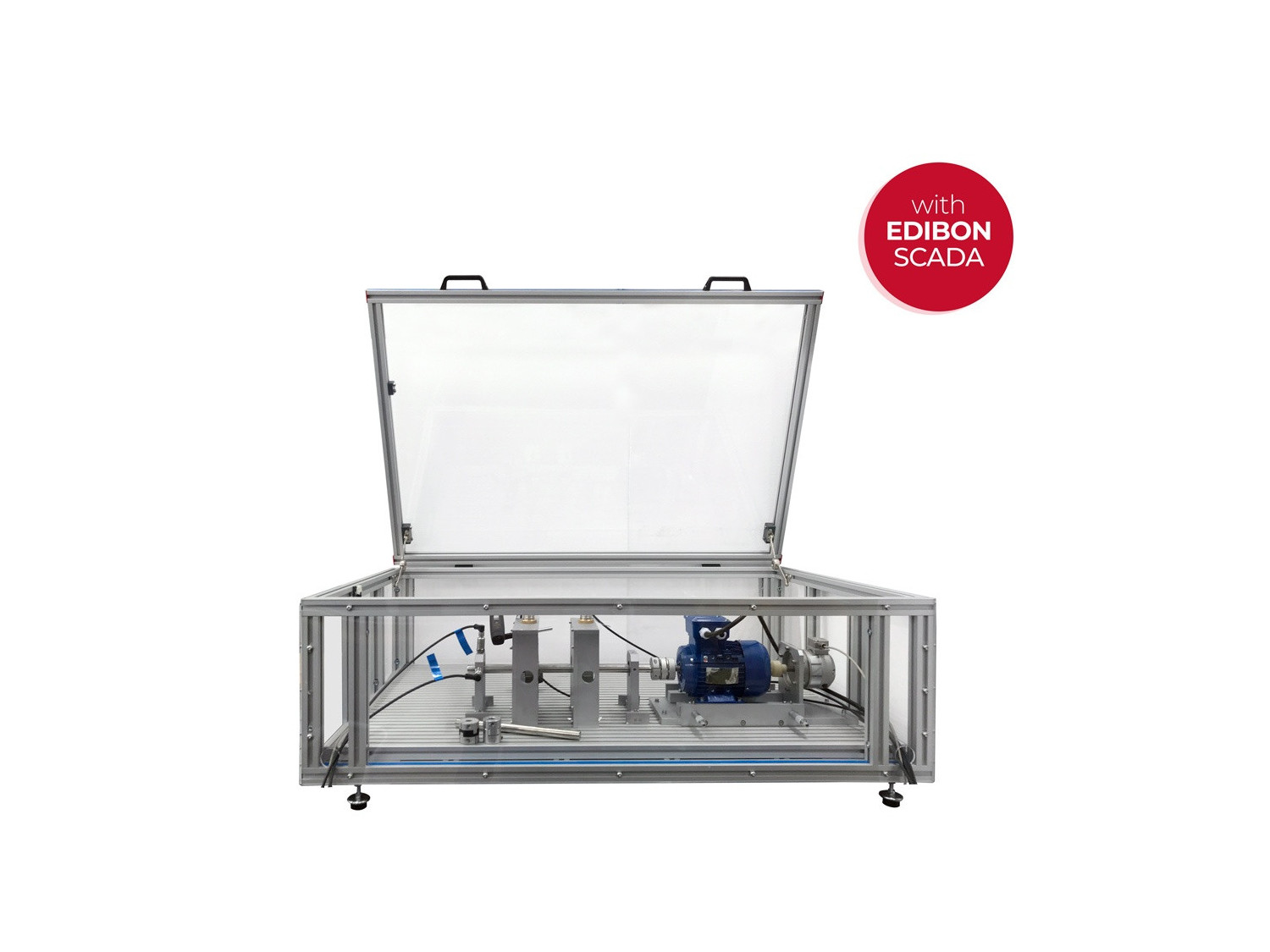

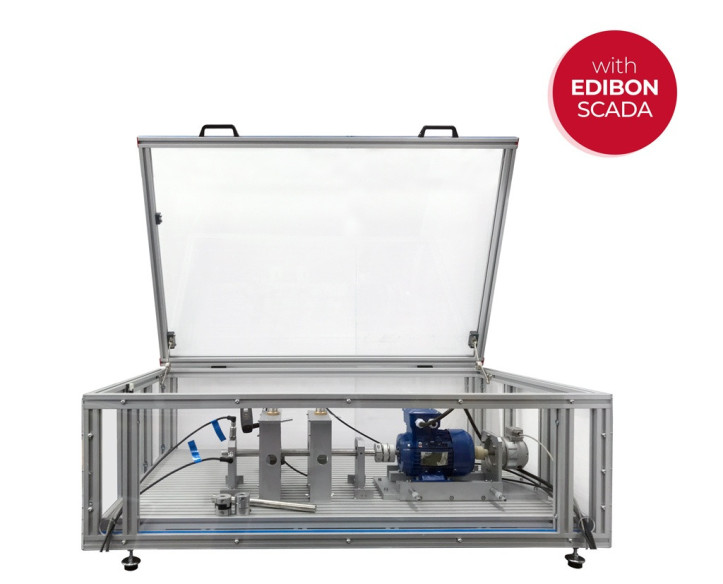

The Computer Controlled Machine Diagnosis Unit, "MDUC", of EDIBON, allows you to perform vibration measurement practical exercises, measuring the displacement, velocity and acceleration of vibrations in the time-frequency range.
확장
관련 뉴스
일반적인 설명
The Computer Controlled Machine Diagnosis Unit, "MDUC", of EDIBON, allows you to perform vibration measurement practical exercises, measuring the displacement, velocity and acceleration of vibrations in the time-frequency range.

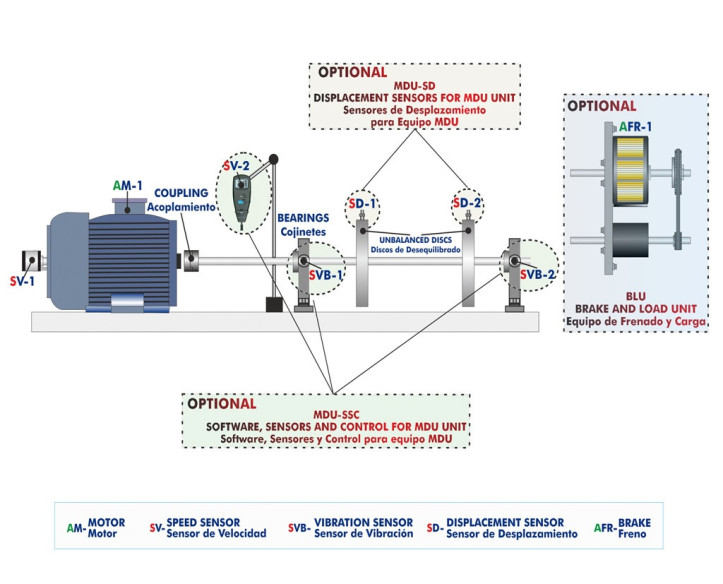

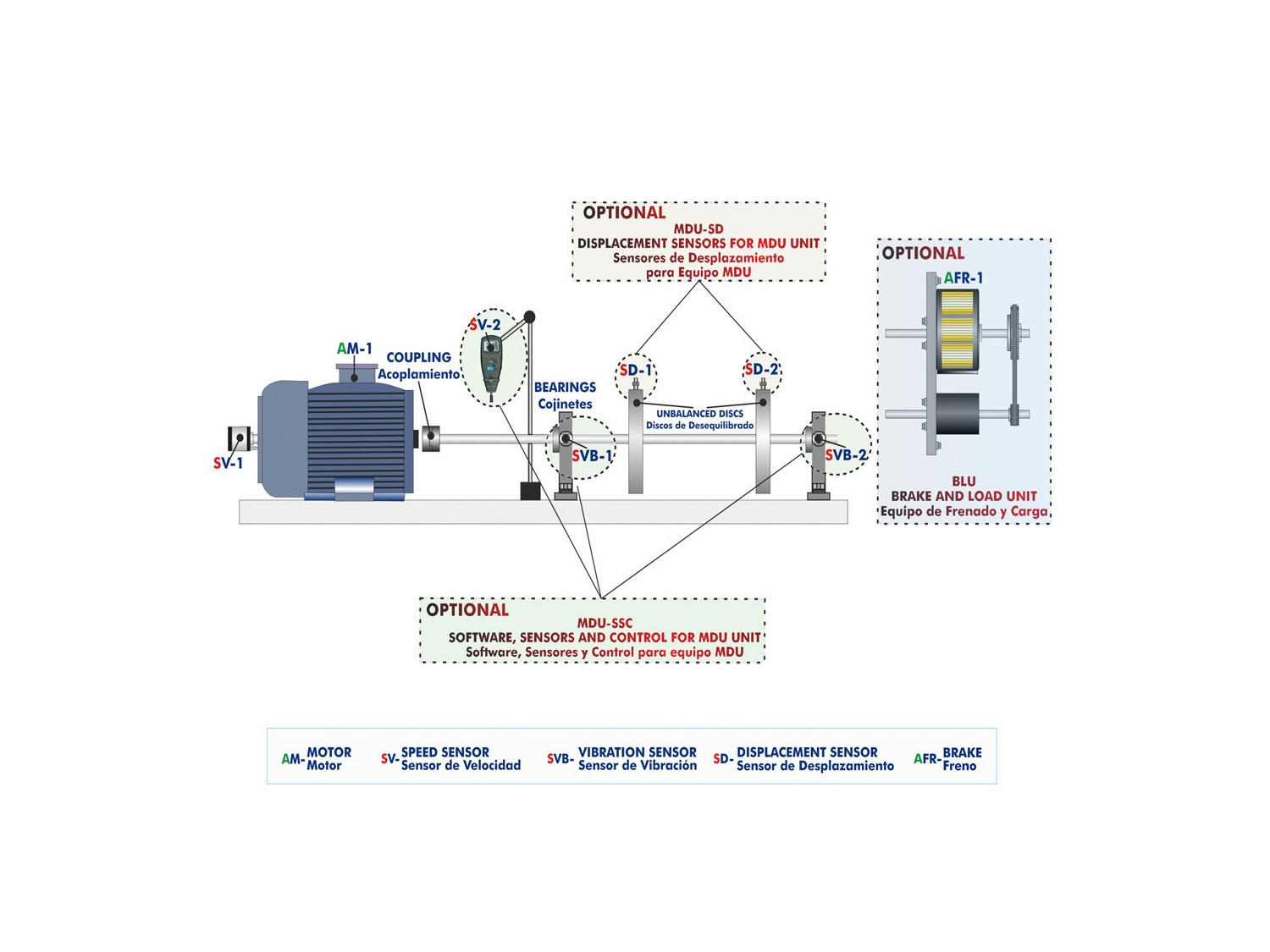

The Computer Controlled Machine Diagnosis Unit, "MDUC", includes the following elements:
- The MDU Base Unit, "MDU-UB".
- The Software, Sensors and Control for MDU Unit, "MDU-SSC".
- Displacement Sensors for MDU Unit, "MDU-SD".
연습 및 가이드
매뉴얼에 포함 된 가이드 실기 연습
- Assessment of the vibration state of a machine.

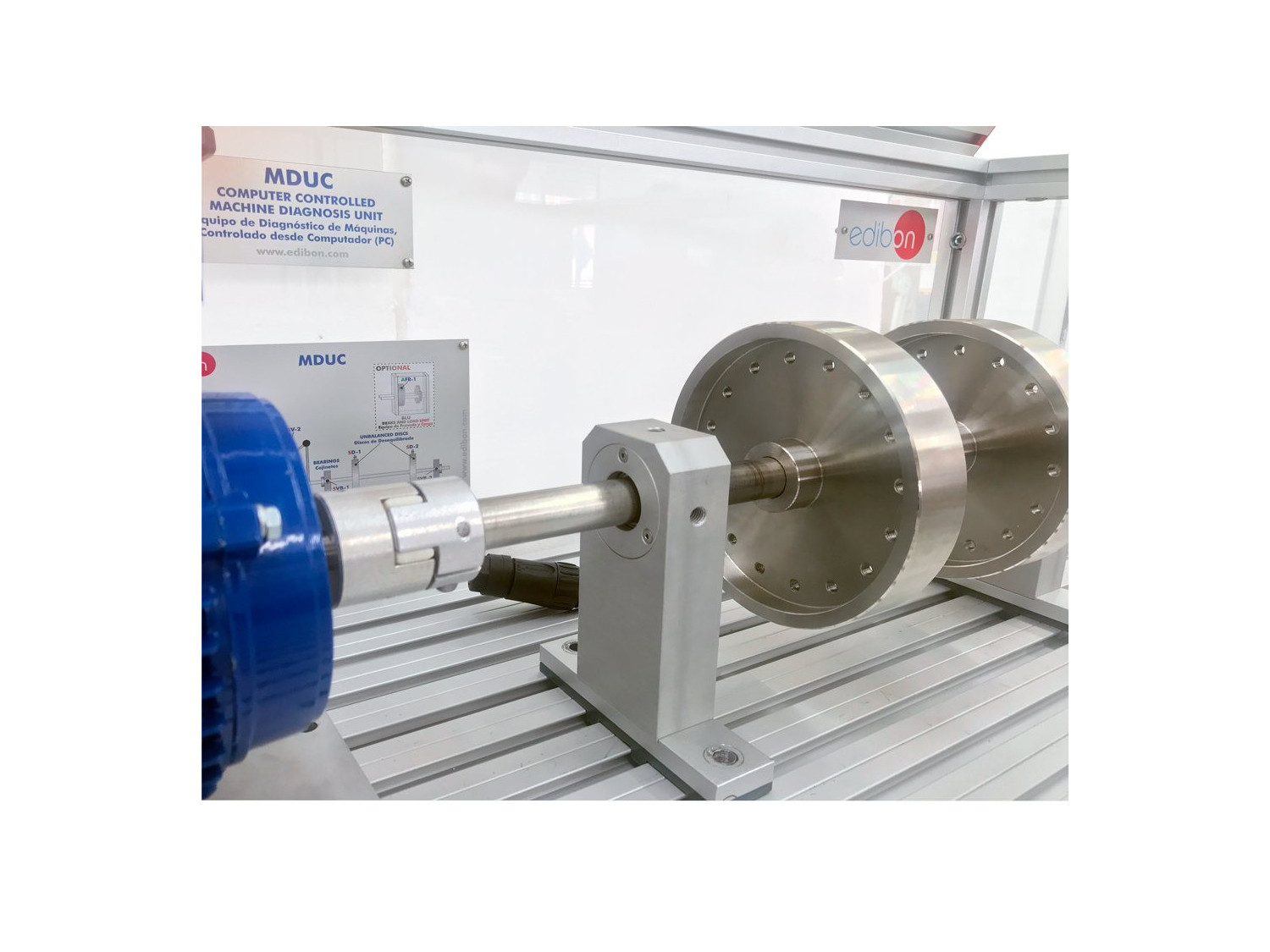

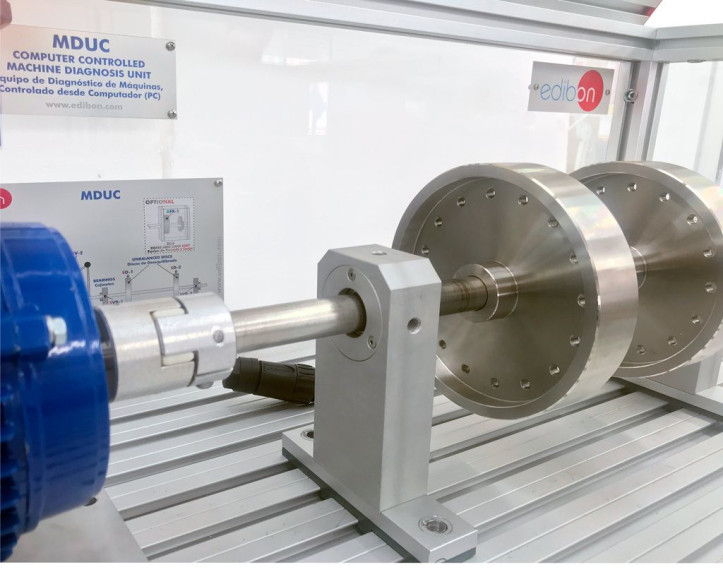

- Measuring the vibrations caused by unbalanced operation ofrigid rotors in 1 and 2 planes.
- Study of the basic essentials of the vibration measurement in shafts and bearings.
- Study of the basic magnitudes and parameters.
- Use of measuring sensors and instruments.
- Understanding the influence of speed and shaft and recorder arrangements.
- Learning to balance rigid shafts in operation and alignment between motor and bearing.
- Understanding and interpreting the frequency spectra.
- Learning about the different vibration signals.
- Applying the FFT analysis correctly.
- Measuring the speed, oscillation travel, oscillation speed and acceleration.
- Learning about the effects of alignment on different types of couplings.
- Learning about the effects of speed on vibration behavior.
- Learning about the effects of the balanced and unbalanced elastic rotor (MDU-SES kit required).
- Study of the variation of a typical vibration behavior (vibration velocity, frequency, amplitude, and phase) due to a fissure (MDU-SRS kit required).
- Identifying cracks and fissures in shafts through acceleration curves and order analysis (MDU-SRS required).
- Identifying a fissure through the variation of a vibration spectrum (MDU-SRS required).
- Estimating the life cycle of a roller bearing (MDU-SRBF required).
- Identifying faulty roller bearings (MDU-SRBF required).
- Checking the effects of roller bearing faults on outer and inner ring, or the roller bearing body on the vibration spectrum (MDU-SRBF required).
- Understanding the effect of ring gear hardness on claw couplings (MDU-SCO required).
- Comparing the curved tooth, bolt, flange or claw couplings (MDU-SCO required).
- Understanding the importance of belt tension in vibration behavior (MDU-SBD required).
- Checking the effect of the eccentricity in pulleys and the speed in vibration behavior (MDU-SBD required).
- Comparison between defective and non-defective belts (MDU-SBD required).
- Understanding and interpreting the frequency spectra in order to differentiate between defective and non-defective belts (MDU-SBD required).
- Identifying defects in the gears according to their vibration behavior (MDU-SSDG required).
- Learning about the effect of the toothed gear, the lubrication used and the wheelbase and the backlash (MDU-SSDG required).
- Identifying wear on the rod and piston (MDU-SCM required).
- Learning about the effect of bearing clearance and impacts (MDU-SCM required).
- Study of the vibrations of a centrifugal pump in operation (MDUSSCPrequired).
- Understanding the cavitation phenomenon in a centrifugal pump (MDU-SSCP required).
- Identifying vibrations caused by the movable vanes in the vibration spectrum (MDU-SSCP required).
- Measuring the pitch frequency between movable vanes (MDU-SSCP required).
- Measuring the blower vibrations (MDU-SSCP required).
- Learning about the effect of an asymmetric air gap on the vibration behavior and the electromagnetic and performance losses (MDU-SEV required).
- Learning about the effect of the electrical windings on vibration behavior (MDU-SEV required).
장비로 수행 할 수있는 더 많은 실용적 연습
- Many students view results simultaneously. To view all results in real time in the classroom by means of a projector or an electronic whiteboard.
- Open Control, Multicontrol and Real Time Control. This unit allows intrinsically and/or extrinsically to change the span, gains, proportional, integral, derivative parameters, etc, in real time.

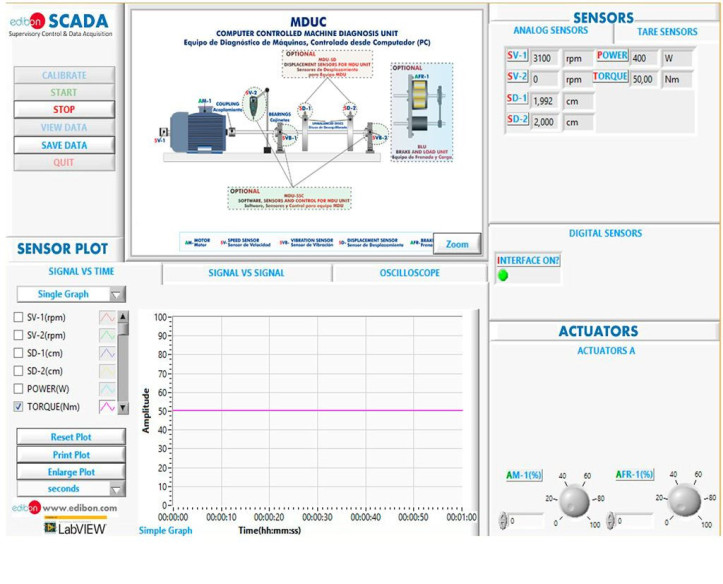

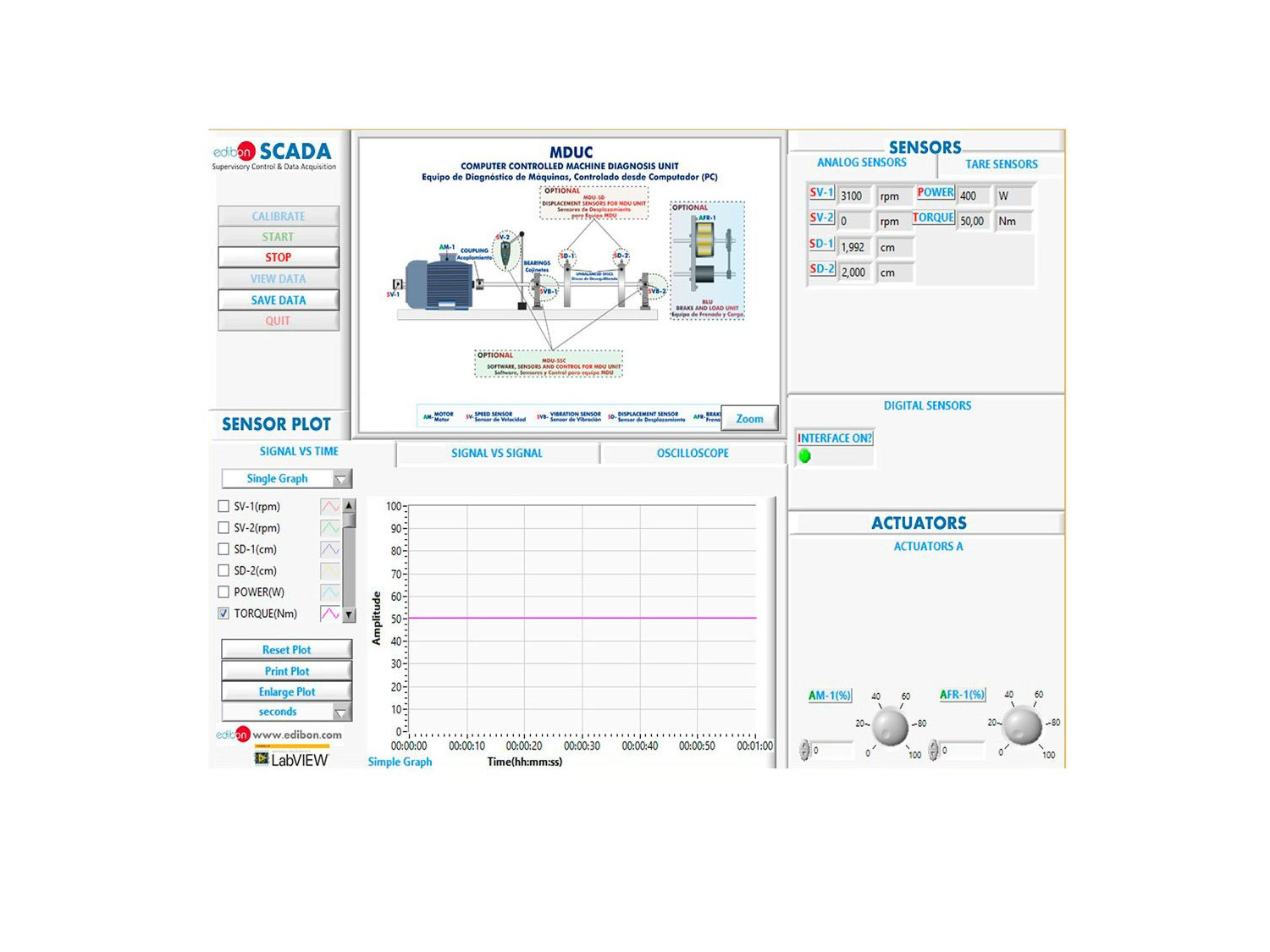

- The Computer Control System with SCADA and PID Control allow a real industrial simulation.
- This unit is totally safe as uses mechanical, electrical and electronic, and software safety devices.
- This unit can be used for doing applied research.
- This unit can be used for giving training courses to Industries even to other Technical Education Institutions.

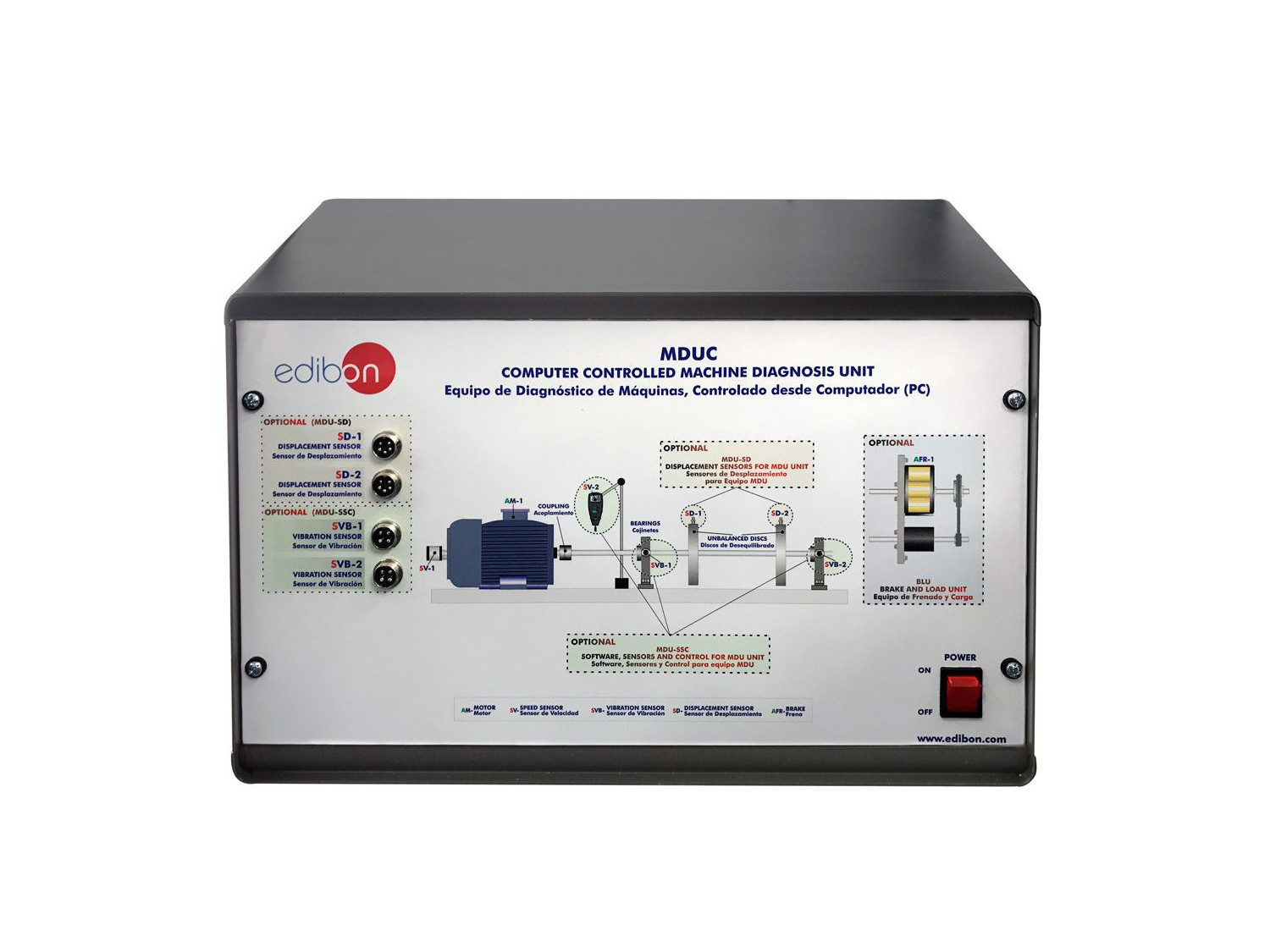

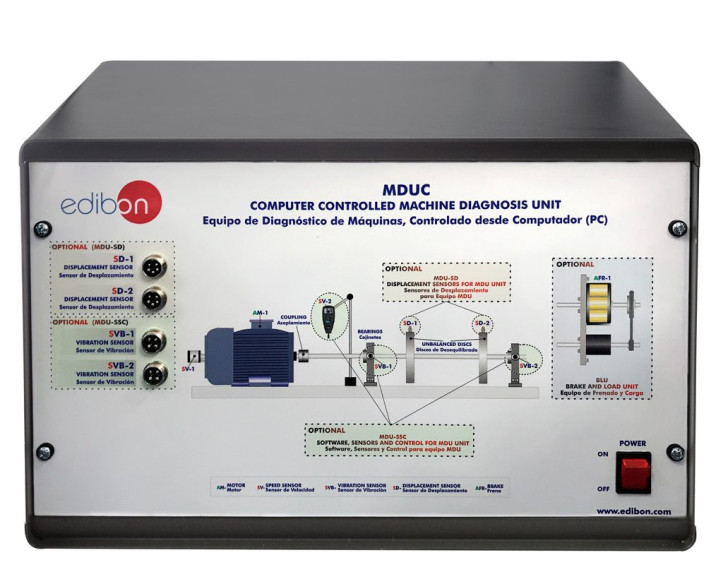

- Control of the MDUC unit process through the control interface box without the computer.
- Visualization of all the sensors values used in the MDUC unit process.
- By using PLC-PI additional 19 more exercises can be done.
- Several other exercises can be done and designed by the user.
