MEMT-6 Friction Vibration

7.1.5.- 트라이 볼 로지 (마찰, 마모, 윤활) 14.1.5.- 트라이 볼 로지 (마찰, 마모, 윤활)
FRICTION VIBRATION - MEMT-6

혁신적인 시스템

This module allows to demonstrate the static friction, the sliding friction, the related friction vibrations and the slip-stick effects.

일반적인 설명보기

확장

ICAI

상호작용형 컴퓨터 지원 교육 소프트웨어

관련 뉴스

EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
더 읽어보기
NEW Basic Mechanics course
NEW Basic Mechanics course
Are you a teacher or do you work as an engineering researcher? EDIBON offers courses for teachers and #research staff. Take a look at the course Basic Mechanics and learn about #forces and vectors. #DiscoverEdibon #Engineering.
더 읽어보기

일반적인 설명

This module allows to demonstrate the static friction, the sliding friction, the related friction vibrations and the slip-stick effects.

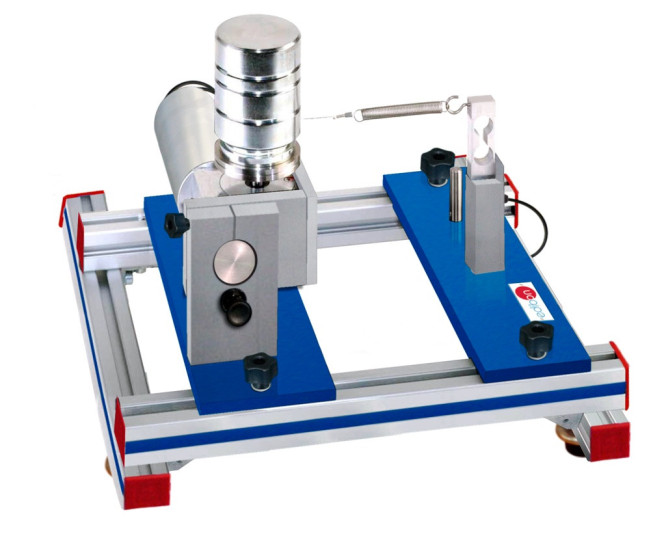

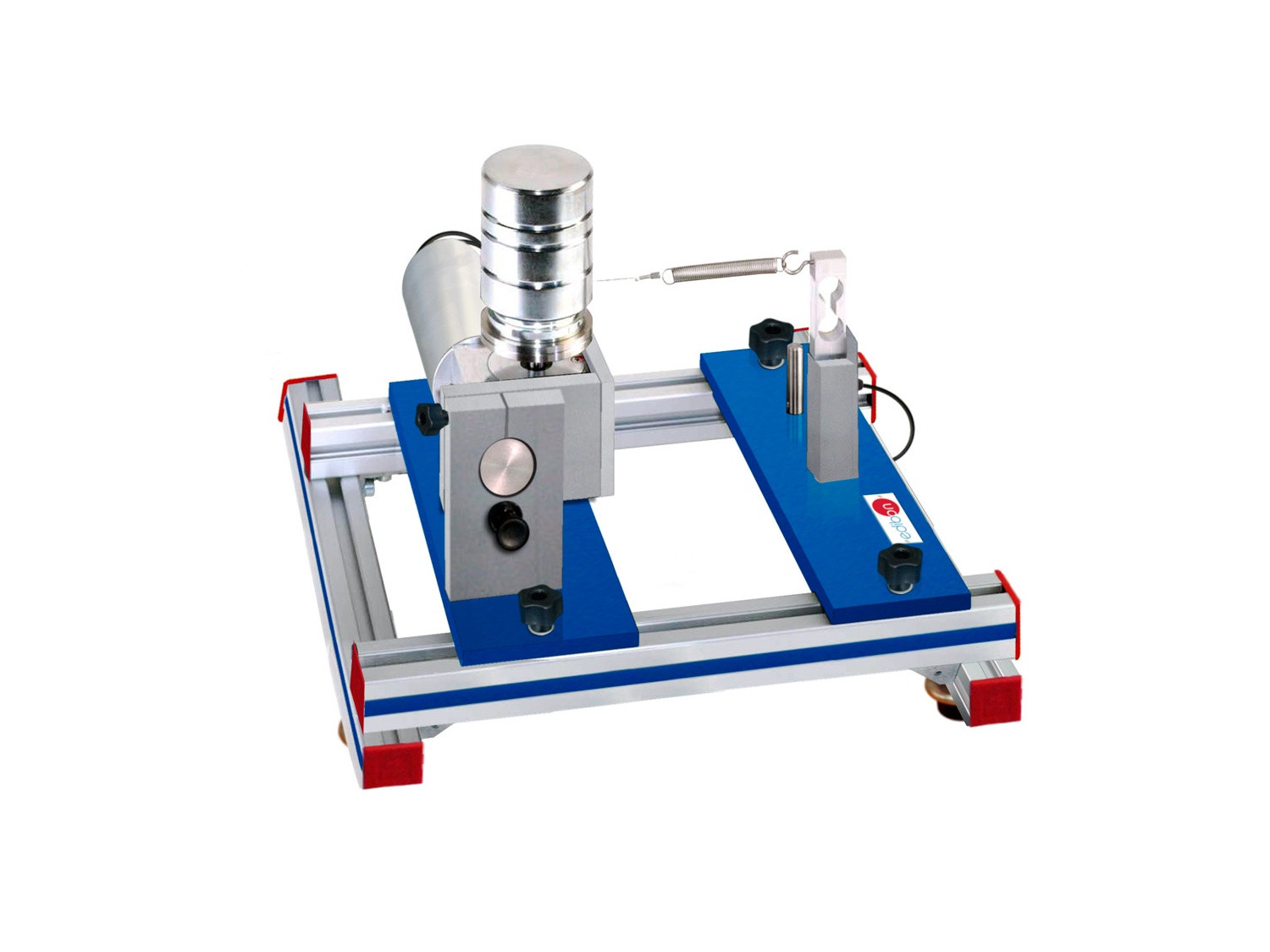

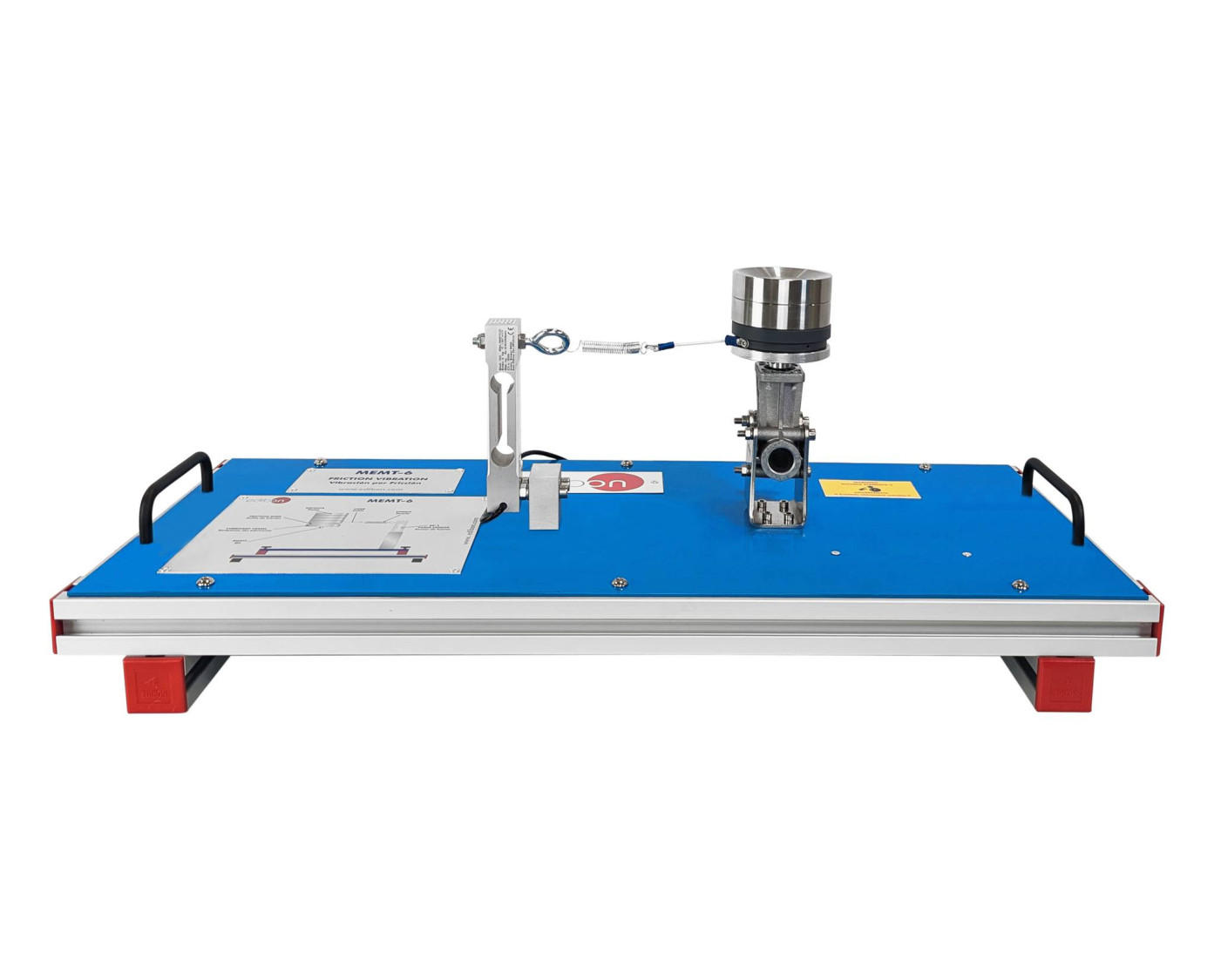

Several weights are placed on a horizontally rotating friction disc. It is prevented from turning by a cord. This cord is coupled to force measuring devices with a force sensor via a tension spring. An open vessel surrounds the friction disc to place different lubricants.

연습 및 가이드

매뉴얼에 포함 된 가이드 실기 연습

  1. Demonstration of the transition from static friction to sliding friction.
  2. Study of the influence of lubrication on stick-slip effects.
  3. Study of the influence of the force between the components on the stick-slip effects.
  4. Study of the influence of the relative speed of the components on the stick-slip effects.
