RADIAL PRESSURE DISTRIBUTION IN A JOURNAL BEARING - MEMT-1

혁신적인 시스템

This unit allows the visualization of the radial pressure distribution in a journal bearing with hydrodynamic lubrication.

일반적인 설명보기

확장

ICAI

상호작용형 컴퓨터 지원 교육 소프트웨어

관련 뉴스

EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
더 읽어보기
NEW Basic Mechanics course
NEW Basic Mechanics course
Are you a teacher or do you work as an engineering researcher? EDIBON offers courses for teachers and #research staff. Take a look at the course Basic Mechanics and learn about #forces and vectors. #DiscoverEdibon #Engineering.
더 읽어보기

일반적인 설명

This unit allows the visualization of the radial pressure distribution in a journal bearing with hydrodynamic lubrication.

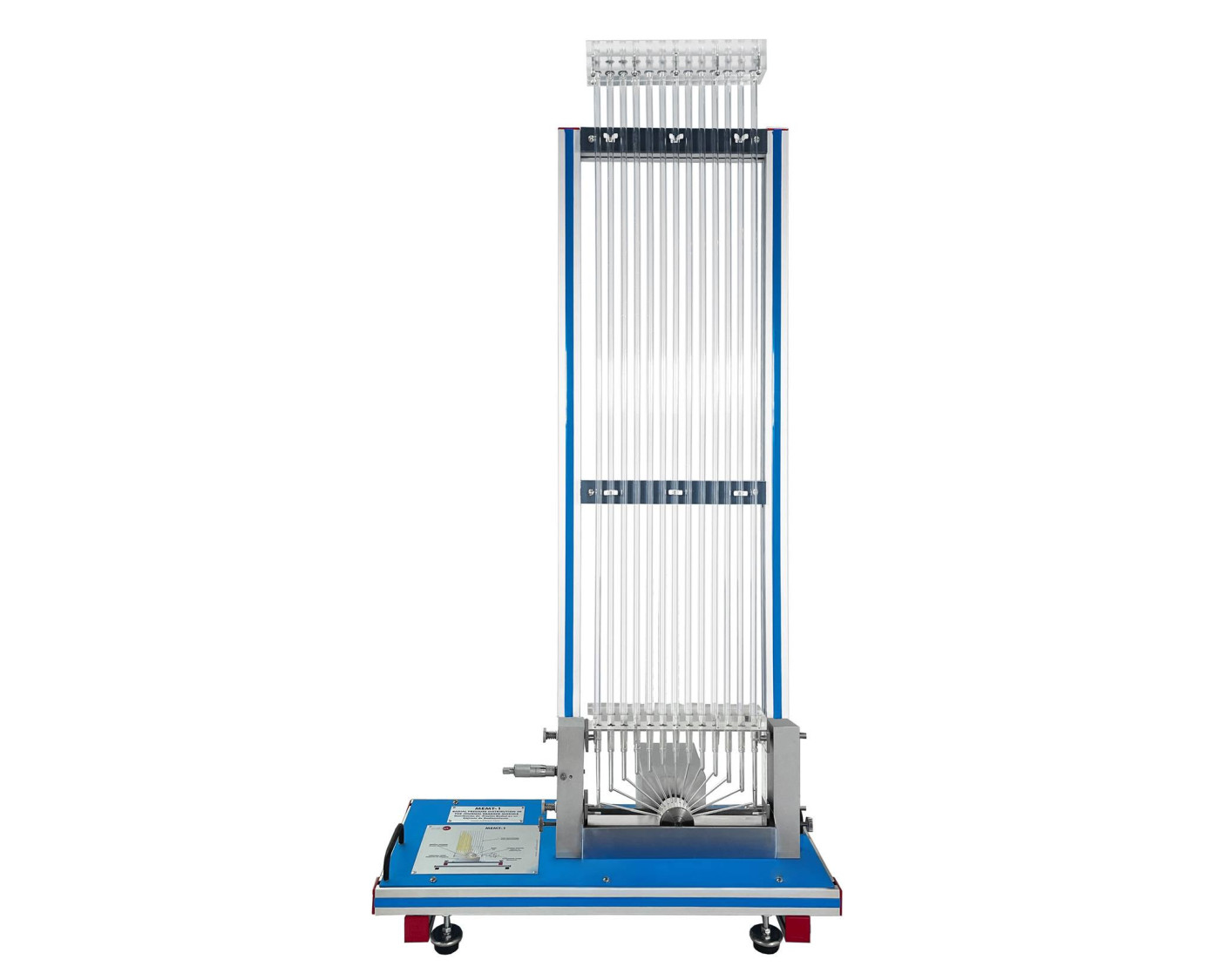

The "MEMT-1" unit consists of a journal bearing with hydrodynamic lubrication, a freely moving bearing housing with thirteen manometric tubes that allow to visualize the radial pressure distribution. The journal bearing movement and the oil film can be seen through a transparent plastic bearing housing. The pressure distribution in the journal bearing is measured by thirteen manometric tubes using the height of each column of liquid.

The gap width can be adjusted by the movable bearing housing with a micrometer screw.

The lubricant that enables the visualization of pressure distribution in the journal bearing is contained in a tank. The distribution of pressure on the journal bearing can be determined at different speeds, loads and bearing gap width.

연습 및 가이드

매뉴얼에 포함 된 가이드 실기 연습

  1. Demonstration and visualization of the radial pressure distribution in a journal bearing with hydrodynamic lubrication.
  2. Investigation of the pressure distribution in the journal bearing depending on the bearing gap width.
  3. Investigation of the pressure distribution in the journal bearing depending on the speed.
  4. Study of the stability limit as a function of the gap width.
