WHIRLING OF SHAFTS UNIT - MEER

SISTEMAS INOVADORES

The Whirling of Shafts Unit, "MEER", has been designed by EDIBON to demonstrate and determine different modes of oscillation and resonance of shafts with continuous distribution of mass under different conditions.

Ver descrição geral

Expansões

ICAI

Software Interativo para Educação Assistida por Computador
MSAC

Sistema Modular de Aquisição e Controle

LABORATÓRIOS

7TV
 Laboratório Mecânico, Automóvel e de Materiais para o Ensino Técnico e Vocacional
7HE
 Laboratório de Mecânica, Automóvel e Materiais para o Ensino Superior

NOTÍCIAS RELACIONADAS

EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
Ler mais
NEW Basic Mechanics course
NEW Basic Mechanics course
Are you a teacher or do you work as an engineering researcher? EDIBON offers courses for teachers and #research staff. Take a look at the course Basic Mechanics and learn about #forces and vectors. #DiscoverEdibon #Engineering.
Ler mais

Descrição Geral

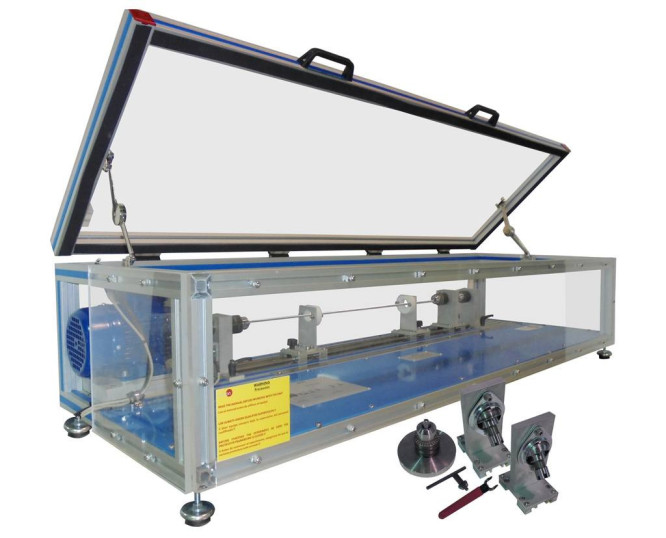

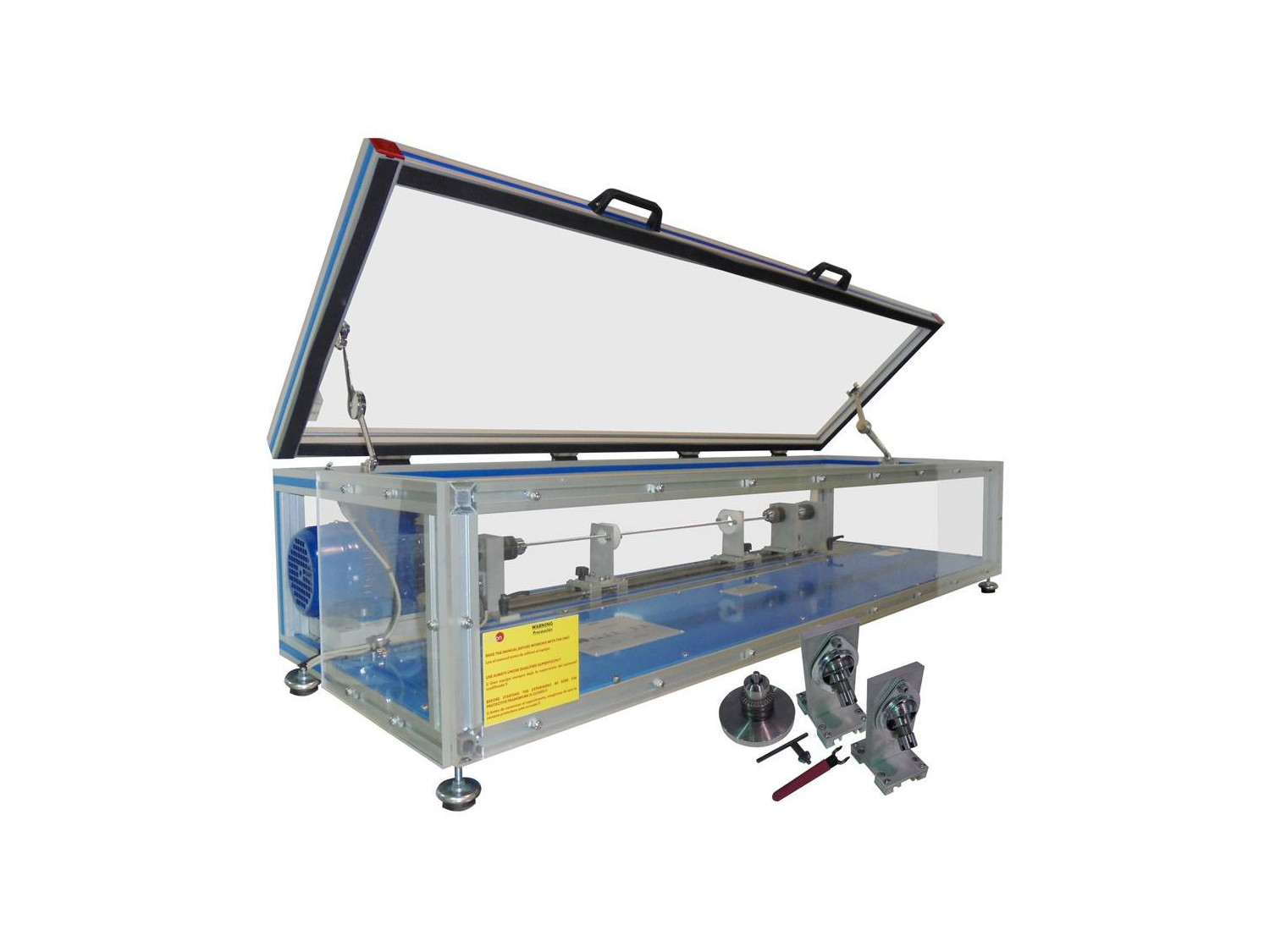

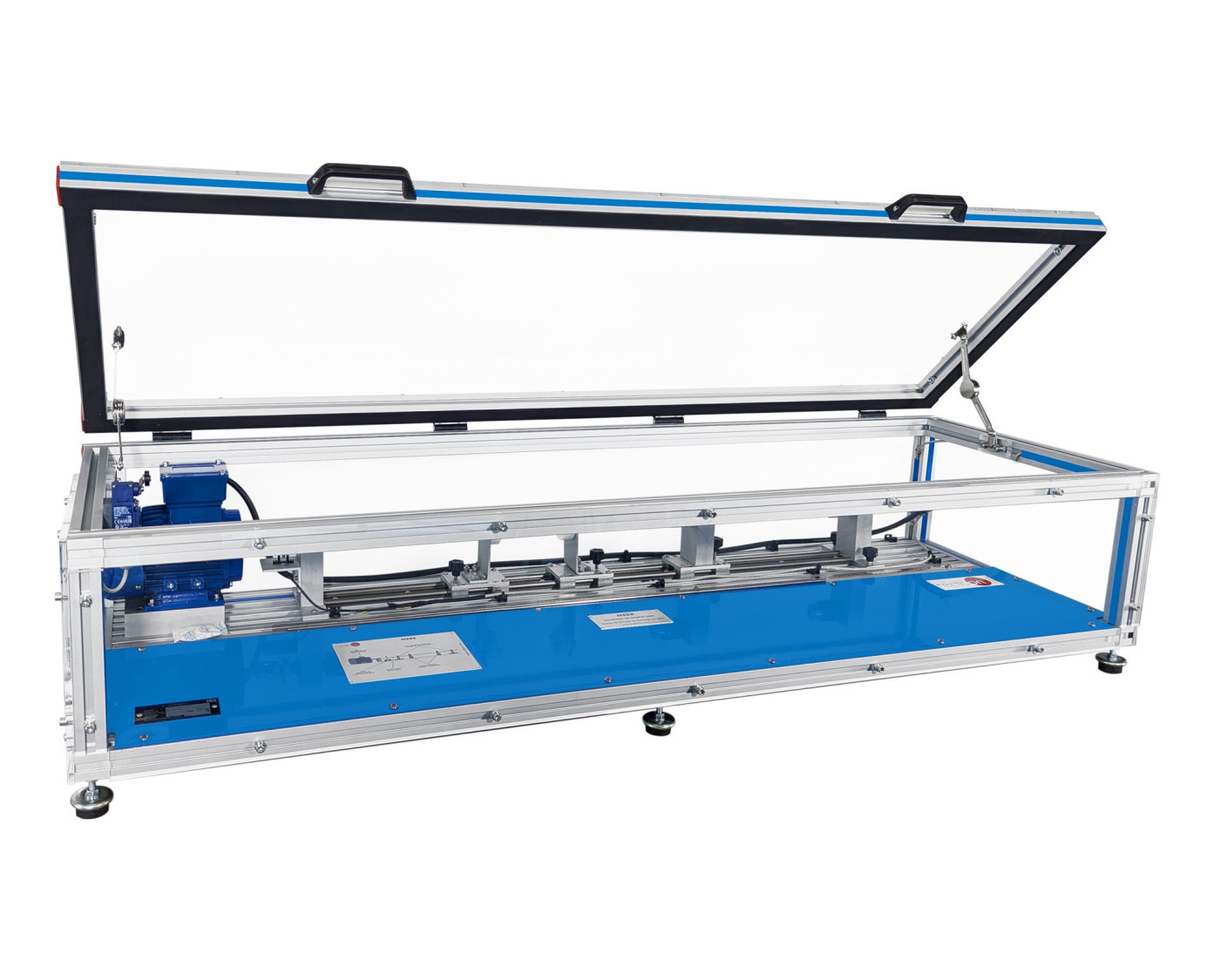

The Whirling of Shafts Unit, "MEER", has been designed by EDIBON to demonstrate and determine different modes of oscillation and resonance of shafts with continuous distribution of mass under different conditions.
