AE-V Equipamento de Tecnologia de Vácuo

6.1.3.2.- PNEUMÁTICA
VACUUM TECHNOLOGY UNIT - AE-V

SISTEMAS INOVADORES

The Vacuum Technology Unit, "AE-V", has been designed to obtain the knowledge required to understand the operation of the most common elements used in vacuum technology.

Ver descrição geral

Expansões

ICAI

Software Interativo para Educação Assistida por Computador

NOTÍCIAS RELACIONADAS

EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
Ler mais

Descrição Geral

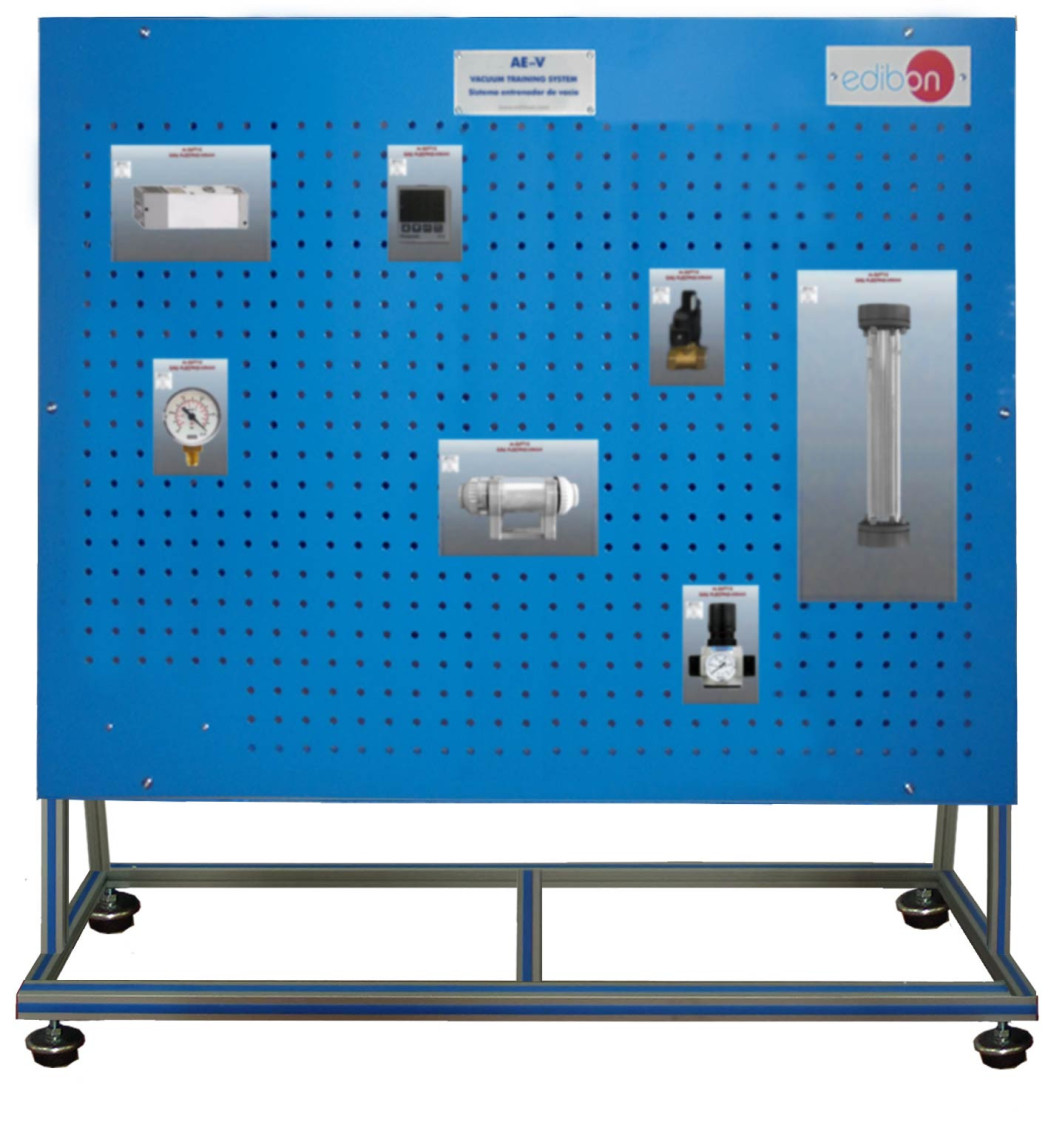

The "AE-V" is a modular unit consisting of a panel where all the components that form the vacuum pneumatic system to be studied are attached to.

The "AE-V" contains all the elements required to carry out the assembly and operation of the circuits proposed in the practical exercises, elements such as push in fittings, flexible tubing, filters, safety valves, etc.

The "AE-V", designed by EDIBON, allows the user to learn the basic concepts about vacuum technology (operation, elements of a vacuum pneumatic circuit, standardized symbols, etc.) without any previous knowledge or experience.

EXERCÍCIOS E PRÁTICAS GUIADAS

EXERCÍCIOS PRÁTICOS GUIADOS INCLUÍDOS NO MANUAL

  1. Introduction to vacuum pneumatic technology.
  2. Description of the main parts of vacuum pneumatic systems.
  3. Compressed air treatment, distribution and compression system.
  4. Checking the state of the pneumatic circuit by measuring the most common pneumatic variables.
  5. Operation of suction pads made of different materials.
  6. Operation of suction pads with different shapes.
  7. Configuration of a vacuum application.
