WIRING INSTALLATION TRAINING FOR LIGHTING WITH KNX - WIT-KNX-LIC

SISTEMAS INOVADORES

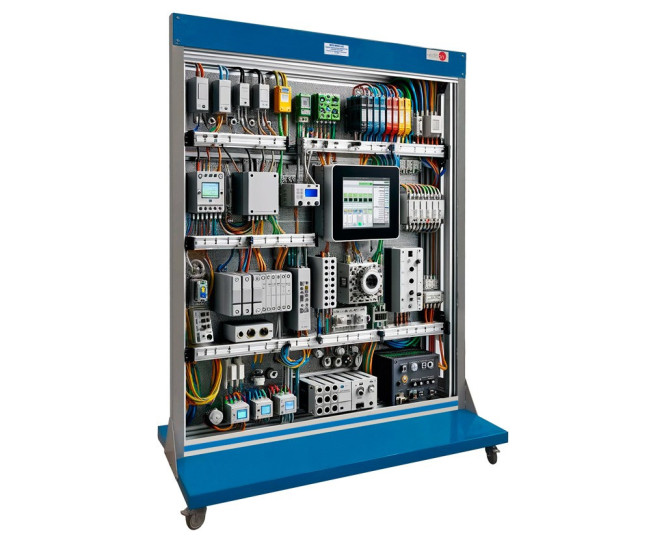

The WIT-KNX-LIC is a unit designed to facilitate the study and understanding of KNX wiring practices specifically tailored for lighting control systems. This unit serves as a valuable tool for educational and professional purposes, providing hands-on experience and insights into the wiring techniques, programming and commissioning associated with KNX technology in the context of lighting control applications.

Ver descrição geral

NOTÍCIAS RELACIONADAS

EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
Ler mais
The Importance of Hands-On Training in Electricity for Universities and Companies
The Importance of Hands-On Training in Electricity for Universities and Companies
Electricity is a form of energy resulting from the movement of electrons through a conductor. This physical phenomenon is essential for the operation of a wide variety of devices and systems we use daily, from household appliances to complex industrial systems.
Ler mais
What is Industry 4.0?
What is Industry 4.0?
Today we are at the beginning of a new era, named ‘Industrie 4.0’. Let´s explain a little further the concept "Industrie 4.0"!
Ler mais

Descrição Geral

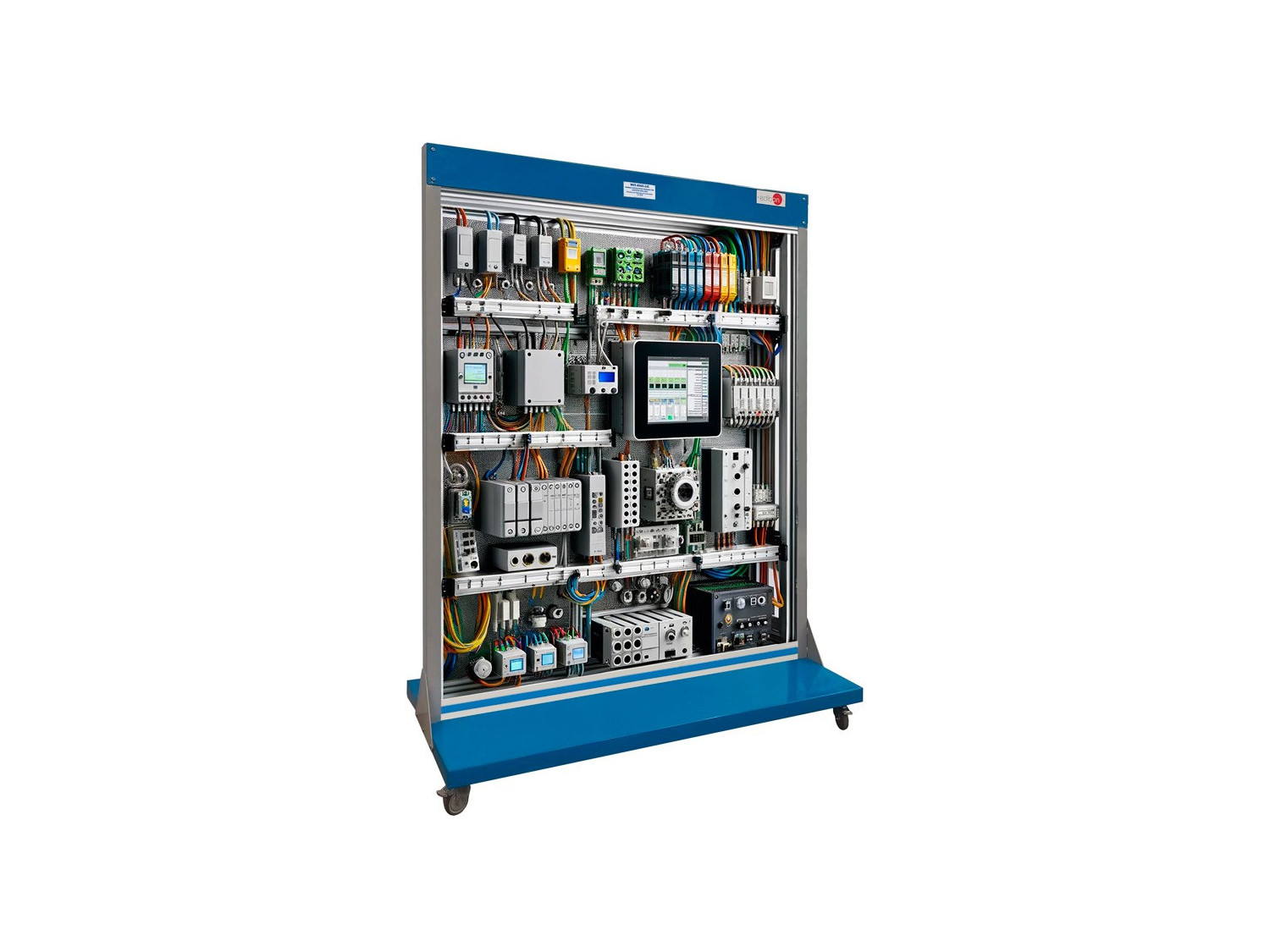

The WIT-KNX-LIC is a unit designed to facilitate the study and understanding of KNX wiring practices specifically tailored for lighting control systems. This unit serves as a valuable tool for educational and professional purposes, providing hands-on experience and insights into the wiring techniques, programming and commissioning associated with KNX technology in the context of lighting control applications.
