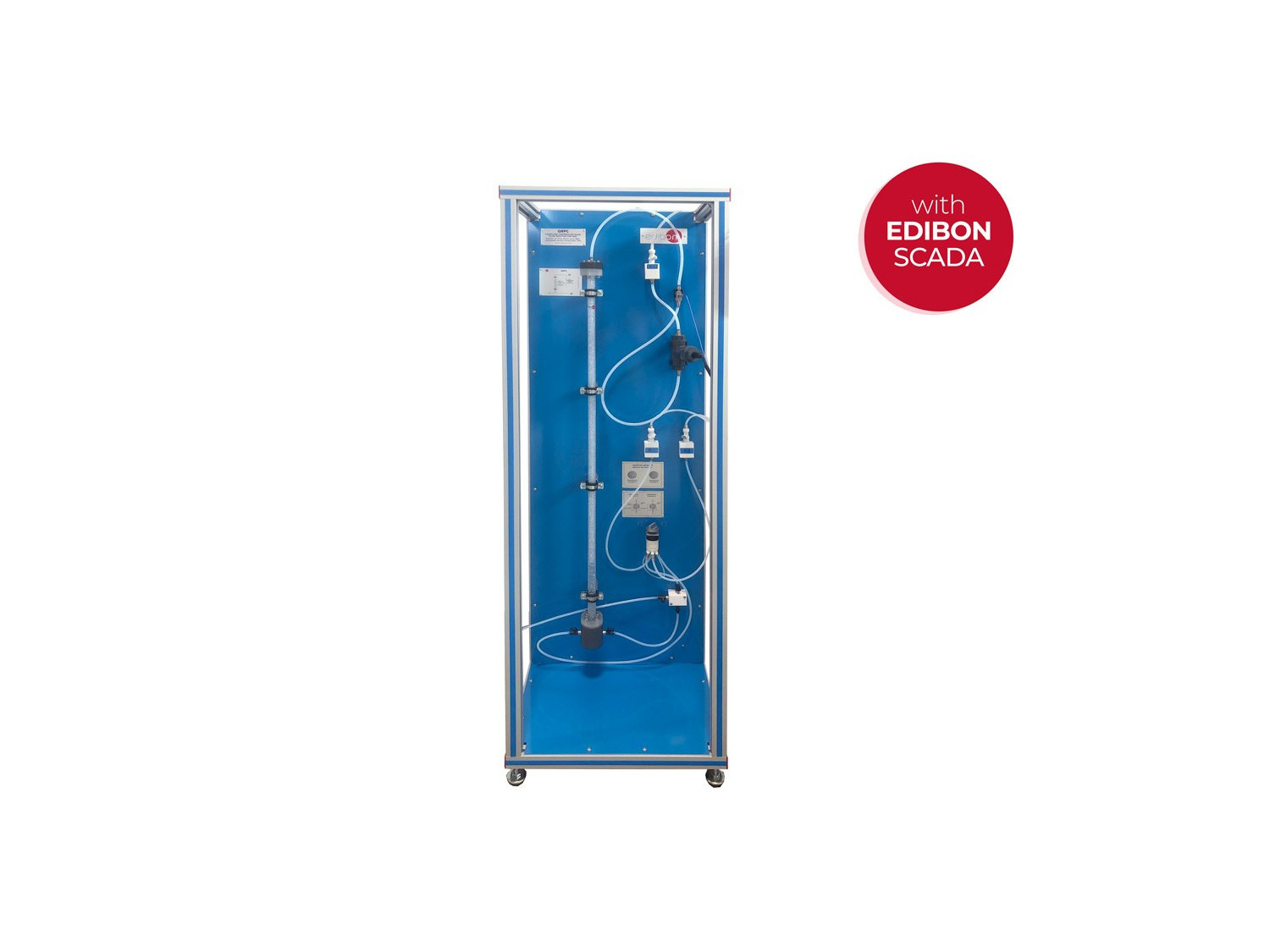

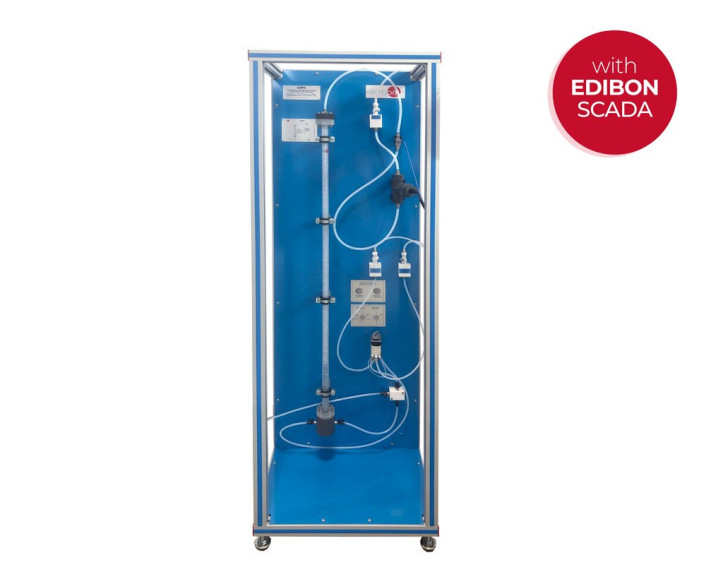

Complete QRPC Unit

COMPUTER CONTROLLED PLUG FLOW REACTOR FOR QRC - QRPC
COMPUTER CONTROLLED PLUG FLOW REACTOR FOR QRC - QRPC

SISTEMAS INOVADORES

The Computer Controlled Plug Flow Reactor for QRC, "QRPC", designed by EDIBON, allows studying and investigating the kinetics of reactions and flow behavior in chemical systems. A plug flow reactor is a type of tubular reactor that assumes the assumption of no axial mixing of components along its length.

Ver descrição geral

Expansões

ICAI

Software Interativo para Educação Assistida por Computador
FSS

Sistema de Simulação de Falhas
PLC

Controle de Processos Industriais por CLP
PLCHMI

Controle e Monitoramento local/remoto IIoT com HMI
ELK

Kit de Desenvolvimento de Software EDIBON, Desenvolvido por NI LabVIEW ™
ECR

Sistema Modular Industrial EDIBON com NI CompactRIO
ESN

EDIBON Scada-Net
ECL

Educação a Distância EDIBON

LABORATÓRIOS

11TV
 Laboratório de Engenharia Química para o Ensino Técnico e Vocacional
11HE
 Laboratório de Engenharia Química para o Ensino Superior
11PTC
 Laboratório para o Centro de Formação Petrolífera

NOTÍCIAS RELACIONADAS

Setting up in the Francisco de Vitoria University (UFV)
Setting up in the Francisco de Vitoria University (UFV)
We want to talk about the latest installation that we have done in the Department of Biotechnology of the Francisco de Vitoria University in Madrid (Spain) There we have installed our Computer Controlled Chemical Reactors (QRC) with its Service Unit (QUSC) and Computer Controlled Plug Flow...
Ler mais

Descrição Geral

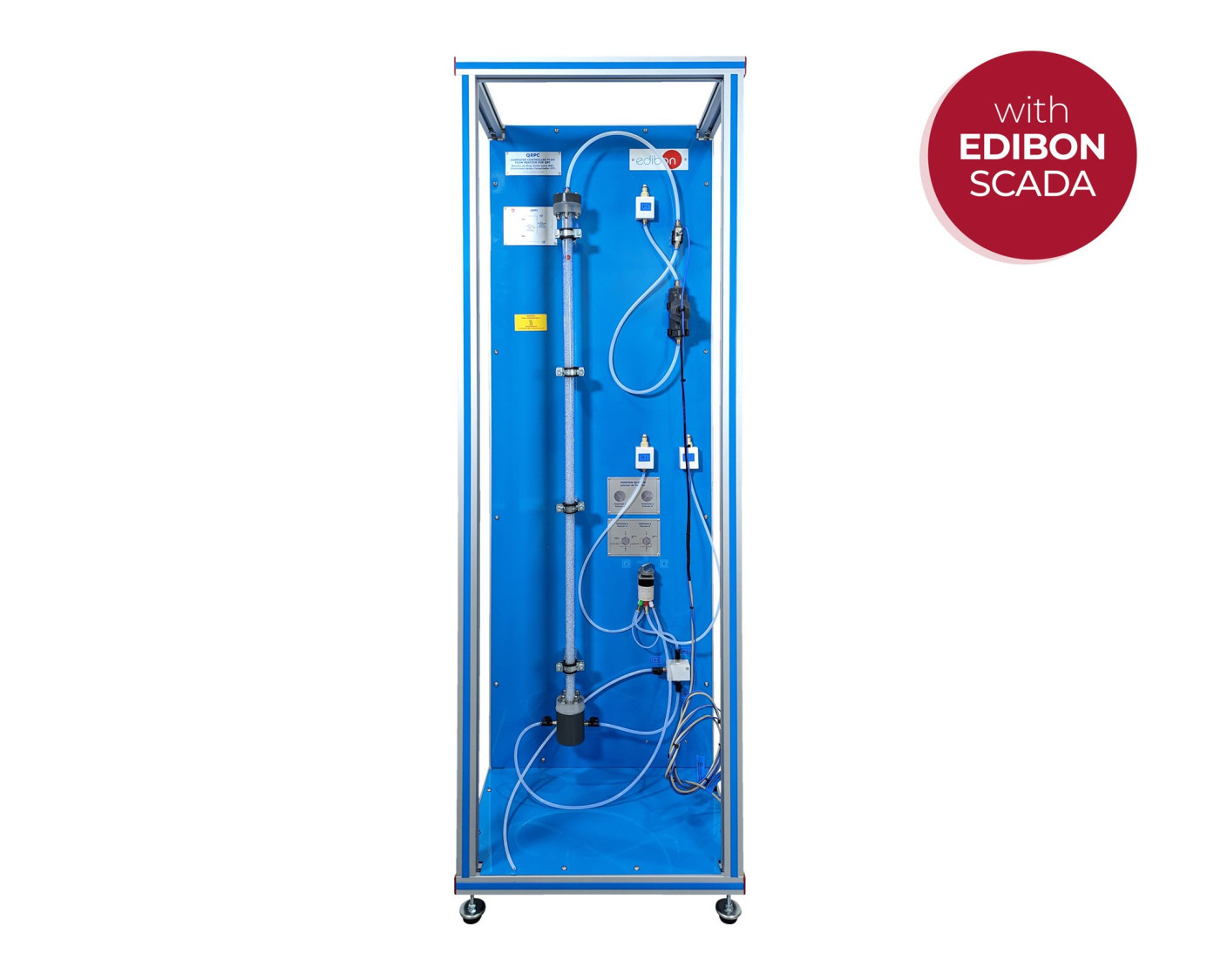

The Computer Controlled Plug Flow Reactor for QRC, "QRPC", designed by EDIBON, allows studying and investigating the kinetics of reactions and flow behavior in chemical systems. A plug flow reactor is a type of tubular reactor that assumes the assumption of no axial mixing of components along its length.

This type of reactor requires the application of a series of specific formulas over a volume differential instead of over the total volume, as is the case with perfectly mixed reactors.

This reactor enables the determination of key kinetic equations, such as the basic hydrolysis of ethyl acetate, which is fundamental for the design and optimization of industrial processes. It facilitates comparative analysis between theoretical and experimental conversion values, enhancing understanding of chemical processes.

Additionally, it examines the effect of flow rate and feed concentration on reaction efficiency and selectivity. Its ability to investigate the influence of temperature on laminar flow characterization is essential for optimizing chemical processes under variable conditions. Furthermore, it studies the reactor’s response to disturbances, such as pulses and step changes, providing vital information for the design and control of industrial chemical processes.

In summary, the piston flow reactor enables a wide range of practices and experiments, making it an invaluable tool for researchers, educators, and industry professionals seeking to understand and optimize complex chemical processes.

To work with this reactor, the Base and Service Unit, "QUSC", is required, which supplies the necessary reagents and thermostatic water for proper operation.

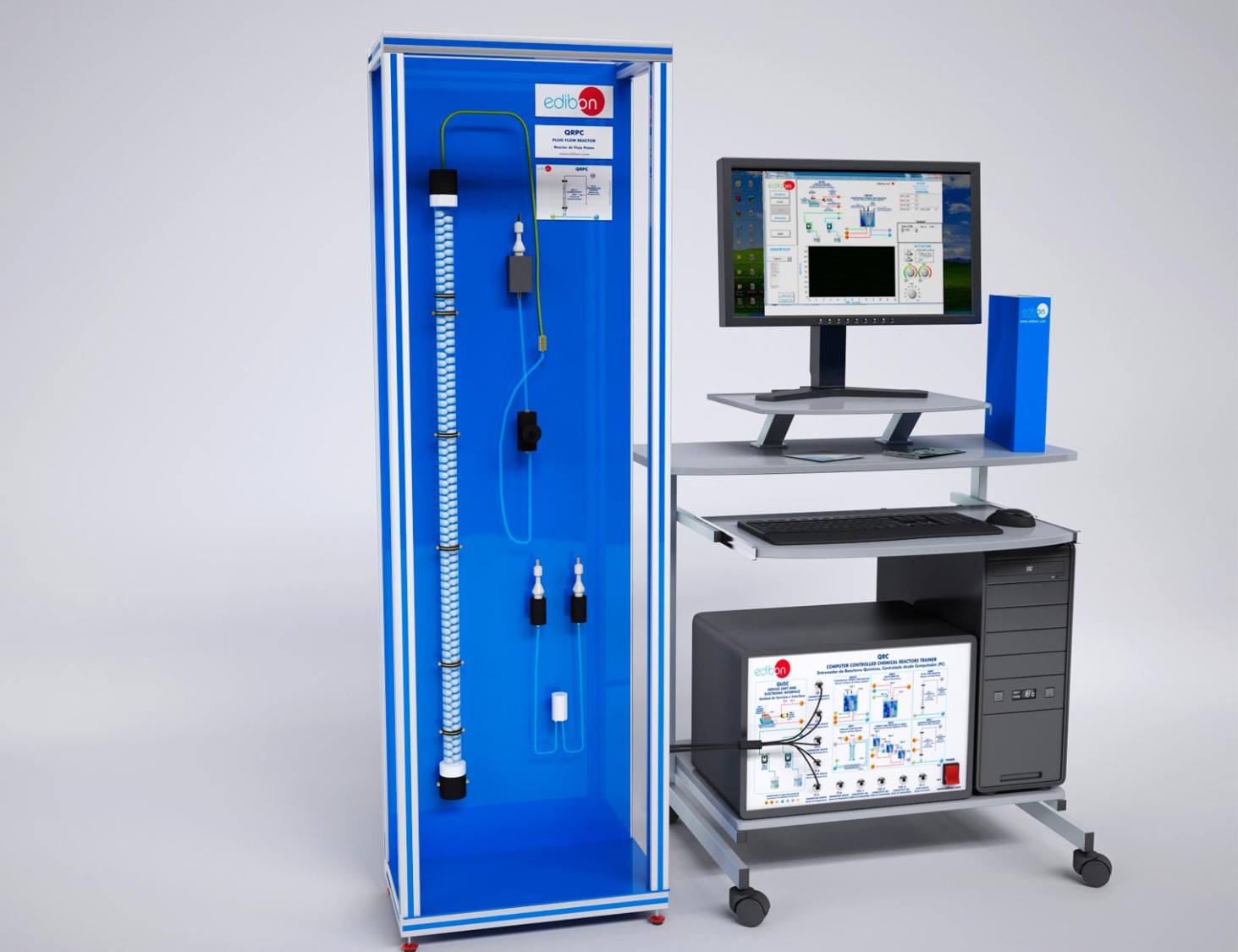

These Computer Controlled Units are supplied with EDIBON Computer Control System (SCADA), and includes: The unit itself + a Control Interface Box + a Data Acquisition Board + Computer Control, Data Acquisition and Data Management Software Packages, for controlling the process and all parameters involved in the process.

EXERCÍCIOS E PRÁTICAS GUIADAS

EXERCÍCIOS PRÁTICOS GUIADOS INCLUÍDOS NO MANUAL

  1. Determination of the residence time distribution of the reactor.
  2. Effect of flow rate and feed concentration on the determination of flow pattern.
  3. Study of the reactor response to different perturbations: step and pulse change.
  4. Effect of flow rate and feed concentration on the steady state conversion.
  5. Demonstration of the flow pattern in the reactor and comparison with the theoretical model.
  6. Determination of the steady state conversion of a second order reaction.
  7. Understanding the principles of tracer techniques in flow pattern characterisation.
  8. Conductivity measurement system: conductimeter.
  9. Sensors calibration.
