MEMT-6 Vibração por Fricção

7.1.5.- TRIBOLOGIA (ATRITO, DESGASTE, LUBRIFICAÇÃO) 14.1.5.- TRIBOLOGIA (ATRITO, DESGASTE, LUBRIFICAÇÃO)
FRICTION VIBRATION - MEMT-6

SISTEMAS INOVADORES

This module allows to demonstrate the static friction, the sliding friction, the related friction vibrations and the slip-stick effects.

Ver descrição geral

Expansões

ICAI

Software Interativo para Educação Assistida por Computador

NOTÍCIAS RELACIONADAS

EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
Ler mais
NEW Basic Mechanics course
NEW Basic Mechanics course
Are you a teacher or do you work as an engineering researcher? EDIBON offers courses for teachers and #research staff. Take a look at the course Basic Mechanics and learn about #forces and vectors. #DiscoverEdibon #Engineering.
Ler mais

Descrição Geral

This module allows to demonstrate the static friction, the sliding friction, the related friction vibrations and the slip-stick effects.

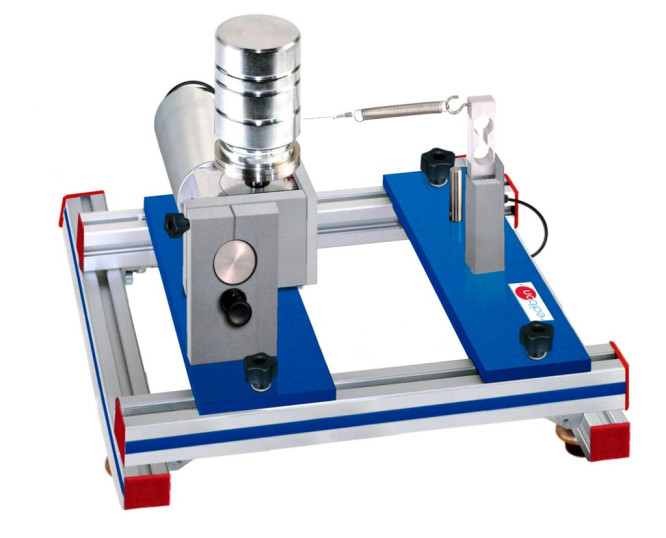

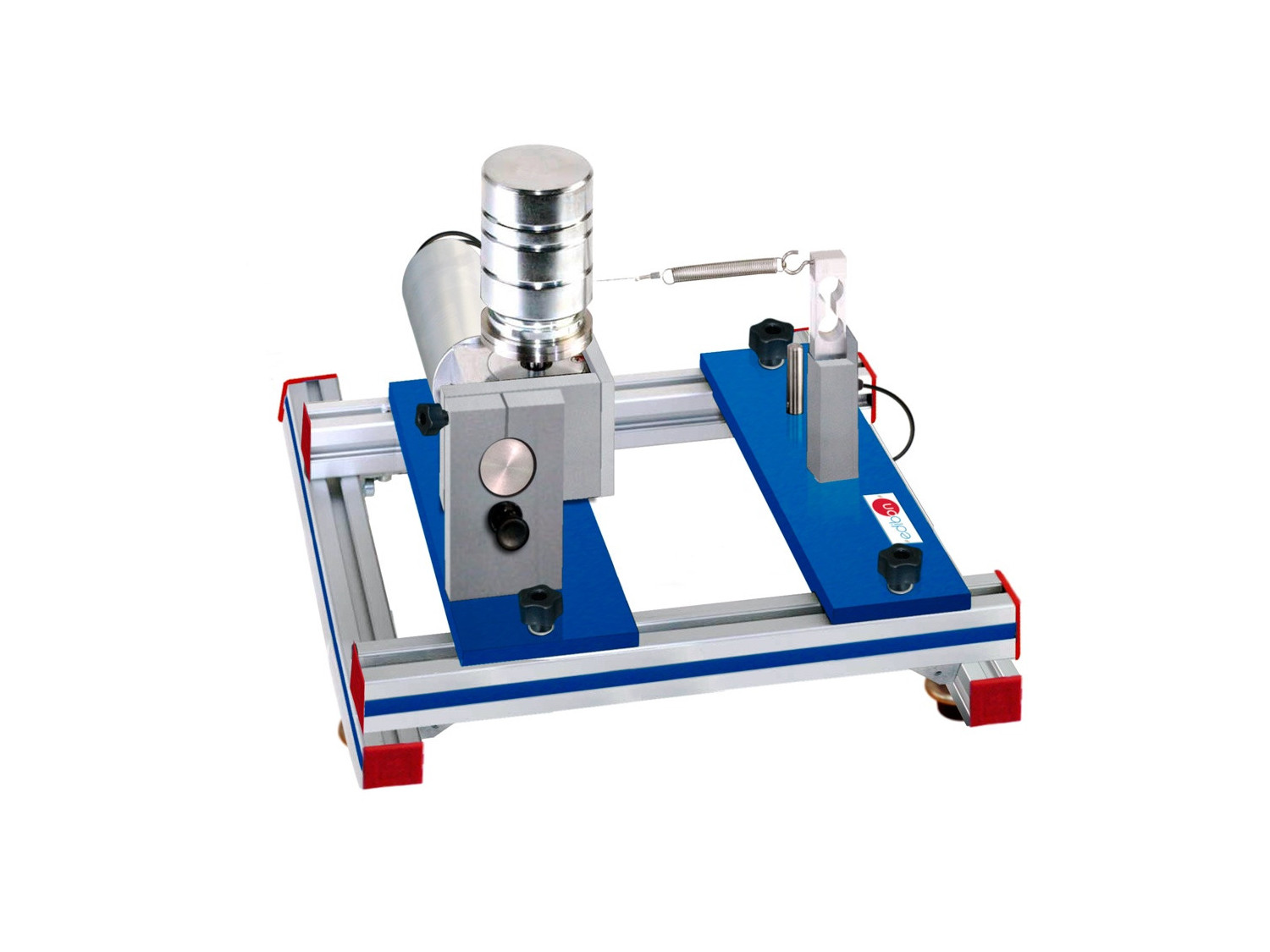

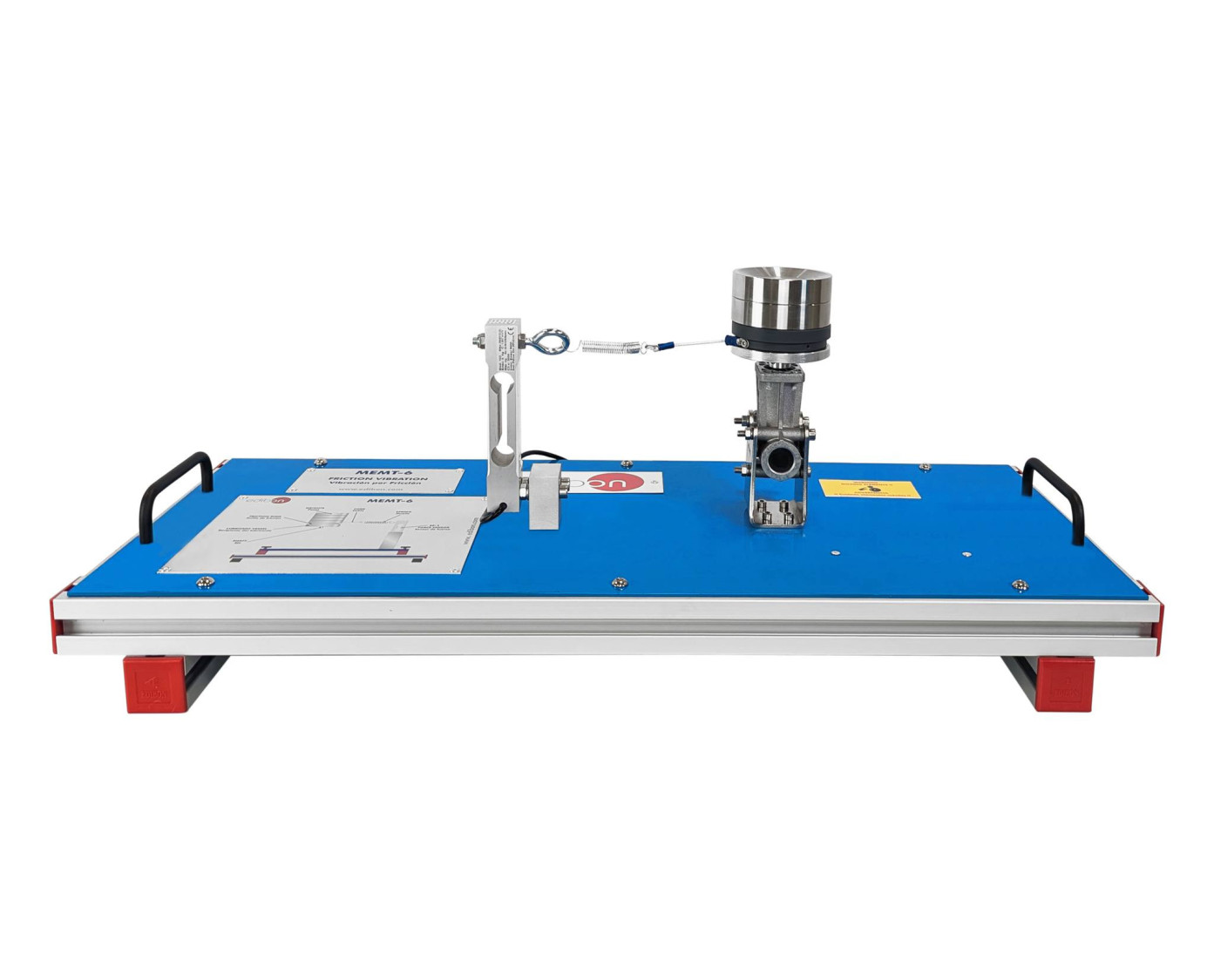

Several weights are placed on a horizontally rotating friction disc. It is prevented from turning by a cord. This cord is coupled to force measuring devices with a force sensor via a tension spring. An open vessel surrounds the friction disc to place different lubricants.

EXERCÍCIOS E PRÁTICAS GUIADAS

EXERCÍCIOS PRÁTICOS GUIADOS INCLUÍDOS NO MANUAL

  1. Demonstration of the transition from static friction to sliding friction.
  2. Study of the influence of lubrication on stick-slip effects.
  3. Study of the influence of the force between the components on the stick-slip effects.
  4. Study of the influence of the relative speed of the components on the stick-slip effects.

ELEMENTOS NECESSÁRIOS
