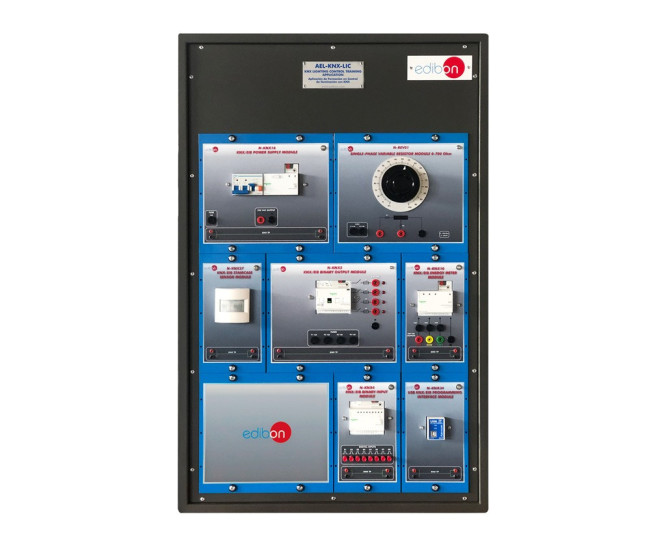

The AEL-KNX-LIC is an application designed to facilitate the study and understanding of KNX wiring practices specifically tailored for lighting control systems. This unit serves as a valuable tool for educational and professional purposes, providing hands-on experience and knowledge of the wiring, programming and commissioning techniques associated with KNX technology in the context of lighting control applications.
НОВОСТИ ПО ТЕМЕ
ОБЩЕЕ ОПИСАНИЕ

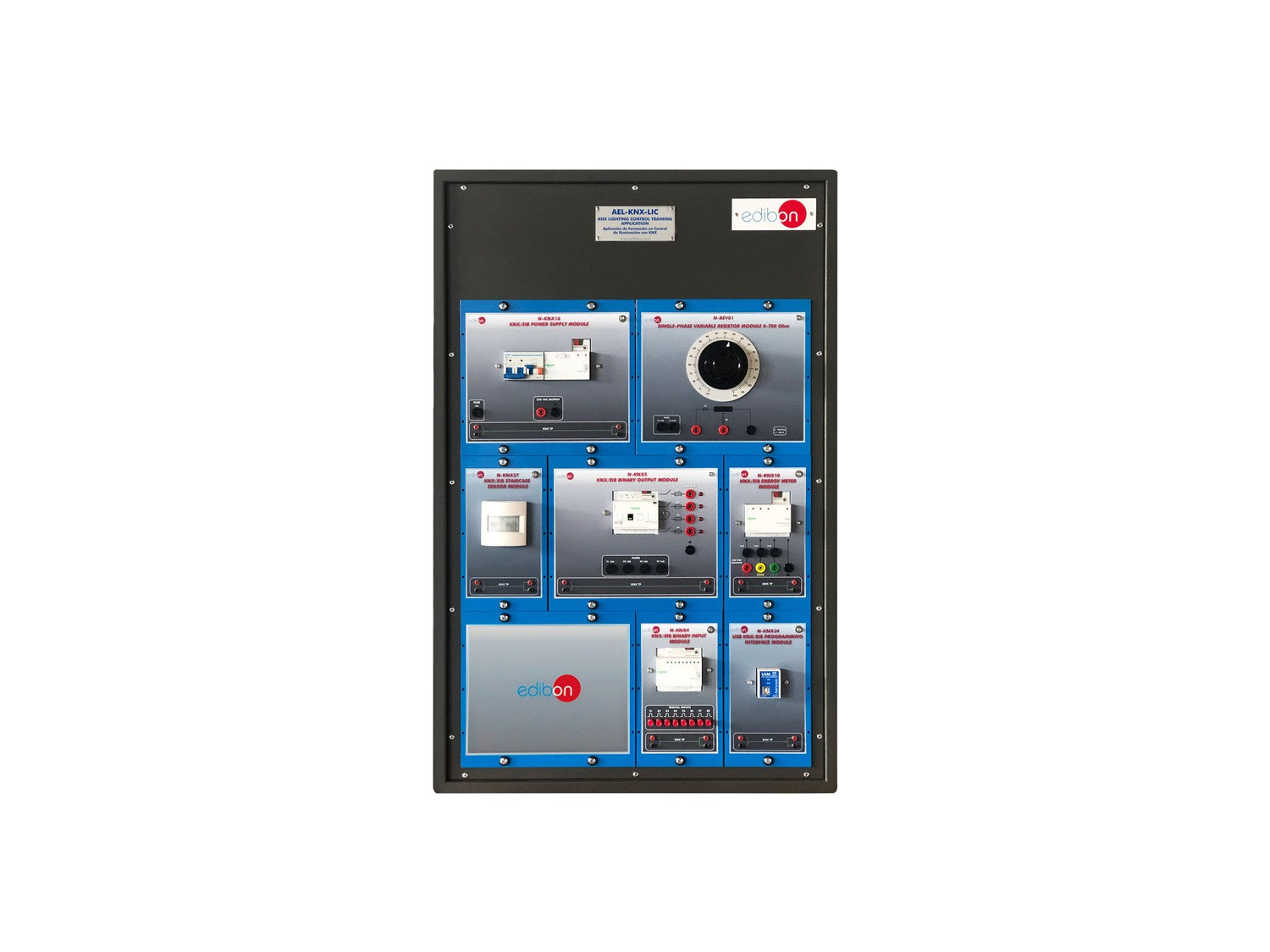

The AEL-KNX-LIC is an application designed to facilitate the study and understanding of KNX wiring practices specifically tailored for lighting control systems. This unit serves as a valuable tool for educational and professional purposes, providing hands-on experience and knowledge of the wiring, programming and commissioning techniques associated with KNX technology in the context of lighting control applications. Direct dimming via lighting sensors and push buttons, use of KNX/DALI gateways for the integration of this technology in KNX lighting projects.
Key features of the AEL-KNX-LIC include:
- Hands-on Learning: the device allows users to perform practical exercises related to KNX wiring practices, focusing on the nuances of wiring for lighting control scenarios.
- Simulation of Lighting Control Scenarios: Users can simulate and experiment with various lighting control scenarios, understanding how KNX technology facilitates the integration and control of lighting systems in intelligent buildings.
- Hands-on Training: Provides a practical learning experience, allowing users to connect and configure KNX devices in a controlled environment. This contributes to a better understanding of wiring principles and the overall functionality of KNX systems.
- Comprehensive documentation: The accompanying documentation provides detailed information on KNX wiring practices, ensuring that users have access to comprehensive guidance and instructions for effective learning.<
- Compatibility: The device is compatible with standard KNX devices and protocols, ensuring seamless integration into KNX-based educational and professional environments.
УПРАЖНЕНИЯ И ПРИМЕРЫ С ИНСТРУКЦИЯМИ
РУКОВОДСТВО ПО ПРАКТИЧЕСКИМ УПРАЖНЕНИЯМ ВКЛЮЧЕНО В РУКОВОДСТВО ПОЛЬЗОВАТЕЛЯ
- Realization of Binary Luminaire Control: Integration of LED luminaires into the installation, programming of the control using the KNX binary output module. Application of wiring techniques for safe connection.
- Connection of the Brightness Sensor: connection of the KNX brightness sensor, configuration for automatic adjustment of the lighting according to ambient light conditions.
- Manual Interaction with KNX Push Button: connection and integration of a KNX push button, programming for manual switching on and off of the lights in the room.
- Installation of the KNX Room Controller with Touchscreen: configuration of the KNX room controller with touchscreen, exploration of the functions and programming capabilities.
- Connection and Integration KNX/DALI: connection of a DALI light controller, integration into the KNX system for unified control of DALI luminaires.
Project creation in ETS and topology definition:
- Creation of a New Project in ETS: development of a new project from scratch with the ETS software and definition of general features and establishment of basic topology of the KNX system.
- Bus Topology Definition: configuration of the KNX bus topology, identification of devices and establishment of physical addresses.
- Physical Address Assignment: assignment of physical addresses to KNX devices in the project and following of addressing standards and recommendations.
- Topology Verification: verification of configuration consistency and compliance with KNX system requirements.
KNX Device Diagnostics:
- Use of Diagnostic Tools: use of diagnostic tools in the ETS software to verify communication and status of KNX devices.
- Communication Testing: performing communication tests between KNX devices and the bus and identification and resolution of possible connection problems.
- Telegram Analysis: analysis of telegrams sent and received by KNX devices, identification of possible errors or interferences in the network.
- Troubleshooting: diagnosis and resolution of configuration or connection errors in KNX devices and use of diagnostic tools available in the ETS software.
- Event Logging: use of event logging functions to monitor and analyze the behavior of KNX devices under different operating conditions.
ДОПОЛНИТЕЛЬНОЕ ОБОРУДОВАНИЕ
4.2.4.- КОММУНИКАЦИОННАЯ ШИНА / ЕВРОПЕЙСКАЯ ИНСТАЛЛЯЦИОННАЯ ШИНА / АВТОМАТИЗАЦИЯ ЗДАНИЙ
AEL-KNX
Применение систем автоматизации KNX в зданиях

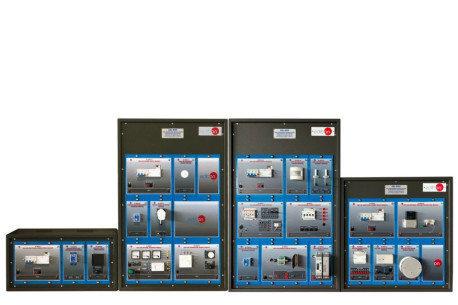

The KNX Automation Installations in Buildings Application, "AEL-KNX", provides students, teachers and automation professionals with a unique opportunity to enter the world of KNX building automation project development, interconnection of KNX...
