WHIRLING OF SHAFTS UNIT - MEER

ИННОВАЦИОННЫЕ СИСТЕМЫ

The Whirling of Shafts Unit, "MEER", has been designed by EDIBON to demonstrate and determine different modes of oscillation and resonance of shafts with continuous distribution of mass under different conditions.

Посмотреть общее описание

Расширения

ICAI

Программное Обеспечение для Интерактивного Компьютерного Обучения
MSAC

Модульная Система Сбора и Управления

ЛАБОРАТОРИИ

7TV
 Лаборатория механики, автомобилестроения и материалов для технического и профессионального образования
7HE
 Лаборатория механики, автомобилестроения и материалов для высшего образования

НОВОСТИ ПО ТЕМЕ

EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
Читать дальше
NEW Basic Mechanics course
NEW Basic Mechanics course
Are you a teacher or do you work as an engineering researcher? EDIBON offers courses for teachers and #research staff. Take a look at the course Basic Mechanics and learn about #forces and vectors. #DiscoverEdibon #Engineering.
Читать дальше

ОБЩЕЕ ОПИСАНИЕ

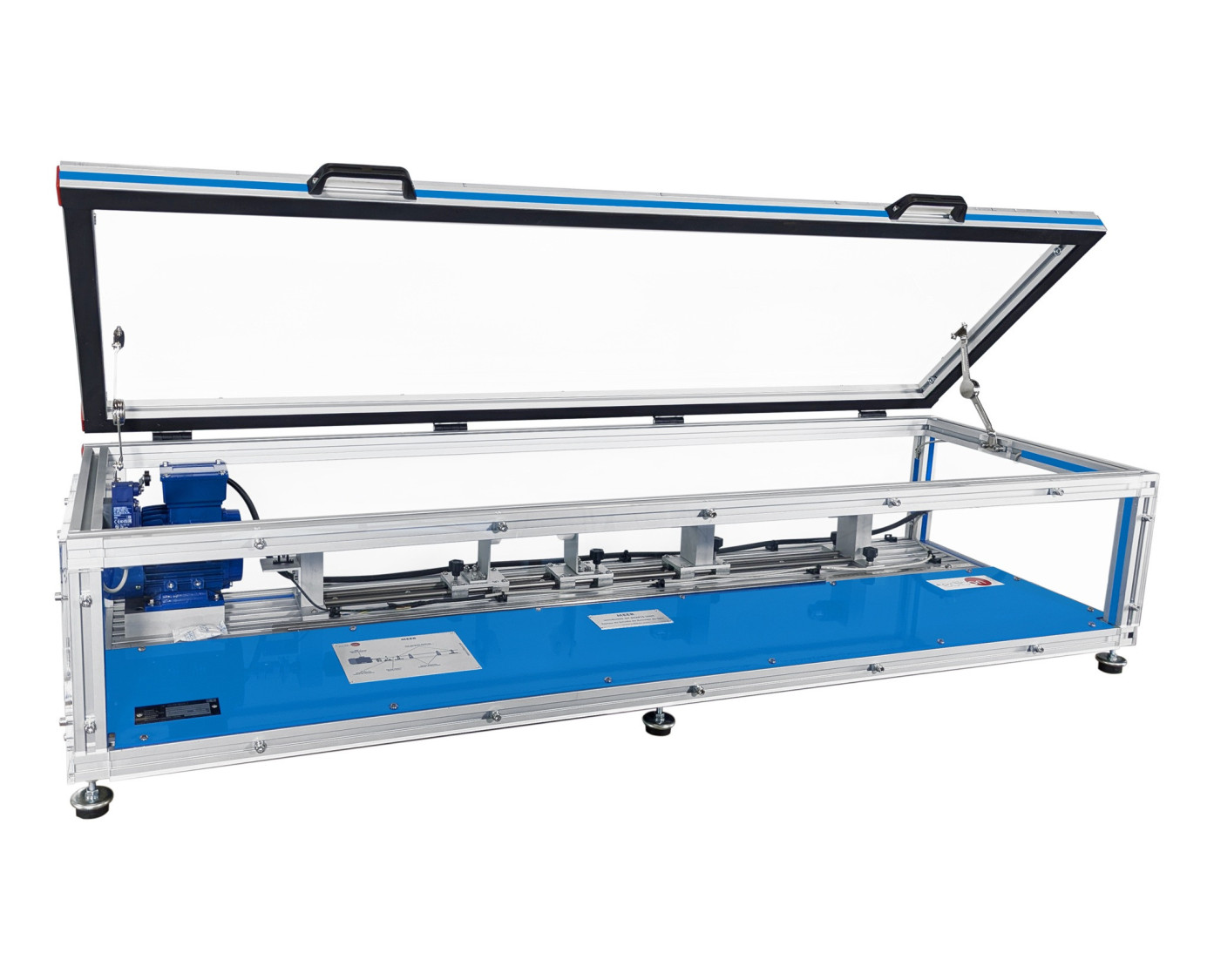

The Whirling of Shafts Unit, "MEER", has been designed by EDIBON to demonstrate and determine different modes of oscillation and resonance of shafts with continuous distribution of mass under different conditions.

The operation of the Whirling of Shafts Unit, "MEER", starts when the potentiometer of the console is activated.

This potentiometer delivers electric power to the motor, which starts to rotate at a specific frequency. As the power delivered increases, the motor will rotate quicker.

This speed is obtained from the reading of the velocity sensor.

The rotation of the motor is transferred by an elastic coupling to a fixed support with a mandrel. The rotation is transferred from that support to the fixed shaft.

Several supports are located along the shafts under study to establish different configurations with fixed or articulated supports. These restrictions imposed on the shafts will determine the way in which they oscillate.

УПРАЖНЕНИЯ И ПРИМЕРЫ С ИНСТРУКЦИЯМИ

РУКОВОДСТВО ПО ПРАКТИЧЕСКИМ УПРАЖНЕНИЯМ ВКЛЮЧЕНО В РУКОВОДСТВО ПОЛЬЗОВАТЕЛЯ

  1. Visualization of different modes of oscillation in a shaft.
  2. Influence of the rotating speed of the shaft. Critical speed and operation speed.
  3. Speed of the modes of vibration of a rotor shaft in function of different distances between supports.
  4. Speed of the modes of vibration of a rotor shaft in function of different diameters of the shaft.
  5. Speed of the modes of vibration of a rotor shaft in function of different conditions in the ends.
  6. Study of a Laval rotor: critical speed and auto-centering.
  7. Critical speed of the shaft with concentrated load in function of the position of the mass.

БОЛЬШЕ ПРАКТИЧЕСКИХ УПРАЖНЕНИЙ ДЛЯ РАБОТЫ С УСТРОЙСТВОМ

  1. Demonstration of basic whirling.
