MDU-SBD Set of Belt Drive

7.4.3.- INSTALLATIONS AND MAINTENANCE TRAINING

INNOVATIVE SYSTEMS

The Set of Belt Drive, "MDU-SBD", allows to study the conditions that cause vibrations or slip in belts.

See general description

Catalog

Tender Specifications

General Description

The belt drives are noiseless drive devices, have a long life and require little maintenance provided that its design, assembly and adjustment are correct.

The Set of Belt Drive, "MDU-SBD", allows to study the conditions that cause vibrations or slip in belts.

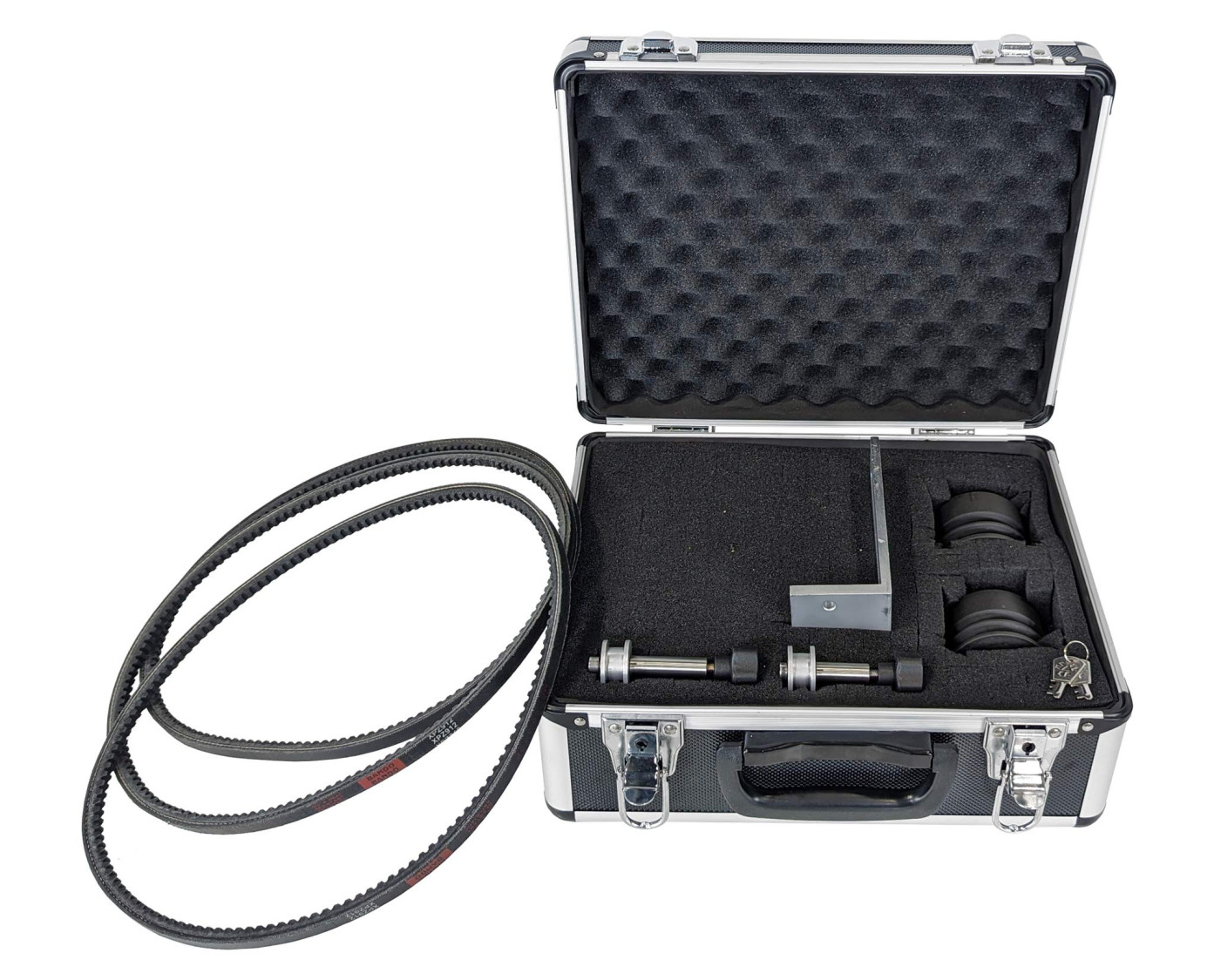

The set consists of three belts, three pulleys and a set of tensioning rollers and a belt pre-tension meter.
