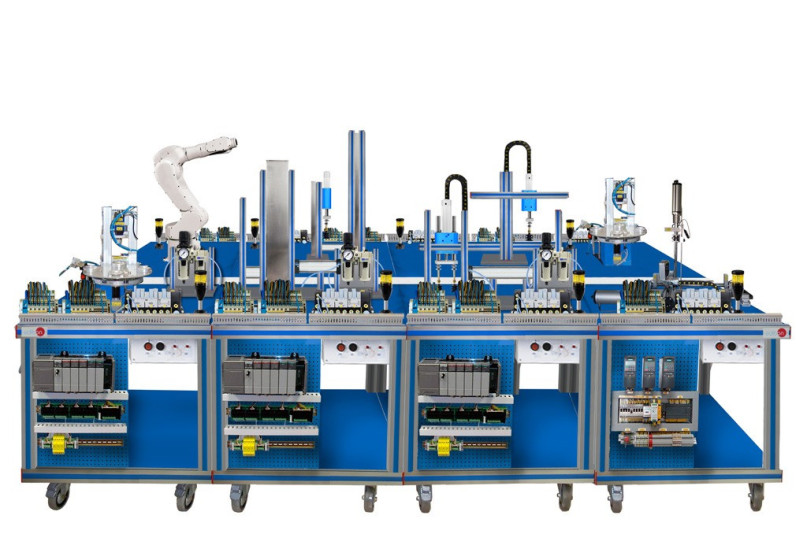

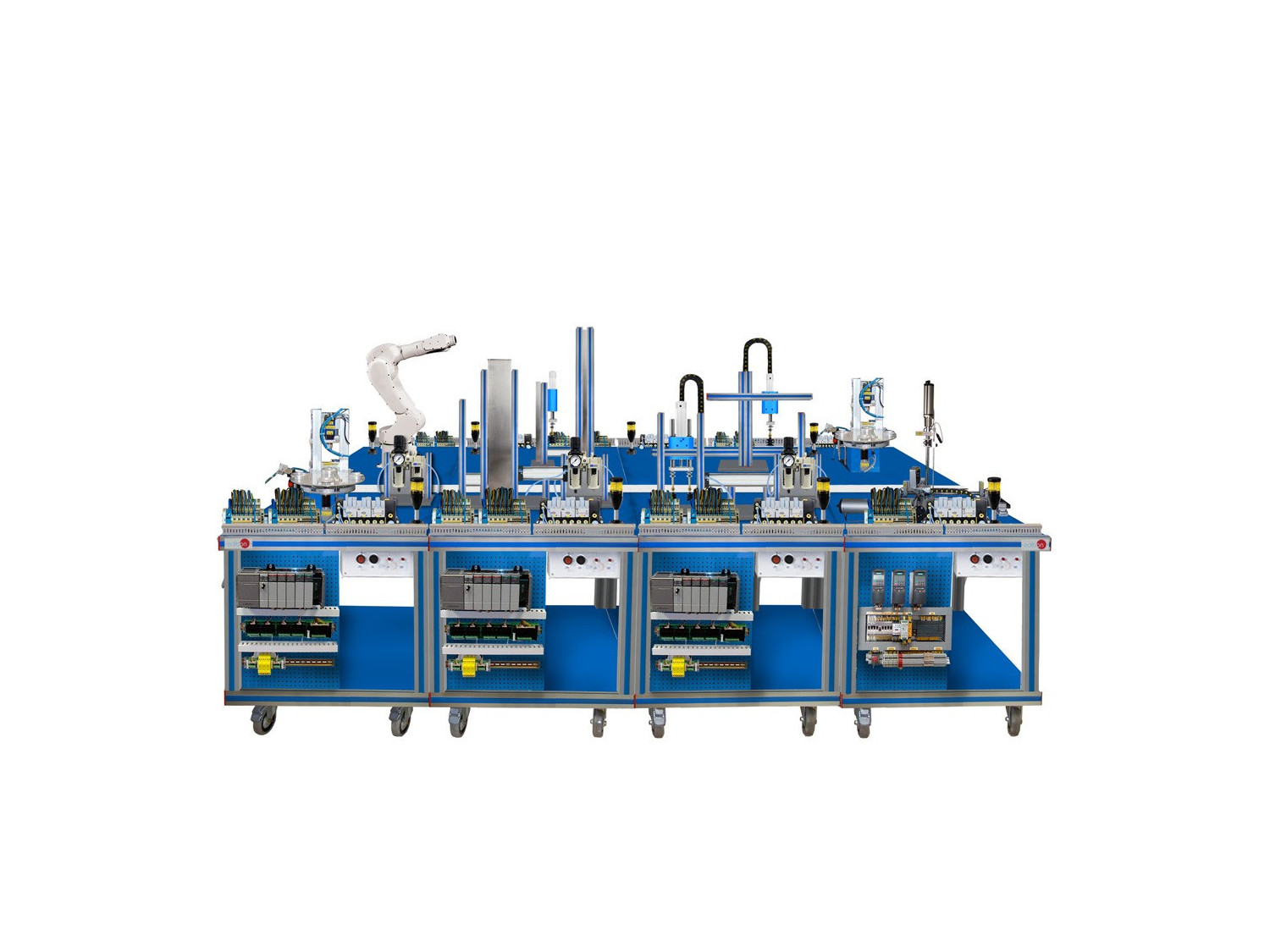

AE-PLC-FMS1 Sistem Manufaktur Fleksibel untuk Transportasi, Perakitan, Pengepresan, Seleksi, Pemasangan Sekrup, dan Penyimpanan

6.2.6.- SISTEM MANUFAKTUR FLEKSIBEL DENGAN PLC
FLEXIBLE MANUFACTURING SYSTEM 1 - AE-PLC-FMS1

SISTEM INOVATIF

The Flexible Manufacturing System 1, "AE-PLC-FMS1" is a modular system composed of five workstations: the Feeding Workstation for Pieces "AE-PLC-A", the Mounting Workstation "AE-PLC-M", the Automatic Pressing Workstation, "AE-PLC-P", the Rotary Table Workstation 1 "AE-PLC-MR1", the Rotary Table Workstation 2 "AE-PLC-MR2", the Automatic Screw Workstation "AE-PLC-AT", the Robotic Arm Workstation "AE-BR", the Storage Workstation "AE-PLC-AL" and the Linear Transport Workstation "AE-PLC-T".

Lihat uraian umum

Ekspansi

ICAI

Perangkat Lunak Pengajaran Berbantu Komputer Interaktif

BERITA TERKAIT

EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
Baca lebih lanjut

GAMBARAN UMUM

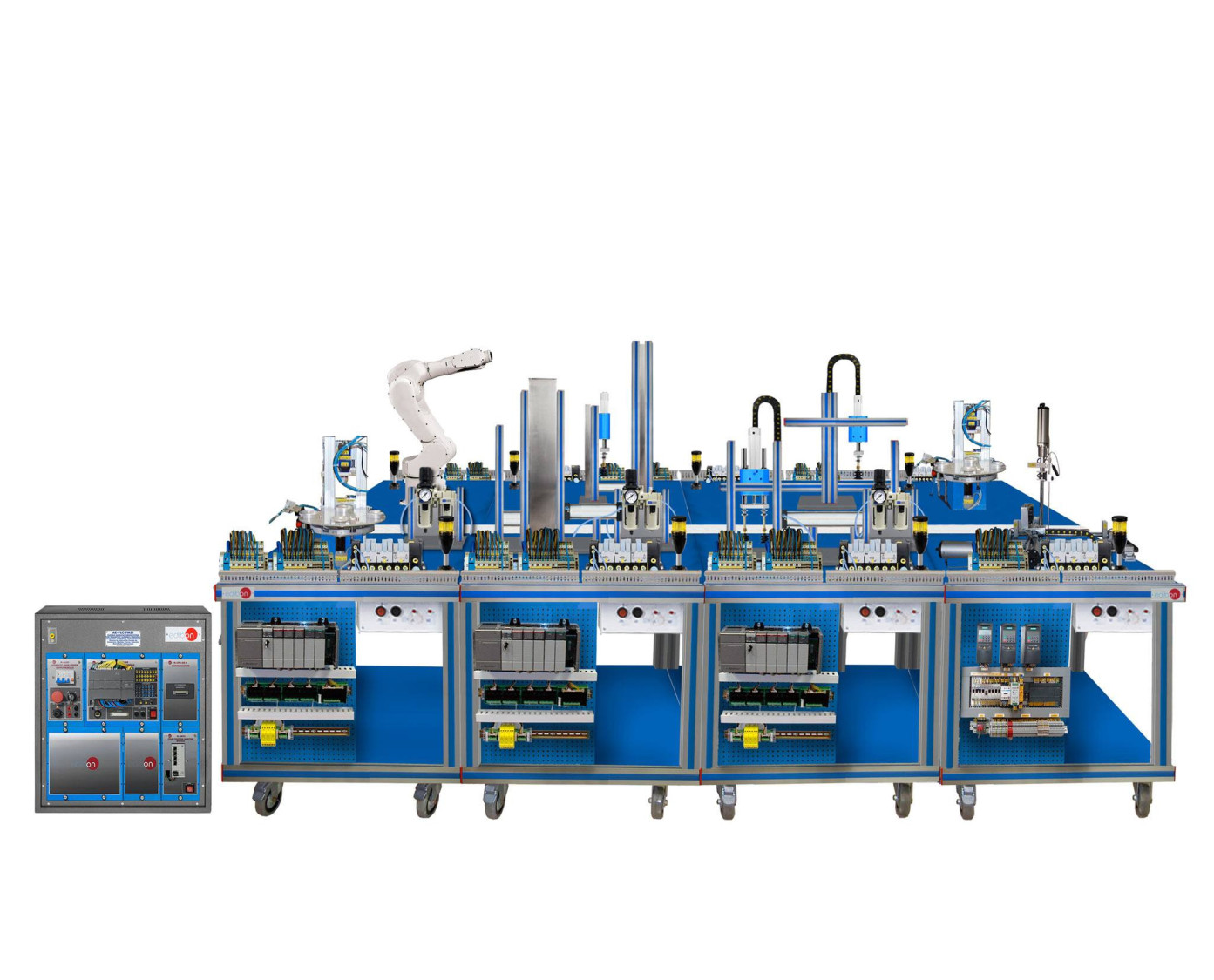

The Flexible Manufacturing System 1, "AE-PLC-FMS1" is a modular system composed of five workstations: the Feeding Workstation for Pieces "AE-PLC-A", the Mounting Workstation "AE-PLC-M", the Automatic Pressing Workstation, "AE-PLC-P", the Rotary Table Workstation 1 "AE-PLC-MR1", the Rotary Table Workstation 2 "AE-PLC-MR2", the Automatic Screw Workstation "AE-PLC-AT", the Robotic Arm Workstation "AE-BR", the Storage Workstation "AE-PLC-AL" and the Linear Transport Workstation "AE-PLC-T".

The objective of the "AE-PLC-FMS1" system is to provide a base piece and mount three different pieces and screws inside it, once the piece is complete, the system storage them in a specific position of the depot.

The process of the "AE-PLC-FMS1" is explained in the following lines:

  • First, the feeding system provides the base pieces with the correct dimensions and place them on the linear transport system.
  • Then, the mounting workstation provide another piece, and after verify that is correct, mount them inside the base piece placed on the linear transport system.
  • The next workstation perform the pressing of the mounted piece in the base piece, this pressing process is performed by a hydraulic cylinder.
  • After that, two rotary table workstations provide two pieces of different colors, dimensions and materials to be mounted inside the base piece.
  • Then, the automatic screw workstation put four screws in the Base pieces to finish them.
  • Before that, the robotic arm workstation perform the automatic screwing of the mounted screws. To perform this task the robotic arm mount an automatic screwing machine.
  • Finally, the storage workstation that take the base pieces through an automatic manipulator and place them in the desired place of the storage.

Each workstation is locally commanded by a PLC device and, in turn, a central PLC coordinates all workstations. The communication network between workstations and PC is based on the Ethernet protocol.

The "AE-PLC-FMS1" system design by EDIBON allows the users to learn the basic concepts of automation as the operation of an Ethernet network or how to program a PLC and about other areas as pneumatic, electro-pneumatic, vacuum technology, etc.

The optional "AE-AS" software is design to teach the students how works real automation software. This software allows making 2D and 3D processes simulations, supervising and controlling SCADA systems, programming and communicating PLCs, simulating hydraulic, pneumatic and electronic devices operation, etc.

LATIHAN DAN PRAKTEK PEDOMAN

LATIHAN PRAKTIS YANG DIANDAL TERMASUK DALAM PANDUAN

Practical possibilities to be done with the Flexible Manufacturing System 1 (AE-PLC-FMS1):

  1. Introduction to flexible manufacturing system (FMS).
  2. Introduction to pneumatics and electro-pneumatics.
  3. Introduction to vacuum technology.
  4. Study of the sensor detection.
  5. Testing the digital inputs and outputs of the automatic systemthrough a PLC.
  6. Modify manufacturing parameters through the PLC.
  7. Configuration of a pneumatic application.
  8. Introduction to the Human-machine interface systems (HMI).
  9. Study of an automatic control of an industrial system.
  10. Control of the flexible manufacturing system through a centralPLC in an Ethernet network with local PLC in each workstation.
  11. Manage the flexible manufacturing system through the HMIdevice.

Practical possibilities to be done with the optional softwareAutomation Systems Simulation Software (AE-AS):

  1. Introduction to the SCADA control system.
  2. OPC server system with Ethernet.
  3. SCADA control of an automatic industrial system through PC.

Practical possibilities to be done with the Workstation alone:

- Feeding Workstation for Pieces (AE-PLC-A).

  1. Manual control of a Feeding system.
  2. Automatic control of a Feeding system.
  3. Change the parameters of the Feeding process.
  4. Optimize the process time.
  5. Study and analysis of the faults inserted in the process with thefault generation module.

- Mounting Workstation (AE-PLC-M).

  1. Manual control of a mounting system.
  2. Automatic control of a mounting system.
  3. Change the parameters of the mounting process.
  4. Optimization of the process time.
  5. Study and analysis of the faults inserted in the process with thefault generation module.

- Automatic Pressing Workstation (AE-PLC-P).

  1. Manual control of a pressing system.
  2. Automatic control of a pressing system.
  3. Change the parameters of the pressing process.
  4. Optimization of the process time.
  5. Study and analysis of the faults inserted in the process with thefault generation module.

- Rotary Table Workstation 1 (AE-PLC-MR1).

  1. Manual control of the rotary table system.
  2. Manual control of the feeding system on a rotary table.
  3. Manual control of the quality control and mounting processon a rotary table.
  4. Automatic control of the rotary table system.
  5. Automatic control of the feeding system on a rotary table.
  6. Automatic control of the quality control and mounting processon a rotary table.
  7. Change the parameters of the rotary table process.
  8. Optimize the process time.
  9. Study and analysis of the faults inserted in the process with thefault generation module.

- Rotary Table Workstation 2 (AE-PLC-MR2).

  1. Manual control of the rotary table system.
  2. Manual control of the quality control and drilling process on arotary table"
  3. Automatic control of the rotary table system.
  4. Automatic control of the quality control and drilling processon a rotary table.
  5. Change the parameters of the rotary table process.
  6. Optimize the process time.
  7. Study and analysis of the faults inserted in the process with thefault generation module.

- Automatic Screw Workstation (AE-PLC-AT).

  1. Manual control of a screwing system.
  2. Automatic control of a screwing system.
  3. Change the parameters of the screwing process.
  4. Optimize the process time.
  5. Study and analysis of the faults inserted in the process with thefault generation module

- Robotic Arm Workstation (AE-BR).

  1. Introduction to robotic systems.
  2. Robotic arm configuration.
  3. Set a simple movement of the robotic arm.
  4. Configuration of a pneumatic application.
  5. Set a simple pick and place task with the robotic arm.
  6. Modification of the task parameters.
  7. Optimize the task time.

- Storage Workstation (AE-PLC-AL).

  1. Manual control of a storing system.
  2. Automatic control of a storing system.
  3. Change the parameters of the storing process.
  4. Optimize the process time.
  5. Study and analysis of the faults inserted in the process with thefault generation module.

- Linear Transport Workstation (AE-PLC-T).

  1. Manual control of a transporting system.
  2. Automatic control of a transporting system.
  3. Change the parameters of a transporting process.
  4. Optimize the process time.
  5. Study and analysis of the faults inserted in the process with thefault generation module.
Lihat Lebih Banyak

LEBIH BANYAK LATIHAN PRAKTIS YANG AKAN DILAKUKAN DENGAN UNIT

  1. Several other exercises can be done and designed by the user.

PERALATAN SIMILAR TERSEDIA

FLEXIBLE MANUFACTURING SYSTEM 6 - AE-PLC-FMS6
  • AE-PLC-FMS6
Available
6.2.6.- SISTEM MANUFAKTUR FLEKSIBEL DENGAN PLC
AE-PLC-FMS6
Sistem Manufaktur Fleksibel untuk Pemberian Makan dan Klasifikasi

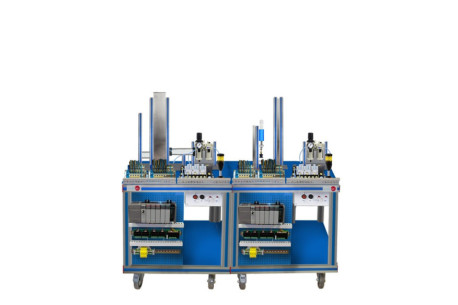

The Flexible Manufacturing System 6, "AE-PLC-FMS6" is a modular system composed of two workstations: the "AE-PLC-A" feeding workstation for pieces and the "AE-PLC-CF" sorting workstation. The objective of the "AE-PLC-FMS6" system is to provide...
